Collection: Asus

AMD Ryzen 7 7735HS, WiFi 6E, Bluetooth 5, Audio Chip, Black

Key Features

• Windows 11 Pro-ASUS recommends Windows 11 Pro for business
• Powered by the latest AMD Ryzen™ 7000 and 6000 Series Processor with Radeon™ graphics
• Quad-4K displays support and 8K UHD support**
• Support 7 USB ports, including 2 x USB 4 Type C ports, and on-board dual HDMI ports
• Features Two-Way AI Noise Cancelation to provide crystal-clear online voice communication
• Support DisplayPort 1.4 & Power Delivery input through rear USB Type C port
• Onboard 2.5GbE LAN delivering faster Ethernet connectivity
• Multi-storage design, support up to up to 2x M.2 PCIe Gen4x4 SSD and 1x HDD
• Integrated Wi-Fi 6E and Bluetooth for easy cordless connections
• Configurable Ports support DP1.4/VGA/COM/HDMI options
• 24/7 reliability — Extensively tested to ensure long-term dependability

Description

Ultra-compact Mini PC provides flexible, comprehensive solutions

ASUS ExpertCenter PN53 is no lightweight when it comes to performance. It harnesses the power of the latest AMD Ryzen™ 6000 and 7000 Series processor combined AMD Radeon™ 600M series graphics, and can accommodate multiple storage combinations. There's also two ultrafast PCIe®Gen 4 SSD slots and DDR5 support to ensure fast boot times and rapid app loads.

ASUS ExpertCenter PN53 is no lightweight when it comes to performance. It harnesses the power of the latest AMD Ryzen™ 6000 series processor combined AMD Radeon™ 600M series graphics, and can accommodate multiple storage combinations. There’s also two ultrafast PCIe® Gen 4 SSD slots and DDR5 support to ensure fast boot times and rapid app loads.

System & CPU Performance

PN53 delivers a system performance uplift of up to 10% better performance in daily multitask computing, comparing to previous generation - providing powerful computing capacity and enabling easy multitasking and smooth operation.

Graphics Performance

ExpertCenter PN53 gets a significant graphical boost with Radeon™ Graphics to deliver crisp, clear visuals that are way ahead of its class. It delivers a marked improvement, raising its score from 55% in 3DMark Fire Strike and increasing 49% 3DMark Night Raid performance benchmarks.

Ultrafast PCIe® 4.0 SSD

PCIe 4.0 doubles the data transfer rate of the prior PCIe 3.0 standard. ExpertCenter PN53 support one PCIe Gen4 x4 SSD to deliver greater data performance and lower latency.

*Test model: ASUS Mini PC | SAMSUNG GXA7301Q vs. SAMSUNG EXD7201
*Actual performance may vary depending on objective environmental changes.
Versatile USB 4 Type-C*

Versatile USB 4 Type-C

Power Delivery
The Power Delivery (PD) function can either receive power from a supported display* or supply power to mobile devices.

Superfast data transfers
Experience up to 40 Gbps data transmission speeds with USB*

DisplayPort™
Enjoy up to 8K @ 30 Hz video output*.

* Power Delivery (PD) input only supported by the rear USB 4 port.
* Actual speed may vary depending on devices and applications

Faster and Better DDR5 RAM

ASUS ExpertCenter PN53 is powered by the new AMD 6000 Series CPU supporting the next gen memory - DDR5. With DDR5 4800MHz memory that is 1.5X faster and 8% more energy efficient than DDR4 3200MHz memory, PN53 provides excellent performance for daily computing tasks.

4K Resolution & Quad Display Support

Integrated AMD Radeon 600M series graphics enable ExpertCenter PN53 to display stunning 4K UHD videos and imagery. With HDMI, USB-C DisplayPort and a configurable port that can be specified for video signal output, PN53 lets you extend your workspace across up to four displays.

4K Resolution & Quad Display Support
*Video playing or streaming in 4K or higher resolution requires dual channel memory configuration
*Configurable ports are confirmed SKU before configuring
*Actual resolution may vary depending on devices and application changes.
Ultra-realistic 8K Visuals

ExpertCenter PN53 supports stunning 8K UHD visuals via USB 4 or the configurable video output ports for detail four times greater than 4K, or a remarkable 16 times that of traditional FHD visuals. PN53 is capable of pumping out 8K imagery at 30 Hz via USB 4 or DisplayPort 1.4; or up to 60 Hz through HDMI 2.1* to bring images to life.

Exceptional Connection Experience – Wi-Fi 6 & Wi-Fi 6E*

The built-in WiFi 6 module allows ExpertCenter PN53 to deliver smooth high-resolution video streams, fewer dropped connections, and faster performance farther away from the router, even in dense environments. WiFi 6E is an expanded version of WiFi 6 to support high-speed 160 MHz channels.

And Wi-Fi 6E is the expanded version of Wi-Fi 6 to support extra high-speed 160MHz channels*.

Configurable Port

ExpterCenter PN53 is well-equipped for a wide range of functions and can be used for digital signage, POS systems or intelligent vending machines. The configurable port can be specified with either HDMI, VGA, DisplayPort, or COM ports, for monitors or legacy devices such as barcode scanners or receipt printers.

*Configurable ports are confirmed SKU before configuring.

Superfast 2.5 Gbps Networking

2.5 Gb Ethernet provides superfast networking and data transfer speeds for efficient, productive multitasking.

Easy modification,
maximum possibilities

An optional multi-storage design that accommodates up to two PCIe Gen4 M.2 SSD and a 2.5-inch solid-state drives(SSD) or hard disk drives (HDD) for added storage flexibility.

Power Delivery (PD) – Input & Output

PD input lets the monitor* provide power to ExpertCenter PN53 via a single USB-C cable, allowing for a neater workstation. ExpertCenter PN53 is able to receive power and deliver a DisplayPort signal via this connection, and also supply power to charge mobile devices.

Extreme cooling

To unleash high-end performance in such a compact machine, ASUS designers and engineers fine-tuned every aspect of the ExpertCenter PN53’s cooling system. The self-cleaning fan module includes flat heat pipes that are connected to full-sized heatsinks and fan outlets. This comprehensive cooling solution enables the CPU to operate at optimum temperatures for stronger performance that lasts.

Extreme cooling
*All test data is according to ASUS testing result, comparing to early generation design.
*Actual performance may vary depending on objective environmental changes.
Anti-Dust Self-Cleaning System

The Anti-Dust Self-Cleaning System not only keeps the heatsinks clean, but also effectively ejects the dust and other particles to prolong the lifespan of the system. The fan is never overworked, so less noise is generated for a quieter workstation.

Enhanced Software - MyASUS

AI Noise Cancelation

Two-Way AI Noise Cancelation
Filters unwanted noise from the microphone and incoming audio for crystal-clear voice communication.
AI Noise Cancelation
System Diagnosis

Hardware diagnostic
Scenario check-up
Provides brief descriptions to enable users to identify different situations encountered and select the ideal diagnostic checkup required.
System Diagnosis
Smart Fan Control

Performance & Quiet modes
Gives users the flexibility to use maximum fan speed during heavy loads or switch to a lower speed for silent operation.
Smart Fan Control
Other Functions

WiFi SmartConnect
Optimizes the wireless connection
TaskFirst
Allocate networking bandwidth to specific tasks.
Link to MyASUS
Allows users to connect the computer to a mobile device.

Specifications

Motherboard
Number of processors supported	1
Processor
L3 cache	16 MB
Built-in processor	Yes
Processor model	7735HS
Processor boost frequency	4.75 GHz
Processor threads	16
Processor family	AMD Ryzen™ 7
Processor cores	8
Processor frequency	3.2 GHz
Number of processors supported	1
L2 cache	4 MB
Processor manufacturer	AMD
Processor cache	20 MB
Memory
Memory slots type	SO-DIMM
Number of memory slots	2
Supported memory types	DDR5-SDRAM
Supported memory clock speeds	4800 MHz
Maximum internal memory	32 GB
Video
Graphics card family	AMD
On-board graphics card	Yes
Storage
Supported storage drive types	HDD & SSD
Storage drive sizes supported	2.5,M.2
Storage drive interface	PCI Express, Serial ATA III
Number of storage drives supported	3
Graphics
Graphics card family	AMD
On-board graphics card	Yes
On-board graphics card model	AMD Radeon 660M
Audio
Built-in speaker(s)	No
Audio chip	Realtek ALC897
Network
Wi-Fi standards	Wi-Fi 6E (802.11ax)
Ethernet LAN	Yes
Wi-Fi	Yes
LAN controller	Realtek RTL8125B-CG
Bluetooth version	5.0
Bluetooth	Yes
Copper ethernet cabling technology	2500BASE-T
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	5
VGA (D-Sub) ports quantity	0
USB 2.0 ports quantity	0
Microphone in	Yes
Headphone outputs	1
HDMI version	2.1
HDMI ports quantity	2
Ethernet LAN (RJ-45) ports	1
DC-in jack	Yes
USB4 Gen 2x2 ports quantity	2
Design
Product type	Mini PC barebone
On/off switch	Yes
Cooling type	Active
Product colour	Black
Chassis type	0.92L sized PC
Cable lock slot type	Kensington
Cable lock slot	Yes
Performance
Number of processors supported	1
Audio chip	Realtek ALC897
Colour
Product colour	Black
Technical details
Cooling type	Active
Chassis type	0.92L sized PC
Cable lock slot type	Kensington
Cable lock slot	Yes
Management features
On/off switch	Yes
Power
Power supply type	External AC adapter
Weight & dimensions
Width	120 mm
Depth	130 mm
Height	58 mm
Weight	900 g
Other features
Chassis type	0.92L sized PC

Intel N97 (6M Cache, up to 3.60 GHz), Intel UHD Graphics, WiFi 6e, no OS, 1 x SO-DIMM, Realtek Ethernet Controller RTL8125BG-CG, 2.5G

Key Features

• Energy-efficient: Ideal for lightweight office productivity and embedded applications
• Triple display support: Boosting Office Workflow Efficiency
• Easy access design: Ease of upgrades, lower maintenance costs and reduced downtime
• Multiple high-speed connection options: Experience heightened productivity with a diverse array of high-speed connectivity options, ensuring accelerated and stable data transfers
• Abundant I/O: High flexibility to meet various workflow and scenarios
• Compact size: Easy to deploy for small offices, retail settings, educational institutions

Description

Power efficient Mini PC powered by Intel® Core™ N-Series processor, featuring triple 4K display supports and easy access design, perfect for education and office tasks

Efficient Performance. Smart Savings.
ASUS NUC 14 Essential is the next-generation mini PC that takes performance, portability, and versatility to greater heights. Powered by the latest energy-efficient Intel® Core™ N-series processors and equipped with diverse connectivity options, this sleek, compact device is built to boost productivity and makes light work of diverse applications.

Specifications

Processor
Built-in processor	Yes
Processor model	N97
Processor boost frequency	3.6 GHz
Processor cores	4
Processor manufacturer	Intel
Processor cache	6 MB
Memory
Memory slots type	SO-DIMM
Number of memory slots	1
Supported memory types	DDR5-SDRAM
Supported memory clock speeds	4800 MHz
Maximum internal memory	16 GB
Video
Graphics card family	Intel
On-board graphics card	Yes
Storage
Supported storage drive types	SSD
Storage drive sizes supported	M.2
Storage drive interface	M.2
Number of storage drives supported	1
Maximum storage capacity	2 TB
SSD form factor	M.2
Graphics
Graphics card family	Intel
On-board graphics card	Yes
On-board graphics card model	Intel® UHD Graphics
Discrete graphics card model	Not available
Audio
Built-in speaker(s)	No
Network
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
Ethernet LAN	Yes
Wi-Fi	Yes
LAN controller	Dragon RTL8125BG
Bluetooth version	5.3
Bluetooth	Yes
Copper ethernet cabling technology	2.5GBASE-T
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
WLAN controller model	Intel Wi-Fi 6E AX211
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	2
DisplayPort version	1.4
VGA (D-Sub) ports quantity	0
USB 2.0 ports quantity	1
Headphone outputs	1
HDMI version	2.1
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
DisplayPorts quantity	1
DC-in jack	Yes
Design
VESA mounting	Yes
Product type	Mini PC barebone
On/off switch	Yes
Product colour	Black
Cable lock slot type	Kensington
Cable lock slot	Yes
Colour
Product colour	Black
Technical details
Cable lock slot type	Kensington
Cable lock slot	Yes
Management features
On/off switch	Yes
Power
AC adapter output voltage	19 V
AC adapter output current	3.42 A
Power supply type	External AC adapter
Power supply	65 W
Weight & dimensions
Width	135 mm
Depth	115 mm
Height	36 mm
Weight	470 g

VY279HGR Eye Care Gaming Monitor – 27 inch FHD (1920 x 1080), IPS, 120Hz(OC), SmoothMotion, 1ms (MPRT), Adaptive Sync, Eye Care Plus technology, Blue Light Filter, Flicker Free, antibacterial treatment

Key Features

• 27" FHD IPS panel with 120Hz(OC) refresh rate for smooth video viewing and casual gameplay
• SmoothMotion technology and 1ms MPRT eliminate tracing and ensure crisp and clear video playback and daily usage
• Adaptive Sync delivers fluid, artifact-free visuals at any frame rate
• Proprietary long-lasting antibacterial treatment inhibits the growth of bacteria and fungi on the monitor bezels and hotkeys
• Eye Care Plus technology includes Color Augmentation mode helps users with color-vision deficiency better distinguish between colors, and Rest Reminder helps users manage screen time
• ASUS DisplayWidget Center lets users easily change monitor settings via an intuitive interface

Description

VY279HGR EYE CARE GAMING MONITOR
LEARN, WORK & PLAY, THE HEALTHY WAY
ASUS VY279HGR Eye Care Gaming monitor is designed with your health in mind. It features IPS FHD panel that delivers exceptional visuals. Ideal for eLearning, work or entertainment, the combination of a 120 Hz(OC)* refresh rate and Adaptive Sync support ensures you’ll enjoy consistently smooth visuals with any content. It features ASUS Eye Care Plus technology to ensure everyday comfortable viewing.

Specifications

Display
HDCP	Yes
Display brightness (typical)	250 cd/m²
Screen shape	Flat
Display number of colours	16.7 million colours
Native aspect ratio	16:9
Maximum refresh rate	120 Hz
Display diagonal	68.6 cm (27")
Display resolution	1920 x 1080 pixels
Display technology	LCD
Contrast ratio (typical)	1500:1
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Pixel pitch	0.311 x 0.311 mm
Viewable size, horizontal	59.8 cm
Viewable size, vertical	33.6 cm
Digital horizontal frequency	30 - 138 kHz
Digital vertical frequency	48 - 120 Hz
HD type	Full HD
Touchscreen	No
Panel type	IPS
Display diagonal (metric)	69 cm
LED backlight	Yes
Response time (MPRT)	1 ms
Anti-glare screen	Yes
Performance
Game mode	Yes
VESA Adaptive Sync support	Yes
Low Blue Light technology	Yes
Flicker-free technology	Yes
Brand specific technologies	Eye Care+, SPLENDID
Multimedia
Built-in speaker(s)	No
Built-in camera	No
Design
Market positioning	Gaming
Product colour	Black
Feet colour	Black
Ports & interfaces
Built-in USB hub	No
VGA (D-Sub) ports quantity	1
HDMI ports quantity	1
HDCP	Yes
Headphone outputs	1
Headphone out	Yes
HDMI	Yes
HDMI version	1.4
HDCP version	1.4
Ergonomics
Wall mountable	Yes
VESA mounting	Yes
Cable lock slot	Yes
Panel mounting interface	100 x 100 mm
Tilt angle range	-5 - 23°
Height adjustment	No
Cable lock slot type	Kensington
Tilt adjustment	Yes
Power
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (typical)	21 W
Power consumption (off)	0.3 W
Power consumption (PowerSave)	0.5 W
Energy efficiency scale	A to G
Energy efficiency class (SDR)	C
Energy efficiency class (HDR)	Not available
Energy consumption (SDR) per 1000 hours	12 kWh
Weight & dimensions
Width (with stand)	612 mm
Depth (with stand)	202 mm
Height (with stand)	435 mm
Width (without stand)	612 mm
Height (without stand)	365 mm
Depth (without stand)	50 mm
Weight (with stand)	4.05 kg
Weight (without stand)	3.55 kg
Package width	690 mm
Package depth	140 mm
Package height	445 mm
Package weight	6.3 kg
Packaging data
Package type	Box
Package width	690 mm
Package depth	140 mm
Package height	445 mm
Package weight	6.3 kg
Sustainability
Sustainability certificates	EPEAT Silver, TCO
Technical details
Sustainability certificates	EPEAT Silver, TCO
Game mode	Yes
Weight (with stand)	4.05 kg
Touchscreen	No
Other features
Brand specific technologies	Eye Care+, SPLENDID
Game mode	Yes
Width (without stand)	612 mm
Height (without stand)	365 mm
HDMI	Yes
Depth (without stand)	50 mm
Energy efficiency scale	A to G
Touchscreen	No
Package type	Box

AMD Ryzen 5 7535HS, WiFi 6E, Bluetooth 5, Audio Chip, Black

Key Features

• Windows 11 Pro-ASUS recommends Windows 11 Pro for business
• Powered by the latest AMD Ryzen™ 7000 and 6000 Series Processor with Radeon™ graphics
• Quad-4K displays support and 8K UHD support**
• Support 7 USB ports, including 2 x USB 4 Type C ports, and on-board dual HDMI ports
• Features Two-Way AI Noise Cancelation to provide crystal-clear online voice communication
• Support DisplayPort 1.4 & Power Delivery input through rear USB Type C port
• Onboard 2.5GbE LAN delivering faster Ethernet connectivity
• Multi-storage design, support up to up to 2x M.2 PCIe Gen4x4 SSD and 1x HDD
• Integrated Wi-Fi 6E and Bluetooth for easy cordless connections
• Configurable Ports support DP1.4/VGA/COM/HDMI options
• 24/7 reliability — Extensively tested to ensure long-term dependability

Description

Ultra-compact Mini PC provides flexible, comprehensive solutions

ASUS ExpertCenter PN53 is no lightweight when it comes to performance. It harnesses the power of the latest AMD Ryzen™ 6000 and 7000 Series processor combined AMD Radeon™ 600M series graphics, and can accommodate multiple storage combinations. There's also two ultrafast PCIe®Gen 4 SSD slots and DDR5 support to ensure fast boot times and rapid app loads.

ASUS ExpertCenter PN53 is no lightweight when it comes to performance. It harnesses the power of the latest AMD Ryzen™ 6000 series processor combined AMD Radeon™ 600M series graphics, and can accommodate multiple storage combinations. There’s also two ultrafast PCIe® Gen 4 SSD slots and DDR5 support to ensure fast boot times and rapid app loads.

System & CPU Performance

PN53 delivers a system performance uplift of up to 10% better performance in daily multitask computing, comparing to previous generation - providing powerful computing capacity and enabling easy multitasking and smooth operation.

Graphics Performance

ExpertCenter PN53 gets a significant graphical boost with Radeon™ Graphics to deliver crisp, clear visuals that are way ahead of its class. It delivers a marked improvement, raising its score from 55% in 3DMark Fire Strike and increasing 49% 3DMark Night Raid performance benchmarks.

Ultrafast PCIe® 4.0 SSD

PCIe 4.0 doubles the data transfer rate of the prior PCIe 3.0 standard. ExpertCenter PN53 support one PCIe Gen4 x4 SSD to deliver greater data performance and lower latency.

*Test model: ASUS Mini PC | SAMSUNG GXA7301Q vs. SAMSUNG EXD7201
*Actual performance may vary depending on objective environmental changes.
Versatile USB 4 Type-C*

Versatile USB 4 Type-C

Power Delivery
The Power Delivery (PD) function can either receive power from a supported display* or supply power to mobile devices.

Superfast data transfers
Experience up to 40 Gbps data transmission speeds with USB*

DisplayPort™
Enjoy up to 8K @ 30 Hz video output*.

* Power Delivery (PD) input only supported by the rear USB 4 port.
* Actual speed may vary depending on devices and applications

Faster and Better DDR5 RAM

ASUS ExpertCenter PN53 is powered by the new AMD 6000 Series CPU supporting the next gen memory - DDR5. With DDR5 4800MHz memory that is 1.5X faster and 8% more energy efficient than DDR4 3200MHz memory, PN53 provides excellent performance for daily computing tasks.

4K Resolution & Quad Display Support

Integrated AMD Radeon 600M series graphics enable ExpertCenter PN53 to display stunning 4K UHD videos and imagery. With HDMI, USB-C DisplayPort and a configurable port that can be specified for video signal output, PN53 lets you extend your workspace across up to four displays.

4K Resolution & Quad Display Support
*Video playing or streaming in 4K or higher resolution requires dual channel memory configuration
*Configurable ports are confirmed SKU before configuring
*Actual resolution may vary depending on devices and application changes.
Ultra-realistic 8K Visuals

ExpertCenter PN53 supports stunning 8K UHD visuals via USB 4 or the configurable video output ports for detail four times greater than 4K, or a remarkable 16 times that of traditional FHD visuals. PN53 is capable of pumping out 8K imagery at 30 Hz via USB 4 or DisplayPort 1.4; or up to 60 Hz through HDMI 2.1* to bring images to life.

Exceptional Connection Experience – Wi-Fi 6 & Wi-Fi 6E*

The built-in WiFi 6 module allows ExpertCenter PN53 to deliver smooth high-resolution video streams, fewer dropped connections, and faster performance farther away from the router, even in dense environments. WiFi 6E is an expanded version of WiFi 6 to support high-speed 160 MHz channels.

And Wi-Fi 6E is the expanded version of Wi-Fi 6 to support extra high-speed 160MHz channels*.

Configurable Port

ExpterCenter PN53 is well-equipped for a wide range of functions and can be used for digital signage, POS systems or intelligent vending machines. The configurable port can be specified with either HDMI, VGA, DisplayPort, or COM ports, for monitors or legacy devices such as barcode scanners or receipt printers.

*Configurable ports are confirmed SKU before configuring.

Superfast 2.5 Gbps Networking

2.5 Gb Ethernet provides superfast networking and data transfer speeds for efficient, productive multitasking.

Easy modification,
maximum possibilities

An optional multi-storage design that accommodates up to two PCIe Gen4 M.2 SSD and a 2.5-inch solid-state drives(SSD) or hard disk drives (HDD) for added storage flexibility.

Power Delivery (PD) – Input & Output

PD input lets the monitor* provide power to ExpertCenter PN53 via a single USB-C cable, allowing for a neater workstation. ExpertCenter PN53 is able to receive power and deliver a DisplayPort signal via this connection, and also supply power to charge mobile devices.

Extreme cooling

To unleash high-end performance in such a compact machine, ASUS designers and engineers fine-tuned every aspect of the ExpertCenter PN53’s cooling system. The self-cleaning fan module includes flat heat pipes that are connected to full-sized heatsinks and fan outlets. This comprehensive cooling solution enables the CPU to operate at optimum temperatures for stronger performance that lasts.

Extreme cooling
*All test data is according to ASUS testing result, comparing to early generation design.
*Actual performance may vary depending on objective environmental changes.
Anti-Dust Self-Cleaning System

The Anti-Dust Self-Cleaning System not only keeps the heatsinks clean, but also effectively ejects the dust and other particles to prolong the lifespan of the system. The fan is never overworked, so less noise is generated for a quieter workstation.

Enhanced Software - MyASUS

AI Noise Cancelation

Two-Way AI Noise Cancelation
Filters unwanted noise from the microphone and incoming audio for crystal-clear voice communication.
AI Noise Cancelation
System Diagnosis

Hardware diagnostic
Scenario check-up
Provides brief descriptions to enable users to identify different situations encountered and select the ideal diagnostic checkup required.
System Diagnosis
Smart Fan Control

Performance & Quiet modes
Gives users the flexibility to use maximum fan speed during heavy loads or switch to a lower speed for silent operation.
Smart Fan Control
Other Functions

WiFi SmartConnect
Optimizes the wireless connection
TaskFirst
Allocate networking bandwidth to specific tasks.
Link to MyASUS
Allows users to connect the computer to a mobile device.

Specifications

Motherboard
Number of processors supported	1
Processor
L3 cache	16 MB
Built-in processor	Yes
Processor model	7535HS
Processor boost frequency	4.55 GHz
Processor threads	12
Processor family	AMD Ryzen™ 5
Processor cores	6
Processor frequency	3.3 GHz
Number of processors supported	1
L2 cache	3 MB
Processor manufacturer	AMD
Processor cache	19 MB
Memory
Memory slots type	SO-DIMM
Number of memory slots	2
Supported memory types	DDR5-SDRAM
Supported memory clock speeds	4800 MHz
Maximum internal memory	32 GB
Video
Graphics card family	AMD
On-board graphics card	Yes
Storage
Supported storage drive types	HDD & SSD
Storage drive sizes supported	2.5,M.2
Storage drive interface	PCI Express, Serial ATA III
Number of storage drives supported	3
Graphics
Graphics card family	AMD
On-board graphics card	Yes
On-board graphics card model	AMD Radeon 660M
Audio
Built-in speaker(s)	No
Audio chip	Realtek ALC897
Network
Wi-Fi standards	Wi-Fi 6E (802.11ax)
Ethernet LAN	Yes
Wi-Fi	Yes
LAN controller	Realtek RTL8125B-CG
Bluetooth version	5.0
Bluetooth	Yes
Copper ethernet cabling technology	2500BASE-T
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	5
VGA (D-Sub) ports quantity	0
USB 2.0 ports quantity	0
Microphone in	Yes
Headphone outputs	1
HDMI version	2.1
HDMI ports quantity	2
Ethernet LAN (RJ-45) ports	1
DC-in jack	Yes
USB4 Gen 2x2 ports quantity	2
Design
Product type	Mini PC barebone
On/off switch	Yes
Cooling type	Active
Product colour	Black
Chassis type	0.92L sized PC
Cable lock slot type	Kensington
Cable lock slot	Yes
Performance
Number of processors supported	1
Audio chip	Realtek ALC897
Colour
Product colour	Black
Technical details
Cooling type	Active
Chassis type	0.92L sized PC
Cable lock slot type	Kensington
Cable lock slot	Yes
Management features
On/off switch	Yes
Power
Power supply type	External AC adapter
Weight & dimensions
Width	120 mm
Depth	130 mm
Height	58 mm
Weight	900 g
Other features
Chassis type	0.92L sized PC

Intel® B860 Chipset, 4 x DIMM slots, max. 256GB, DDR5 Support up to 8666+ MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)* Dual channel

Description

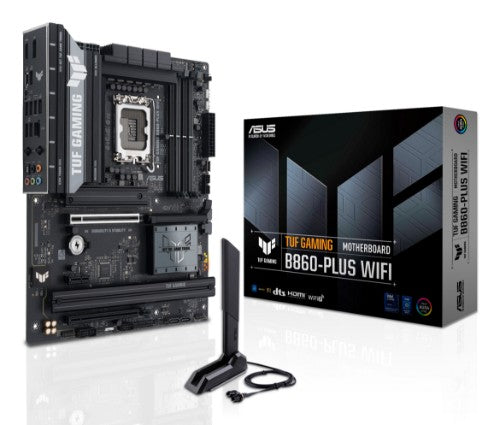

TUF GAMING
B860-PLUS WIFI
ASUS TUF GAMING B860-PLUS WIFI takes all the essential elements of the latest Intel® Core™ Ultra Processors (Series 2) processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. This platform delivers the power and connectivity that advanced AI PC applications demand.

Specifications

Internal I/O
Number of M.2 (M) slots	3
Thunderbolt headers	1
USB 3.2 Gen 2 (3.1 Gen 2) connectors	1
Front panel connector	Yes
12V power connector	Yes
Supported storage drive interfaces	M.2, SATA III
USB 2.0 connectors	1
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
mSATA ports quantity	0
S/PDIF out connector	Yes
Number of SATA III connectors	4
Number of SATA II connectors	0
Number of SATA connectors	0
Number of COM connectors	1
Number of chassis fan connectors	4
Front panel audio connector	Yes
CPU fan connector	Yes
Chassis intrusion connector	Yes
ATX Power connector (24-pin)	Yes
Performance
Number of HDDs supported	4
Supported storage drive types	HDD & SSD
Component for	PC
Motherboard chipset family	Intel
Motherboard chipset	Intel B860
Motherboard form factor	ATX
Audio output channels	7.1 channels
Supported processor sockets	LGA 1851
RAID levels	0, 1, 5, 10
Windows operating systems supported	Windows 11
Processor
Processor manufacturer	Intel
Compatible processor series	Intel Core Ultra (Series 2)
Processor socket	LGA 1851 (Socket V1)
Supported processor sockets	LGA 1851
Memory
Number of memory slots	4
Supported memory types	DDR5-SDRAM
Memory slots type	DIMM
Memory channels	Dual-channel
Maximum internal memory	256 GB
Unbuffered memory	Yes
ECC сompatibility	Non-ECC
Storage controllers
Number of HDDs supported	4
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, SATA III
RAID levels	0, 1, 5, 10
Number of storage drives supported	7
RAID support	Yes
Graphics
Parallel processing technology support	Not supported
On-board graphics card	No
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
USB 2.0 ports quantity	2
Ethernet LAN (RJ-45) ports	1
WiFi-AP antenna jack	1
VGA (D-Sub) ports quantity	0
S/PDIF out port	Yes
HDMI ports quantity	1
DVI-D ports quantity	0
DisplayPorts quantity	1
USB 3.2 Gen 2x2 Type-C ports quantity	1
Network
Ethernet LAN	Yes
Wi-Fi	Yes
Wi-Fi standards	Wi-Fi 7 (802.11be)
Ethernet interface type	2.5 Gigabit Ethernet
Bluetooth	Yes
Bluetooth version	5.4
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Features
Component for	PC
Motherboard chipset family	Intel
Motherboard chipset	Intel B860
Motherboard form factor	ATX
Audio output channels	7.1 channels
Supported processor sockets	LGA 1851
Windows operating systems supported	Windows 11
Product colour	Black
Expansion slots
Number of M.2 (M) slots	3
PCI Express x1 (Gen 4.x) slots	1
PCI Express x16 (Gen 4.x) slots	1
PCI Express x16 (Gen 5.x) slots	1
1st M.2 largest key size	2280
1st M.2 highest PCI Express generation	5.0
2nd M.2 largest key size	2280
2nd M.2 highest PCI Express generation	4.0
3rd M.2 largest key size	2280
3rd M.2 highest PCI Express generation	4.0
BIOS
BIOS type	UEFI AMI
BIOS memory size	256 Mbit
Packaging data
Package width	353 mm
Package depth	273 mm
Package height	68 mm
Package weight	2.1 kg
Weight & dimensions
Width	305 mm
Depth	244 mm
Package width	353 mm
Package depth	273 mm
Package height	68 mm
Package weight	2.1 kg
Packaging content
Cables included	SATA
Screws included	Yes
Antenna included	Yes
Other features
mSATA ports quantity	0
Package width	353 mm
Package depth	273 mm
Package height	68 mm
Package weight	2.1 kg
PCI Express x1 (Gen 4.x) slots	1

VY249HGR 23.8 inch Eye Care Gaming Monitor (FHD (1920 x 1080), IPS, 120Hz(OC), SmoothMotion, 1ms (MPRT), Adaptive Sync, Eye Care Plus technology, blue light filter, Flicker Free, antibacterial treatment)

Key Features

• 23.8" FHD IPS panel with 120Hz(OC) refresh rate for smooth video viewing and casual gameplay
• SmoothMotion technology and 1ms MPRT eliminate tracing and ensure crisp and clear video playback and daily usage
• Adaptive Sync delivers fluid, artifact-free visuals at any frame rate
• Proprietary long-lasting antibacterial treatment inhibits the growth of bacteria and fungi on the monitor bezels and hotkeys
• Eye Care Plus technology includes Color Augmentation mode helps users with color-vision deficiency better distinguish between colors, and Rest Reminder helps users manage screen time
• ASUS DisplayWidget Center lets users easily change monitor settings via an intuitive interface

Description

LEARN, WORK & PLAY, THE HEALTHY WAY
ASUS VY249HGR Eye Care Gaming monitor is designed with your health in mind. It features IPS FHD panel that delivers exceptional visuals. Ideal for eLearning, work or entertainment, the combination of a 120 Hz(OC)* refresh rate and Adaptive Sync support ensures you’ll enjoy consistently smooth visuals with any content. It features ASUS Eye Care Plus technology to ensure everyday comfortable viewing.

Fluid viewing experience with 120Hz(OC) Smooth Motion
Giving you more fluid animation in video, casual gaming, and day-to-day work, can all benefit from the smoother-than-ever experience.

IPS panel technology for an astounding 16.7 million colors
The 23.8-inch FHD (1920 x 1080) IPS panel offers a palette of 16.7 million colors, so photos and videos have stunning detail and realism. The panel also offers 178° viewing angles to ensure excellent image quality from almost any perspective.

120 Hz(OC) refresh rate and Adaptive Sync for smooth visuals
A overclockable 120Hz refresh rate* and 1ms Moving Picture Response Time (MPRT) help reduce smearing and motion blur, making VY249HGR perfect for fast-paced games that require quick reactions to what’s happening onscreen. In addition, Adaptive Sync technology helps eliminate screen tearing and choppy frame rates for ultra-smooth gameplay.
*OC function can only be activated during Game mode

ASUS-exclusive GamePlus Technology
When it comes to design, ASUS always has customers in mind – ASUS exclusive GamePlus hotkey with Crosshair, Timer, FPS counter and Display Alignment functions to give you in-game enhancements that help you get more out of your game. This function is co-developed with input from pro gamers, allowing them to practice and improve their gaming skills.

DisplayWidget Center
Easily adjust your monitor settings through this intuitive app, without having to touch the physical buttons on the monitor.

Adjustable ASUS Blue Light Filter
An integrated TÜV Rheinland-certified ASUS Blue Light Filter protects eyes from harmful blue light. Settings can be quickly accessed via the onscreen display (OSD) menu, and an intuitive slider makes it easy to adjust filter levels to suit any scenario or user preference.

Flicker Free Technology
Say goodbye to tired, strained eyes
Integrated TÜV Rheinland-certified ASUS Flicker Free technology reduces onscreen flicker to ensure comfortable viewing. This technology helps minimize instances of eyestrain that can result from long sessions in front of a display.

Long-lasting antibacterial treatment
Stay clean, stay healthy
The bezels and hotkeys on VY249HGR feature an antibacterial ionic silver treatment1. By preventing bacteria adhesion2 by up to 99.9%, it keeps key areas of the monitor clean and hygienic, potentially reducing the spread of harmful bacteria.

VY249HGR has been subjected to the ISO 22196 Antimicrobial Activity and Efficacy tests conducted by independent testing lab TÜV SÜD.

How Ionic Silver works
Positively-charged silver (Ag+) ions bind with the cell walls of negatively-charged microbes and bacteria, disrupting their internal functions and killing them off.
1.This proprietary antibacterial treatment is registered by the U.S. EPA and authorized under EU BPR.

2.Tested by an independent third-party laboratory according to the ISO 22196 standard (Measurement of antibacterial activity on plastics and other non-porous surfaces), using bacterial cultures that include Escherichia coli and Staphylococcus aureus, with an antibacterial activity result of R > 2 compared to an untreated surface. R = 2 indicates a 99.9% reduction in bacterial activity.

3.EyeCheck is only for visual reference. If you experience any eye discomfort, please consult a health professional or ophthalmologist for treatment.

Sustaining an Incredible Future

Eco-friendly Packaging
ASUS monitors are shipped in packaging made from 100% recycled cardboard. The packaging has been designed to minimize weight and volume, helping to conserve natural resources and allowing more devices to be transported in a single shipping container.

Reusable Packaging
The cardboard box can be cut into a smaller box to pack small items on your desk, such as cables, adapters, or other accessories. It also includes a foldable phone stand. This is a great way to reduce waste, save money on packaging materials, and create added benefits.
*EPEAT registered where applicable. EPEAT registration varies by country. See www.epeat.net for registration status by country.

Specifications

Display
HDCP	Yes
Display brightness (typical)	250 cd/m²
Screen shape	Flat
Display number of colours	16.7 million colours
Native aspect ratio	16:9
Maximum refresh rate	120 Hz
Display diagonal	60.5 cm (23.8")
Response time	1 ms
Display resolution	1920 x 1080 pixels
Display technology	LED
Contrast ratio (typical)	1500:1
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Pixel pitch	0.2745 x 0.2745 mm
Viewable size, horizontal	52.7 cm
Viewable size, vertical	29.6 cm
Digital horizontal frequency	30 - 138 kHz
Digital vertical frequency	48 - 120 Hz
HD type	Full HD
Touchscreen	No
Panel type	IPS
LED backlight	Yes
Response time (MPRT)	1 ms
Anti-glare screen	Yes
Performance
AMD FreeSync	No
Game mode	Yes
NVIDIA G-SYNC	No
VESA Adaptive Sync support	Yes
Low Blue Light technology	Yes
Flicker-free technology	Yes
Multimedia
Built-in speaker(s)	No
Built-in camera	No
Design
Market positioning	Home
Product colour	Black
Feet colour	Black
Certification	EPEAT Silver TCO Certified TÜV Flicker-free TÜV Low Blue Light
Detachable stand	Yes
Ports & interfaces
Built-in USB hub	No
VGA (D-Sub) ports quantity	1
HDMI ports quantity	1
HDCP	Yes
Headphone out	Yes
HDMI	Yes
HDMI version	1.4
HDCP version	1.4
Ergonomics
Wall mountable	Yes
VESA mounting	Yes
Cable lock slot	Yes
Panel mounting interface	100 x 100 mm
Tilt angle range	-5 - 22°
Height adjustment	No
Cable lock slot type	Kensington
Tilt adjustment	Yes
Power
Power supply type	Internal
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (typical)	20 W
Power consumption (off)	0.3 W
Power consumption (PowerSave)	0.5 W
Energy efficiency scale	A to G
Energy efficiency class (SDR)	C
Energy efficiency class (HDR)	Not available
Energy consumption (SDR) per 1000 hours	11 kWh
Weight & dimensions
Width (with stand)	541 mm
Depth (with stand)	185 mm
Height (with stand)	395 mm
Width (without stand)	541 mm
Height (without stand)	323 mm
Depth (without stand)	48 mm
Weight (with stand)	3.4 kg
Weight (without stand)	2.9 kg
Package width	612 mm
Package depth	404 mm
Package height	140 mm
Package weight	5.4 kg
Packaging data
Package type	Box
Package width	612 mm
Package depth	404 mm
Package height	140 mm
Package weight	5.4 kg
Stand included	Yes
Quick start guide	Yes
Cables included	AC, HDMI
Packaging content
Stand included	Yes
Quick start guide	Yes
Cables included	AC, HDMI
Sustainability
Sustainability certificates	EPEAT Silver, TCO
Technical details
Sustainability certificates	EPEAT Silver, TCO
Power supply type	Internal
Game mode	Yes
Weight (with stand)	3.4 kg
Touchscreen	No
Other features
Certification	EPEAT Silver TCO Certified TÜV Flicker-free TÜV Low Blue Light
Game mode	Yes
Width (without stand)	541 mm
Quick start guide	Yes
Height (without stand)	323 mm
HDMI	Yes
Depth (without stand)	48 mm
Energy efficiency scale	A to G
Power supply type	Internal
Touchscreen	No
Package type	Box
Certificates
Certification	EPEAT Silver TCO Certified TÜV Flicker-free TÜV Low Blue Light

AMD Socket AM5, AMD B850 Chipset, 4 x DIMM slots, max. 256GB, DDR5

Description

B850M-A WIFI-CSM
ASUS Prime series motherboards are expertly engineered to unleash the full potential of AMD Ryzen™ 9000 series processors. The PRIME B850M-A WIFI-CSM motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.

Specifications

Internal I/O
Number of M.2 (M) slots	3
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
Front panel connector	Yes
12V power connector	Yes
Supported storage drive interfaces	M.2, SATA III
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
TPM connector	Yes
S/PDIF out connector	Yes
Number of SATA III connectors	4
Number of COM connectors	1
Number of chassis fan connectors	3
Front panel audio connector	Yes
EPS power connector (8-pin)	Yes
CPU fan connector	Yes
Chassis intrusion connector	Yes
ATX Power connector (24-pin)	Yes
RGB LED pin header	Yes
Performance
Number of HDDs supported	4
Supported storage drive types	HDD & SSD
Component for	PC
Motherboard chipset family	AMD
Motherboard chipset	AMD B850
Motherboard form factor	micro ATX
Audio output channels	7.1 channels
Supported processor sockets	Socket AM5
RAID levels	0, 1, 5, 10
Windows operating systems supported	Windows 10 x64, Windows 11
Processor
Processor manufacturer	AMD
Compatible processor series	AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Processor socket	Socket AM5
Supported processor sockets	Socket AM5
Memory
Number of memory slots	4
Supported memory types	DDR5-SDRAM
Memory slots type	DIMM
Memory channels	Dual-channel
Maximum internal memory	256 GB
Unbuffered memory	Yes
ECC сompatibility	ECC & Non-ECC
Storage controllers
Number of HDDs supported	4
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, SATA III
RAID levels	0, 1, 5, 10
Number of storage drives supported	7
RAID support	Yes
Graphics
Parallel processing technology support	Not supported
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
USB 2.0 ports quantity	4
Ethernet LAN (RJ-45) ports	1
WiFi-AP antenna jack	1
VGA (D-Sub) ports quantity	0
HDMI ports quantity	1
DVI-D ports quantity	0
DisplayPorts quantity	2
Network
Ethernet LAN	Yes
Wi-Fi	Yes
Wi-Fi standards	Wi-Fi 6E (802.11ax)
Ethernet interface type	2.5 Gigabit Ethernet
Bluetooth	Yes
Bluetooth version	5.3
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Features
Component for	PC
Motherboard chipset family	AMD
Motherboard chipset	AMD B850
Motherboard form factor	micro ATX
Audio output channels	7.1 channels
Supported processor sockets	Socket AM5
Windows operating systems supported	Windows 10 x64, Windows 11
Product colour	Black, White
Expansion slots
Number of M.2 (M) slots	3
PCI Express x16 (Gen 4.x) slots	1
PCI Express x16 (Gen 5.x) slots	1
1st M.2 largest key size	2280
1st M.2 highest PCI Express generation	5.0
2nd M.2 largest key size	2280
2nd M.2 highest PCI Express generation	4.0
3rd M.2 largest key size	2280
3rd M.2 highest PCI Express generation	4.0
BIOS
BIOS type	UEFI AMI
BIOS memory size	256 Mbit
Weight & dimensions
Width	244 mm
Depth	244 mm
Packaging content
Cables included	SATA
Screws included	Yes
Antenna included	Yes

Prime B840M-A WIFI-CSM

Description

ASUS Prime series motherboards are expertly engineered to unleash the full potential of AMD Ryzen™ 9000 series processors. The PRIME B840M-A WIFI-CSM motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.

ASUS Corporate Stable Model
ASUS Corporate Stable Model (CSM) is a commercial program designed to provide stable and reliable motherboards. Offering up to 36-month product lifecycle support and 6-month end-of-life notice to allow sufficient lead times for your organization to get ready for product transitions. Each purchase of an ASUS CSM motherboard comes with ASUS Control Center Express - server-grade IT management software.

ASUS Control Center Express
ASUS Control Center Express is an integrated IT monitoring and management software designed to deploy faster, simplify IT operations and improve productivity with comprehensive control and user-friendly functions. ASUS Control Center Express is compatible with over 100 ASUS motherboards to provide a high-quality, TCO-optimized solution for your business needs.

Optimize IT endpoint management
Designed to assist IT staff in monitoring and controlling devices within their corporate networks, and facilitate inventory checking in multiple locations remotely.

Automate IT maintenance
Allows IT staff to schedule automatic updates of the latest BIOS, software and utilities to specific or all devices at off-peak times, enhancing system stability and IT operational flexibility.

Securely manage all of endpoints
Securely manage endpoint configuration, portable storage access and PC software applications by enabling them to create grouping rules on individual devices.

Performance
AI Solutions
ASUS AI Solutions include AI Advisor as your technical expert with expertise in PC performance.

AI Advisor
ASUS AI Advisor allows users to explore the functionality and advanced features of ASUS motherboards in a simple and straightforward way.8

Performance
Digital Power Design
PRIME B840M-A WIFI-CSM features an 8+2+1 phase power design with discrete MOSFETs, ensuring efficient and stable power delivery for AMD processors plus steady performance for day-to-day use.6

The multi-layered printed circuit board design quickly dissipates heat around the voltage regulators to improve overall system stability and provide the CPU with more overclocking headroom.

The Power Saving function contains several settings to easily optimize power consumption and maximize energy savings. You can enable a CPU power limit, darken Aura lighting and set the fan profile to a Power Saving mode. You can also toggle the Power Saver plan that is built into Microsoft Windows.

The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, automatically switching frequency and power-efficiency settings.

Enhanced Memory & Storage Performance
Enhanced DDR5 performance
Comprehensive memory tuning options are the cornerstone of PRIME motherboards. The PRIME B840M-A WIFI-CSM maximizes the potential of your DDR5 modules, from entry-level to extreme-speed kits.2
For entry-level modules without EXPO™ support, ASUS Enhanced Memory Profile (AEMP) automatically detects memory chips and provides optimized profiles for enhanced performance.
For those looking to surpass stock DDR5 speeds, the PRIME B840M-A WIFI-CSM offers extensive AMD Extended Profiles for Overclocking (EXPO™) support and a wide array of UEFI settings for further performance tweaks.3

Three M.2 slots (up to 64 Gbps)
PRIME B840M-A WIFI-CSM offers a total of three M.2 slots, including two that support data-transfer speeds of up to 64 Gbps via PCIe 4.0, and one that supports PCIe 3.0. This enables quicker boot-up and app load times with OS or application drives.4

Cooling
Cooler by design
The PRIME B840M-A WIFI-CSM motherboard is engineered with multiple onboard heatsinks and an array of hybrid fan headers to help ensure your rig stays cool and stable under intense workloads.

Smart Cooling precision

ASUS Fan Xpert 2+
ASUS Fan Xpert 2+ software provides comprehensive control over fans. An Auto-Tuning mode intelligently configures all parameters with a single click. There’s also an Extreme Quiet mode that reduces chassis fan speeds to below the default minimum to keep your system whisper-quiet when performing light tasks. Fans can also be controlled via the UEFI BIOS.6

Cooler compatibility
ASUS AIO coolers offer robust performance, high overclocking potential, bold aesthetics and customizable functionality for new motherboards, empowering you to build your dream gaming rig.6

Flexibility
Empowering connections
This motherboard offers a versatile range of connectivity, including support for WiFi 6E, PCIe 4.0 slot and an arsenal of USB ports which includes Type-C® connections.

WiFi 6E
Built-in WiFi 6E5 technology takes advantage of the newly available radio spectrum in the 6 GHz band. With triple the bandwidth of the 2.4/5/6 GHz band, WiFi 6E delivers ultrafast wireless networking speeds with improved capacity and better performance in dense wireless environments.

Realtek 2.5 Gb Ethernet
Realtek 2.5 Gb Ethernet reduces CPU overhead and offers exceptionally high TCP and UDP throughput for faster, smoother data transfers.

Front USB 5Gbps Type-C®
This motherboard features a USB 5Gbps Type-C® front panel connector for speedy data transfers of up to 5Gbps.6

Customization
Personalization
The PRIME B840M-A WIFI-CSM enhances the user experience across the board, from simplifying BIOS setting adjustments to offering customizable RGB lighting controls for a uniquely personal system aesthetic.

UEFI BIOS
The UEFI interface delivers easy-to-use configuration options for PC beginners, and advanced features for veterans.

ASUS GlideX
Enable seamless screen sharing and control across PCs, tablets, and smartphones via wired or wireless connections, supporting multiple platforms.

ASUS DriverHub
Simplify driver management with automatic detection, one-click installation and update for smooth, efficient system performance.

Armoury Crate
Customize Aura Sync RGB and control ASUS devices. Includes product registration and updates.

Aura Sync
Complete RGB lighting control for enthusiast systems, ensuring seamless synchronization with compatible hardware.

Addressable Gen 2 RGB headers
Three addressable Gen 2 headers detect LED counts on compatible RGB devices, automatically adjusting lighting effects accordingly.

Customization
DIY friendly
The PRIME B840M-A WIFI-CSM motherboard features EZ PC DIY innovations that simplify and speed up the PC building process, making DIY easy and convenient.

Q-Antenna
With Q-Antenna, attaching a WiFi antenna to your PC is now easy and fast. Instead of slowly rotating two fasteners until they finally lock in, they just snap into place. Less hassle, and more consistent performance.7

Q-LED Core
The Q-LED Core display produces color-coded lights during the Power-On Self-Test (POST) that can help you troubleshoot potential issues.

Pre-Mounted I/O Shield
Our pre-installed I/O shield safeguards ports, simplifies the build process, increases functionality and enhances aesthetics for PC DIY enthusiasts.

BIOS FlashBack™
BIOS FlashBack™ simplifies BIOS updates. Just load the BIOS file onto a FAT32 USB stick, insert it into the BIOS FlashBack™ port, and press a button—no CPU or memory needed.

SafeSlot Core+
SafeSlot Core+ is a one-piece stainless-steel brace that shields the slot to protect it from damage. The metal cover is tightly secured to the slot with hooks, and the entire assembly is firmly anchored to the PCB with strengthened solder points to provide a secure foundation for heavyweight graphics cards.

Build for the most advanced pc for gaming and creating
When only the fastest will do, ASUS motherboards deliver. With faster dual-channel DDR5 memory support, AMD EXPO™ technology and PCIe® 4.0 support for both graphics and NVMe, you can play the most demanding games and deliver your biggest projects with the revolutionary performance of an ASUS motherboard and AMD Ryzen™ 9000, 8000, and 7000 Series processors.

Specifications

Internal I/O
Number of M.2 (M) slots	3
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
Front panel connector	Yes
Supported storage drive interfaces	M.2, SATA III
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
mSATA ports quantity	0
TPM connector	Yes
S/PDIF out connector	Yes
Number of SATA III connectors	4
Number of SATA II connectors	0
Number of SATA connectors	0
Number of COM connectors	1
Number of chassis fan connectors	3
Front panel audio connector	Yes
EPS power connector (8-pin)	Yes
CPU fan connector	Yes
ATX Power connector (24-pin)	Yes
RGB LED pin header	Yes
Number of CPU fan connectors	2
Number of EPS power connectors (8-pin)	1
Number of water pump connectors	1
Number of RGB LED pin headers	3
Performance
Number of HDDs supported	4
Supported storage drive types	HDD & SSD
Component for	PC
Motherboard chipset family	AMD
Motherboard chipset	AMD B840
Motherboard form factor	micro ATX
Audio output channels	7.1 channels
Supported processor sockets	Socket AM5
RAID levels	0, 1, 5, 10
Windows operating systems supported	Windows 10 x64, Windows 11
Processor
Processor manufacturer	AMD
Compatible processor series	AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Processor socket	Socket AM5
Supported processor sockets	Socket AM5
Memory
Number of memory slots	4
Supported memory types	DDR5-SDRAM
Memory slots type	DIMM
Memory channels	Dual-channel
Maximum internal memory	192 GB
Unbuffered memory	Yes
Supported memory clock speed (max)	7600 MHz
ECC сompatibility	ECC & Non-ECC
Storage controllers
Number of HDDs supported	4
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, SATA III
RAID levels	0, 1, 5, 10
Number of storage drives supported	7
RAID support	Yes
Graphics
Parallel processing technology support	Not supported
On-board graphics card	No
Maximum resolution	7680 x 4320 pixels
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
DisplayPort version	1.4
USB 2.0 ports quantity	4
Ethernet LAN (RJ-45) ports	1
WiFi-AP antenna jack	2
VGA (D-Sub) ports quantity	0
Headphone outputs	1
HDMI version	2.1
HDMI ports quantity	1
DVI-D ports quantity	0
DisplayPorts quantity	2
Line-in	Yes
Network
Ethernet LAN	Yes
Wi-Fi	Yes
Wi-Fi standards	Wi-Fi 6E (802.11ax)
Ethernet interface type	2.5 Gigabit Ethernet
Bluetooth	Yes
Bluetooth version	5.3
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Features
Power source type	ATX
Component for	PC
Motherboard chipset family	AMD
Motherboard chipset	AMD B840
Motherboard form factor	micro ATX
Audio output channels	7.1 channels
Supported processor sockets	Socket AM5
Windows operating systems supported	Windows 10 x64, Windows 11
Product colour	Black
Expansion slots
Number of M.2 (M) slots	3
PCI Express x16 (Gen 3.x) slots	2
PCI Express x16 (Gen 4.x) slots	1
1st M.2 largest key size	2280
1st M.2 highest PCI Express generation	4.0
2nd M.2 largest key size	2280
2nd M.2 highest PCI Express generation	4.0
3rd M.2 largest key size	2280
3rd M.2 highest PCI Express generation	3.0
BIOS
BIOS type	UEFI AMI
BIOS memory size	256 Mbit
Power
Power source type	ATX
Weight & dimensions
Width	244 mm
Depth	244 mm
Packaging content
Quick installation guide	Yes
Cables included	SATA
Screws included	Yes
Antenna included	Yes
Other features
mSATA ports quantity	0
Quick installation guide	Yes
