Collection: Products

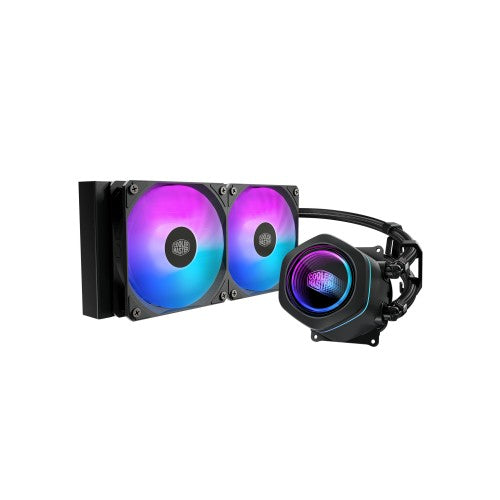

2 x 120mm, 650 ~ 1750 RPM ±10%, 122.4 m³/h, 1.86 mmH₂O, Black

Key Features

• Dual Chamber Pump​
• Innovative Design​
• Flexible Pump Orientation​
• Easy Installation​
• Universal Socket Support​
• Optimum Tubing Length

Description

360 Degrees of Cool​

MasterLiquid Core Nex Series
Introducing the redesigned MasterLiquid Core Nex Series from Cooler Master. Built on the trusted foundation of the MasterLiquid series, the Core Nex brings improved cooling performance with its upgraded dual chamber pump and wider CPU compatibility for flexible PC builds. With the infinity mirror pump cover design, upgraded fans, and optimized tubing for easy installation, the MasterLiquid Core Nex Series is a smart and stylish cooling solution for mainstream users looking to step up their setup.​

Innovative Design
An infinity mirror pump cover design brings stylish lighting and a modern touch to your build​

Flexible Pump Orientation
Featuring a rotatable pump cover that allows users to customize the orientation for the perfect look.

Dual chamber pump

Patented design
Our latest patented dual chamber design has been refined for enhanced cooling synergy. The new design increases water pressure and optimizes water flow directly to CPU hot spot.

Improved Quality
Fully automated production and assembly of the pump with fully recorded production history.

Dual Chamber Pump
Our patented dual chamber design delivers a compact cooler with efficient and reliable performance.

Optimum Tubing Length
400 mm tubing allows for effortless cooler installation in any orientation.

Easy Installation
With pre-installed fans, streamlined cabling, pre-applied thermal paste, and pre-mounted brackets, setup is quick, clean, and effortless

Universal Socket Support
Broad compatibility with both Intel and AMD CPU sockets

Specifications

Performance
Suitable location	Processor
Fan connector	7-pin
Pulse-width modulation (PWM) support	Yes
Type	Liquid cooling kit
Rotational speed (min)	650 RPM
Rotational speed (max)	1750 RPM
Bearing type	Rifle bearing
Fan diameter	12 cm
Supported processor sockets	LGA 1851, LGA 1700, LGA 1200 (Socket H5), LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), Socket AM4, Socket AM5
Maximum airflow	71.9 cfm
Maximum air pressure	1.86 mmH2O
Airflow	122.4 m³/h
Number of fans	2 fan(s)
Quantity per pack	1 pc(s)
Pump connector	3-pin + 4-pin
Fan noise level (max)	27.2 dB
Pump noise level	25 dB
Pump motor speed (max)	3200 RPM
Pump's mean time to failure (MTTF)	35000 h
Fan's mean time to failure (MTTF)	40000 h
Design
Fan connector	7-pin
Number of fans	2 fan(s)
Illumination colour	Red, Green, Blue
Illumination LED	Yes
Radiator material	Aluminum
Ports & interfaces
Fan connector	7-pin
Pump connector	3-pin + 4-pin
Power
Safety current	0.37 Ah
Rated voltage	12 V
Rated current	0.26 A
Fan power consumption	3.12 W
Pump power consumption	7.2 W
Pump voltage	12 V
Weight & dimensions
Weight	1.45 kg
Fan dimensions (W x D x H)	120 x 120 x 25 mm
Package width	229 mm
Package depth	342 mm
Package height	142 mm
Package weight	2.15 kg
Radiator width	12 cm
Radiator depth	27.7 cm
Radiator height	2.7 cm
Tube length	40 cm
Pump width	7.85 cm
Pump depth	8.36 cm
Pump height	6.29 cm
Technical details
Fan connector	7-pin
Illumination LED	Yes
Other features
Safety current	0.37 Ah
Pump connector	3-pin + 4-pin
Logistics data
Products per master (outer) case	4 pc(s)
Master (outer) case width	358 mm
Master (outer) case length	475 mm
Master (outer) case height	310 mm

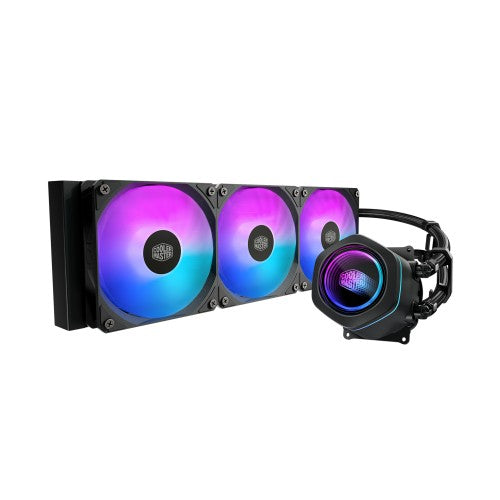

3 x 120mm, 650 ~ 1750 RPM ±10%, 122.4 m³/h, 1.86 mmH₂O, Black

Key Features

• Dual Chamber Pump​
• Innovative Design​
• Flexible Pump Orientation​
• Easy Installation​
• Universal Socket Support​
• Optimum Tubing Length

Description

360 Degrees of Cool​

MasterLiquid Core Nex Series
Introducing the redesigned MasterLiquid Core Nex Series from Cooler Master. Built on the trusted foundation of the MasterLiquid series, the Core Nex brings improved cooling performance with its upgraded dual chamber pump and wider CPU compatibility for flexible PC builds. With the infinity mirror pump cover design, upgraded fans, and optimized tubing for easy installation, the MasterLiquid Core Nex Series is a smart and stylish cooling solution for mainstream users looking to step up their setup.​

Innovative Design
An infinity mirror pump cover design brings stylish lighting and a modern touch to your build​

Flexible Pump Orientation
Featuring a rotatable pump cover that allows users to customize the orientation for the perfect look.

Dual chamber pump

Patented design
Our latest patented dual chamber design has been refined for enhanced cooling synergy. The new design increases water pressure and optimizes water flow directly to CPU hot spot.

Improved Quality
Fully automated production and assembly of the pump with fully recorded production history.

Dual Chamber Pump
Our patented dual chamber design delivers a compact cooler with efficient and reliable performance.

Optimum Tubing Length
400 mm tubing allows for effortless cooler installation in any orientation.

Easy Installation
With pre-installed fans, streamlined cabling, pre-applied thermal paste, and pre-mounted brackets, setup is quick, clean, and effortless

Universal Socket Support
Broad compatibility with both Intel and AMD CPU sockets

Specifications

Performance
Suitable location	Processor
Fan connector	7-pin
Pulse-width modulation (PWM) support	Yes
Type	Liquid cooling kit
Rotational speed (min)	650 RPM
Rotational speed (max)	1750 RPM
Bearing type	Rifle bearing
Fan diameter	12 cm
Supported processor sockets	LGA 1851, LGA 1700, LGA 1200 (Socket H5), LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), Socket AM4, Socket AM5
Maximum airflow	71.9 cfm
Maximum air pressure	1.86 mmH2O
Airflow	122.4 m³/h
Number of fans	3 fan(s)
Quantity per pack	1 pc(s)
Pump connector	3-pin + 4-pin
Fan noise level (max)	27.2 dB
Pump noise level	25 dB
Pump motor speed (max)	3200 RPM
Pump's mean time to failure (MTTF)	35000 h
Fan's mean time to failure (MTTF)	40000 h
Design
Fan connector	7-pin
Number of fans	3 fan(s)
Illumination colour	Red, Green, Blue
Illumination LED	Yes
Radiator material	Aluminum
Ports & interfaces
Fan connector	7-pin
Pump connector	3-pin + 4-pin
Power
Safety current	0.37 Ah
Rated voltage	12 V
Rated current	0.26 A
Fan power consumption	3.12 W
Pump power consumption	7.2 W
Pump voltage	12 V
Weight & dimensions
Weight	1.65 kg
Fan dimensions (W x D x H)	120 x 120 x 25 mm
Package width	229 mm
Package depth	450 mm
Package height	142 mm
Package weight	2.73 kg
Radiator width	12 cm
Radiator depth	39.4 cm
Radiator height	2.72 cm
Tube length	40 cm
Pump width	7.85 cm
Pump depth	8.36 cm
Pump height	6.29 cm
Technical details
Fan connector	7-pin
Illumination LED	Yes
Other features
Safety current	0.37 Ah
Pump connector	3-pin + 4-pin
Logistics data
Products per master (outer) case	4 pc(s)
Master (outer) case width	465 mm
Master (outer) case length	475 mm
Master (outer) case height	310 mm

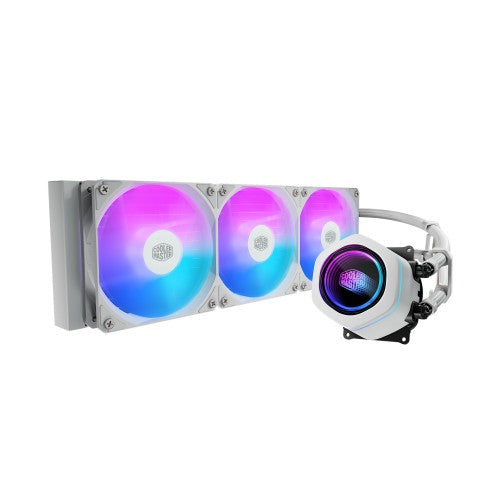

3 x 120mm, 650 ~ 1750 RPM ±10%, 122.4 m³/h, 1.86 mmH₂O, White

Key Features

• Dual Chamber Pump​
• Innovative Design​
• Flexible Pump Orientation​
• Easy Installation​
• Universal Socket Support​
• Optimum Tubing Length

Description

360 Degrees of Cool​

MasterLiquid Core Nex Series
Introducing the redesigned MasterLiquid Core Nex Series from Cooler Master. Built on the trusted foundation of the MasterLiquid series, the Core Nex brings improved cooling performance with its upgraded dual chamber pump and wider CPU compatibility for flexible PC builds. With the infinity mirror pump cover design, upgraded fans, and optimized tubing for easy installation, the MasterLiquid Core Nex Series is a smart and stylish cooling solution for mainstream users looking to step up their setup.​

Innovative Design
An infinity mirror pump cover design brings stylish lighting and a modern touch to your build​

Flexible Pump Orientation
Featuring a rotatable pump cover that allows users to customize the orientation for the perfect look.

Dual chamber pump

Patented design
Our latest patented dual chamber design has been refined for enhanced cooling synergy. The new design increases water pressure and optimizes water flow directly to CPU hot spot.

Improved Quality
Fully automated production and assembly of the pump with fully recorded production history.

Dual Chamber Pump
Our patented dual chamber design delivers a compact cooler with efficient and reliable performance.

Optimum Tubing Length
400 mm tubing allows for effortless cooler installation in any orientation.

Easy Installation
With pre-installed fans, streamlined cabling, pre-applied thermal paste, and pre-mounted brackets, setup is quick, clean, and effortless

Universal Socket Support
Broad compatibility with both Intel and AMD CPU sockets

Specifications

Performance
Suitable location	Processor
Fan connector	7-pin
Pulse-width modulation (PWM) support	Yes
Type	Liquid cooling kit
Rotational speed (min)	650 RPM
Rotational speed (max)	1750 RPM
Bearing type	Rifle bearing
Fan diameter	12 cm
Supported processor sockets	LGA 1851, LGA 1700, LGA 1200 (Socket H5), LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), Socket AM4, Socket AM5
Maximum airflow	71.9 cfm
Maximum air pressure	1.86 mmH2O
Airflow	122.4 m³/h
Number of fans	3 fan(s)
Quantity per pack	1 pc(s)
Pump connector	3-pin + 4-pin
Fan noise level (max)	27.2 dB
Pump noise level	25 dB
Pump motor speed (max)	3200 RPM
Pump's mean time to failure (MTTF)	35000 h
Fan's mean time to failure (MTTF)	40000 h
Design
Fan connector	7-pin
Number of fans	3 fan(s)
Illumination colour	Red, Green, Blue
Product colour	White
Illumination LED	Yes
Radiator material	Aluminum
Ports & interfaces
Fan connector	7-pin
Pump connector	3-pin + 4-pin
Power
Safety current	0.37 Ah
Rated voltage	12 V
Rated current	0.26 A
Fan power consumption	3.12 W
Pump power consumption	7.2 W
Pump voltage	12 V
Weight & dimensions
Weight	1.65 kg
Fan dimensions (W x D x H)	120 x 120 x 25 mm
Package width	229 mm
Package depth	450 mm
Package height	142 mm
Package weight	2.73 kg
Radiator width	12 cm
Radiator depth	39.4 cm
Radiator height	2.72 cm
Tube length	40 cm
Pump width	7.85 cm
Pump depth	8.36 cm
Pump height	6.29 cm
Technical details
Fan connector	7-pin
Illumination LED	Yes
Other features
Safety current	0.37 Ah
Pump connector	3-pin + 4-pin
Logistics data
Products per master (outer) case	4 pc(s)
Master (outer) case width	465 mm
Master (outer) case length	475 mm
Master (outer) case height	310 mm

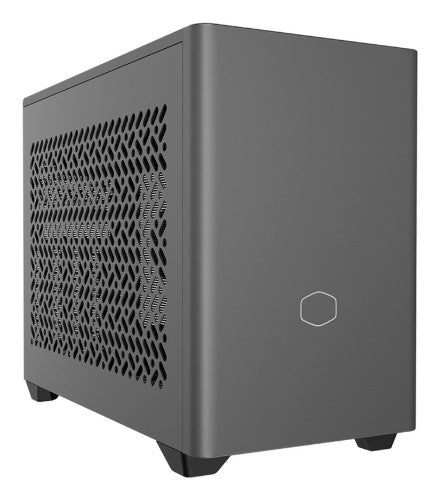

Mini-ITX, 18.25L, 2.5", 3.5", 2 x USB 3.2 Gen 1, 1x USB 3.2 Gen2 x 2 Type C, 3.5mm, 2 x 140mm/280mm, V SFX Gold 850W ATX 3.0,

Key Features

• Comprehensive support for the latest GPUs
• Increase ventilation with New side panel
• Preinstalled ATX 3.0 PSU with 12VHPWR cable
• Featured a USB typeC port

Description

Acquire the Premium ITX Effortlessly
NR200P MAX V2

STREAMLINE YOUR BUILD EXPERIENCE

ENHANCE SUPPORT FOR HIGH-END ITX SYSTEMS
The NR200P MAX V2 enhances GPU support capability up to 356.7mm and includes a GPU holder and a 12VHPWR power cable for the latest GPUs. Combined with tailor-made thermal and power delivery solutions, the NR200P MAX V2 comprehensively satisfies users' demands for a high-end ITX system with a 'ready-to-go' package

NCORE-PATTERNED' STEEL LEFT SIDE PANEL AND TEMPERED GLASS VENTILATED OPTIONS
The NR200P MAX V2 is equipped with an 'Ncore-patterned' side steel panel. This upgrade assists the system in increasing ventilation, ensuring that power-hungry builds stay cool and run more efficiently. Additionally, the edge-to-edge tempered glass panel provides a premium aesthetic.

TAILOR-MADE PREMIUM COOLING AND ATX 3.0 SUPPORTED POWER DELIVERY
Next-gen systems are becoming more and more power-hungry and to power it all, NR200P MAX V2 implements an ATX 3.0 850W Gold-certified PSU with custom-length textured cables specifically designed to cover all performance needs.

A 280mm radiator, two pre-installed SickleFlow PWM 140mm fans and Cooler Master's highly acclaimed 3rd generation pump/CPU block provide reliable cooling for the CPU. AMD sockets up to AM4 and AM5 and Intel sockets up to LGA1700 are fully supported.

TRIPLE-SLOT GPU SUPPORT
The NR200P MAX V2 supports triple-slot GPUs up to 357.6mm in length and 160mm in height. Additionally, this chassis has been specifically designed for vertically mounted GPUs to ensure powerful performance.

VERSATILE HARD DRIVE SUPPORT
NR200P MAX V2 provides two dedicated 2.5” hard drive mounting locations. For extra storage, two optional 3.5” hard drive mounting locations may be available depending on hardware configuration.

PREMIUM PCIE GEN4 RISER CABLE INCLUDED
NR200P MAX V2 comes equipped with a premium shielded PCIe Gen4 Riser Cable to ensure both maximum compatibility and performance with all graphics cards.

PERFORMANCE UNBOUNDED
The pre-installed, 80 Plus ATX 3.0 Gold efficiency PSU features 16AWG PCIe full-modular, high efficiency cables tailor-made to allow ease of installation without the hassle of cable management. Tailor-made to a small form factor, this PSU allows clearance for the largest, widest graphics cards while making the most of NR200P MAX V2’s 18 liter chassis.

COOLING EFFICIENCY BEYOND COMPARE
NR200P MAX V2’s built-in 280mm radiator boasts unmatched cooling efficiency owing to a 25% increase in aluminum fin surface area.

Compatible with a wide variety of Intel and AMD sockets (all brackets included), the AIO’s upgraded Gen3 dual-chamber pump is bound to keep any CPU running at optimum performance. Included Sickleflow 140 Non-LED fans utilize a two-tier sealing mechanism to prevent dust accumulation, resulting in longer serviceable life span and silent performance.

ATX 3.0 COMPATIBLE
Cooler Master's V Gold power solutions, renowned for their extraordinary performance delivery and high reliability, have been upgraded to support ATX 3.0. This ensures that the system is capable of satisfying all levels of performance needs.

Build Small. Play Big.
This case is compatible with SFF-Ready Enthusiast GeForce cards, so you can pack high performance into a smaller footprint. Look for SFF-Ready Enthusiast GeForce Cards to get a sure fit and streamline your PC build.

Specifications

Design
Volume	18.25 L
Fan connector	4-pin
Anti-dust filter	Yes
Bearing type	Fluid bearing
Form factor	Tower
Type	PC
Material	Acrylonitrile butadiene styrene (ABS), Mesh, SGCC, Steel, Tempered glass
Number of 3.5" bays	2
Supported motherboard form factors	Mini-ITX
Product colour	Grey
Number of 2.5" bays	2
Side window	Yes
Number of expansion slots	3
Maximum CPU cooler height	6.7 cm
Maximum graphics card length	35.8 cm
Maximum PSU length	13 cm
Power supply
Supported power supply form factors	SFX, SFX-L
Power supply included	Yes
Power supply	850 W
80 PLUS certification	80 PLUS Gold
ATX version	3.0
Ports & interfaces
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Fan connector	4-pin
Audio input	Yes
Audio output	Yes
Cooling
Top radiator installed	Yes
Top radiator sizes supported	120,140,240,280 mm
Noise level (low speed)	10 dB
Noise level (high speed)	27 dB
Maximum airflow	67 cfm
Fan rated voltage	12 V
Fan rated current	0.15 A
Top radiator fan size installed	280
Top fans installed	2x 140 mm
Number of top fans supported (max)	2
Top fans diameters supported	120,140 mm
Number of bottom fans supported (max)	2
Bottom fans diameters supported	120 mm
Fan speed	650 - 1400 RPM
Maximum air pressure	2.25 mmH2O
Pulse-width modulation (PWM) support	Yes
Storage
HDD/SSD combo cage	Yes
Supported HDD sizes	2.5,3.5"
Packaging content
Riser cable included	Yes
Weight & dimensions
Volume	18.25 L
Width	185 mm
Depth	377 mm
Height	292 mm
Weight	7.7 kg
Packaging data
Package width	288 mm
Package depth	350 mm
Package height	448 mm
Package weight	9.5 kg
Other features
Volume	18.25 L
Maximum airflow	67 cfm
Fan connector	4-pin
Bearing type	Fluid bearing

PixArt Optical, 2.4 GHz, 10000 DPI, 100 ips, 1000 MHz, 125.5 x 71 x 40.5 mm, 54 g, White

Key Features

• 2.4 GHz Wireless Connectivity – Fast, stable transmission with a longer connection distance
• Lightweight, Ambidextrous Design – Optimized for right handers with two side buttons and lightweight design without exterior holes that compromise on aesthetics, weighs in at 77g even with a AA battery included
• Long Battery Life – With one AA battery, it’ll last dozens of sessions without having to worry about dying in the middle of a fight
• Gaming Grade Sensor – Adapt to your game or playstyle with optical sensor adjustable up to 10,000 DPI
• Upgrade Mouse Feet – New-and-improved feet made with PTFE material for low friction and high durability, which provides a smooth, fast glide with maximum responsiveness
• Software Customization – New, improved software allows you to remap controls, tune your macros and more

Description

The MM311 gives you everything needed to win adjustable 10 000 DPI optical sensor, genuine PTFE feet for unrivaled glide, and 2.4 GHz wireless for supreme versatility All housed in a super lightweight, revolutionary shell design that reduces the weight to 77 g even with the battery.

Light on weight but heavy on performance, the MM311 truly floats above the rest

Specifications

Mouse
Number of movement resolution modes	4
Customizable movement resolution	Yes
Device interface	RF Wireless
Buttons durability (million clicks)	60000000
Buttons quantity	1
Movement detection technology	Optical
Purpose	Gaming
Movement resolution	10000 DPI
Scrolling directions	Vertical
Scroll type	Wheel
Polling rate	125,250,500,1000 Hz
Number of scroll wheels	1
Buttons type	Pressed buttons
Frequency band	2.4 GHz
Mouse tracking speed	100 ips
Input device
Number of movement resolution modes	4
Customizable movement resolution	Yes
Device interface	RF Wireless
Buttons quantity	1
Movement detection technology	Optical
Purpose	Gaming
Movement resolution	10000 DPI
Scrolling directions	Vertical
Scroll type	Wheel
Polling rate	125,250,500,1000 Hz
Number of scroll wheels	1
Buttons type	Pressed buttons
Frequency band	2.4 GHz
Design
Product colour	White
Form factor	Ambidextrous
Material	ABS synthetics, Polytetrafluoroethylene (PTFE), Rubber
Surface coloration	Monochromatic
Ergonomic design	Yes
Vertical design	No
Ergonomics
Buttons durability (million clicks)	60000000
Polling rate	125,250,500,1000 Hz
Ergonomic design	Yes
Vertical design	No
Power
Power source	Batteries
Battery technology	Alkaline
Number of batteries supported	1
Battery type	AA
System requirements
Windows operating systems supported	Windows 10, Windows 11, Windows 8, Windows 8.1
Mac operating systems supported	Yes
Weight & dimensions
Width	71 mm
Depth	125.5 mm
Height	40.5 mm
Weight	54 g
Packaging content
Receiver included	Yes
Packaging data
Receiver included	Yes
Bundled software	Cooler Master MasterPlus+
Quantity per pack	1 pc(s)
Logistics data
Quantity per pack	1 pc(s)
Other features
Weight	54 g
Polling rate	125,250,500,1000 Hz

M.2 NVME PCIe, USB 3.2 Gen 2 Type-C, 10 Gbps, 128.5 x 42 x 18.5mm

Description

Pocket Your Passion
Oracle Air features a unique dual-layer design that allows for advanced heat dissipation that still keeps the device cool to the touch.

Full tool-less installation allows for easy upgrades and quick access between multiple SSDs, so users can work and play on the go.

BLISTERING SPEED, ON-THE-GO
Whether you’re gaming, editing, or creating on the fly, the Oracle Air easily transfers data at speeds up to 1000MBps.

DUAL LAYER COOLING
A unique dual layer design allows for highly effective heat distribution and rapid cooling while remaining cool to the touch.

INSTALL IN SECONDS
Oracle Air keeps things simple and intuitive by completely omitting the need for screws or tools during installation.

Plug and Play, MOLLE Compatible
Easily attach Oracle Air onto backpacks and more, facilitating instant access to countless games and files.

MULTI PLATFORM AND DEVICE SUPPORT
Enjoy native support for all major platforms including PlayStation, Windows, Mac OS, Linux, Android, and iOS.

Specifications

Storage
Number of storage drives supported	1
Storage drive size	M.2
Supported storage drive interfaces	M.2
Supported storage drive lengths	30,42,60,80 mm
NVMe	Yes
Ports & interfaces
USB connectivity	Yes
USB version	3.2 Gen 2 (3.1 Gen 2)
USB connector type	USB Type-C
USB connector gender	Female
Design
Product type	SSD enclosure
Material	Aluminium
Product colour	Silver
Performance
Data transfer rate	10 Gbit/s
Weight & dimensions
Weight	130 g
Width	42 mm
Depth	128.5 mm
Height	18.5 mm
Package width	69 mm
Package depth	142 mm
Package height	40 mm
Package weight	180 g
Logistics data
Master (outer) case width	225 mm
Master (outer) case length	300 mm
Master (outer) case height	240 mm
Master (outer) case gross weight	5.86 kg

Silencio S600, Micro-ATX/Mini-ITX/ATX, USB 3.0 x 2, Steel/Plastic/Sound Absorbing Material, Black

Description

The Silencio S600
The Silencio is a silent case that makes no compromises in thermal performance. Sound dampening material surrounds the system build, rubber padding cushions all included fans, and a removable cover shields noise that escapes from the top panel. The Silencio S600 is available with either a tempered glass or a sound-dampened steel side panel.

For demanding systems, the top panel’s Sound Dampening Cover can be removed for increased ventilation. Paired with the front panel’s ventilation, directionally taking in air through the mesh, silence can be accomplished without sacrifice. The subtle ventilation takes in air from three sides of the sound-dampened front door, with the mesh filter aimed toward the bottom for an efficient intake of air.

Sound Dampening Material – Sound dampening material minimizes noise from the pre-installed fans, the power supply, all steel panels, the steel front door, and all storage mounting points for 2.5” and 3.5” drives.

Tempered Glass or Sound-Dampened Steel – The Silencio S600 is available in two versions. Seamless tempered glass to show the system build or sound-dampened steel for optimal noise reduction.

Removable Sound Dampening Cover – The top cover can be removed for increased ventilation or kept in place to reduce noise.

Reversible, Steel Front Door – The sound-dampened, steel front door features a reversible mounting system that is capable of opening in two directions.

SD Card Reader – The I/O Panel features an SD Card Reader for rich connectivity.

Headset Jack – The single 4 pole headset jack features both audio and microphone capabilities simultaneously so that separate jacks are not needed.

Silencio Fans – Two Silencio FP 120mm PWM fans are pre-installed with rubber padding to reduce noise. To connect additional fans, one 4pin 1-to-3 splitter is included.

Graphics Card Support Up To 398mm – Generous clearance space is provided to support the latest graphics cards.

Specifications

Design
Volume	44.8 L
Anti-dust filter	Yes
Form factor	Midi Tower
Type	PC
Material	Plastic, Steel
Number of 5.25" bays	1
Number of 3.5" bays	4
Supported motherboard form factors	ATX, micro ATX, Mini-ITX
Product colour	Black
Number of 2.5" bays	5
Suitable for	Gaming
Side window	No
Reset button	Yes
Illumination	No
Cable management	Yes
Number of expansion slots	7
Maximum CPU cooler height	16.7 cm
Maximum graphics card length	39.8 cm
Maximum PSU length	18 cm
On/off button	Yes
Ergonomics
Reset button	Yes
Cable management	Yes
On/off button	Yes
Power supply
Supported power supply form factors	ATX, PS2
Power supply included	No
Power supply location	Bottom
Ports & interfaces
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 2.0 ports quantity	0
Audio input	Yes
Audio output	Yes
Cooling
Front radiator sizes supported	120,140,240,280 mm
Rear radiator sizes supported	120 mm
Top radiator sizes supported	120,240 mm
Front fans installed	1x 120 mm
Number of front fans supported (max)	2
Front fans diameters supported	120,140 mm
Rear fans installed	1x 120 mm
Number of rear fans supported (max)	1
Rear fans diameters supported	120 mm
Number of top fans supported (max)	2
Top fans diameters supported	120,140 mm
Fan speed	800 - 1400 RPM
Liquid cooling capability	Yes
Storage
Supported HDD sizes	2.5,3.5,5.25"
Compatible memory cards	MMC, SD
Card reader integrated	Yes
Technical details
Harmonized System (HS) code	84733080
Weight & dimensions
Volume	44.8 L
Width	209 mm
Depth	478 mm
Height	470.5 mm
Weight	8.43 kg
Packaging data
Package width	290 mm
Package depth	550 mm
Package height	552 mm
Package weight	9.72 kg
Logistics data
Harmonized System (HS) code	84733080
Other features
Volume	44.8 L
Harmonized System (HS) code	84733080

Midi Tower, Steel, Mini-ITX, Micro ATX, ATX, Black

Key Features

• Supports 360mm AIO radiators in the top or front
• 375mm GPU clearance (400mm with fans removed)
• Abundant cooling options with 9x 120mm fan mounts
• 3x RS120 ARGB Fans included
• Angled bottom fan mount for direct GPU cooling
• Built-in GPU Anti-sag Stabilization Arm
• Compatible with reverse-connector motherboards

Description

ROOM FOR THE BIGGEST GPUs
The 3200D is a spacious mid-tower chassis designed for modern GPUs. With 375mm of clearance with front fans installed, even the most powerful GPUs have plenty of room to breathe. The PSU shroud also features 2x 120mm fan mounts, with the front one being angled directly at the GPU, providing even more cooling power for the hottest GPUs.

THREE RS120 ARGB FANS INCLUDED
Simply plug in the fans and customize your RGB lighting using your motherboard’s ARGB software, including ASUS Aura Sync, MSI Mystic Light, ASRock Polychrome RGB, and GIGABYTE RGB Fusion.

DIRECT-TO-MOTHERBOARD CONNECTION
Reduce cable clutter by daisy chaining your RS ARGB Series fans together, controlling them all through a single 4‑pin PWM connector and one +5V ARGB connector on your motherboard.

DESIGNED FOR SUPER-CLEAN BUILDS
Cable management is easy in the 3200D with support for reverse-connector motherboards, a built-in cable shroud, and ample tie-down locations throughout the chassis.

BUILT FOR THE REAL WORLD
Every detail of the 3200D is focused on performance and how your system runs day to day. From keeping your graphics card securely in place to directing airflow where it is needed most, these features work together to help your build maintain optimal performance.

MODERN FRONT PANEL I/O
The top-mounted I/O ports grant easy access to a USB 3.2 Gen 2x2 Type-C 20Gb/s port for lightning-fast data transfers, a USB 2.0 Type-A, a combo audio/microphone jack, and a power button.

Specifications

Ergonomics
On/off button	Yes
Design
Anti-dust filter	Yes
Form factor	Midi Tower
Type	PC
Material	Steel, Tempered glass, Plastic
Number of 5.25" bays	0
Number of 3.5" bays	1
Supported motherboard form factors	Mini-ITX, micro ATX, ATX
Product colour	Black
Number of 2.5" bays	2
Number of internal 3.5" bays	1
Side window	Yes
Illumination location	Case fans
Illumination colour	Multi
Illumination	Yes
Number of expansion slots	7
Maximum CPU cooler height	16.5 cm
Maximum graphics card length	40 cm
Maximum PSU length	18 cm
On/off button	Yes
Tempered glass panel(s)	Yes
Power supply
Supported power supply form factors	ATX
Power supply included	No
Ports & interfaces
USB 3.2 Gen 2x2 Type-C ports quantity	1
USB 2.0 ports quantity	1
Combo headphone/mic port	Yes
Cooling
Front radiator sizes supported	280,360,240 mm
Rear radiator sizes supported	120 mm
Top radiator sizes supported	360,280,240 mm
Front fans installed	3x 120 mm
Number of front fans supported (max)	3
Front fans diameters supported	120,140 mm
Number of rear fans supported (max)	1
Rear fans diameters supported	120 mm
Number of top fans supported (max)	3
Top fans diameters supported	120,140 mm
Number of bottom fans supported (max)	2
Bottom fans diameters supported	120 mm
Liquid cooling capability	Yes
Liquid cooling installed	No
Storage
Supported HDD sizes	2.5,3.5"
Technical details
Warranty period	2 year(s)
Weight & dimensions
Width	219 mm
Depth	458 mm
Height	495 mm
Weight	8.5 kg
