Mid Tower, 48.45 L, 2.5"/3.5", 4x 120 mm, ARGB PWM, 7x PCe, USB Type C, USB 3.0, 3.5 mm, 425 x 285 x 400 mm, 7.13 kg, White

Description

Built to Showcase, Cooled to Perform

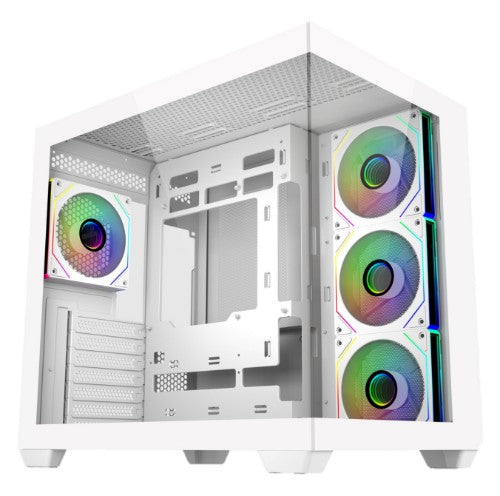

Elite 681

The Elite 681 redefines showcase builds with its panoramic 270° tempered glass panels and true dual-chamber layout. Designed for high performance systems, it combines refined aesthetics with cutting-edge airflow engineering. From vertical cooling support to extensive radiator compatibility, this case is built to handle next-gen hardware with style and precision.

270° Seamless Glass Design

Dual tempered glass panels with 45° bevels offer an uninterrupted, ultra-clean view of your system and lighting.

True Dual-Chamber Layout

Separate chambers for motherboard and PSU/cabling streamline airflow and simplify cable management with 95mm clearance.

Vertical Airflow Configuration

Up to 10 fans with bottom-to-top layout accelerate heat dissipation for superior thermal performance.

Extreme Cooling Compatibility

Supports dual 360mm radiators (top & bottom) and one 280mm side radiator for custom loops or powerful AIOs.

Pre-installed ARGB Fans with Sync

Includes 4 ARGB fans (3 reverse intake + 1 exhaust) with daisy-chaining and full motherboard lighting sync.

Full Mesh Ventilation

Large mesh panels on the top and bottom provide maximum airflow for efficient cooling.

RTX 50 Series Ready

Supports GPUs up to 410mm, perfect for the latest next-gen graphics cards.

Next-Gen High-Speed I/O

Features USB 3.2 Gen 2x2 Type-C (20Gbps) and dual USB 3.0 ports for fast and flexible connectivity.

Specifications

Design
Volume	48.45 L
Form factor	Midi Tower
Type	PC
Material	Steel, Tempered glass
Number of 5.25" bays	0
Number of 3.5" bays	1
Supported motherboard form factors	ATX, ITX, micro ATX
Product colour	White
Number of 2.5" bays	2
Number of internal 3.5" bays	1
Suitable for	Gaming
Side window	Yes
LED indicators	Yes
Illumination location	Case fans
Illumination colour	Multi
Illumination	Yes
Cable management	Yes
Number of expansion slots	7
Maximum CPU cooler height	16 cm
Maximum graphics card length	41 cm
Maximum PSU length	24 cm
On/off button	Yes
Tempered glass panel(s)	Yes
Ergonomics
LED indicators	Yes
Cable management	Yes
On/off button	Yes
Power supply
Supported power supply form factors	ATX
Power supply included	No
Power supply location	Side
Ports & interfaces
USB 3.2 Gen 2x2 Type-C ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 2.0 ports quantity	0
Combo headphone/mic port	Yes
Cooling
Top radiator sizes supported	120,240,280,360 mm
Side fans installed	3x 120 mm
Number of side fans supported (max)	3
Side fans diameters supported	120,140 mm
Rear fans installed	1x 120 mm
Number of rear fans supported (max)	1
Rear fans diameters supported	120 mm
Number of top fans supported (max)	3
Top fans diameters supported	120,140 mm
Number of bottom fans supported (max)	3
Bottom fans diameters supported	120 mm
Liquid cooling capability	Yes
Bottom radiator sizes supported	120,240,360 mm
Side radiator sizes supported	120,240,280 mm
Pulse-width modulation (PWM) support	Yes
Storage
Supported HDD sizes	2.5,3.5"
Technical details
Warranty period	2 year(s)
Weight & dimensions
Volume	48.45 L
Width	285 mm
Depth	425 mm
Height	400 mm
Weight	7.13 kg
Packaging data
Package width	344 mm
Package depth	440 mm
Package height	520 mm
Package weight	8.59 kg
Other features
Volume	48.45 L

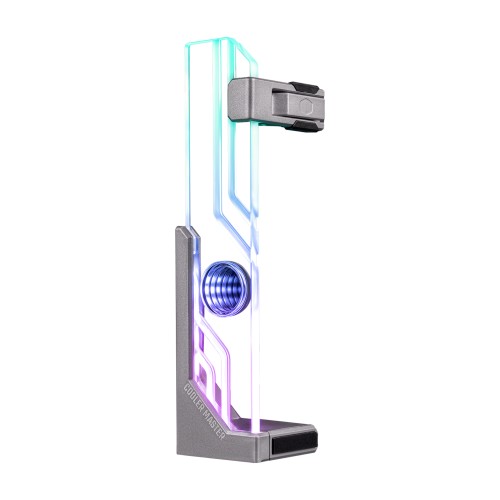

ARGB GPU Support, 3 kg max, 600mm, 236 g

Key Features

• Infinity mirror design
• Edge-lit ARGB tempered glass
• Aluminum stand
• Tool-free installation
• Eliminates GPU sag
• Versatile support

Description

Elevate Into Next Dimension

Infinity Mirror Design
Support your GPU in style with our patented, industry-first infinity mirror design, encased in a transparent layer that creates a trippy visual effect like you've never seen.

Edge-lit Argb Tempered Glass
ARGB lighting rails have been added via CNC machining on the tempered glass, bolstered by enhanced lighting thanks to extra ARGB bulbs. The edge-lit, transparent design provides an aesthetic accent without blocking your card. Alternatively, turn off the lights for a near invisible aesthetic.

Aluminum Stand
A fully aluminum stand provides strengthened and stylish support, built from premium materials specially designed to hold up even the heaviest GPUs.

Eliminated GPU Sag
As GPUs like the 40 series become larger, PCIe slots may suffer increased stress. The Atlas eliminates this by supporting the GPU's weight at critical points throughout the length of the card. Our strength testing shows that the Atlas can support the heaviest of cards without even flinching.

Tool-free Installation
With its 100% tool-less design, installation and adjustment is painless. A rock-solid base is further reinforced with magnets for extra stability.

Versatile Support
The Atlas' design allows for hassle-free adjustment via a sliding and locking mechanism that is compatible with a wide range of builds. A dual axis support mode allows for both vertical and horizontal configurations.

Specifications

Features
Compatible chassis type	Universal
Number of graphics cards supported	1 pc(s)
Type	GPU bracket
Material	Aluminium, Plastic, Tempered glass
Product colour	Grey, Silver
Maximum weight	3 kg
Weight & dimensions
Cable length	0.6 m
Width	44.2 mm
Depth	195.7 mm
Height	75.5 mm
Weight	236 g
Package weight	433 g
Technical details
Compatible chassis type	Universal
Number of graphics cards supported	1 pc(s)
Cable length	0.6 m
Type	GPU bracket
Material	Aluminium, Plastic, Tempered glass
Product colour	Grey, Silver
Packaging data
Package weight	433 g
Quantity per pack	1 pc(s)
Logistics data
Master (outer) case width	355 mm
Master (outer) case length	523 mm
Master (outer) case height	365 mm
Master (outer) case gross weight	14.1 kg
Products per master (outer) case	30 pc(s)

ATX/m-ATX, PCIe 5.0, 165 mm

Key Features

• PCIe 5.0 riser cable included​
• Showcase your GPU with style​​
• ATX & m-ATX case compatibility​​
• Tool-less, flexible adjustment​
• Premium steel, 42%more durable​
• Simplified installation​

Description

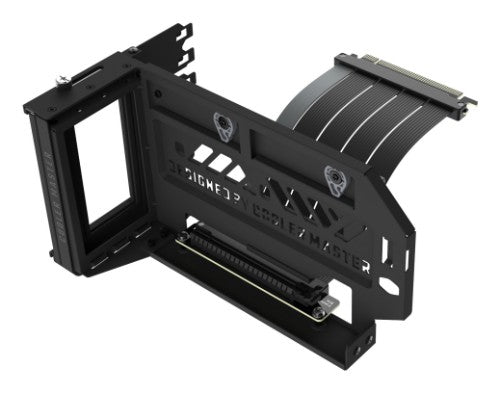

Vertical Graphics Card Holder Kit V3 (PCIE 5.0)

Specifications

Features
Compatible chassis type	Universal
Certification	E467745 / E527405, BKC25093934JC
Number of graphics cards supported	1 pc(s)
Connector 2	PCIe x16
Connector 1	PCIe x16
Type	Graphic card holder
Material	Acrylonitrile butadiene styrene (ABS), Polypropylene (PP), SGCC, Nickel, Gold, Brass
Product colour	Black
PCI Express slots version	5.0
Riser cable included	Yes
Riser cable length	16.5 cm
Power
Input voltage	12 V
Weight & dimensions
Width	305 mm
Depth	178.1 mm
Height	141.8 mm
Weight	810 g
Package weight	1.03 kg
Operational conditions
Operating temperature (T-T)	-20 - 80 °C
Technical details
Compatible chassis type	Universal
Certification	E467745 / E527405, BKC25093934JC
Number of graphics cards supported	1 pc(s)
Connector 2	PCIe x16
Connector 1	PCIe x16
Type	Graphic card holder
Material	Acrylonitrile butadiene styrene (ABS), Polypropylene (PP), SGCC, Nickel, Gold, Brass
Product colour	Black
Packaging data
Package weight	1.03 kg

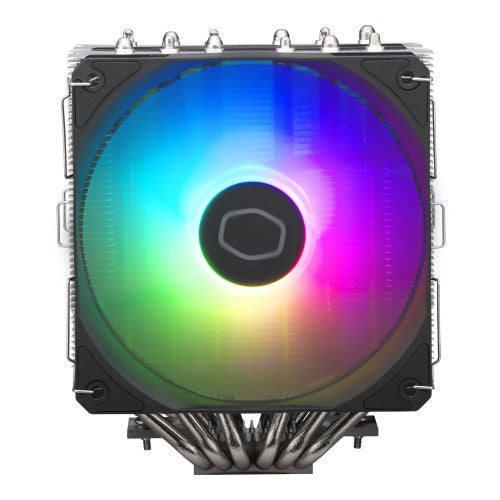

2 x 120mm, ARGB, 650-1750 RPM, 71.93 CFM, 1.86 mmH₂O, 27.2 dBA, 4-pin, PWM, 1.11 kg

Key Features

• Automatic ARGB
• Controllable lighting
• Dual tower heat sink
• 6 nickel-plated heat pipes
• Minimal height
• High-performance Cryofuze

Description

Automatic ARGB
Intuitive LED detection automatically provides default ARGB spectrum lighting.

Controllable Lighting
Customizable and controllable ARGB lights allow you to create a personalized aesthetic.

Dual Tower Heat Sink
Delivers double the surface area for double the cooling.

6 Nickel-plated Heat Pipes
Uniform heat pipes featuring a nickel-plated base with complete coverage for even, efficient heat transfer.

Minimal Height
Compatible with most case requirements thanks to low-profile heat pipes and a total height of 154.9mm.

High-performance Cryofuze
Utilizes nanoparticles to achieve excellent thermal conductivity.

Specifications

Performance
Suitable location	Processor
Fan connector	4-pin
Pulse-width modulation (PWM) support	Yes
Type	Air cooler
Rotational speed (min)	650 RPM
Rotational speed (max)	1750 RPM
Fins material	Aluminium
Bearing type	Rifle bearing
Fan diameter	12 cm
Supported processor sockets	LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1700, Socket AM4, Socket AM5
Noise level (high speed)	27.2 dB
Maximum airflow	71.93 cfm
Maximum air pressure	1.86 mmH2O
Number of heat pipes	6
Number of fans	2 fan(s)
Fan's mean time to failure (MTTF)	160000 h
Design
Fan connector	4-pin
Fins material	Aluminium
Number of heat pipes	6
Number of fans	2 fan(s)
Illumination colour	Multi
Product colour	Black, Silver
Illumination LED	Yes
Ports & interfaces
Fan connector	4-pin
Power
Safety current	0.37 Ah
Rated voltage	12 V
Rated current	0.26 A
Fan power consumption	3.12 W
Weight & dimensions
Width	137 mm
Depth	125 mm
Height	154.9 mm
Weight	1.11 kg
Fan dimensions (W x D x H)	120 x 120 x 25 mm
Package width	159 mm
Package depth	173 mm
Package height	203 mm
Package weight	1.57 kg
Technical details
Fan connector	4-pin
Illumination LED	Yes
Other features
Safety current	0.37 Ah
Logistics data
Products per master (outer) case	6 pc(s)
Master (outer) case width	362 mm
Master (outer) case length	487 mm
Master (outer) case height	238 mm

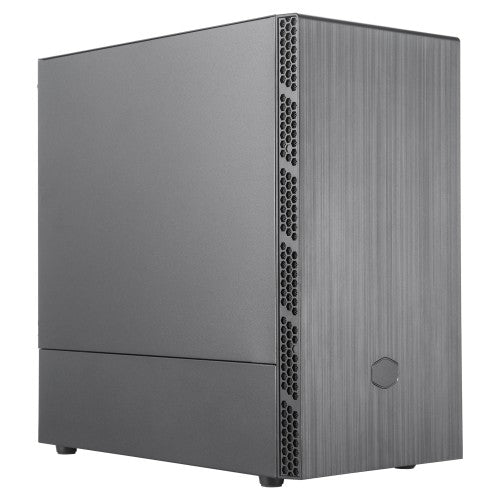

Micro ATX/Mini ITX, 1 x 120mm, 2 x USB 3.2 Gen 1, 1 x 3.5mm, 2.5"/3.5", 5.47 kg

Key Features

• Brushed Front Panel
• Hexagon Gleam
• Mesh Intakes
• With/Without ODD Support
• Adaptable Drive Cage
• Versatile Cooling Options
• Room For Upgrades

Description

A brushed finish spans the entire front panel for an elegant and minimalistic design.

Hexagon Gleam
If an optional, illuminated fan is installed, the Cooler Master hexagon logo will capture light from the fan and emit a glow on the front panel.

Mesh Intakes
Large, mesh intakes span each side of the front panel to provide additional airflow to system.

With/Without ODD Support
Depending on preference, an ODD version of the chassis is available. If an ODD is not preferred, a cleaner appearance and more cooling options on the top and front panels are supported.

Adaptable Drive Cage
The drive cage is (re)movable, able to shift toward the front to accommodate for PSU space, backwards to provide additional radiator space, or even completely removed.

Versatile Cooling Options
Support for up to six fans and front, top, and rear radiator support ensure that performance is not compromised.

Room For Upgrades
Support for up to a 344mm graphics card, a 166mm CPU cooler, and up to a 325mm PSU in length provides room for upgrades to stay ahead of the game.

Specifications

Design
Anti-dust filter	Yes
Form factor	Mini Tower
Type	PC
Material	Mesh, Plastic, Steel
Number of 3.5" bays	2
Supported motherboard form factors	micro ATX, Mini-ITX
Product colour	Black
Number of 2.5" bays	2
Side window	No
Number of expansion slots	4
Maximum CPU cooler height	16.7 cm
Maximum graphics card length	34.4 cm
Maximum PSU length	32.5 cm
Power supply
Supported power supply form factors	ATX
Power supply included	No
Power supply location	Bottom
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Audio input	Yes
Audio output	Yes
Cooling
Front radiator sizes supported	120,140,240,280 mm
Rear radiator sizes supported	120 mm
Top radiator sizes supported	120,140 mm
Number of front fans supported (max)	3
Front fans diameters supported	120,140 mm
Rear fans installed	1x 120 mm
Number of rear fans supported (max)	1
Rear fans diameters supported	120 mm
Number of top fans supported (max)	2
Top fans diameters supported	120,140 mm
Storage
Supported HDD sizes	2.5,3.5"
Technical details
Harmonized System (HS) code	84733080
Weight & dimensions
Width	210 mm
Depth	411 mm
Height	410 mm
Weight	5.47 kg
Logistics data
Harmonized System (HS) code	84733080
Other features
Harmonized System (HS) code	84733080

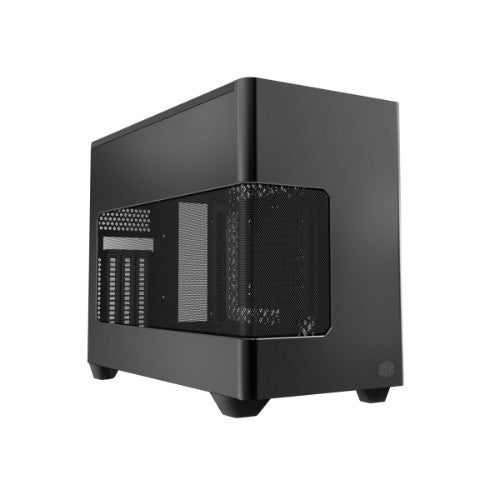

Mini-ITX, mesh side panel, 1x 3.5", 1x 2.5", USB 3.2, CPU 70 mm, GPU 361.5x160 mm

Key Features

• Supports 240mm / 280mm radiator
• Large mesh side panels
• CNC-machined aluminum side panels
• USB 3.2 Gen 2x2 Type-C front I/O
• Supports vertical GPU up to 361.5mm (L) x 160mm (H)
• PCIe 5.0 riser cable included
• GPU support bracket included

Description

The NR200P V3 is crafted for creators, gamers, and PC DIY enthusiasts who demand both performance and style. Optimized for the latest NVIDIA 50-series GPUs, it features enhanced airflow, PCIe Gen5 support, and premium materials in a sleek ITX form factor.

Whether you're chasing high frame rates or a clean aesthetic, the NR200P V3 delivers powerful cooling and endless customization options—ready for your next-gen build.

Next-Level Cooling, Built for Performance
Support for 240mm and 280mm AIO liquid coolers enables powerful thermal performance to handle high-end components with ease.

With optimized airflow design, your system stays cool and stable—even under heavy loads.

Serious GPU Compatibility, Future-Ready
Includes a PCIe 5.0 riser cable and supports vertical GPU installation up to 361.5mm in length and 160mm in height.

A built-in support bracket ensures rock-solid stability—even for today’s largest graphics cards.

Optimized Airflow with Removable Mesh Panels
Large mesh side panels boost airflow and help reduce dust.

Easily switch between maximum cooling or a sleek closed look—your build, your style.

Tool-Free, Hassle-Free Installation
CNC-machined aluminum side panels with magnetic latching offer seamless tool-free access.

Enjoy effortless upgrades and maintenance—while preserving a clean, minimalist aesthetic.

Support for Next-Gen Graphics Cards
Includes a PCIe 5.0 riser cable to ensure high-speed, stable GPU connectivity. Ready for the bandwidth demands of next-generation graphics cards, while enabling a clean vertical GPU installation.

Ultra-Fast Front I/O – USB 3.2 Gen 2x2 Type-C
Equipped with the latest USB 3.2 Gen 2x2 Type-C for blazing 20Gbps speeds.

Perfect for creators, gamers, and anyone who demands high-speed performance.

Specifications

Ergonomics
LED indicators	Power
Design
Form factor	Desktop
Type	PC
Material	Aluminium, SGCC, Acrylonitrile butadiene styrene (ABS), Mesh
Number of 3.5" bays	1
Supported motherboard form factors	Mini-ITX
Product colour	Black
Number of 2.5" bays	1
LED indicators	Power
Maximum CPU cooler height	7 cm
Maximum graphics card length	36.1 cm
Maximum PSU length	13 cm
Power supply
Power supply included	No
Ports & interfaces
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Audio output	Yes
Cooling
Top radiator sizes supported	120,140,240,280 mm
Number of top fans supported (max)	2
Top fans diameters supported	120,140 mm
Number of bottom fans supported (max)	1
Bottom fans diameters supported	120 mm
Storage
Supported HDD sizes	2.5,3.5"
Weight & dimensions
Width	185 mm
Depth	378.2 mm
Height	292 mm

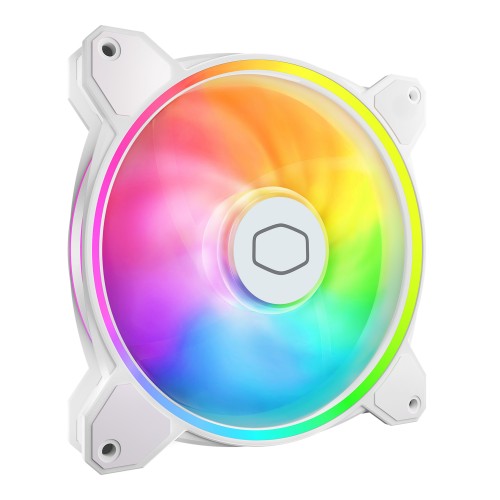

0-1600 RPM, 59.51 CFM, 27 dBA, 2.53 mmH₂O, 4-Pin, PWM, 140 mm, ARGB, 210 g

Key Features

• Larger Fan Blades
• Hybrid Frame Design
• Dual Loop ARGB LED Rings
• Improved Fan Controller IC

Description

Bring On The Light

Vibrant Addressable Gen 2 RGB
Larger LED rings increase lighting by 50% for even more vibrant lighting.

Hybrid Frame Design
Redesigned frame structure and corner dampers maintain stability without sacrificing fan blade area for better performance.

Larger Fan Blades
Air Balance fan blades increased by 10% in size deliver stronger air flow and cooling performance.

Improved Cooling Performance
Fine tuned P-Q Curve increase air flow and pressure while being even more quiet than its predecessor.

MULTIPLE SIZE AND COLOR OPTIONS
Available in both 120mm and 140mm sizes, as well as in black and white color options.

Specifications

Performance
Suitable location	Computer case
Fan connector	4-pin
Pulse-width modulation (PWM) support	Yes
Type	Fan
Rotational speed (max)	1600 RPM
Bearing type	Rifle bearing
Fan diameter	14 cm
Noise level (high speed)	27 dB
Maximum airflow	59.51 cfm
Maximum air pressure	2.53 mmH2O
Airflow	101 m³/h
Fan's mean time to failure (MTTF)	160000 h
Design
Fan connector	4-pin
Illumination colour	Multi
Product colour	White
Illumination LED	Yes
LED connector type	3-pin
Ports & interfaces
Fan connector	4-pin
Power
Safety current	0.4 Ah
Rated voltage	12 V
Rated current	0.13 A
Power consumption (typical)	1.56 W
LED voltage	5 V
Weight & dimensions
Fan dimensions (W x D x H)	140 x 140 x 25 mm
Fan weight	210 g
Package width	28 mm
Package depth	150 mm
Package height	198 mm
Package weight	320 g
Technical details
Fan connector	4-pin
Illumination LED	Yes
Other features
Safety current	0.4 Ah
LED voltage	5 V
Logistics data
Products per master (outer) case	20 pc(s)
Master (outer) case width	335 mm
Master (outer) case length	415 mm
Master (outer) case height	185 mm

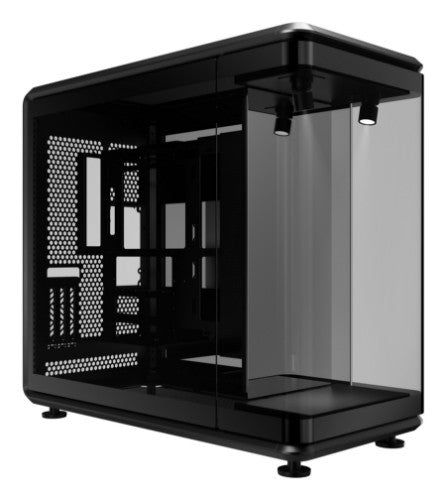

Mini-ITX/Micro-ATX/ATX/BTF (ATX), 2.5" / 3.5", 2x USB 3.2 Gen 1 Type-A, 1x USB 4.0 Gen 2x2 Type-C, 3.5mm, 93 L, 549 x 291 x 581 mm

Description

MasterFrame 360 PANORAMA is an open- frame showcase chassis designed for builders who demand both performance and presentation. Featuring panoramic tempered glass side panels, modular component support, and next-gen connectivity, it offers a striking platform to display your hardware and creativity. With built-in PCIe 5.0 riser and ARGB spotlights, it's ready to shine right out of the box.

Industry-First 360° DIY Liquid Cooling Chassis
Introducing the market’s first 360-degree showcase chassis—purpose-built for open-loop liquid
cooling. Create a full-wrap cooling loop around your system with dedicated space and mounting
options that allow tubing to flow around all sides like a custom amusement park ride.

Panoramic Glass Design for Immersive Showcase
Showcase your build—and your collectibles—from every angle with ultra-clear tempered glass panels
on three sides.

Like a 360-degree display case, it reveals every detail of your components and figures with stunning
clarity. Whether you're highlighting open-loop liquid cooling or custom hardware configurations, this
chassis turns your rig into a show-stopping centerpiece with story and style.

Front Display Stage for Personal Style
A mirrored front platform lets you exhibit your favorite collectibles, figures, or themed accessories,
blending personal expression with system aesthetics. Combined with front-facing ARGB effects, your
setup becomes a vivid and playful showcase.

Massive Cooling Compatibility
To ensure exceptional thermal performance, the case supports fan sizes ranging from 120 mm to 200
mm, with space for up to twelve 120 mm fans—six on the top and six on the bottom. It also supports
radiators up to 360 mm, meeting the cooling demands of high-end custom liquid cooling setups.

Compatible with Standard and BTF Motherboards
Compatible with Mini-ITX, Micro-ATX, and ATX motherboards, including BTF (back-connect) layouts
within the ATX form factor.

Features 110 mm of cable routing clearance for a clean and clutter-free showcase.

PCIe 5.0 Riser Cable Included
Includes a premium PCIe 5.0 riser cable that enables vertical GPU mounting providing both next-gen
performance and an elevated presentation right out of the box.

Wide Component Compatibility
Accommodates up to 430 mm GPUs and 210 mm PSUs built to handle flagship components without
compromise.

Next-Gen Connectivity at Your Fingertips
Features USB 4.0 Gen 2x2 Type-C (up to 20G) and 2x USB 3.2 Gen 1 Type-A ports (up to 5G), providing
ultra-fast data transfer and future-ready accessibility.

Specifications

Design
Volume	93 L
Anti-dust filter	Yes
Form factor	Full Tower
Type	PC
Material	SGCC, Tempered glass
Number of 5.25" bays	0
Number of 3.5" bays	1
Supported motherboard form factors	Mini-ITX, micro ATX, ATX, BTF
Product colour	Black, Transparent
Number of 2.5" bays	2
Side window	Yes
Cable management	Yes
Maximum CPU cooler height	14.5 cm
Maximum graphics card length	43 cm
Maximum PSU length	21 cm
Ergonomics
Cable management	Yes
Power supply
Power supply included	No
Ports & interfaces
USB 3.2 Gen 2x2 Type-C ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 2.0 ports quantity	0
Audio input	Yes
Audio output	Yes
Cooling
Top radiator sizes supported	120,140,240,280,360 mm
Number of top fans supported (max)	6
Top fans diameters supported	120,140,180,200 mm
Number of bottom fans supported (max)	6
Bottom fans diameters supported	120,140,180,200 mm
Bottom radiator sizes supported	120,140,240,280,360 mm
Storage
HDD/SSD combo cage	Yes
Supported HDD sizes	2.5,3.5"
Packaging content
Riser cable included	Yes
Weight & dimensions
Volume	93 L
Width	291 mm
Depth	549 mm
Height	581 mm
Weight	16.5 kg
Packaging data
Package width	427 mm
Package depth	720 mm
Package height	680 mm
Package weight	21.1 kg
Other features
Volume	93 L
