Intel® Core™ i7-12700 Processor (25M Cache, up to 4.90 GHz)

Description

Intel® Trusted Execution Technology
Intel® Trusted Execution Technology for safer computing is a versatile set of hardware extensions to Intel® processors and chipsets that enhance the digital office platform with security capabilities such as measured launch and protected execution. It enables an environment where applications can run within their own space, protected from all other software on the system.

Intel® Virtualization Technology for Directed I/O (VT-d)
Intel® Virtualization Technology for Directed I/O (VT-d) continues from the existing support for IA-32 (VT-x) and Itanium® processor (VT-i) virtualization adding new support for I/O-device virtualization. Intel VT-d can help end users improve security and reliability of the systems and also improve performance of I/O devices in virtualized environments.

Intel® Virtualization Technology (VT-x)
Intel® Virtualization Technology (VT-x) allows one hardware platform to function as multiple “virtual” platforms. It offers improved manageability by limiting downtime and maintaining productivity by isolating computing activities into separate partitions.

Intel® 64
Intel® 64 architecture delivers 64-bit computing on server, workstation, desktop and mobile platforms when combined with supporting software.¹ Intel 64 architecture improves performance by allowing systems to address more than 4 GB of both virtual and physical memory.

Intel® Clear Video HD Technology
Intel® Clear Video HD Technology, like its predecessor, Intel® Clear Video Technology, is a suite of image decode and processing technologies built into the integrated processor graphics that improve video playback, delivering cleaner, sharper images, more natural, accurate, and vivid colors, and a clear and stable video picture. Intel® Clear Video HD Technology adds video quality enhancements for richer color and more realistic skin tones.

Cache
CPU Cache is an area of fast memory located on the processor. Intel® Smart Cache refers to the architecture that allows all cores to dynamically share access to the last level cache.

Intel® AES New Instructions
Intel® AES New Instructions (Intel® AES-NI) are a set of instructions that enable fast and secure data encryption and decryption. AES-NI are valuable for a wide range of cryptographic applications, for example: applications that perform bulk encryption/decryption, authentication, random number generation, and authenticated encryption.

Idle States
Idle States (C-states) are used to save power when the processor is idle. C0 is the operational state, meaning that the CPU is doing useful work. C1 is the first idle state, C2 the second, and so on, where more power saving actions are taken for numerically higher C-states.

Intel® Turbo Boost Technology
Intel® Turbo Boost Technology dynamically increases the processor's frequency as needed by taking advantage of thermal and power headroom to give you a burst of speed when you need it, and increased energy efficiency when you don’t.

Max Turbo Frequency
Max Turbo Frequency is the maximum single-core frequency at which the processor is capable of operating using Intel® Turbo Boost Technology and, if present, Intel® Turbo Boost Max Technology 3.0 and Intel® Thermal Velocity Boost. Frequency is typically measured in gigahertz (GHz), or billion cycles per second.

Execute Disable Bit
Execute Disable Bit is a hardware-based security feature that can reduce exposure to viruses and malicious-code attacks and prevent harmful software from executing and propagating on the server or network.

Intel® Hyper-Threading Technology
Intel® Hyper-Threading Technology (Intel® HT Technology) delivers two processing threads per physical core. Highly threaded applications can get more work done in parallel, completing tasks sooner.

Instruction Set
An instruction set refers to the basic set of commands and instructions that a microprocessor understands and can carry out. The value shown represents which Intel’s instruction set this processor is compatible with.

Intel® Quick Sync Video
Intel® Quick Sync Video delivers fast conversion of video for portable media players, online sharing, and video editing and authoring.

Intel vPro® Platform Eligibility
The Intel vPro® platform is a set of hardware and technologies used to build business computing endpoints with premium performance, built-in security, modern manageability and platform stability.

Intel® VT-x with Extended Page Tables (EPT)
Intel® VT-x with Extended Page Tables (EPT), also known as Second Level Address Translation (SLAT), provides acceleration for memory intensive virtualized applications. Extended Page Tables in Intel® Virtualization Technology platforms reduces the memory and power overhead costs and increases battery life through hardware optimization of page table management.

Intel® Optane™ Memory Supported
Intel® Optane™ memory is a revolutionary new class of non-volatile memory that sits in between system memory and storage to accelerate system performance and responsiveness. When combined with the Intel® Rapid Storage Technology Driver, it seamlessly manages multiple tiers of storage while presenting one virtual drive to the OS, ensuring that data frequently used resides on the fastest tier of storage. Intel® Optane™ memory requires specific hardware and software configuration.

Enhanced Intel SpeedStep® Technology
Enhanced Intel SpeedStep® Technology is an advanced means of enabling high performance while meeting the power-conservation needs of mobile systems. Conventional Intel SpeedStep® Technology switches both voltage and frequency in tandem between high and low levels in response to processor load. Enhanced Intel SpeedStep® Technology builds upon that architecture using design strategies such as Separation between Voltage and Frequency Changes, and Clock Partitioning and Recovery.

Intel® Secure Key
Intel® Secure Key includes instructions RDRAND and RDSEED and the underlying the hardware implementation used to generate high-quality keys for cryptographic protocols.

Intel® Speed Shift Technology
Intel® Speed Shift Technology uses hardware-controlled P-states to deliver dramatically quicker responsiveness with single-threaded, transient (short duration) workloads, such as web browsing, by allowing the processor to more quickly select its best operating frequency and voltage for optimal performance and power efficiency.

Intel® Deep Learning Boost (Intel® DL Boost) on CPU
A new set of embedded processor technologies designed to accelerate AI deep learning use cases. It extends Intel AVX-512 with a new Vector Neural Network Instruction (VNNI) that significantly increases deep learning inference performance over previous generations.

Instruction Set Extensions
Instruction Set Extensions are additional instructions which can increase performance when the same operations are performed on multiple data objects. These can include SSE (Streaming SIMD Extensions) and AVX (Advanced Vector Extensions).

Intel® Turbo Boost Max Technology 3.0 Frequency
Intel® Turbo Boost Max Technology 3.0 identifies the best performing core(s) on a processor and provides increased performance on those cores through increasing frequency as needed by taking advantage of power and thermal headroom. Intel® Turbo Boost Max Technology 3.0 frequency is the clock frequency of the CPU when running in this mode.

Intel® Turbo Boost Max Technology 3.0
Intel® Turbo Boost Max Technology 3.0 identifies the best performing core(s) on a processor and provides increased performance on those cores through increasing frequency as needed by taking advantage of power and thermal headroom.

Intel® Total Memory Encryption
TME – Total Memory Encryption (TME) helps protect data against exposure via physical attack on memory, such as cold-boot attacks.

Thermal Monitoring Technologies
Thermal Monitoring Technologies protect the processor package and the system from thermal failure through several thermal management features. An on-die Digital Thermal Sensor (DTS) detects the core's temperature, and the thermal management features reduce package power consumption and thereby temperature when required in order to remain within normal operating limits.

Intel® Volume Management Device (VMD)
Intel® Volume Management Device (VMD) provides a common, robust method of hot plug and LED management for NVMe-based solid state drives.

Intel® Gaussian & Neural Accelerator
Intel® Gaussian & Neural Accelerator (GNA) is an ultra-low power accelerator block designed to run audio and speech-centric AI workloads. Intel® GNA is designed to run audio based neural networks at ultra-low power, while simultaneously relieving the CPU of this workload.

Mode-based Execute Control (MBEC)
Mode-based Execute Control can more reliably verify and enforce the integrity of kernel level code.

Intel® Stable IT Platform Program (SIPP)
The Intel® Stable IT Platform Program (Intel® SIPP) aims for zero changes to key platform components and drivers for at least 15 months or until the next generational release, reducing complexity for IT to effectively manage their computing endpoints.

Intel® Boot Guard
Intel® Device Protection Technology with Boot Guard helps protect the system’s pre-OS environment from viruses and malicious software attacks.

Intel® Control-Flow Enforcement Technology
CET - Intel Control-flow Enforcement Technology (CET) helps protect against the misuse of legitimate code snippets through return-oriented programming (ROP) control-flow hijacking attacks.

Specifications

Processor
Processor generation	12th gen Intel® Core™ i7
Processor manufacturer	Intel
Cooler included	Yes
Processor codename	Alder Lake
Memory bandwidth supported by processor (max)	76.8 GB/s
Processor cache	25 MB
Processor ARK ID	134591
Processor family	Intel® Core™ i7
Processor cores	12
Processor socket	LGA 1700
Processor model	i7-12700
Processor threads	20
Processor operating modes	64-bit
Processor boost frequency	4.9 GHz
Bus type	DMI4
Processor cache type	Smart Cache
Package type	Box
Performance cores	8
Efficient cores	4
Performance-core boost frequency	4.8 GHz
Performance-core base frequency	2.1 GHz
Efficient-core boost frequency	3.6 GHz
Efficient-core base frequency	1.6 GHz
Processor base power	65 W
Maximum turbo power	180 W
Maximum number of DMI lanes	8
Memory
Maximum internal memory supported by processor	128 GB
Memory types supported by processor	DDR4-SDRAM, DDR5-SDRAM
Memory bandwidth supported by processor (max)	76.8 GB/s
Memory channels	Dual-channel
ECC	Yes
Memory bandwidth (max)	76.8 GB/s
Graphics
Discrete graphics card	No
On-board graphics card outputs supported	Embedded DisplayPort (eDP), Embedded DisplayPort (eDP) 1.4b, DisplayPort 1.4a, DisplayPort 1.4, HDMI 2.1
Number of execution units	32
On-board graphics card maximum resolution (DisplayPort)	7680 x 4320 pixels
On-board graphics card ID	0x4680
On-board graphics card maximum resolution (eDP - Integrated Flat Panel)	5120 x 3200 pixels
On-board graphics card refresh rate at maximum resolution (HDMI)	60 Hz
On-board graphics card refresh rate at maximum resolution (DisplayPort)	60 Hz
On-board graphics card refresh rate at maximum resolution (eDP - Integrated Flat Panel)	120 Hz
Number of displays supported (on-board graphics)	4
On-board graphics card maximum resolution (HDMI)	4096 x 2160 pixels
On-board graphics card DirectX version	12.0
On-board graphics card OpenGL version	4.5
On-board graphics card model	Intel UHD Graphics 770
On-board graphics card	Yes
On-board graphics card dynamic frequency (max)	1.5 MHz
On-board graphics card base frequency	300 MHz
Discrete graphics card model	Not available
Multi-Format Codec Engines	2
Features
On-board graphics card ID	0x4680
Maximum number of PCI Express lanes	20
Processor package size	45 x 37.5 mm
Processor ARK ID	134591
Thermal Monitoring Technologies	Yes
Idle States	Yes
Execute Disable Bit	Yes
PCI Express slots version	5.0, 4.0
PCI Express configurations	1x16+1x4, 2x8+1x4
Supported instruction sets	SSE4.1, SSE4.2, AVX 2.0
Thermal solution specification	PCG 2020C
Scalability	1S
Embedded options available	Yes
CPU configuration (max)	1
Market segment	Desktop
Harmonized System (HS) code	85423119
Export Control Classification Number (ECCN)	5A992.C
Commodity Classification Automated Tracking System (CCATS)	G167599
Use conditions	PC/Client/Tablet, Workstation
Direct Media Interface (DMI) Revision	4.0
Processor special features
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel 64	Yes
Intel Turbo Boost Max Technology 3.0	Yes
Intel® Speed Shift Technology	Yes
Intel® Optane™ Memory Ready	Yes
Intel® Turbo Boost Technology	2.0
Intel Trusted Execution Technology	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Enhanced Intel SpeedStep Technology	Yes
Intel® OS Guard	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Stable Image Platform Program (SIPP)	Yes
Intel® Secure Key	Yes
Intel Enhanced Halt State	Yes
Intel® Active Management Technology (Intel® AMT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel® Boot Guard	Yes
Intel® Volume Management Device (VMD)	Yes
Intel® Deep Learning Boost (Intel® DL Boost) on CPU	Yes
Mode-based Execute Control (MBE)	Yes
Intel® vPro™ Platform Eligibility	Yes
Intel® Turbo Boost Max Technology 3.0 frequency	4.9 GHz
Intel® Total Memory Encryption	Yes
Intel® Control-flow Enforcement Technology (CET)	Yes
Intel® Thread Director	Yes
Intel® Gaussian & Neural Accelerator (Intel® GNA) 3.0	Yes
Intel® Total Memory Encryption - Multi Key	Yes
Intel® Threat Detection Technology (TDT)	Yes
Intel® Hardware Shield Eligibility	Yes
Intel vPro® Essentials Platform Eligibility	Yes
Intel vPro® Enterprise Platform Eligibility	Yes
Intel® Standard Manageability (ISM)	Yes
Intel® Stable IT Platform Program (SIPP)	Yes
Intel® One-Click Recovery	Yes
Intel® Virtualization Technology with Redirect Protection (VT-rp)	Yes
Operational conditions
Tjunction	100 °C
Maximum operating temperature	100 °C
Technical details
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel 64	Yes
Status	Launched
OpenGL support	Yes
Market segment	Desktop
Launch date	Q1'22
Intel Virtualization Technology (VT-x)	Yes
Processor cache type	Smart Cache
Harmonized System (HS) code	85423119
Export Control Classification Number (ECCN)	5A992.C
Commodity Classification Automated Tracking System (CCATS)	G167599
OpenCL version	3.0
Target market	Gaming, Content Creation
Packaging data
Package type	Box
Logistics data
Harmonized System (HS) code	85423119
Weight & dimensions
Processor package size	45 x 37.5 mm
Other features
Maximum internal memory	128 GB
L2 cache	12288 KB
CPU configuration (max)	1
Graphics output	eDP 1.4b, DP 1.4a, HDMI 2.1

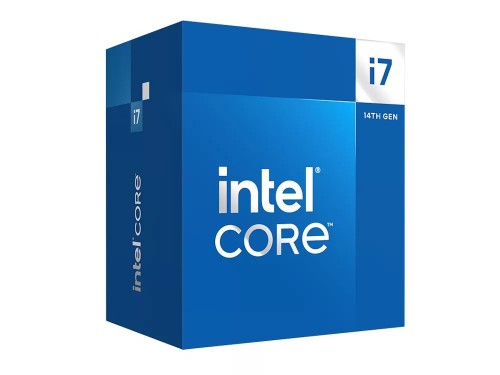

Boxed Intel Core i7 processor 14700 (33M Cache, up to 5.40 GHz) FC-LGA16A

Description

Intel i7 14700 CPU 4.2GHz (5.4GHz Turbo) 14th Gen LGA1700 20-Cores 28-Threads 61MB 65W UHD Graphics 770 Retail Raptor Lake with Fan

CPU Specifications
Total Cores 4
# of Performance-cores 4
# of Efficient-cores 0
Total Threads 8
Max Turbo Frequency 4.7 GHz
Performance-core Max Turbo Frequency 4.7 GHz
Performance-core Base Frequency 3.5 GHz
Cache 12 MB Intel® Smart Cache
Total L2 Cache 5 MB
Processor Base Power 58 W
Maximum Turbo Power 110 W

Supplemental Information
Marketing Status Launched
Launch Date Q1'24
Embedded Options Available No

Memory Specifications
Max Memory Size (dependent on memory type) 192 GB
Memory Types Up to DDR5 4800 MT/s Up to DDR4 3200 MT/s
Max # of Memory Channels 2
Max Memory Bandwidth 76.8 GB/s

Expansion Options
Direct Media Interface (DMI) Revision 4
Max # of DMI Lanes 8
Scalability 1S Only
PCI Express Revision 5.0 and 4.0
PCI Express Configurations ‡ Up to 1x16+4 | 2x8+4
Max # of PCI Express Lanes 20

Package Specifications
Sockets Supported FCLGA1700
Max CPU Configuration 1
Thermal Solution Specification PCG 2020C
TJUNCTION 100°C
Package Size 45.0 mm x 37.5 mm

Advanced Technologies
Intel® Gaussian & Neural Accelerator 3
Intel® Deep Learning Boost (Intel® DL Boost) on CPU Yes
Intel® Speed Shift Technology Yes
Intel® Turbo Boost Technology ‡ 2
Intel® Hyper-Threading Technology ‡ Yes
Intel® 64 ‡ Yes
Instruction Set 64-bit
Instruction Set Extensions Intel® SSE4.1 | Intel® SSE4.2 | Intel® AVX2
Idle States Yes
Enhanced Intel SpeedStep® Technology Yes
Thermal Monitoring Technologies Yes

Specifications

Processor
Processor generation	Intel® Core™ i7 (14th gen)
Processor manufacturer	Intel
Cooler included	Yes
Processor codename	Raptor Lake
Memory bandwidth supported by processor (max)	89.6 GB/s
Processor cache	33 MB
Processor ARK ID	236781
Processor family	Intel® Core™ i7
Processor cores	20
Processor socket	LGA 1700
Processor model	i7-14700
Processor threads	28
Processor operating modes	64-bit
Processor boost frequency	5.4 GHz
Stepping	B0
Processor cache type	Smart Cache
Performance cores	8
Efficient cores	12
Performance-core boost frequency	5.3 GHz
Performance-core base frequency	2.1 GHz
Efficient-core boost frequency	4.2 GHz
Efficient-core base frequency	1.5 GHz
Processor base power	65 W
Maximum turbo power	219 W
Maximum number of DMI lanes	8
Memory
Maximum internal memory supported by processor	192 GB
Memory types supported by processor	DDR4-SDRAM, DDR5-SDRAM
Memory bandwidth supported by processor (max)	89.6 GB/s
Memory channels	Dual-channel
ECC	Yes
Memory bandwidth (max)	89.6 GB/s
Graphics
Discrete graphics card	No
On-board graphics card outputs supported	Embedded DisplayPort (eDP) 1.4b, DisplayPort 1.4a, HDMI 2.1
Number of execution units	32
On-board graphics card maximum resolution (DisplayPort)	7680 x 4320 pixels
On-board graphics card ID	0xA780
On-board graphics card maximum resolution (eDP - Integrated Flat Panel)	5120 x 3200 pixels
On-board graphics card refresh rate at maximum resolution (HDMI)	60 Hz
On-board graphics card refresh rate at maximum resolution (DisplayPort)	60 Hz
On-board graphics card refresh rate at maximum resolution (eDP - Integrated Flat Panel)	120 Hz
Number of displays supported (on-board graphics)	4
On-board graphics card maximum resolution (HDMI)	4096 x 2160 pixels
On-board graphics card DirectX version	12.0
On-board graphics card OpenGL version	4.5
On-board graphics card model	Intel UHD Graphics 770
On-board graphics card	Yes
On-board graphics card dynamic frequency (max)	1600 MHz
On-board graphics card base frequency	300 MHz
Discrete graphics card model	Not available
Multi-Format Codec Engines	2
Features
On-board graphics card ID	0xA780
Maximum number of PCI Express lanes	20
Processor package size	45 x 37.5 mm
Processor ARK ID	236781
Thermal Monitoring Technologies	Yes
Idle States	Yes
Execute Disable Bit	Yes
PCI Express slots version	4.0, 5.0
PCI Express configurations	1x16+1x4, 2x8+1x4
Supported instruction sets	AVX 2.0, SSE4.1, SSE4.2
Scalability	1S
Embedded options available	Yes
CPU configuration (max)	1
Market segment	Desktop
Harmonized System (HS) code	8542310001
Export Control Classification Number (ECCN)	5A992C
Commodity Classification Automated Tracking System (CCATS)	740.17B1
Use conditions	Workstation, PC/Client/Tablet
Direct Media Interface (DMI) Revision	4.0
Processor special features
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel 64	Yes
Intel Turbo Boost Max Technology 3.0	Yes
Intel® Speed Shift Technology	Yes
Intel® Turbo Boost Technology	2.0
Intel® Quick Sync Video Technology	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Enhanced Intel SpeedStep Technology	Yes
Intel® OS Guard	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel® Secure Key	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel® Boot Guard	Yes
Intel® Volume Management Device (VMD)	Yes
Intel® Deep Learning Boost (Intel® DL Boost) on CPU	Yes
Mode-based Execute Control (MBE)	Yes
Intel® Turbo Boost Max Technology 3.0 frequency	5.4 GHz
Intel® Control-flow Enforcement Technology (CET)	Yes
Intel® Thread Director	Yes
Intel® Gaussian & Neural Accelerator (Intel® GNA) 3.0	Yes
Intel® Standard Manageability (ISM)	Yes
Operational conditions
Tjunction	100 °C
Technical details
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel 64	Yes
Status	Launched
Market segment	Desktop
Launch date	Q1'24
Intel Virtualization Technology (VT-x)	Yes
Processor cache type	Smart Cache
Harmonized System (HS) code	8542310001
Export Control Classification Number (ECCN)	5A992C
Commodity Classification Automated Tracking System (CCATS)	740.17B1
OpenCL version	3.0
Packaging data
Package type	Box
Logistics data
Harmonized System (HS) code	8542310001
Weight & dimensions
Processor package size	45 x 37.5 mm
Other features
Maximum internal memory	192 GB
L2 cache	28672 KB
CPU configuration (max)	1
Graphics output	eDP 1.4b, DP 1.4a, HDMI 2.1

Boxed Intel Core Ultra 5 processor 225 (20M Cache, up to 4.90 GHz) FCLGA18W

Description

The latest Intel® Core™ Ultra processors (Series 2) enable you to use the most AI experiences across desktop, mobile and edge—making everything you do easier, faster, and better.

Specifications

Processor
Processor generation	Intel Core Ultra (Series 2)
Processor manufacturer	Intel
Processor codename	Arrow Lake
Processor cache	20 MB
Processor ARK ID	241070
Processor family	Intel Core Ultra 5
Processor cores	10
Processor socket	LGA 1851 (Socket V1)
Processor model	225
Processor threads	10
Processor operating modes	64-bit
Processor boost frequency	4.9 GHz
Processor cache type	Smart Cache
Package type	Box
Performance cores	6
Efficient cores	4
Performance-core boost frequency	4.9 GHz
Performance-core base frequency	3.3 GHz
Efficient-core boost frequency	4.4 GHz
Efficient-core base frequency	2.7 GHz
Processor base power	65 W
Maximum turbo power	121 W
Maximum number of DMI lanes	8
AI software frameworks supported by CPU	DirectML, OpenVINO, Windows ML, ONNX RT, WebNN
Neural processor unit (NPU)
Neural processor unit (NPU)	Intel AI Boost
Sparsity support	Yes
Windows Studio effects support	Yes
AI software frameworks supported by NPU	DirectML, OpenVINO, Windows ML, ONNX RT, WebNN
Total processor performance up to	23 TOPs
NPU performance up to	13 TOPs
GPU performance up to	4 TOPs
Memory
Maximum internal memory supported by processor	192 GB
Memory types supported by processor	DDR5-SDRAM
Memory clock speeds supported by processor	6400 MHz
Memory channels	Dual-channel
Graphics
Discrete graphics card	No
On-board graphics card outputs supported	HDMI 2.1, Embedded DisplayPort (eDP) 1.4b, DisplayPort 2.1
On-board graphics card ID	0x7D67
On-board graphics card refresh rate at maximum resolution (HDMI)	60 Hz
On-board graphics card refresh rate at maximum resolution (DisplayPort)	60 Hz
On-board graphics card refresh rate at maximum resolution (eDP - Integrated Flat Panel)	60 Hz
Number of displays supported (on-board graphics)	4
On-board graphics card DirectX version	12.0
On-board graphics card OpenGL version	4.5
On-board graphics card model	Intel Graphics
On-board graphics card	Yes
On-board graphics card dynamic frequency (max)	1800 MHz
On-board graphics card base frequency	300 MHz
Discrete graphics card model	Not available
Xe-cores	2
Features
On-board graphics card ID	0x7D67
Maximum number of PCI Express lanes	24
Processor ARK ID	241070
Thermal Monitoring Technologies	Yes
Idle States	Yes
Execute Disable Bit	Yes
PCI Express slots version	4.0, 5.0
Supported instruction sets	AVX 2.0, SSE4.1, SSE4.2
Scalability	1S
Embedded options available	Yes
Market segment	Desktop
Use conditions	PC/Client/Tablet
Direct Media Interface (DMI) Revision	4.0
Processor special features
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel 64	Yes
Intel® Speed Shift Technology	Yes
Intel® Turbo Boost Technology	2.0
Intel Trusted Execution Technology	Yes
Intel® Quick Sync Video Technology	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Enhanced Intel SpeedStep Technology	Yes
Intel® OS Guard	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel® Secure Key	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel® Boot Guard	Yes
Intel® Volume Management Device (VMD)	Yes
Intel® Deep Learning Boost (Intel® DL Boost) on CPU	Yes
Mode-based Execute Control (MBE)	Yes
Intel® Thunderbolt 4	Yes
Intel® Control-flow Enforcement Technology (CET)	Yes
Intel® Thread Director	Yes
Intel® Standard Manageability (ISM)	Yes
Intel® Deep Learning Boost (Intel® DL Boost) on GPU	Yes
Operational conditions
Maximum operating temperature	105 °C
Technical details
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel 64	Yes
Status	Launched
Market segment	Desktop
Launch date	Q1'25
Intel Virtualization Technology (VT-x)	Yes
Processor cache type	Smart Cache
OpenCL version	3.0
Packaging data
Package type	Box
Other features
Maximum internal memory	192 GB
L2 cache	22528 KB
Graphics output	DP2.1 UHBR20, HDM2.1 FRL 12GHz, eDP1.4b

Boxed Intel Core Ultra 5 processor 225F (20M Cache, up to 4.90 GHz) FCLGA18W

Description

The latest Intel® Core™ Ultra processors (Series 2) enable you to use the most AI experiences across desktop, mobile and edge—making everything you do easier, faster, and better.

Specifications

Processor
Processor generation	Intel Core Ultra (Series 2)
Processor manufacturer	Intel
Processor codename	Arrow Lake
Processor cache	20 MB
Processor ARK ID	241069
Processor family	Intel Core Ultra 5
Processor cores	10
Processor socket	LGA 1851 (Socket V1)
Processor model	225F
Processor threads	10
Processor operating modes	64-bit
Processor boost frequency	4.9 GHz
Processor cache type	Smart Cache
Package type	Box
Performance cores	6
Efficient cores	4
Performance-core boost frequency	4.9 GHz
Performance-core base frequency	3.3 GHz
Efficient-core boost frequency	4.4 GHz
Efficient-core base frequency	2.7 GHz
Processor base power	65 W
Maximum turbo power	121 W
Maximum number of DMI lanes	8
AI software frameworks supported by CPU	DirectML, OpenVINO, Windows ML, ONNX RT, WebNN
Neural processor unit (NPU)
Neural processor unit (NPU)	Intel AI Boost
Sparsity support	Yes
Windows Studio effects support	Yes
AI software frameworks supported by NPU	DirectML, OpenVINO, Windows ML, ONNX RT, WebNN
Total processor performance up to	19 TOPs
NPU performance up to	13 TOPs
Memory
Maximum internal memory supported by processor	192 GB
Memory types supported by processor	DDR5-SDRAM
Memory clock speeds supported by processor	6400 MHz
Memory channels	Dual-channel
Graphics
Discrete graphics card	No
On-board graphics card model	Not available
On-board graphics card	No
Discrete graphics card model	Not available
Features
Maximum number of PCI Express lanes	24
Processor ARK ID	241069
Thermal Monitoring Technologies	Yes
Idle States	Yes
Execute Disable Bit	Yes
PCI Express slots version	4.0, 5.0
Supported instruction sets	AVX 2.0, SSE4.1, SSE4.2
Scalability	1S
Embedded options available	No
Market segment	Desktop
Use conditions	PC/Client/Tablet
Direct Media Interface (DMI) Revision	4.0
Processor special features
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel 64	Yes
Intel® Speed Shift Technology	Yes
Intel® Turbo Boost Technology	2.0
Intel Trusted Execution Technology	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Enhanced Intel SpeedStep Technology	Yes
Intel® OS Guard	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel® Secure Key	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel® Boot Guard	Yes
Intel® Volume Management Device (VMD)	Yes
Intel® Deep Learning Boost (Intel® DL Boost) on CPU	Yes
Mode-based Execute Control (MBE)	Yes
Intel® Thunderbolt 4	Yes
Intel® Control-flow Enforcement Technology (CET)	Yes
Intel® Thread Director	Yes
Intel® Standard Manageability (ISM)	Yes
Operational conditions
Maximum operating temperature	105 °C
Technical details
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel 64	Yes
Status	Launched
Market segment	Desktop
Launch date	Q1'25
Intel Virtualization Technology (VT-x)	Yes
Processor cache type	Smart Cache
Packaging data
Package type	Box
Other features
Maximum internal memory	192 GB
L2 cache	22528 KB

Boxed Intel Core Ultra 5 processor 245K (24M Cache, up to 5.20 GHz) FCLGA18W

Description

Intel Core Ultra 5 processor 245K
No CPU Cooler Included

Specifications

Processor
Processor generation	Intel Core Ultra (Series 2)
Processor manufacturer	Intel
Cooler included	No
Processor codename	Arrow Lake
Processor cache	24 MB
Processor ARK ID	241067
Processor family	Intel Core Ultra 5
Processor cores	14
Processor socket	LGA 1851 (Socket V1)
Processor model	245K
Processor operating modes	64-bit
Processor boost frequency	5.2 GHz
Stepping	B0
Processor cache type	Smart Cache
Performance cores	6
Efficient cores	8
Performance-core boost frequency	5.2 GHz
Performance-core base frequency	4.2 GHz
Efficient-core boost frequency	4.6 GHz
Efficient-core base frequency	3.6 GHz
Processor base power	125 W
Maximum turbo power	159 W
Maximum number of DMI lanes	8
AI software frameworks supported by CPU	DirectML, OpenVINO, Windows ML, ONNX RT, WebNN
Neural processor unit (NPU)
Neural processor unit (NPU)	Intel AI Boost
Sparsity support	Yes
Windows Studio effects support	Yes
AI software frameworks supported by NPU	DirectML, OpenVINO, Windows ML, ONNX RT, WebNN
Total processor performance up to	30 TOPs
NPU performance up to	13 TOPs
GPU performance up to	8 TOPs
Memory
Maximum internal memory supported by processor	192 GB
Memory types supported by processor	DDR5-SDRAM
Memory clock speeds supported by processor	6400 MHz
Memory channels	Dual-channel
ECC	Yes
Graphics
Discrete graphics card	No
On-board graphics card outputs supported	DisplayPort 2.1, Embedded DisplayPort (eDP) 1.4b, HDMI 2.1
On-board graphics card ID	0x7D67
On-board graphics card refresh rate at maximum resolution (HDMI)	60 Hz
On-board graphics card refresh rate at maximum resolution (DisplayPort)	60 Hz
On-board graphics card refresh rate at maximum resolution (eDP - Integrated Flat Panel)	60 Hz
Number of displays supported (on-board graphics)	4
On-board graphics card DirectX version	12.0
On-board graphics card OpenGL version	4.5
On-board graphics card model	Intel Graphics
On-board graphics card	Yes
On-board graphics card dynamic frequency (max)	1900 MHz
On-board graphics card base frequency	300 MHz
Discrete graphics card model	Not available
Xe-cores	4
Features
On-board graphics card ID	0x7D67
Maximum number of PCI Express lanes	24
Processor ARK ID	241067
Thermal Monitoring Technologies	Yes
Idle States	Yes
Execute Disable Bit	Yes
PCI Express slots version	4.0, 5.0
Supported instruction sets	AVX 2.0, SSE4.1, SSE4.2
Thermal solution specification	PCG 2020A
Scalability	1S
Embedded options available	No
Market segment	Desktop
Harmonized System (HS) code	8542310050
Export Control Classification Number (ECCN)	5A992C
Commodity Classification Automated Tracking System (CCATS)	740.17B1
Use conditions	Workstation, PC/Client/Tablet
Direct Media Interface (DMI) Revision	4.0
Processor special features
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel 64	Yes
Intel® Speed Shift Technology	Yes
Intel® Turbo Boost Technology	2.0
Intel Trusted Execution Technology	Yes
Intel® Quick Sync Video Technology	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Enhanced Intel SpeedStep Technology	Yes
Intel® OS Guard	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel® Secure Key	Yes
Intel® Active Management Technology (Intel® AMT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel® Boot Guard	Yes
Intel® Volume Management Device (VMD)	Yes
Intel® Deep Learning Boost (Intel® DL Boost) on CPU	Yes
Mode-based Execute Control (MBE)	Yes
Intel® Thunderbolt 4	Yes
Intel® Control-flow Enforcement Technology (CET)	Yes
Intel® Thread Director	Yes
Intel® Total Memory Encryption - Multi Key	Yes
Intel® Threat Detection Technology (TDT)	Yes
Intel® Hardware Shield Eligibility	Yes
Intel vPro® Enterprise Platform Eligibility	Yes
Intel® Standard Manageability (ISM)	Yes
Intel® Stable IT Platform Program (SIPP)	Yes
Intel® One-Click Recovery	Yes
Intel® Virtualization Technology with Redirect Protection (VT-rp)	Yes
Intel® Remote Platform Erase (RPE)	Yes
Intel® Deep Learning Boost (Intel® DL Boost) on GPU	Yes
Operational conditions
Maximum operating temperature	105 °C
Technical details
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel 64	Yes
Status	Launched
Market segment	Desktop
Launch date	Q4'24
Intel Virtualization Technology (VT-x)	Yes
Processor cache type	Smart Cache
Memory speed (max)	6400 MHz
Harmonized System (HS) code	8542310050
Export Control Classification Number (ECCN)	5A992C
Commodity Classification Automated Tracking System (CCATS)	740.17B1
OpenCL version	3.0
Packaging data
Package type	Box
Logistics data
Harmonized System (HS) code	8542310050
Other features
Maximum internal memory	192 GB
L2 cache	26624 KB
Graphics output	DP2.1 UHBR20, HDM2.1 FRL 12GHz, eDP1.4b

Boxed Intel Core Ultra 5 processor 245KF (24M Cache, up to 5.20 GHz) FCLGA18W

Description

Intel Core Ultra 5 processor 245KF
No CPU Cooler Included

Specifications

Processor
Processor generation	Intel Core Ultra (Series 2)
Processor manufacturer	Intel
Cooler included	No
Processor codename	Arrow Lake
Processor cache	24 MB
Processor ARK ID	241066
Processor family	Intel Core Ultra 5
Processor cores	14
Processor socket	LGA 1851 (Socket V1)
Processor model	245KF
Processor operating modes	64-bit
Processor boost frequency	5.2 GHz
Stepping	B0
Processor cache type	Smart Cache
Package type	Box
Performance cores	6
Efficient cores	8
Performance-core boost frequency	5.2 GHz
Performance-core base frequency	4.2 GHz
Efficient-core boost frequency	4.6 GHz
Efficient-core base frequency	3.6 GHz
Processor base power	125 W
Maximum turbo power	159 W
Maximum number of DMI lanes	8
AI software frameworks supported by CPU	DirectML, OpenVINO, Windows ML, ONNX RT, WebNN
Neural processor unit (NPU)
Neural processor unit (NPU)	Intel AI Boost
Sparsity support	Yes
Windows Studio effects support	Yes
AI software frameworks supported by NPU	DirectML, OpenVINO, Windows ML, ONNX RT, WebNN
Total processor performance up to	22 TOPs
NPU performance up to	13 TOPs
Memory
Maximum internal memory supported by processor	192 GB
Memory types supported by processor	DDR5-SDRAM
Memory clock speeds supported by processor	6400 MHz
Memory channels	Dual-channel
Graphics
Discrete graphics card	No
On-board graphics card model	Not available
On-board graphics card	No
Discrete graphics card model	Not available
Features
Maximum number of PCI Express lanes	24
Processor ARK ID	241066
Thermal Monitoring Technologies	Yes
Idle States	Yes
Execute Disable Bit	Yes
PCI Express slots version	4.0, 5.0
Supported instruction sets	AVX 2.0, SSE4.1, SSE4.2
Thermal solution specification	PCG 2020A
Scalability	1S
Embedded options available	No
Market segment	Desktop
Harmonized System (HS) code	8542310050
Export Control Classification Number (ECCN)	5A992C
Commodity Classification Automated Tracking System (CCATS)	740.17B1
Use conditions	PC/Client/Tablet
Direct Media Interface (DMI) Revision	4.0
Processor special features
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel 64	Yes
Intel® Speed Shift Technology	Yes
Intel® Turbo Boost Technology	2.0
Intel Trusted Execution Technology	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Enhanced Intel SpeedStep Technology	Yes
Intel® OS Guard	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel® Secure Key	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel® Boot Guard	Yes
Intel® Volume Management Device (VMD)	Yes
Intel® Deep Learning Boost (Intel® DL Boost) on CPU	Yes
Mode-based Execute Control (MBE)	Yes
Intel® Thunderbolt 4	Yes
Intel® Control-flow Enforcement Technology (CET)	Yes
Intel® Thread Director	Yes
Intel® Standard Manageability (ISM)	Yes
Operational conditions
Maximum operating temperature	105 °C
Technical details
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel 64	Yes
Status	Launched
Market segment	Desktop
Launch date	Q4'24
Intel Virtualization Technology (VT-x)	Yes
Processor cache type	Smart Cache
Memory speed (max)	6400 MHz
Harmonized System (HS) code	8542310050
Export Control Classification Number (ECCN)	5A992C
Commodity Classification Automated Tracking System (CCATS)	740.17B1
Packaging data
Package type	Box
Logistics data
Harmonized System (HS) code	8542310050
Other features
Maximum internal memory	192 GB
L2 cache	26624 KB

Boxed Intel Core Ultra 7 processor 265F (30M Cache, up to 5.30 GHz) FCLGA18W

Description

The latest Intel® Core™ Ultra processors (Series 2) enable you to use the most AI experiences across desktop, mobile and edge—making everything you do easier, faster, and better.

Specifications

Processor
Processor generation	Intel Core Ultra (Series 2)
Processor manufacturer	Intel
Processor codename	Arrow Lake
Processor cache	30 MB
Processor ARK ID	241064
Processor family	Intel Core Ultra 7
Processor cores	20
Processor socket	LGA 1851 (Socket V1)
Processor model	265F
Processor threads	20
Processor operating modes	64-bit
Processor boost frequency	5.3 GHz
Processor cache type	Smart Cache
Package type	Box
Performance cores	8
Efficient cores	12
Performance-core boost frequency	5.2 GHz
Performance-core base frequency	2.4 GHz
Efficient-core boost frequency	4.6 GHz
Efficient-core base frequency	1.8 GHz
Processor base power	65 W
Maximum turbo power	182 W
Maximum number of DMI lanes	8
AI software frameworks supported by CPU	DirectML, OpenVINO, Windows ML, ONNX RT, WebNN
Neural processor unit (NPU)
Neural processor unit (NPU)	Intel AI Boost
Sparsity support	Yes
Windows Studio effects support	Yes
AI software frameworks supported by NPU	DirectML, OpenVINO, Windows ML, ONNX RT, WebNN
Total processor performance up to	25 TOPs
NPU performance up to	13 TOPs
Memory
Maximum internal memory supported by processor	192 GB
Memory types supported by processor	DDR5-SDRAM
Memory clock speeds supported by processor	6400 MHz
Memory channels	Dual-channel
Graphics
Discrete graphics card	No
On-board graphics card model	Not available
On-board graphics card	No
Discrete graphics card model	Not available
Features
Maximum number of PCI Express lanes	24
Processor ARK ID	241064
Thermal Monitoring Technologies	Yes
Idle States	Yes
Execute Disable Bit	Yes
PCI Express slots version	4.0, 5.0
Supported instruction sets	AVX 2.0, SSE4.1, SSE4.2
Scalability	1S
Embedded options available	No
Market segment	Desktop
Use conditions	PC/Client/Tablet
Direct Media Interface (DMI) Revision	4.0
Processor special features
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel 64	Yes
Intel Turbo Boost Max Technology 3.0	Yes
Intel® Speed Shift Technology	Yes
Intel® Turbo Boost Technology	2.0
Intel Trusted Execution Technology	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Enhanced Intel SpeedStep Technology	Yes
Intel® OS Guard	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel® Secure Key	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel® Boot Guard	Yes
Intel® Volume Management Device (VMD)	Yes
Intel® Deep Learning Boost (Intel® DL Boost) on CPU	Yes
Mode-based Execute Control (MBE)	Yes
Intel® Turbo Boost Max Technology 3.0 frequency	5.3 GHz
Intel® Thunderbolt 4	Yes
Intel® Control-flow Enforcement Technology (CET)	Yes
Intel® Thread Director	Yes
Intel® Standard Manageability (ISM)	Yes
Operational conditions
Maximum operating temperature	105 °C
Technical details
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel 64	Yes
Status	Launched
Market segment	Desktop
Launch date	Q1'25
Intel Virtualization Technology (VT-x)	Yes
Processor cache type	Smart Cache
Packaging data
Package type	Box
Other features
Maximum internal memory	192 GB
L2 cache	36864 KB

Boxed Intel Core Ultra 7 processor 265K (30M Cache, up to 5.50 GHz) FCLGA18W

Description

Intel Core Ultra 7 processor 265K
No CPU Cooler Included

Specifications

Processor
Processor generation	Intel Core Ultra (Series 2)
Processor manufacturer	Intel
Cooler included	No
Processor codename	Arrow Lake
Processor cache	30 MB
Processor ARK ID	241063
Processor family	Intel Core Ultra 7
Processor cores	20
Processor socket	LGA 1851 (Socket V1)
Processor model	265K
Processor threads	20
Processor operating modes	64-bit
Processor boost frequency	5.5 GHz
Stepping	B0
Processor cache type	Smart Cache
Package type	Box
Performance cores	8
Efficient cores	12
Performance-core boost frequency	5.4 GHz
Performance-core base frequency	3.9 GHz
Efficient-core boost frequency	4.6 GHz
Efficient-core base frequency	3.3 GHz
Processor base power	125 W
Maximum turbo power	250 W
Maximum number of DMI lanes	8
AI software frameworks supported by CPU	DirectML, OpenVINO, Windows ML, ONNX RT, WebNN
Neural processor unit (NPU)
Neural processor unit (NPU)	Intel AI Boost
Sparsity support	Yes
Windows Studio effects support	Yes
AI software frameworks supported by NPU	DirectML, OpenVINO, Windows ML, ONNX RT, WebNN
Total processor performance up to	33 TOPs
NPU performance up to	13 TOPs
GPU performance up to	8 TOPs
Memory
Maximum internal memory supported by processor	192 GB
Memory types supported by processor	DDR5-SDRAM
Memory clock speeds supported by processor	6400 MHz
Memory channels	Dual-channel
ECC	Yes
Graphics
Discrete graphics card	No
On-board graphics card outputs supported	HDMI 2.1, Embedded DisplayPort (eDP) 1.4b, DisplayPort 2.1
On-board graphics card ID	0x7D67
On-board graphics card refresh rate at maximum resolution (HDMI)	60 Hz
On-board graphics card refresh rate at maximum resolution (DisplayPort)	60 Hz
On-board graphics card refresh rate at maximum resolution (eDP - Integrated Flat Panel)	60 Hz
Number of displays supported (on-board graphics)	4
On-board graphics card DirectX version	12.0
On-board graphics card OpenGL version	4.5
On-board graphics card model	Intel® Graphics
On-board graphics card	Yes
On-board graphics card dynamic frequency (max)	2000 MHz
On-board graphics card base frequency	300 MHz
Discrete graphics card model	Not available
Xe-cores	4
Features
On-board graphics card ID	0x7D67
Maximum number of PCI Express lanes	24
Processor ARK ID	241063
Thermal Monitoring Technologies	Yes
Idle States	Yes
Execute Disable Bit	Yes
PCI Express slots version	4.0, 5.0
Supported instruction sets	AVX 2.0, SSE4.1, SSE4.2
Thermal solution specification	PCG 2020A
Scalability	1S
Embedded options available	No
Market segment	Desktop
Harmonized System (HS) code	8542310050
Export Control Classification Number (ECCN)	5A992C
Commodity Classification Automated Tracking System (CCATS)	740.17B1
Use conditions	Workstation, PC/Client/Tablet
Direct Media Interface (DMI) Revision	4.0
Processor special features
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel 64	Yes
Intel Turbo Boost Max Technology 3.0	Yes
Intel® Speed Shift Technology	Yes
Intel® Turbo Boost Technology	2.0
Intel Trusted Execution Technology	Yes
Intel® Quick Sync Video Technology	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Enhanced Intel SpeedStep Technology	Yes
Intel® OS Guard	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel® Secure Key	Yes
Intel® Active Management Technology (Intel® AMT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel® Boot Guard	Yes
Intel® Volume Management Device (VMD)	Yes
Intel® Deep Learning Boost (Intel® DL Boost) on CPU	Yes
Mode-based Execute Control (MBE)	Yes
Intel® Turbo Boost Max Technology 3.0 frequency	5.5 GHz
Intel® Thunderbolt 4	Yes
Intel® Control-flow Enforcement Technology (CET)	Yes
Intel® Thread Director	Yes
Intel® Total Memory Encryption - Multi Key	Yes
Intel® Threat Detection Technology (TDT)	Yes
Intel® Hardware Shield Eligibility	Yes
Intel vPro® Enterprise Platform Eligibility	Yes
Intel® Standard Manageability (ISM)	Yes
Intel® Stable IT Platform Program (SIPP)	Yes
Intel® One-Click Recovery	Yes
Intel® Virtualization Technology with Redirect Protection (VT-rp)	Yes
Intel® Remote Platform Erase (RPE)	Yes
Intel® Deep Learning Boost (Intel® DL Boost) on GPU	Yes
Operational conditions
Maximum operating temperature	105 °C
Technical details
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel 64	Yes
Status	Launched
Market segment	Desktop
Launch date	Q4'24
Intel Virtualization Technology (VT-x)	Yes
Processor cache type	Smart Cache
Memory speed (max)	6400 MHz
Harmonized System (HS) code	8542310050
Export Control Classification Number (ECCN)	5A992C
Commodity Classification Automated Tracking System (CCATS)	740.17B1
OpenCL version	3.0
Packaging data
Package type	Box
Logistics data
Harmonized System (HS) code	8542310050
Other features
Maximum internal memory	192 GB
L2 cache	36864 KB
Graphics output	DP2.1 UHBR20, HDM2.1 FRL 12GHz, eDP1.4b
