16", 16:9, LCD, TN Technology, HD 1366 x 768, HDMI, VGA, USB B x 1, 100-240V, 2.5kg, Windows 7/8/10
Description

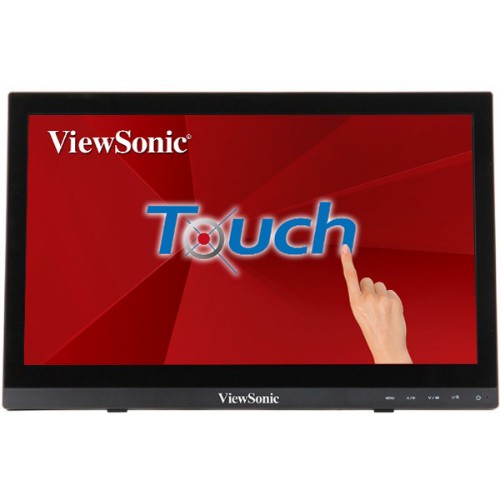

10-Point Projected Capacitive Touch Touch screens with projected capacitive touch can recognize up to 10 points of simultaneous contact, allowing for a highly accurate and ultra-responsive touch experience. With smooth and responsive touch capabilities, this touch display is ideal for home entertainment, office work, education, and commercial use.
10-point Multi-touch

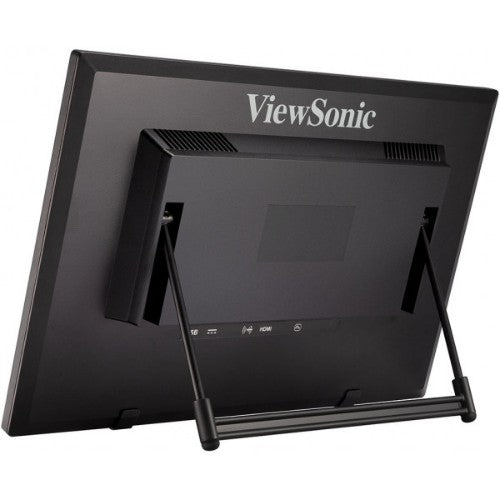

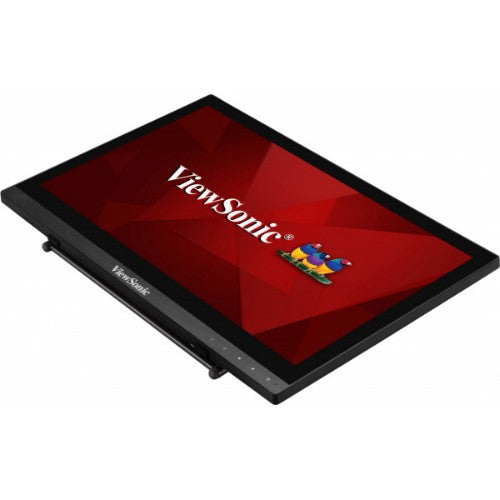

Advanced ergonomic stand design A stable, integrated bookstand design makes it easy to adjust the angle of this display for a better user experience. The display can tilt or lay completely flat on a tabletop for a more comfortable work environment.
Ergonomic stand
Versatile Connectivity HDMI and VGA inputs give you the freedom to connect your monitor to a variety of devices.
Cross-platform compatibility Cross compatibility with a wide range of operating systems including Windows 10 and certain Linux versions. Supports Windows 7/8/10, Linux Kernel 4.X/3.X
Windows 10, Linux
Durable, Scratch-resistant Screen This touch display is equipped with a durable, protective glass faceplate, resulting in increased durability with scratch protection; as well as a consistent, high-quality touch experience in high-traffic areas like public spaces where the touch display can be used as a kiosk.
7H Hardness
Dual integrated speakers Designed with dual integrated speakers, this monitor combines incredible screen performance with stereo sound for an immersive multimedia experience.
Dual integrated speakers
Enhanced Viewing Comfort Flicker-Free technology and a Blue Light Filter help to eliminate eye strain from extended viewing periods.
Blue light filter Flicker Free

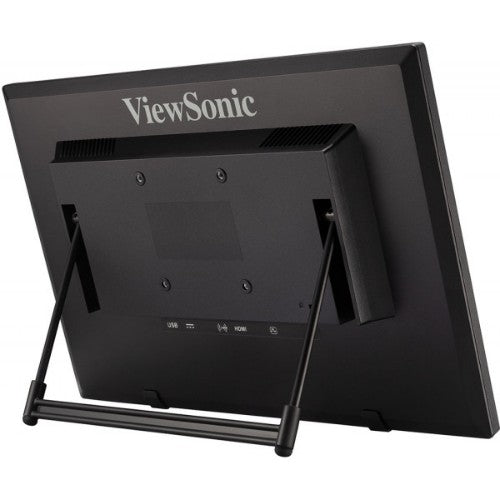

VESA-compatible mount Conveniently mount the monitor to your liking by utilizing VESA compatible mount design.
Specifications
Display
Screen shape
Flat
Display number of colours
262144 colours
Native aspect ratio
16:9
Maximum refresh rate
60 Hz
Display diagonal
39.6 cm (15.6")
Response time
12 ms
Display resolution
1366 x 768 pixels
Display technology
LCD
Contrast ratio (typical)
500:1
Contrast ratio (dynamic)
10000000:1
Viewing angle, horizontal
90°
Viewing angle, vertical
60°
Pixel pitch
0.252 x 0.252 mm
Horizontal scan range
30 - 61 kHz
Vertical scan range
56 - 75 Hz
HD type
HD
Supported graphics resolutions
640 x 480 (VGA), 720 x 400, 720 x 480, 720 x 576, 800 x 600 (SVGA), 832 x 624, 1024 x 768 (XGA), 1152 x 870, 1280 x 720 (HD 720), 1366 x 768
Touchscreen type
Multi-user
Touchscreen
Yes
Number of simultaneous touchpoints
10
Panel type
TN
Display diagonal (metric)
39.6 cm
Touch technology
Multi-touch
Touchscreen technology
Projected capacitive system
Display brightness
220 cd/m²
Performance
AMD FreeSync
No
NVIDIA G-SYNC
No
Windows operating systems supported
Windows 10, Windows 7, Windows 8
Mac operating systems supported
Yes
Multimedia
Number of speakers
2
Built-in speaker(s)
Yes
Built-in camera
No
RMS rated power
2 W
Built-in microphone
No
Design
Product colour
Black
Certification
CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, RCM, GEMS, BIS
Ports & interfaces
Built-in USB hub
Yes
VGA (D-Sub) ports quantity
1
HDMI ports quantity
1
Audio input
1
HDMI
Yes
HDMI version
1.4
Ergonomics
Wall mountable
Yes
VESA mounting
Yes
Panel mounting interface
75 x 75 mm
Tilt angle range
15 - 50°
Tilt adjustment
Yes
Power
Power supply type
AC
AC input voltage
100-240 V
AC input frequency
50 - 60 Hz
Power consumption (typical)
5.5 W
Energy efficiency class (SDR)
B
Energy consumption (SDR) per 1000 hours
6 kWh
European Product Registry for Energy Labelling (EPREL) code
391332
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
20 - 85%
Storage relative humidity (H-H)
5 - 90%
Weight & dimensions
Width (with stand)
379.2 mm
Depth (with stand)
37.1 mm
Height (with stand)
247.1 mm
Weight (with stand)
1.32 kg
Package width
453 mm
Package depth
86 mm
Package height
389 mm
Package weight
2.5 kg
Weight
1.3 kg
Packaging data
Package width
453 mm
Package depth
86 mm
Package height
389 mm
Package weight
2.5 kg
Cables included
AC, Audio (3.5mm), USB, VGA
Packaging content
Cables included
AC, Audio (3.5mm), USB, VGA
Sustainability
European Product Registry for Energy Labelling (EPREL) code
391332
Sustainability certificates
ErP
Technical details
Sustainability certificates
ErP
Compliance certificates
CE, REACH, RoHS
Power supply type
AC
Weight (with stand)
1.32 kg
Touchscreen type
Multi-user
Touchscreen
Yes
Number of simultaneous touchpoints
10
Other features
Display viewable area (HxV)
344.23 x 193.54 mm
Certification
CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, RCM, GEMS, BIS
Weight
1.3 kg
Compliance certificates
CE, REACH, RoHS
HDMI
Yes
Power supply type
AC
Touchscreen type
Multi-user
Touchscreen
Yes
Number of simultaneous touchpoints
10
Certificates
Certification
CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, RCM, GEMS, BIS
