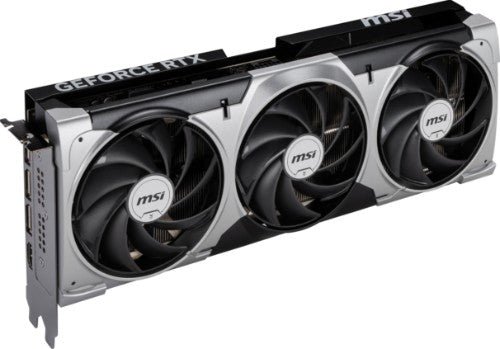

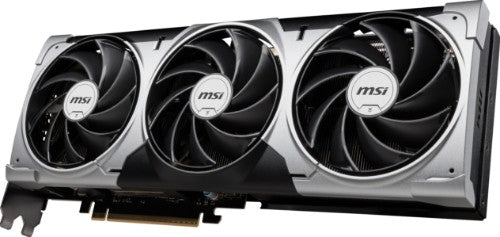

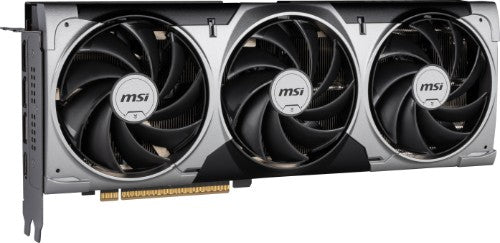

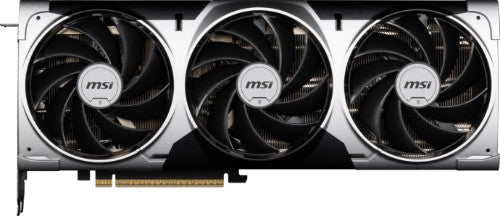

MSI VENTUS GeForce RTX5080 16G 3X OC NVIDIA GeForce RTX 5080 16 GB GDDR7

NVIDIA GeForce RTX 5080, 16GB GDDR7, 256 bit, PCI Express x16 5.0, 1 x HDMI (2.1b), 3 x DP (2.1a), CUDA, DirectX 12 Ultimate, OpenGL 4.6, 360W

Key Features

• Powered by the NVIDIA Blackwell architecture and DLSS 4
• SFF-Ready Enthusiast GeForce Card
• Core Clocks:
• Extreme Performance: 2655 MHz (MSI Center)
• Boost: 2640 MHz
• TORX Fan 5.0: Fan blades linked by ring arcs work to stabilize and maintain high-pressure airflow
• Nickel-plated Copper Baseplate: Heat from the GPU and memory is swiftly captured by a nickel-plated copper baseplate and transferred
• Core Pipes feature a square design to maximize contact with the GPU baseplate for optimal thermal management

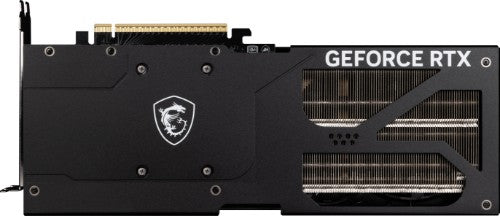

• Metal Backplate: A sturdy metal backplate strengthens the graphics card while the airflow vent design reduces excess heat
• MSI Center: The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time
• Afterburner software takes full control with the most recognized and widely used graphics card overclocking software in the world

Description

TAKE THE ESSENTIALS
VENTUS focuses on the essentials to tackle any challenge. Its efficient thermal solution is encased in a resilient enclosure with a neutral aesthetic, allowing this sleek graphics card to integrate seamlessly into any build.

Specifications

Processor
Graphics processor	GeForce RTX 5080
Maximum resolution	7680 x 4320 pixels
Graphics processor family	NVIDIA
CUDA	Yes
Processor boost clock speed	2640 MHz
Maximum displays per videocard	4
CUDA cores	10752
Memory
Discrete graphics card memory	16 GB
Graphics card memory type	GDDR7
Memory bus	256 bit
Memory bandwidth (max)	30 GB/s
Ports & interfaces
Interface type	PCI Express x16 5.0
HDMI ports quantity	1
DVI-I ports quantity	0
DVI-D ports quantity	0
DisplayPorts quantity	3
Mini HDMI ports quantity	0
HDMI version	2.1b
Mini DisplayPorts quantity	0
DisplayPort version	2.1a
Thunderbolt 3 ports quantity	0
Performance
NVIDIA G-SYNC	Yes
TV tuner integrated	No
DirectX version	12 Ultimate
OpenGL version	4.6
Dual Link DVI	No
Overclocked (OC) edition	Yes
Design
Number of fans	3 fan(s)
Fan diameter	12 cm
Cooling type	Active
Form factor	Full-Height/Full-Length (FH/FL)
Number of slots	2
Product colour	Grey
Power
Minimum system power supply	850 W
Supplementary power connectors	1x 16-pin
Power consumption (typical)	360 W
Weight & dimensions
Weight	1.1 kg
Height	121 mm
Depth	49 mm
Length	303 mm
Packaging data
Package type	Box
Package width	386 mm
Package depth	90 mm
Package height	235 mm
Package weight	1.58 kg
Cables included	Power
Packaging content
Cables included	Power
Logistics data
Products per shipping (inner) case	1 pc(s)
