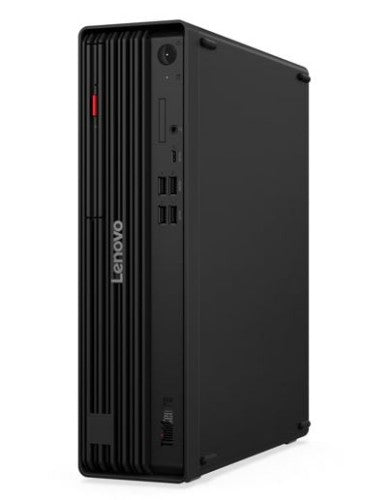

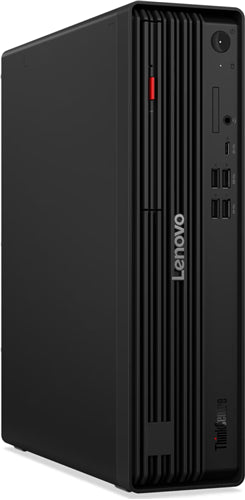

Lenovo ThinkCentre M70s Gen 6 Intel Core Ultra 7 265 16 GB DDR5-SDRAM 512 GB SSD Windows 11 Pro SFF PC Black

Intel Core Ultra 7 265, 20C (8P + 12E)/20T, Max Turbo up to 5.3GHz, 30MB Intel Smart Cache, 2x 8GB UDIMM DDR5-5600, 512GB SSD M.2 2280 PCIe 4.0x4 NVMe Opal 2.0, Intel Graphics, Realtek Wi-Fi 7 RTL8922AE 802.11be 2x2 + BT5.4, Windows 11 Pro

Key Features

• Intel Core Ultra 7 265, 20C (8P + 12E)/20T, Max Turbo up to 5.3GHz, 30MB Intel Smart Cache
• 2x 8GB UDIMM DDR5-5600
• 512GB SSD M.2 2280 PCIe 4.0x4 NVMe Opal 2.0
• Intel Graphics
• Windows 11 Pro

Description

LENOVO ThinkCentre M70S G6 SFF Intel U7-265 16GB DDR5 512GB SSD Windows 11 Pro 3YR OS Intel UHD GPU Keyboard Mouse

PERFORMANCE
Processor Intel® Core Ultra 7 265, 20C (8P + 12E) / 20T, Max Turbo up to 5.3GHz, 30MB Intel Smart Cache
AI PC Category AI PC
NPU Integrated Intel® AI Boost, up to 13 TOPS
Graphics Integrated Intel® Graphics
Chipset Intel® Q870 Chipset
Memory 2x 8GB UDIMM DDR5-5600
Memory Slots Four DDR5 UDIMM slots, dual-channel capable
Max Memory Up to 128GB DDR5
Storage 512GB SSD M.2 2280 PCIe® 4.0x4 NVMe® Opal 2.0
Max Storage Support Up to four drives, 1x 3.5' HDD + 1x 2.5' HDD + 2x M.2 SSD • 3.5' HDD up to 2TB • 2.5' HDD bay is only for customer self upgrade • M.2 SSD up to 2TB each
RAID Preset None
Card Reader None
Optical None
Audio Chip High Definition (HD) Audio, Realtek® ALC623-CG codec
Speakers 1Wx1
Power Supply 260W 90%
DESIGN
Keyboard USB Traditional Keyboard, Black, English
Mouse USB Calliope Mouse, Black
Optional Bay None
Expansion Slots One PCIe® 4.0 x16, low-profile, length ≤ 155mm, height ≤ 70mm
Two PCIe® 3.0 x1, low-profile, length ≤ 155mm, height ≤ 70mm
Three M.2 slots (one for WLAN, two for SSD)
Case Color Black
Stand None
Dust Filter None
Pen Pen Not Supported
Form Factor SFF (8.2L)
Dimensions (WxDxH) 92.5 x 299.7 x 339.5 mm (3.6 x 11.8 x 13.4 inches)
Weight 5.1 kg (11.2 lbs, maximum configuration)
CONNECTIVITY
WLAN + Bluetooth Realtek® Wi-Fi® 7 RTL8922AE, 802.11be 2x2 + BT5.4
WWAN Non-WWAN
Ethernet Integrated 100/1000M
Front Ports 1x USB-C® (USB 5Gbps / USB 3.2 Gen 1), with 15W charging
2x USB-A (USB 5Gbps / USB 3.2 Gen 1)
2x USB-A (USB 10Gbps / USB 3.2 Gen 2)
1x headphone / microphone combo jack (3.5mm)
Rear Ports 4x USB-A (USB 5Gbps / USB 3.2 Gen 1)
1x HDMI® 2.1 TMDS
2x DisplayPort™ 1.4a (HBR3, DSC)
1x Ethernet (RJ-45)
1x line-out (3.5mm)
Optional Rear Ports (configured) None
SECURITY & PRIVACY
Security Chip Discrete TPM 2.0, TCG certified, FIPS 140-2 certified
Fingerprint Reader No fingerprint reader
Physical Locks Kensington® Security Slot™, 3 x 7 mm
Padlock Loop
Smart Cable Clip None
Chassis E-Lock None
Chassis Intrusion Switch None
MANAGEABILITY
System Management Non-vPro®
SERVICE
Base Warranty 3-year, Onsite
Included Upgrade None
CERTIFICATIONS
Green Certifications ENERGY STAR® 9.0
TCO Certified 10
ErP Lot 3
GREENGUARD®
RoHS compliant
Mil-Spec Test MIL-STD-810H military test passed (Low Pressure [Altitude], High Temperature, Low Temperature, Temperature Shock, Humidity, Sand and Dust, Vibration, Shock, Solar Radiation, Contamination by Fluids, Salt Fog)
SOFTWARE
Operating System Windows® 11 Pro, English

Specifications

Processor
Processor family	Intel Core Ultra 7
Processor manufacturer	Intel
Processor model	265
Processor cores	20
Processor threads	20
Memory
Internal memory	16 GB
Internal memory type	DDR5-SDRAM
Maximum internal memory	128 GB
Memory layout (slots x size)	2 x 8 GB
Memory slots	4x DIMM
Memory clock speed	5600 MHz
Storage
Total storage capacity	512 GB
Optical drive type	No
Storage media	SSD
Number of SSDs installed	1
SSD capacity	512 GB
SSD interface	PCI Express 4.0
SSD form factor	M.2
Total SSDs capacity	512 GB
NVMe	Yes
Graphics
Discrete graphics card	No
On-board graphics card family	Intel® Graphics
Discrete graphics card model	Not available
On-board graphics card model	Intel® Graphics
On-board graphics card	Yes
On-board GPU manufacturer	Intel
Performance
Product type	PC
Motherboard chipset	Intel® Q870
Trusted Platform Module (TPM)	Yes
Audio chip	Realtek ALC623-CG
Number of speakers	1
Audio system	High Definition Audio
Optical drive
Optical drive type	No
Network
Ethernet LAN	Yes
Ethernet LAN data rates	100,1000 Mbit/s
Wi-Fi	Yes
Wi-Fi standards	Wi-Fi 7 (802.11be)
Bluetooth	Yes
Bluetooth version	5.4
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Antenna type	2x2
Ports & interfaces
Combo headphone/mic port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	6
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Thunderbolt 3 ports quantity	0
USB 2.0 ports quantity	0
HDMI ports quantity	1
HDMI version	2.1
DisplayPorts quantity	2
Ethernet LAN (RJ-45) ports	1
Line-out	Yes
Power
Power supply	260 W
Design
Product colour	Black
Volume	8.2 L
Chassis type	SFF
Cable lock slot	Yes
Cable lock slot type	Kensington
Software
Operating system installed	Windows 11 Pro
Operating system language	English
Audio
Audio chip	Realtek ALC623-CG
Number of speakers	1
Audio system	High Definition Audio
Weight & dimensions
Volume	8.2 L
Width	92.5 mm
Depth	299.7 mm
Height	339.5 mm
Weight	5.1 kg
Packaging content
Mouse included	Yes
Keyboard included	Yes
Mouse connectivity	Wired
Keyboard connectivity	Wired
Certificates
Certification	ENERGY STAR,TCO,RoHS
Keyboard
Keyboard connectivity	Wired
Other features
Number of speakers	1
Processor manufacturer	Intel
Trusted Platform Module (TPM)	Yes
On-board graphics card	Yes
