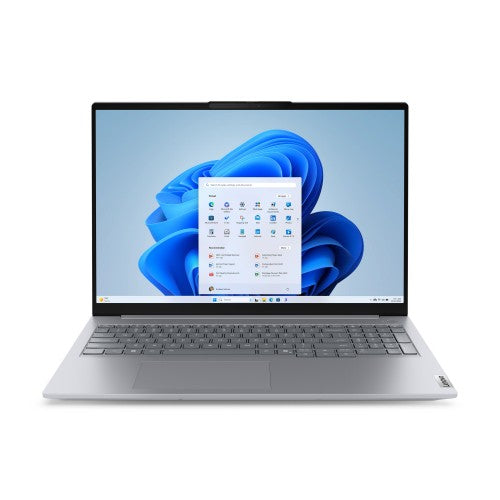

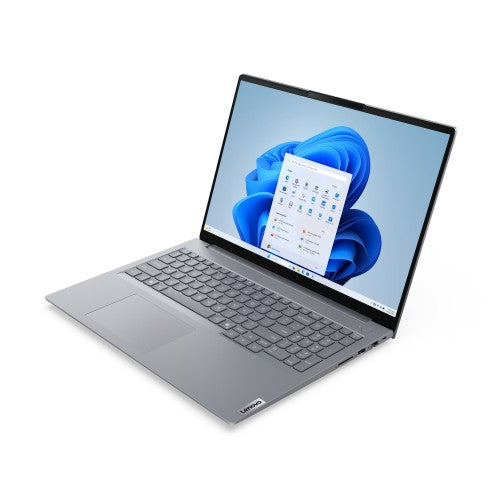

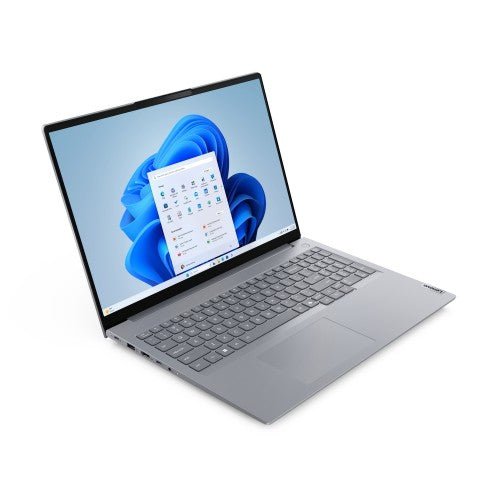

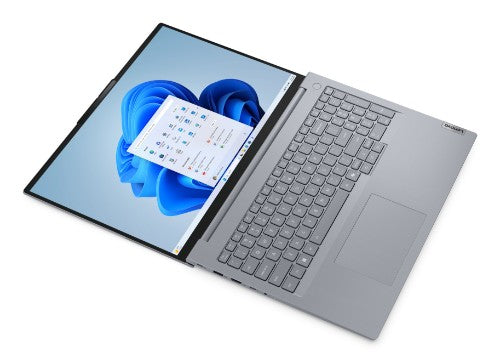

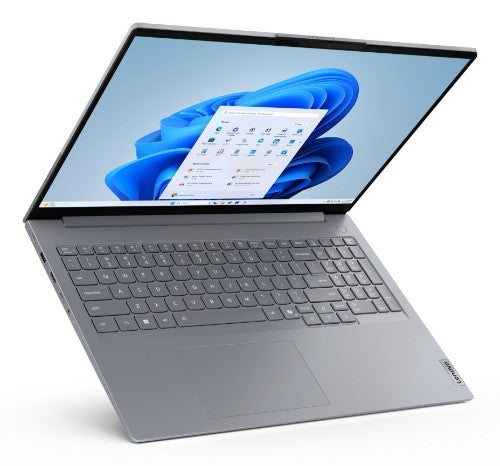

Lenovo ThinkBook 16 G8 IAL Intel Core Ultra 5 225U Laptop 40.6 cm (16") WUXGA 16 GB DDR5-SDRAM 512 GB SSD Wi-Fi 6E (802.11ax) Windows 11 Pro English Grey

Intel Core Ultra 5 225U, 12C (2P + 8E + 2LPE)/14T, Max Turbo up to 4.8GHz, 12MB Intel Smart Cache, 2x 8GB SODIMM DDR5-5600, 512GB SSD M.2 2242 PCIe 4.0x4 NVMe, 16" WUXGA (1920x1200) IPS 300nits 45% NTSC 60Hz, Intel Graphics, Wi-Fi 6E 802.11ax 2x2 + BT5.3, FHD 1080p + IR Hybrid with Privacy Shutter, Windows 11 Pro

Key Features

• Intel Core Ultra 5 225U, 12C (2P + 8E + 2LPE)/14T, Max Turbo up to 4.8GHz, 12MB Intel Smart Cache
• 16" WUXGA (1920x1200) IPS 300nits 45% NTSC 60Hz
• 2x 8GB SODIMM DDR5-5600
• 512GB SSD M.2 2242 PCIe 4.0x4 NVMe
• Intel Graphics
• Windows 11 Pro

Description

LENOVO ThinkBook 16 G8 16' WUXGA Intel U5-225U 16GB DDR5 512GB SSD WIN 11 PRO Intel Graphics AI PC NPU 12 TOPS 1yr OS 1.7kg

PERFORMANCE
Processor Intel® Core Ultra 5 225U, 12C (2P + 8E + 2LPE) / 14T, Max Turbo up to 4.8GHz, 12MB
AI PC Category AI PC
NPU Integrated Intel® AI Boost, up to 12 TOPS
Graphics Integrated Intel® Graphics
Chipset Intel® SoC Platform
Memory 2x 8GB SO-DIMM DDR5-5600
Memory Slots Two DDR5 SO-DIMM slots, dual-channel capable
Max Memory Up to 64GB DDR5-5600
Storage 512GB SSD M.2 2242 PCIe® 4.0x4 NVMe®
Max Storage Support Up to two drives, 2x M.2 SSD • M.2 2280 SSD up to 2TB each
Storage Slot Two M.2 2280 PCIe® 4.0 x4 slots
Card Reader SD Card Reader
Audio Chip High Definition (HD) Audio, Realtek® ALC3287 codec
Speakers Stereo speakers, 2W x2, Dolby Audio™
Camera FHD 1080p + IR Hybrid with Privacy Shutter
Microphone 2x, Array
Battery 45Wh
Power Adapter 65W USB-C® (3-pin)
Special Features Modern Standby
DESIGN
Display 16' WUXGA (1920x1200) IPS 300nits Anti-glare, 45% NTSC, 60Hz
Touchscreen None
Color Calibration None
Keyboard Backlit, English
Touchpad Buttonless Mylar® surface multi-touch touchpad, supports Precision TouchPad (PTP), 75 x 120 mm (2.95 x 4.72 inches)
Case Color Arctic Grey
Surface Treatment Anodizing Sandblasting (Top), Texture (Bottom)
Case Material Aluminium (Top), PC-ABS (Bottom)
Pen Pen Not Supported
Dimensions (WxDxH) 356 x 253.5 x 17.5 mm (14.01 x 9.98 x 0.69 inches)
Weight Starting at 1.7 kg (3.75 lbs)
SOFTWARE
Operating System Windows® 11 Pro, English (US) / English (UK)
Bundled Software Office Trial
CONNECTIVITY
WLAN + Bluetooth Wi-Fi® 6E, 802.11ax 2x2 + BT5.3
WWAN Non-WWAN
Ethernet 100/1000M (RJ-45)
Standard Ports 1x USB-A (USB 5Gbps / USB 3.2 Gen 1)
1x USB-A (USB 5Gbps / USB 3.2 Gen 1), Always On
1x USB-C® (USB 10Gbps / USB 3.2 Gen 2), with USB PD 3.0 and DisplayPort™ 1.4
1x USB-C® (Thunderbolt™ 4 / USB4® 40Gbps), with USB PD 3.0 and DisplayPort™ 2.1
1x HDMI® 2.1, up to 4K/60Hz
1x Headphone / microphone combo jack (3.5mm)
1x Ethernet (RJ-45)
1x SD card reader
Docking Various docking solutions supported via Thunderbolt™ or USB-C®. For more compatible docking solutions, please visit Docking for ThinkBook® 16 G8 IAL
SECURITY & PRIVACY
Security Chip Firmware TPM 2.0 Enabled
Fingerprint Reader Touch Style, Match-on-Chip, Integrated in Power Button
Physical Locks Kensington® Nano Security Slot, 2.5 x 6 mm
Other Security Camera privacy shutter
IR camera for Windows® Hello (facial recognition)
MANAGEABILITY
System Management Non-vPro®
SERVICE
Base Warranty 1-year, Courier or Carry-in
Included Upgrade 1Y Onsite upgrade from 1Y Courier/Carry-in
ACCESSORIES
Bundled Accessories None
CERTIFICATIONS
Green Certifications ENERGY STAR® 9.0
EPEAT™ Gold Registered
ErP Lot 6/26
RoHS compliant
TCO Certified 10.0
Other Certifications TÜV Rheinland® Low Blue Light (Software Solution)
Mil-Spec Test MIL-STD-810H military test passed

Specifications

Design
Colour name	Arctic grey
Product type	Laptop
Product colour	Grey
Form factor	Clamshell
Housing material	Acrylonitrile butadiene styrene (ABS), Aluminium, Polycarbonate (PC)
Display
HD type	WUXGA
Display diagonal	40.6 cm (16")
Display resolution	1920 x 1200 pixels
Touchscreen	No
LED backlight	Yes
Display brightness	300 cd/m²
Panel type	IPS
Contrast ratio (typical)	1000:1
Anti-glare screen	Yes
Maximum refresh rate	60 Hz
RGB colour space	NTSC
Colour gamut	45%
Native aspect ratio	16:10
Processor
Processor generation	Intel Core Ultra (Series 2)
Processor family	Intel Core Ultra 5
Processor model	225U
Processor boost frequency	4.8 GHz
Processor cores	12
Processor threads	14
Processor cache	12 MB
Motherboard chipset	Intel SoC
Processor manufacturer	Intel
Processor base power	15 W
Maximum turbo power	57 W
Efficient-core base frequency	1.3 GHz
Performance-core base frequency	1.5 GHz
Efficient-core Max Turbo Frequency	3.8 GHz
Performance-core Max Turbo Frequency	4.8 GHz
Performance cores	2
Efficient cores	8
Low Power Efficient-core Base Frequency	700 MHz
Low Power Efficient-core Max Turbo Frequency	2.4 GHz
Low Power Efficient-cores	2
Neural processor unit (NPU)
Neural processor unit (NPU)	Intel AI Boost
Sparsity support	Yes
Windows Studio effects support	Yes
AI software frameworks supported by NPU	DirectML, OpenVINO, Windows ML, ONNX RT, WebNN
Memory
Internal memory	16 GB
Internal memory type	DDR5-SDRAM
Memory clock speed	5600 MHz
Memory layout (slots x size)	2 x 8 GB
Memory slots	2x SO-DIMM
Maximum internal memory	64 GB
Memory form factor	SO-DIMM
Memory channels	Dual-channel
Storage
SSD form factor	M.2
Optical drive type	No
Total storage capacity	512 GB
Storage media	SSD
Number of SSDs installed	1
SSD capacity	512 GB
SSD interface	PCI Express 4.0
Card reader integrated	Yes
Compatible memory cards	SD
Total SSDs capacity	512 GB
NVMe	Yes
M.2 SSD size	2242 (22 x 42 mm)
Graphics
Discrete graphics card	No
On-board graphics card family	Intel® Graphics
On-board graphics card model	Intel® Graphics
Discrete graphics card model	Not available
On-board graphics card	Yes
On-board GPU manufacturer	Intel
Audio
Audio chip	Realtek ALC3287
Number of microphones	2
Audio system	Dolby Audio
Number of built-in speakers	2
Speaker power	2 W
Built-in microphone	Yes
Camera
Front camera	Yes
Front camera resolution	1920 x 1080 pixels
Privacy camera	Yes
Privacy type	Privacy shutter
Front camera HD type	Full HD
Infrared (IR) camera	Yes
Windows Hello	Yes
Optical drive
Optical drive type	No
Network
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Bluetooth	Yes
Wi-Fi standards	Wi-Fi 6E (802.11ax)
Ethernet LAN	Yes
Ethernet LAN data rates	1000,100 Mbit/s
Bluetooth version	5.3
WWAN	Not installed
Antenna type	2x2
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
USB Type-C DisplayPort Alternate Mode	Yes
USB 2.0 ports quantity	0
HDMI ports quantity	1
HDMI version	2.1
Ethernet LAN (RJ-45) ports	1
Combo headphone/mic port	Yes
USB Sleep-and-Charge ports	1
USB Sleep-and-Charge	Yes
USB Power Delivery (USB PD)	Yes
Thunderbolt 4 ports quantity	1
Intel® Thunderbolt 4	Yes
Performance
Motherboard chipset	Intel SoC
Keyboard
Pointing device	Touchpad
Numeric keypad	Yes
Spill-resistant keyboard	Yes
Keyboard backlit	Yes
Keyboard language	English
Software
Operating system installed	Windows 11 Pro
Operating system architecture	64-bit
Operating system language	English, US English
Bundled software	Office Trial
Trial software	Office
Battery
Battery technology	Lithium Polymer (LiPo)
Battery life (max)	7.7 h
Battery capacity	45 Wh
Continuous video playback time	13.1 h
Fast charging	Yes
Fast charging time (50%)	30 min
Power
AC adapter power	65 W
AC adapter frequency	50/60 Hz
AC adapter input voltage	100 - 240 V
USB Power Delivery (USB PD)	Yes
USB Type-C charging port	Yes
Security
Cable lock slot	Yes
Cable lock slot type	Kensington
Fingerprint reader	Yes
Trusted Platform Module (TPM)	Yes
Password protection	Yes
Password protection type	HDD, Power on, Supervisor, User
Windows Hello	Yes
Trusted Platform Module (TPM) version	2.0
Operational conditions
Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	5 - 43 °C
Operating relative humidity (H-H)	8 - 95%
Storage relative humidity (H-H)	5 - 95%
Maximum shipping altitude	3048 m
Certificates
Certification	TÜV Rheinland Low Blue Light (Software Solution) MIL-STD-810H military test passed
Compliance certificates	RoHS
Sustainability
Sustainability certificates	ENERGY STAR, EPEAT Gold, ErP, TCO
Weight & dimensions
Weight	1.7 kg
Width	356 mm
Depth	253.5 mm
Height	17.5 mm
Packaging data
Stylus pen	No
AC adapter included	Yes
Packaging content
Stylus pen	No
AC adapter included	Yes
Technical details
Sustainability certificates	ENERGY STAR, EPEAT Gold, ErP, TCO
Compliance certificates	RoHS
Other features
Audio system	Dolby Audio
On-board graphics card	Yes
Maximum shipping altitude	3048 m
AC adapter included	Yes
Anti-glare screen	Yes
Continuous video playback time	13.1 h
