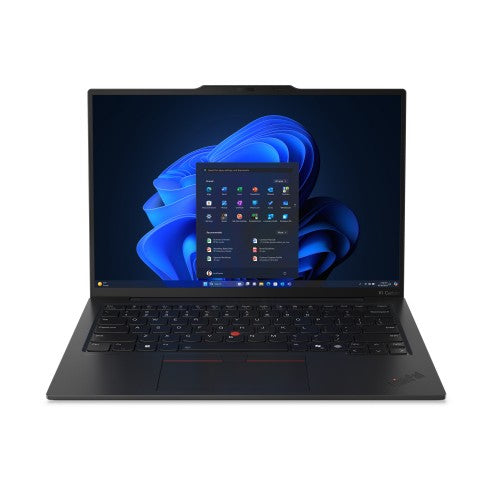

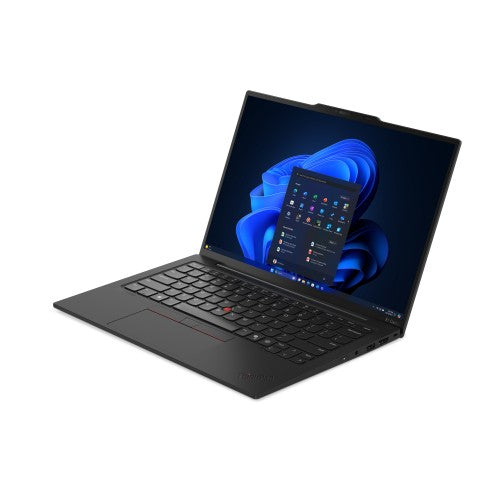

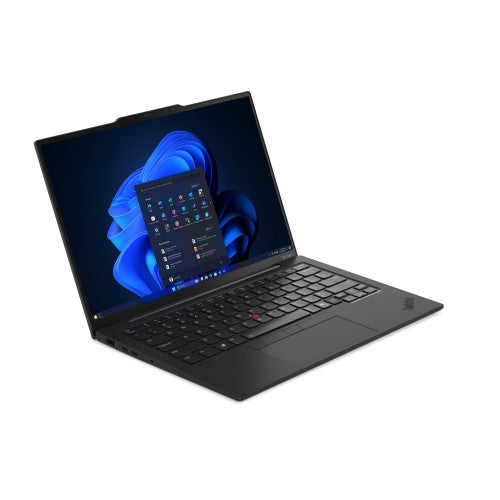

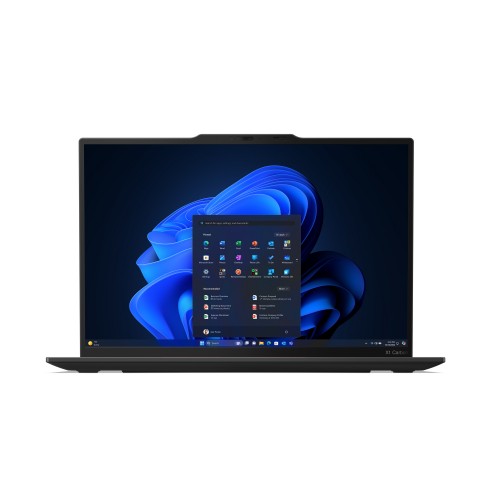

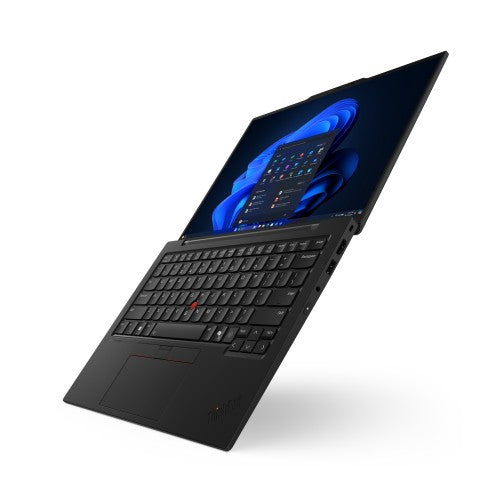

Lenovo ThinkPad X1 Carbon Gen 13 Aura Edition Copilot+ PC Intel Core Ultra 7 258V Laptop 35.6 cm (14") 2.8K 32 GB LPDDR5x-SDRAM 1 TB SSD Wi-Fi 7 (802.11be) Windows 11 Pro Black

Intel Core Ultra 7 258V, 8C (4P + 4LPE)/8T, Max Turbo up to 4.8GHz, 12MB Intel Smart Cache, 32GB LPDDR5X-8533, MoP Memory, 1TB SSD M.2 2280 PCIe 4.0x4 NVMe Opal 2.0, 14" 2.8K (2880x1800) OLED 500nits / Anti-reflection / Anti-smudge 100% DCI-P3 120Hz VRR DisplayHDR True Black 500 Dolby Vision, Intel Arc Graphics 140V, Intel Wi-Fi 7 BE201 802.11be 2x2 + BT5.4 vPro, Windows 11 Pro

Key Features

• Intel Core Ultra 7 258V, 8C (4P + 4LPE)/8T, Max Turbo up to 4.8GHz, 12MB Intel Smart Cache
• 14" 2.8K (2880x1800) OLED 500nits / Anti-reflection / Anti-smudge 100% DCI-P3 120Hz VRR DisplayHDR True Black 500 Dolby Vision
• 32GB LPDDR5X-8533, MoP Memory
• 1TB SSD M.2 2280 PCIe 4.0x4 NVMe Opal 2.0
• Intel Arc Graphics 140V
• Windows 11 Pro

Description

LENOVO ThinkPad X1 Carbon Aura 14' 2.8K OLED IR Intel U7-258V 32GB DDR5 1TB SSD Windows 11 Pro 5G-LTE Arc 140V GPU Copilot+ PC 47 TOPS 3yr PRE 1kg

PERFORMANCE
Processor Intel® Core Ultra 7 258V, 8C (4P + 4LPE) / 8T, Max Turbo up to 4.8GHz, 12MB
AI PC Category Copilot+ PC
NPU Integrated Intel® AI Boost, up to 47 TOPS
Graphics Integrated Intel® Arc™ Graphics 140V
Chipset Intel® SoC Platform
Memory 32GB Soldered LPDDR5x-8533, MoP Memory
Memory Slots Memory soldered to systemboard, no slots, dual-channel
Max Memory 32GB soldered memory, not upgradable
Storage 1TB SSD M.2 2280 PCIe® 4.0x4 NVMe® Opal 2.0
Storage Slot Models with V or H series processor: one M.2 2280 PCIe® 5.0 x4 slot
Max Storage Support One drive, up to 2TB M.2 2280 SSD
Card Reader None
Audio Chip Models with V series processor: High Definition (HD) Audio, Realtek® ALC713 codec
Speakers Stereo speakers, 2W x2, Dolby Atmos®
Microphone 2x, 360°
Camera FHD 1080p + IR Discrete with Privacy Shutter
Battery 57Wh
Power Adapter 65W USB-C® Nano GaN (2-pin, Wall-mount)
DESIGN
Display 14' 2.8K (2880x1800) OLED 500nits Anti-glare / Anti-reflection / Anti-smudge, 100% DCI-P3, 120Hz VRR, DisplayHDR™ True Black 500, Dolby Vision®
Touchscreen None
Screen-to-Body Ratio 89.20%
Pen Pen Not Supported
Keyboard Backlit, English
Touchpad Trackpad
Dimensions (WxDxH) 312.80 x 214.75 x 8.08/14.37 (front/rear), 16.95 (maximum) mm; 12.31 x 8.45 x 0.32/0.56 (front/rear), 0.67 (maximum)inches
Weight Starting at 986 g (2.17 lbs)
Case Color Black, Paint
Case Material Carbon Fiber (Top), Aluminium (Bottom)
SOFTWARE
Operating System Windows® 11 Pro, English (US) / English (UK)
Bundled Software Intel® Connectivity Performance Suite + Lenovo® AI Now
CONNECTIVITY
WLAN + Bluetooth Intel® Wi-Fi® 7 BE201, 802.11be 2x2 + BT5.4
WWAN Quectel RM520N-GL, 5G Sub-6 GHz, with Embedded eSIM
SIM Card None
Ethernet No Onboard Ethernet
NFC None
Standard Ports 1x USB-A (USB 5Gbps / USB 3.2 Gen 1)
1x USB-A (USB 5Gbps / USB 3.2 Gen 1), Always On
2x USB-C® (Thunderbolt™ 4 / USB4® 40Gbps), with USB PD 3.0 and DisplayPort™ 2.1
1x HDMI® 2.1, up to 4K/60Hz
1x Headphone / microphone combo jack (3.5mm)
Optional Ports (configured) 1x Nano-SIM Card Slot
Docking Various docking solutions supported via Thunderbolt™ / USB-C®. For more compatible docking solutions, please visit Docking for ThinkPad X1 Carbon Gen 13 Aura Edition
SECURITY & PRIVACY
Security Chip Discrete TPM 2.0 Enabled
Physical Locks Kensington® Nano Security Slot, 2.5 x 6 mm
Smart Card Reader None
Fingerprint Reader Touch Style, Match-on-Chip, in Keyboard Key
Other Security Camera privacy shutter
ThinkShield
IR camera for Windows® Hello (facial recognition)
MANAGEABILITY
System Management Non-vPro®
SERVICE
Base Warranty 1-year, Courier or Carry-in
Included Upgrade 3Y Premier Support Upgrade from 1Y Courier/Carry-in, CO2 Offset 0.5 ton (2nd Generation Carbon Offset Projects)
ACCESSORIES
Bundled Accessories None
CERTIFICATIONS
Green Certifications ENERGY STAR® 9.0
EPEAT™ Gold Registered
ErP Lot 6/26
RoHS compliant
TCO Certified 10.0
Mil-Spec Test MIL-STD-810H military test passed
Other Certifications Eyesafe® Certified 2.0
Intel® Evo™ Platform
SGS High Performance Al PC Certification

Specifications

Design
Colour name	Black, Paint
Product type	Laptop
Product colour	Black
Form factor	Clamshell
Housing material	Aluminium
Display
HD type	2.8K
Display diagonal	35.6 cm (14")
Display resolution	2880 x 1800 pixels
Touchscreen	No
LED backlight	Yes
Display brightness	500 cd/m²
Panel type	OLED
Anti-glare screen	Yes
Maximum refresh rate	120 Hz
RGB colour space	DCI-P3
High Dynamic Range (HDR) technology	Dolby Vision
Colour gamut	100%
Native aspect ratio	16:10
High Dynamic Range (HDR) supported	Yes
Processor
Processor family	Intel Core Ultra 7
Processor model	258V
Processor cores	8
Processor threads	8
Motherboard chipset	Intel SoC
Processor manufacturer	Intel
Neural processor unit (NPU)
Copilot+ PC	Yes
Memory
Internal memory	32 GB
Internal memory type	LPDDR5x-SDRAM
Memory clock speed	8533 MHz
Maximum internal memory	32 GB
Memory form factor	On-board
Storage
SSD form factor	M.2
Optical drive type	No
Total storage capacity	1 TB
Storage media	SSD
Number of SSDs installed	1
SSD capacity	1 TB
SSD interface	PCI Express 4.0
Total SSDs capacity	1 TB
NVMe	Yes
Graphics
Discrete graphics card	No
On-board graphics card family	Intel Arc Graphics
On-board graphics card model	Intel Arc Graphics 140V
Discrete graphics card model	Not available
On-board graphics card	Yes
On-board GPU manufacturer	Intel
Audio
Audio chip	Realtek ALC713
Number of microphones	2
Number of built-in speakers	2
Speaker power	2 W
Built-in microphone	Yes
Camera
Front camera	Yes
Front camera resolution	1920 x 1080 pixels
Privacy camera	Yes
Privacy type	Privacy shutter
Front camera HD type	Full HD
Infrared (IR) camera	Yes
Windows Hello	Yes
Optical drive
Optical drive type	No
Network
Mobile network connection	Yes
Mobile network generation	5G
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Bluetooth	Yes
Wi-Fi standards	Wi-Fi 7 (802.11be)
Ethernet LAN	No
Bluetooth version	5.4
WWAN	Installed
Near Field Communication (NFC)	No
WWAN controller	Quectel RM520N-GL, 5G Sub-6 GHz, with Embedded eSIM
Antenna type	2x2
WLAN controller manufacturer	Intel
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 2.0 ports quantity	0
HDMI ports quantity	1
HDMI version	2.1
Combo headphone/mic port	Yes
USB Sleep-and-Charge	Yes
USB Power Delivery (USB PD)	Yes
Thunderbolt 4 ports quantity	2
Intel® Thunderbolt 4	Yes
Performance
Motherboard chipset	Intel SoC
Keyboard
Pointing device	ThinkPad UltraNav
Numeric keypad	No
Keyboard backlit	Yes
Copilot key	Yes
Software
Operating system installed	Windows 11 Pro
Bundled software	Intel Connectivity Performance Suite + Lenovo AI Now
Microsoft Copilot	Yes
Copilot+ PC	Yes
Battery
Battery capacity	57 Wh
Power
AC adapter power	65 W
USB Power Delivery (USB PD)	Yes
USB Type-C charging port	Yes
Security
Cable lock slot	Yes
Cable lock slot type	Kensington
Fingerprint reader	Yes
Trusted Platform Module (TPM)	Yes
Windows Hello	Yes
Smart card reader	No
Trusted Platform Module (TPM) version	2.0
Certificates
Certification	ENERGY STAR,TCO,EPEAT Gold,RoHS
Weight & dimensions
Weight	986 g
Width	312.8 mm
Depth	214.8 mm
Height (front)	8.08 mm
Height (rear)	1.44 cm
Packaging data
AC adapter included	Yes
Packaging content
AC adapter included	Yes
Technical details
WWAN controller	Quectel RM520N-GL, 5G Sub-6 GHz, with Embedded eSIM
Other features
On-board graphics card	Yes
AC adapter included	Yes
WWAN controller	Quectel RM520N-GL, 5G Sub-6 GHz, with Embedded eSIM
Anti-glare screen	Yes
