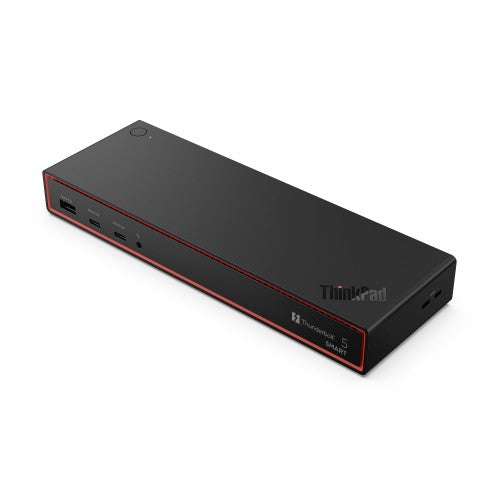

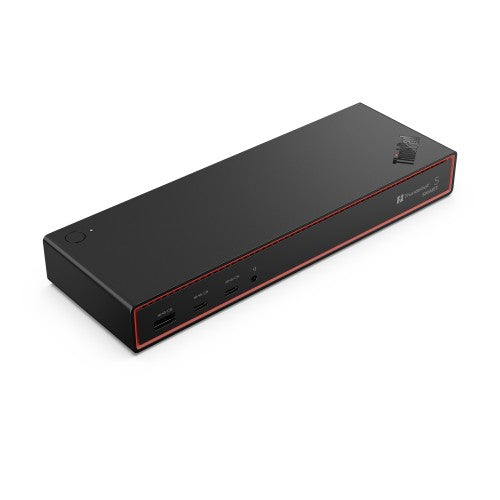

ThinkPad Thunderbolt 5 Smart Dock 7500 - ANZ/Fiji/PNG/NZ
Key Features
ThinkPad® Thunderbolt™ 5 Smart Dock 7500 With Cutting-Edge Thunderbolt™ 5 technology, makes the connectivity performance reached a new Height, with up to 120 Gbps bandwidth, you can have up to 4 Ultra High Spec display setup, three Ultra-High Resolution 8K 60Hz Displays and one High Resolution 4K 60Hz or two 4K 240Hz and two 4K 120Hz High Refresh Rate monitors setup, it's all up to you, fully extend your Mobile Workstation notebook to a Power Station with all different kinds of Peripheral Devices. Charge output up to 180W with PD 3.1 to rapid-charge your notebook, you can drastically expand the potential of your workspace with ease
Universal Dock Compatibility a cross different Operating Systems, Windows, Linux, macOS 15 Sequoia and above
With Lenovo™ Accessories Fleet Manager (LAFM), the New Gen Cloud-Based Intelligent Manageability runs on Web Browser, can let IT manager to Manage, Update, Configure and Dignostic their dock fleet in a Flexible, Efficient and Convenient way at anytime, anywhere
Description
New Generation Docking Station Power House. The robust way to maximize productivity and the workspace, the brand new ThinkPad® Thunderbolt™ 5 Smart Dock 7500 is the flagship in our new series of docks offering a smarter way to work. Capable of driving up to three 8K 60Hz displays and up to 120Gbps data speeds, the dock ushers in the next generation of Intel® Thunderbolt™ 5 connectivity for commercial users and new generation cloud-based management console powered by AWS for IT managers.
Specifications
Ports & interfaces
Combo headphone/mic port
Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
2
Connectivity technology
Wired
USB 2.0 ports quantity
0
Host interface
Thunderbolt 5
Ethernet LAN (RJ-45) ports
1
HDMI ports quantity
1
HDMI version
2.1
DisplayPorts quantity
2
USB Power Delivery (USB PD)
Yes
USB Power Delivery revision
3.1
USB Power Delivery up to
180 W
DisplayPort version
2.1
Thunderbolt 5 ports quantity
2
Network
Ethernet LAN
Yes
Ethernet LAN data rates
2500 Mbit/s
Ethernet LAN (RJ-45) ports
1
Performance
Number of displays supported
4
Product colour
Black
Card reader integrated
No
Cable lock slot
Yes
Certification
FCC/ICES
CE
KCC
RCM
BSMI
NCC
VCCI
CB
cULus
EAC
TUV-Mark
Ukraine DoC
NOM
IFT
TELEC
UKCA
VNTA
WPC ETA
SRRC
SDPPI
IMDA
SIRIM
NBTC
SUBTEL
KVALITET/RATEL
MCIT
ANRT
UCC
INACOM
CITRA
TRA
NTC
PSRC
ARTCI
INCM
Thunderbolt Cert
EVO
Cable lock slot type
Kensington
HD type
8K Ultra HD
Colour name
Eclipse Black
Maximum refresh rate
60 Hz
Storage
Card reader integrated
No
Power
Power source type
AC
Power supply
265 W
Software
Windows operating systems supported
Yes
Mac operating systems supported
Yes
Linux operating systems supported
Yes
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
20 - 95%
Weight & dimensions
Width
235 mm
Depth
80 mm
Height
30 mm
Weight
585 g
Package width
260 mm
Package depth
165 mm
Package height
74 mm
Package weight
1.73 kg
