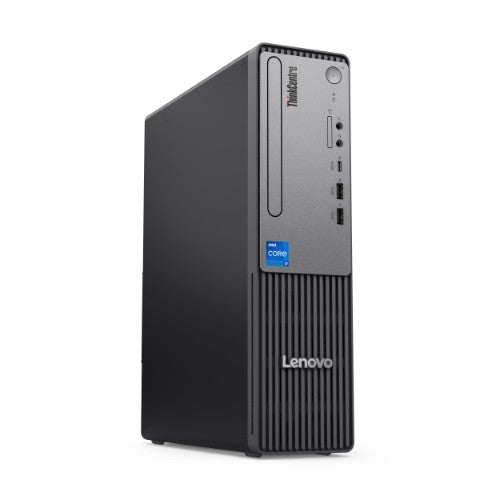

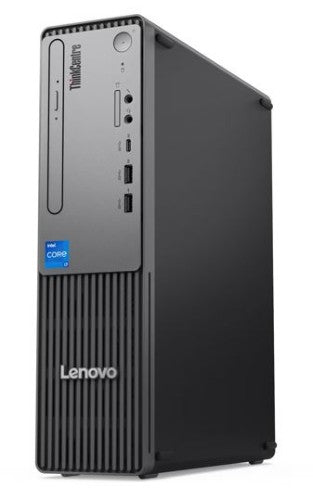

Lenovo ThinkCentre neo 50s Gen 5 Intel® Core™ i7 i7-13700 16 GB DDR5-SDRAM 512 GB SSD Windows 11 Pro SFF PC Black

Intel Core i7-13700, 16C (8P + 8E)/24T, Max Turbo up to 5.2GHz, P-core 2.1/5.1GHz, E-core 1.5/4.1GHz, 30MB, 2x 8GB UDIMM DDR5-5600, 512GB SSD M.2 2280 PCIe 4.0x4 NVMe, Intel UHD Graphics 770, Windows 11 Pro

Key Features

• Intel Core i7-13700, 16C (8P + 8E)/24T, Max Turbo up to 5.2GHz, P-core 2.1/5.1GHz, E-core 1.5/4.1GHz, 30MB
• 2x 8GB UDIMM DDR5-5600
• 512GB SSD M.2 2280 PCIe 4.0x4 NVMe
• Intel UHD Graphics 770
• Windows 11 Pro

Description

LENOVO ThinkCentre Neo 50S G4 SFF Desktop PC i7-13700 16GB DDR5 512GB SSD Windows 11 Pro 3yrs OS Wty UHD Graphics LAN Keyboard Mouse ~M70s

Processor Intel® Core™ i7-13700, 16C (8P + 8E) / 24T, Max Turbo up to 5.2GHz, P-core 2.1 / 5.1GHz, E-core 1.5 / 4.1GHz, 30MB
Graphics Integrated Intel® UHD Graphics 770
Chipset Intel® B760 Chipset
Memory 2x 8GB UDIMM DDR5-5600
Memory Slots Two DDR5 UDIMM slots, dual-channel capable
Max Memory Up to 64GB DDR5-5600
Storage 512GB SSD M.2 2280 PCIe® 4.0x4 NVMe®
Storage Support Up to two drives, 1x 3.5' HDD + 1x M.2 SSD • 3.5' HDD up to 2TB • M.2 SSD up to 1TB
For installing HDD storage, 3.5'' HDD screw and grommet kit is needed.
Card Reader None
Optical None
Audio Chip High Definition (HD) Audio, Realtek® ALC623-CG codec
Speakers 1Wx1
Power Supply 260W 90%
DESIGN
Keyboard USB Traditional Keyboard, Black, English
Mouse USB Calliope Mouse, Black
Expansion Slots One PCIe® 3.0 x16, low-profile, length ≤ 155mm, height ≤ 70mm
One PCIe® 3.0 x1, low-profile, length ≤ 155mm, height ≤ 70mm
Two M.2 slots (one for WLAN, one for SSD)
Case Color Chassis: Black, Bezel: Grey
Stand None
Pen Pen Not Supported
Form Factor SFF (8.2L)
Dimensions (WxDxH) 92.5 x 291.4 x 339.5 mm (3.6 x 11.5 x 13.4 inches)
Weight Around 4.2 kg (9.3 lbs)
CONNECTIVITY
WLAN + Bluetooth None
WWAN Non-WWAN
Ethernet Integrated 100/1000M
Front Ports 1x USB-C® (USB 5Gbps / USB 3.2 Gen 1), with 15W charging
2x USB-A (USB 5Gbps / USB 3.2 Gen 1)
1x headphone / microphone combo jack (3.5mm)
1x microphone (3.5mm)

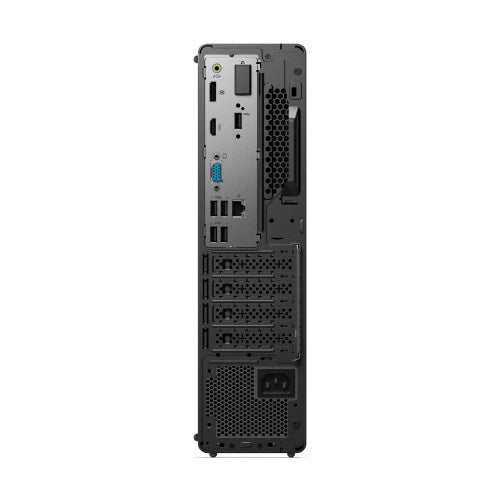

Rear Ports 4x USB-A (Hi-Speed USB / USB 2.0), one supports Smart Power On
1x HDMI® 2.1 TMDS
1x DisplayPort™ 1.4
1x VGA
1x Ethernet (RJ-45)
1x line-out (3.5mm)
Monitor Cable None
SECURITY & PRIVACY
Security Chip Discrete TPM 2.0, TCG certified
Fingerprint Reader No fingerprint reader
Physical Locks Kensington® Security Slot™, 3 x 7 mm
Smart Cable Clip None
Chassis Intrusion Switch None
Additional Security None
SERVICE
Base Warranty 1-year, Onsite
Included Upgrade 3Y Onsite upgrade from 1Y Onsite
CERTIFICATIONS
Green Certifications TCO Certified 9.0
SOFTWARE
Operating System Windows® 11 Pro, English
Bundled Software Bufferzone Standard Plus 1-year

Specifications

Processor
Processor frequency	2.1 GHz
Processor family	Intel® Core™ i7
Processor manufacturer	Intel
Processor model	i7-13700
Processor cores	16
Processor boost frequency	5.1 GHz
Processor threads	24
Memory
Internal memory	16 GB
Internal memory type	DDR5-SDRAM
Maximum internal memory	64 GB
Memory layout (slots x size)	2 x 8 GB
Memory slots	2x DIMM
Memory clock speed	5600 MHz
Storage
Total storage capacity	512 GB
Optical drive type	No
Card reader integrated	No
Storage media	SSD
Number of SSDs installed	1
SSD capacity	512 GB
SSD interface	PCI Express 4.0
SSD form factor	M.2
Total SSDs capacity	512 GB
NVMe	Yes
Graphics
Discrete graphics card	No
On-board graphics card family	Intel® UHD Graphics
Discrete graphics card model	Not available
On-board graphics card model	Intel UHD Graphics 770
On-board graphics card	Yes
On-board GPU manufacturer	Intel
Optical drive
Optical drive type	No
Network
Ethernet LAN	Yes
Ethernet LAN data rates	100,1000 Mbit/s
Wi-Fi	No
Ports & interfaces
Combo headphone/mic port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Thunderbolt 3 ports quantity	0
USB 2.0 ports quantity	4
VGA (D-Sub) ports quantity	1
HDMI ports quantity	1
HDMI version	2.1
DisplayPorts quantity	1
Ethernet LAN (RJ-45) ports	1
Line-out	Yes
Microphone in	Yes
Design
Product colour	Black
Volume	8.2 L
Chassis type	SFF
Cable lock slot	Yes
Cable lock slot type	Kensington
Colour name	Chassis: Black, Bezel: Grey
Performance
Audio chip	Realtek ALC623-CG
Number of speakers	1
Product type	PC
Motherboard chipset	Intel B760
Audio system	High Definition Audio
Trusted Platform Module (TPM)	Yes
Software
Operating system installed	Windows 11 Pro
Bundled software	Bufferzone Standard Plus 1-year
Operating system language	English
Power
Power supply	260 W
Certificates
Certification	TCO
Weight & dimensions
Volume	8.2 L
Width	92.5 mm
Depth	291.4 mm
Height	339.5 mm
Weight	4.2 kg
Packaging content
Mouse included	Yes
Bundled software	Bufferzone Standard Plus 1-year
Keyboard included	Yes
Mouse connectivity	Wired
Keyboard connectivity	Wired
Other features
Number of speakers	1
Processor manufacturer	Intel
Trusted Platform Module (TPM)	Yes
On-board graphics card	Yes
