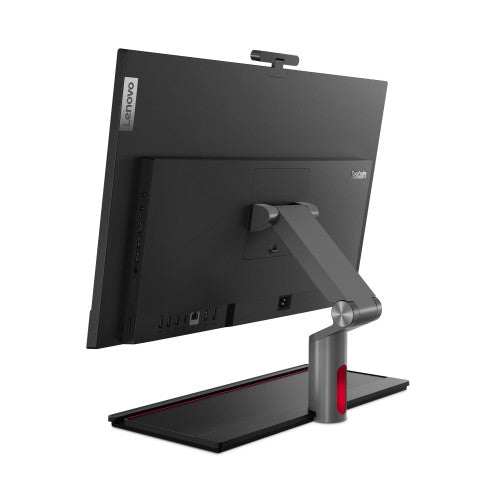

Lenovo ThinkCentre M90a Gen 5 Intel® Core™ i7 i7-14700 60.5 cm (23.8") 1920 x 1080 pixels All-in-One PC 16 GB DDR5-SDRAM 512 GB SSD Windows 11 Pro Wi-Fi 6 (802.11ax) Black

Intel Core i7-14700, 20C (8P + 12E)/28T, Max Turbo up to 5.4GHz, P-core 2.1/5.3GHz, E-core 1.5/4.2GHz, 33MB Intel Smart Cache, 2x 8GB SODIMM DDR5-5600, 512GB SSD M.2 2280 PCIe 4.0x4 NVMe Opal 2.0, 23.8" FHD (1920x1080) IPS 250nits 60Hz 99% sRGB hardware low blue light flicker free eyesafe non-touch, Intel UHD Graphics 770, Intel Wi-Fi 6 AX201 802.11ax 2x2 + BT5.2, Windows 11 Pro

Key Features

• Intel Core i7-14700, 20C (8P + 12E)/28T, Max Turbo up to 5.4GHz, P-core 2.1/5.3GHz, E-core 1.5/4.2GHz, 33MB Intel Smart Cache
• 23.8" FHD (1920x1080) IPS 250nits 60Hz 99% sRGB hardware low blue light flicker free eyesafe non-touch
• 2x 8GB SODIMM DDR5-5600
• 512GB SSD M.2 2280 PCIe 4.0x4 NVMe Opal 2.0
• Intel UHD Graphics 770
• Windows 11 Pro

Description

LENOVO ThinkCentre M90A G5 AIO 23.8'/24' FHD Intel i7-14700 16GB 512GB SSD Windows 11 Pro 3yrs OS Wty Webcam Speakers Keyboard Mouse

Technical Specification
Display 23.8' FHD (1920x1080) IPS Anti-glare 250nits, 60Hz, 99% sRGB, hardware low blue light, flick free, eyesafe, non-touch

Processor Intel® Core™ i7-14700, 20C (8P + 12E) / 28T, Max Turbo up to 5.4GHz, P-core 2.1 / 5.3GHz, E-core 1.5 / 4.2GHz, 33MB

Memory 16GB= 2x 8GB SO-DIMM DDR5-5600

Memory Slots Two DDR5 SO-DIMM slots, dual-channel capable

Storage 512GB SSD M.2 2280 PCIe® 4.0x4 NVMe® Opal 2.0

Storage Support Models with Intel® UHD graphics: Up to two drives, 2x M.2 SSD • M.2 SSD up to 2TB each

Graphics Integrated Intel® UHD Graphics 770

Rear Ports
1x USB-C® (USB 10Gbps / USB 3.2 Gen 2), with data transfer and 15W charging
3x USB-A (USB 5Gbps / USB 3.2 Gen 1)
1x HDMI® (HDMI in 1.4 / HDMI out 2.1 TMDS combo port)
1x DisplayPort™ 1.4
1x Ethernet (RJ-45)

Right Ports
3x USB-A (USB 10Gbps / USB 3.2 Gen 2)
1x headphone / microphone combo jack (3.5mm)

Ethernet Integrated 100/1000M

WLAN + Bluetooth Intel® Wi-Fi® 6 AX201, 802.11ax 2x2 + BT5.2

Expansion Slots Models with Intel® UHD graphics: Three M.2 slots (one for WLAN, two for SSD)

Keyboard USB Traditional Keyboard, Black, English

Mouse USB Calliope Mouse, Black

Operating System Windows® 11 Pro,

Dimensions (WxDxH) Lowest in flat mode: 539.6 x 344.19 x 227.54 mm (21.24 x 13.55 x 8.96 inches) Highest in vertical mode: 539.6 x 252.60 x 472.00 mm (21.24 x 9.94 x 18.58 inches)

Weight Around 7.83 kg (17.3 lbs)

Base Warranty 3-year, Onsite

Camera 5.0MP + IR Hybrid

Speakers 3Wx2

Specifications

Display
HD type	Full HD
Display diagonal	60.5 cm (23.8")
Display resolution	1920 x 1080 pixels
Touchscreen	No
Display brightness	250 cd/m²
Panel type	IPS
Colour gamut	99%
RGB colour space	sRGB
Native aspect ratio	16:9
Anti-glare screen	Yes
Processor
Processor frequency	2.1 GHz
Processor family	Intel® Core™ i7
Processor model	i7-14700
Processor boost frequency	5.3 GHz
Processor cores	20
Motherboard chipset	Intel Q670
Processor manufacturer	Intel
Memory
Internal memory	16 GB
Maximum internal memory	64 GB
Internal memory type	DDR5-SDRAM
Memory slots	2
Memory slots type	SO-DIMM
Memory clock speed	5600 MHz
Memory layout (slots x size)	2 x 8 GB
Memory form factor	DIMM/SO-DIMM
Storage
Optical drive type	No
Total storage capacity	512 GB
Card reader integrated	Yes
Storage media	SSD
SSD interface	PCI Express 4.0
SSD capacity	512 GB
Number of SSDs installed	1
SSD form factor	M.2
Total SSDs capacity	512 GB
NVMe	Yes
Graphics
Discrete graphics card	No
Discrete graphics card model	Not available
On-board graphics card model	Intel UHD Graphics 770
On-board graphics card	Yes
Audio
Number of speakers	2
Built-in speaker(s)	Yes
RMS rated power	6 W
Built-in microphone	Yes
Camera
Built-in camera	Yes
Total megapixels	5 MP
Privacy camera	Yes
Privacy type	Privacy shutter
Optical drive
Optical drive type	No
Network
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Wi-Fi	Yes
Wi-Fi standards	Wi-Fi 6 (802.11ax)
Ethernet LAN	Yes
Ethernet LAN data rates	100,1000 Mbit/s
Bluetooth	Yes
Bluetooth version	5.2
WLAN controller model	Intel Wi-Fi 6 AX201
Antenna type	2x2
WLAN controller manufacturer	Intel
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
USB 2.0 ports quantity	0
HDMI ports quantity	1
DisplayPorts quantity	1
Ethernet LAN (RJ-45) ports	1
Combo headphone/mic port	Yes
Design
Product colour	Black
Cable lock slot type	Kensington
Cable lock slot	Yes
Performance
Product type	All-in-One PC
Motherboard chipset	Intel Q670
Trusted Platform Module (TPM)	Yes
Trusted Platform Module (TPM) version	2.0
Software
Operating system installed	Windows 11 Pro
Operating system language	English
Power
AC adapter power	180 W
Multimedia
Built-in camera	Yes
Total megapixels	5 MP
Privacy camera	Yes
Privacy type	Privacy shutter
Weight & dimensions
Width (with stand)	539.6 mm
Depth (with stand)	344.2 mm
Height (with stand)	227.5 mm
Weight (with stand)	7.83 kg
Packaging content
Mouse included	Yes
Keyboard included	Yes
Mouse connectivity	Wired
Keyboard connectivity	Wired
Other features
SSD interface	PCI Express 4.0
SSD capacity	512 GB
Processor manufacturer	Intel
On-board graphics card	Yes
Number of SSDs installed	1
