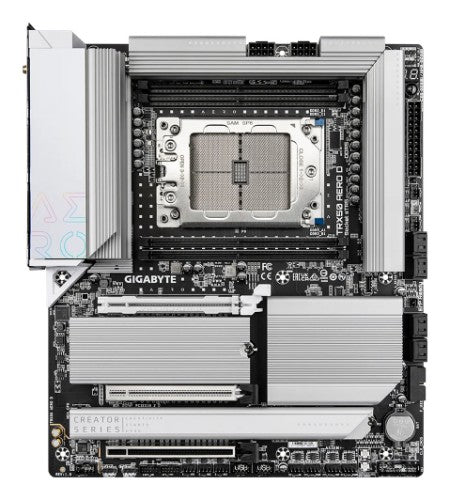

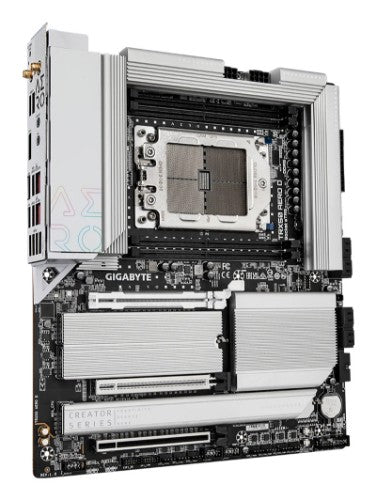

GIGABYTE TRX50 AERO D Motherboard - Supports AMD Ryzen Threadripper 9000 Series CPUs, 16+8+4 Phases Digital VRM, up to 7800MHz DDR5 (OC), 3xPCIe 5.0 + 1xPCIe 4.0 M.2, Wi-Fi 7, 10GbE LAN, USB4

TRX50 AERO D Motherboard - Supports AMD Ryzen Threadripper 9000 Series CPUs, 16+8+4 Phases Digital VRM, up to 7800MHz DDR5 (OC), 3xPCIe 5.0 + 1xPCIe 4.0 M.2, Wi-Fi 7, 10GbE LAN, USB4

Key Features

• Supports AMD Ryzen Threadripper PRO 7000 series/ Ryzen Threadripper 7000 series Processors
• Breakthrough Performance：16+8+4 Phases Digital VRM Solution
• Quad Channel DDR5：4*SMD R-DIMMs with AMD EXPO & Intel XMP Memory Module Support
• Reinforced Overall Thermal：VRM Thermal Armor Advanced & M.2 Thermal Guard
• Ultimate Scalibility: 3*PCIe x16 slots for Multi-GPU and 4*PCIe x4 M.2 slots
• Next-gen Connectivity: Dual USB4 Type-C ports
• Blazing Fast Networks: 10GbE + 2.5 GbE Dual LAN and Wi-Fi 7
• PCIe UD Slot X：PCIe 5.0 x16 slot with 10X strength for graphics card
• EZ-Latch Click：M.2 heatsinks with screwless design
• EZ-Latch Plus：M.2 slots with quick release design
• Hi-Fi Audio with DTS:X Ultra：ALC4080+ALC897 CODEC
• UC BIOS：User-Centred intuitive UX with Quick Access function

Description

Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge

Specifications

Internal I/O
Number of M.2 (M) slots	4
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
Total number of SATA connectors	8
Audio connector	Yes
Supported storage drive interfaces	M.2, SATA
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
Number of SATA III connectors	8
Number of chassis fan connectors	10
EPS power connector (8-pin)	Yes
CPU fan connector	Yes
ATX Power connector (24-pin)	Yes
RGB LED pin header	Yes
USB 3.2 Gen 2x2 connectors	1
Performance
Number of HDDs supported	8
Supported storage drive types	SSD
Component for	PC
Motherboard chipset family	AMD
Motherboard chipset	AMD TRX50
Motherboard form factor	Extended ATX
Audio output channels	2.0 channels
RAID levels	0, 1, 10
PC health monitoring	Fan, Temperature, Voltage, Water cooling
Windows operating systems supported	Windows 11 x64
Processor
Processor manufacturer	AMD
Maximum internal memory supported by processor	1 TB
Compatible processor series	AMD Ryzen Threadripper 1000 Series
Processor socket	Socket sTR5
Maximum number of SMP processors	1
Memory
Number of memory slots	4
Supported memory types	DDR5-SDRAM
Memory slots type	DIMM
Memory channels	Quad-channel
Supported memory clock speeds	4400,4800,5200,5600,6000,6400,6800,7000,7200,7600,7800 MHz
Supported memory module capacities	1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB, 48GB, 64GB, 128GB, 128MB, 256MB
Maximum internal memory	1 TB
Supported memory clock speed (max)	7800 MHz
ECC сompatibility	ECC
Storage controllers
Number of HDDs supported	8
Supported storage drive types	SSD
Supported storage drive interfaces	M.2, SATA
RAID levels	0, 1, 10
Number of storage drives supported	12
RAID support	Yes
Graphics
DirectX version	12.0

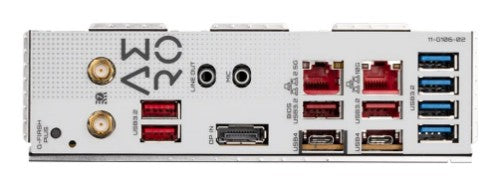

Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	2
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	2
VGA (D-Sub) ports quantity	0
Headphone outputs	2
HDMI ports quantity	0
DVI-D ports quantity	0
DisplayPorts quantity	1
Network
Ethernet LAN	Yes
Wi-Fi	Yes
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 7 (802.11be)
Ethernet interface type	10 Gigabit Ethernet
Bluetooth	Yes
Bluetooth version	5.3
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Features
Component for	PC
Motherboard chipset family	AMD
Motherboard chipset	AMD TRX50
Motherboard form factor	Extended ATX
Audio output channels	2.0 channels
PC health monitoring	Fan, Temperature, Voltage, Water cooling
Windows operating systems supported	Windows 11 x64
Audio chip	Realtek ALC4080
Product colour	Black
Expansion slots
Number of M.2 (M) slots	4
PCI Express x16 slots	3
PCI Express x16 (Gen 4.x) slots	1
PCI Express x16 (Gen 5.x) slots	2
BIOS
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
BIOS type	UEFI AMI
Clear CMOS jumper	Yes
BIOS memory size	256 Mbit
ACPI version	5.0
Clear CMOS button	Yes
System Management BIOS (SMBIOS) version	2.7
Desktop Management Interface (DMI) version	2.7
Packaging data
Package width	345 mm
Package depth	294 mm
Package height	80 mm
Package weight	3.04 kg
Battery
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
Battery weight	3 g
Number of battery cells	1
Lithium weight per battery	0.07 g
Battery type	CR2032
Logistics data
Products per shipping (inner) case	1 pc(s)
Country of origin	China
Weight & dimensions
Width	305 mm
Depth	264 mm
Height	35 mm
Package width	345 mm
Package depth	294 mm
Package height	80 mm
Package weight	3.04 kg

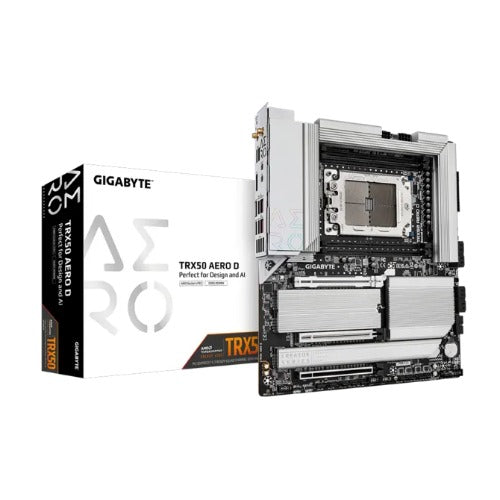

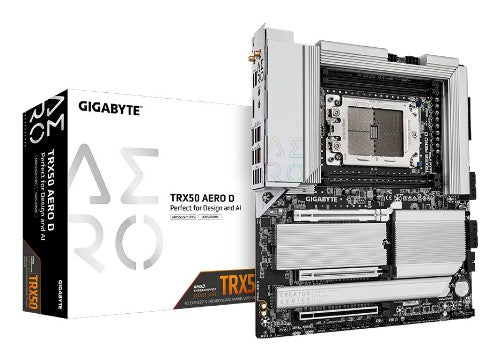

Packaging content
Bundled software	Norton Internet Security (OEM version), LAN bandwidth management software
Batteries included	Yes
Technical details
Total number of SATA connectors	8
Maximum internal memory supported by processor	1 TB
Warranty period	3 year(s)
Other features
Height	35 mm
Package width	345 mm
Package depth	294 mm
Package height	80 mm
Package weight	3.04 kg
