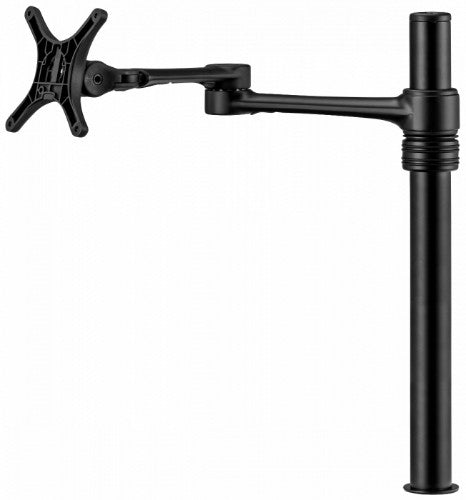

Atdec AF-AT-B monitor mount accessory

525mm long pole with 422mm articulated arm, Black

Key Features

• Ergonomic
• Landscape or portrait viewing
• Screen sharing capability
• Engineered bearing joints for smooth movement
• Quick-release display head with security screw
• Glare control and optimal viewing angle adjustment via tilt and pan capabilities
• Focal distance control
• Individual monitor height requirements settings
• Offset displays position
• Easy upgrade to dual display mount for notebooks or additional monitors
• Tool-less height adjustment
• Advanced, integrated cable management for a clean look
• Lightweight, durable, recyclable aluminium construction
• Available in silver, black, or white
• Sleek, supple design
• Flat screen monitors: maximum load up to 8kg
• Curved screen monitors: maximum load up to 5.5kg
• Articulated design with 3 pivot points for further reach
• Optional 360° pole rotation (can be limited to 180°)
• Supports mini PCs (AC-MP accessory sold separately)
• 10-year warranty
• Installation hardware included
• Bolt through and Desk clamp desk fixing options included

Description

The AF-AT is the ideal ergonomic and space saving desk monitor mount for corporate or home offices. This beautifully designed and engineered mount delivers exceptional functionality including focal distance, display height settings, and viewing angle fine-tuning. Optional 360° rotation makes sharing your screen simple, and ball bearing arm joints ensure supple, long-life operation. Quick release/attachment display mechanism makes installation and swapping monitors a one-person operation and cables are cleverly managed for a clean and professional look.

Specifications

Mounting
Height adjustment	Yes
Product type	Flat panel mount arm
Number of displays supported	1
Angle of rotation	360°
Maximum weight capacity	8 kg
Panel mounting interface	75 x 75,100 x 100 mm
Tilt angle range	-70 - 70°
Product colour	Black
Features
Height adjustment	Yes
Product type	Flat panel mount arm
Number of displays supported	1
Angle of rotation	360°
Maximum weight capacity	8 kg
Panel mounting interface	75 x 75,100 x 100 mm
Tilt angle range	-70 - 70°
Product colour	Black
Housing material	Aluminium, Plastic
Technical details
Height adjustment	Yes
Angle of rotation	360°
Product colour	Black
Maximum weight capacity	8 kg
Panel mounting interface	75 x 75,100 x 100 mm
Tilt angle range	-70 - 70°
Package width	220 mm
Package height	95 mm
Package depth	580 mm
Weight & dimensions
Width	422 mm
Height	525 mm
Package width	220 mm
Package height	95 mm
Package depth	580 mm
Colour
Product colour	Black
Packaging data
Package width	220 mm
Package height	95 mm
Package depth	580 mm
Packaging content
Quantity per pack	1 pc(s)
Logistics data
Master (outer) case width	455 mm
Master (outer) case length	595 mm
Master (outer) case height	300 mm
Master (outer) case gross weight	17.6 kg
Products per master (outer) case	6 pc(s)
