Collection: Western Digital

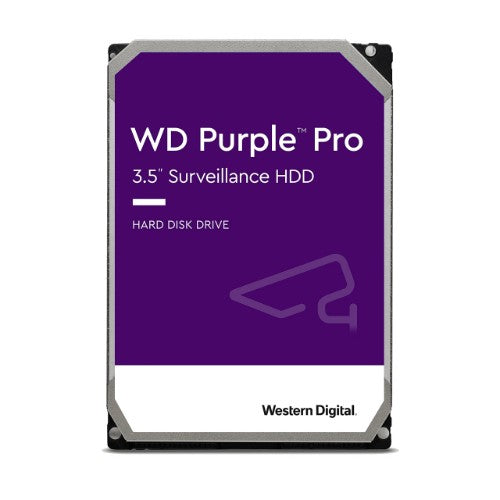

14 TB , 512 MB, 7200 RPM, 3.5", SATA 6 Gb/s

Key Features

• Engineered with advanced capabilities needed for high-end smart video solutions
• High performance, reliability and workload capability for advanced AI-enabled recorders, video analytics appliances, deep-learning servers and cloud-based storage, including RAID and JBOD configurations
• Supports up to 550 TB/yr workload rate2
• Designed with tarnish-resistant components for harsh environments, and with additional robustness for multi-bay enclosures

Description

Advanced Storage for Smart Video Solutions

WD Purple™ Pro drives are designed for advanced AI-enabled recorders, video analytics servers and deep learning solutions requiring additional capacity, performance and workload capability.

Storage for advanced smart video solutions
WD Purple™ Pro drives are designed for new generations of high-end AI-enabled recorders, video analytics appliances, deep-learning servers and cloud solutions that can benefit from high-capacity storage with high performance and additional workload capability. WD Purple Pro drives feature AllFrame™ AI technology, which helps reduce frame loss, improve overall video playback, and not only enables recording of multiple streams per camera but also supports up to 32 AI streams per drive for deep learning analytics within the system. WD Purple Pro drives also feature enterprise-class performance, data integrity and drive reliability, especially in larger-scale systems and enclosures where operational vibration is present.

Empower your smart video solution.
Western Digital is a worldwide leader in the hard drive industry. With WD Purple™ Pro smart video storage, you have a drive engineered for high performance, durability and workload capability for advanced always-on AI-enabled smart video recorders, appliances, and servers. Efficiently and effectively extract value and insights from streamed and stored video, and help deliver a smarter world with advanced WD Purple Pro smart video storage.

Western Digital's exclusive AllFrame™ AI technology
All WD Purple™ Pro drives are equipped with AllFrame AI technology, which not only improves ATA streaming to help reduce frame loss and improve overall video playback, but supports up to 32 AI streams for Deep Learning analytics within the system.

Multiple cameras, multiple streams
Modern recorders now support multiple video streams per camera. WD Purple™ Pro drives are optimized to support up to 64 HD single-stream cameras4, and can also support many of the latest smart cameras that transmit multiple streams. With this flexibility, you can upgrade or scale your security or smart video solution in the future.

Advanced workload capability for advanced systems
WD Purple™ Pro drives feature a workload rating up to 550TB/year2 to support the heavy video data capture and analysis found in advanced AI-enabled recorders, video analytics appliances, deep learning analytics servers and cloud-based storage. The combination of streaming optimizations and enhanced durability and reliability make WD Purple Pro smart video storage ideal for all analytics servers, whether processing video streamed directly from cameras or large-scale captured video data sets.

Designed for reliable operation in advanced high-performance smart video solutions
With an MTBF of up to 2.5 million hours3 (12TB, 14TB, and 18TB1), WD Purple™ Pro drives are engineered for advanced smart video solutions that operate 24/7. With tarnish-resistant components and full multi-bay support, WD Purple Pro drives deliver reliable operation in large scale surveillance systems even in harsh environments.

Field-proven high capacity
Now on its 6th generation, field-proven HelioSeal™ technology delivers trusted high-capacity WD Purple™ Pro hard drives (12TB, 14TB and 18TB1) for the massive storage needs of AI-driven smart video and deep learning analytics.

Proactive storage management with WDDA
Western Digital® Device Analytics™ (WDDA) provides a wealth of storage device parametric operational and diagnostic data to compatible systems; algorithms interpret the data and direct the system to alert system administrators of specific recommended actions to address potential issues. WDDA is intended to empower OEMs, system integrators, and IT professionals to better monitor and proactively manage supported storage devices to maintain optimal operation.

Specifications

Hard drive
Component for	Server/workstation
HDD size	3.5"
HDD capacity	14 TB
Workload rate limit	550 TB/year
HDD speed	7200 RPM
Interface	Serial ATA III
Start/stop cycles	600000
HDD interface transfer rate	6 Gbit/s
Mean time between failures (MTBF)	2500000 h
Certification	RoHS
Storage drive buffer size	512 MB
Features
Type	HDD
Component for	Server/workstation
HDD size	3.5"
HDD capacity	14 TB
Workload rate limit	550 TB/year
HDD speed	7200 RPM
Interface	Serial ATA III
Start/stop cycles	600000
HDD interface transfer rate	6 Gbit/s
Mean time between failures (MTBF)	2500000 h
Certification	RoHS
Storage drive buffer size	512 MB
Shock sensor	Yes
Noise level (idle)	20 dB
Power
Power consumption (standby)	0.9 W
Power consumption (write)	6.3 W
Power consumption (read)	6.3 W
Power consumption (idle)	5.9 W
Operational conditions
Operating temperature (T-T)	0 - 65 °C
Storage temperature (T-T)	-40 - 70 °C
Operating shock	50 G
Non-operating shock	250 G
Technical details
Quantity per pack	1 pc(s)
Harmonized System (HS) code	84717050
Weight & dimensions
Width	101.6 mm
Height	26.1 mm
Depth	147 mm
Weight	690 g
Packaging data
Quantity per pack	1 pc(s)
Logistics data
Harmonized System (HS) code	84717050
Other features
Interface	Serial ATA III
Certification	RoHS

Purple Surveillance Hard Drive - 3TB

Description

Uncompromising Surveillance Storage

WD Purple drives are designed to meet the challenges of 24x7 video surveillance recording. These drives are engineered specifically for surveillance to help withstand the elevated heat fluctuations and equipment vibrations within NVR environments. An average desktop drive is built to run for only short intervals, not the harsh 24/7 always-on environment of a high-definition surveillance system. With WD Purple drives, you get reliable, surveillance-class storage that’s tested for compatibility in a wide range of security systems. Exclusive AllFrame™ technology helps reduce frame loss and improve overall video playback.

Industry-Leading Storage. Surveillance You Can Trust
Western Digital has provided surveillance-grade storage for more than a decade. With WD Purple surveillance storage, drives are engineered for high temperature, always-on surveillance systems so you can rely on quality video when you need it most. WD Purple delivers smart video storage that you can trust and are backed by a 3-year limited warranty6.

Western Digital's Exclusive AllFrame™ Technology
All WD Purple drives are equipped with AllFrame™ technology, which helps reduce video frame drops and improves video recording and playback.

Enhanced Workload Ratings
WD Purple drives feature a workload rating of up to 180TB/year2 - up to three times that of desktop drives - to handle the unique demands of mainstream video surveillance DVR and NVR systems.

Multiple Cameras, Multiple Streams
Modern recorders now support multiple video streams per camera. WD Purple drives support up to 64 single-stream HD cameras5. With so many options, you have the flexibility to upgrade or expand your security applications in the future.

Designed for Surveillance Solutions
With an MTBF of up to 1 million hours3, WD Purple drives are engineered for mainstream surveillance DVRs and NVRs that operate 24/7. With tarnish-resistant components7 and support in storage systems with more than eight drive bays4, WD Purple drives deliver reliable operation even in harsh environments.

Wide Compatibility. Seamless Integration
WD Purple hard drives are built with compatibility in mind, so you can quickly and seamlessly add capacity to your surveillance system. With a wide range of industry-leading enclosures and chipsets supported, you’re sure to find the DVR or NVR configuration that’s right for you.

Three-Year Limited Warranty
As an industry-leading hard drive manufacturer, Western Digital stands behind their surveillance storage solutions with a 3-year limited warranty6 included with every WD Purple drive.

Specifications

Hard drive
Component for	Surveillance system
HDD size	3.5"
HDD capacity	3 TB
HDD average transfer rate	175 MB/s
HDD speed	5400 RPM
Interface	Serial ATA III
Certification	BSMI, ICES-003/NMB-003, CE, FCC, KC, Maghreb, RCM, UKCA, VCCI, CB-Scheme, TUV, UL
Storage drive buffer size	128 MB
Features
Type	HDD
Component for	Surveillance system
HDD size	3.5"
HDD capacity	3 TB
HDD average transfer rate	175 MB/s
HDD speed	5400 RPM
Interface	Serial ATA III
Certification	BSMI, ICES-003/NMB-003, CE, FCC, KC, Maghreb, RCM, UKCA, VCCI, CB-Scheme, TUV, UL
Storage drive buffer size	128 MB
Operational conditions
Operating temperature (T-T)	0 - 65 °C
Storage temperature (T-T)	-40 - 70 °C
Weight & dimensions
Width	101.6 mm
Height	26.1 mm
Depth	147 mm
Weight	570 g
Other features
Interface	Serial ATA III
Certification	BSMI, ICES-003/NMB-003, CE, FCC, KC, Maghreb, RCM, UKCA, VCCI, CB-Scheme, TUV, UL

Purple Surveillance Hard Drive - 4TB

Description

Uncompromising Surveillance Storage

WD Purple drives are designed to meet the challenges of 24x7 video surveillance recording. These drives are engineered specifically for surveillance to help withstand the elevated heat fluctuations and equipment vibrations within NVR environments. An average desktop drive is built to run for only short intervals, not the harsh 24/7 always-on environment of a high-definition surveillance system. With WD Purple drives, you get reliable, surveillance-class storage that’s tested for compatibility in a wide range of security systems. Exclusive AllFrame™ technology helps reduce frame loss and improve overall video playback.

Industry-Leading Storage. Surveillance You Can Trust
Western Digital has provided surveillance-grade storage for more than a decade. With WD Purple surveillance storage, drives are engineered for high temperature, always-on surveillance systems so you can rely on quality video when you need it most. WD Purple delivers smart video storage that you can trust and are backed by a 3-year limited warranty6.

Western Digital's Exclusive AllFrame™ Technology
All WD Purple drives are equipped with AllFrame™ technology, which helps reduce video frame drops and improves video recording and playback.

Enhanced Workload Ratings
WD Purple drives feature a workload rating of up to 180TB/year2 - up to three times that of desktop drives - to handle the unique demands of mainstream video surveillance DVR and NVR systems.

Multiple Cameras, Multiple Streams
Modern recorders now support multiple video streams per camera. WD Purple drives support up to 64 single-stream HD cameras5. With so many options, you have the flexibility to upgrade or expand your security applications in the future.

Designed for Surveillance Solutions
With an MTBF of up to 1 million hours3, WD Purple drives are engineered for mainstream surveillance DVRs and NVRs that operate 24/7. With tarnish-resistant components7 and support in storage systems with more than eight drive bays4, WD Purple drives deliver reliable operation even in harsh environments.

Wide Compatibility. Seamless Integration
WD Purple hard drives are built with compatibility in mind, so you can quickly and seamlessly add capacity to your surveillance system. With a wide range of industry-leading enclosures and chipsets supported, you’re sure to find the DVR or NVR configuration that’s right for you.

Three-Year Limited Warranty
As an industry-leading hard drive manufacturer, Western Digital stands behind their surveillance storage solutions with a 3-year limited warranty6 included with every WD Purple drive.

Specifications

Hard drive
Component for	Surveillance system
HDD size	3.5"
HDD capacity	4 TB
HDD average transfer rate	175 MB/s
HDD speed	5400 RPM
Interface	Serial ATA III
Certification	BSMI, ICES-003/NMB-003, CE, FCC, KC, Maghreb, RCM, UKCA, VCCI, CB-Scheme, TUV, UL
Storage drive buffer size	128 MB
Features
Type	HDD
Component for	Surveillance system
HDD size	3.5"
HDD capacity	4 TB
HDD average transfer rate	175 MB/s
HDD speed	5400 RPM
Interface	Serial ATA III
Certification	BSMI, ICES-003/NMB-003, CE, FCC, KC, Maghreb, RCM, UKCA, VCCI, CB-Scheme, TUV, UL
Storage drive buffer size	128 MB
Operational conditions
Operating temperature (T-T)	0 - 65 °C
Storage temperature (T-T)	-40 - 70 °C
Weight & dimensions
Width	101.6 mm
Height	26.1 mm
Depth	147 mm
Weight	550 g
Other features
Interface	Serial ATA III
Certification	BSMI, ICES-003/NMB-003, CE, FCC, KC, Maghreb, RCM, UKCA, VCCI, CB-Scheme, TUV, UL

3.5" 16TB 512 7200RPM SATA 512E SE NP3 DC

Key Features

• Capacities up to 20TB in standard 3.5-inch form factor
• Conventional Magnetic Recording (CMR) technology
• Superior reliability of field-proven hardware and firmware designs
• Seamless integration with existing applications & environments

Description

Engineered to handle high-intensity workloads with proven technology

Ultrastar Data Center HC555 hard drives are engineered to deliver the large capacity, strong performance and proven reliability needed to handle high-intensity workloads in 24×7 multi-user data center environments.

Handle Data Center Workloads with Proven Technology
The combination of field-proven hardware with the latest innovative technologies delivers the performance, capacity and reliability needed to handle high-intensity workloads in 24×7 multi-user data center environments.

Grow Capacity while Lowering Costs
Western Digital’s energy-assisted perpendicular magnetic recording (ePMR) technology enables customers to grow capacities while lowering TCO (total cost of ownership) including both $/TB and OpEx.

Rapid qualification and integration
Leveraging hardware designs from generations of highly successful products ensures easy qualification, seamless integration and rapid adoption by existing customers.

Reliability You Can Trust
Built off the same platform that is deployed in thousands of data centers around the world, these drives deliver superior dependability and field-proven reliability for hassle free data storage.

Increase Density with Low Power
Western Digital’s Triple-Stage Actuator (TSA) increases tracks-per-inch (TPI) while providing greater control over the actuator arm, enabling the highest capacities with low power.

Meet Eco Goals with Helium
The stable internal environment created by our HelioSeal® technology enables this high-capacity helium drive to deliver one of the lowest power profiles in the industry.

Protected Against Vibration & Shock
Disturbances caused by increased vibration are anticipated and proactively counteracted by Rotation Vibration (RV) sensors and subtle shock events are automatically detected by multi-axis shock sensors and compensated for with dynamic fly height technology to maintain performance and protect data.

Trusted Reliability, Quality and World-Class Support
As an industry-leading hard drive manufacturer, Western Digital stands behind their Ultrastar hard drives with the assurance of a projected 2.5M-hour MTBF rating.

Specifications

Hard drive
Component for	Server/workstation
HDD size	3.5"
HDD capacity	16 TB
HDD average transfer rate	269 MB/s
HDD speed	7200 RPM
Interface	Serial ATA III
Average latency	4.16 ms
Start/stop cycles	600000
Hot-swap	No
HDD sustained transfer rate	257 MiB/s
HDD interface transfer rate	6 Gbit/s
Mean time between failures (MTBF)	2500000 h
Storage drive buffer size	512 MB
Features
Type	HDD
Component for	Server/workstation
HDD size	3.5"
HDD capacity	16 TB
HDD average transfer rate	269 MB/s
HDD speed	7200 RPM
Interface	Serial ATA III
Average latency	4.16 ms
Start/stop cycles	600000
Hot-swap	No
HDD sustained transfer rate	257 MiB/s
HDD interface transfer rate	6 Gbit/s
Mean time between failures (MTBF)	2500000 h
Storage drive buffer size	512 MB
24/7 operation	Yes
Power
Power consumption (typical)	6.4 W
Power consumption (idle)	5.3 W
Operating voltage	5 / 12 V
Operational conditions
Operating temperature (T-T)	5 - 60 °C
Storage temperature (T-T)	-40 - 70 °C
Operating vibration	0.67 G
Operating shock	50 G
Non-operating vibration	1.04 G
Non-operating shock	250 G
Technical details
Warranty period	5 year(s)
Weight & dimensions
Width	101.6 mm
Height	26.1 mm
Depth	147 mm
Weight	679 g
Other features
Interface	Serial ATA III
Warranty period	5 year(s)

WD_BLACK 3.5-Inch Gaming Hard Drive - 8TB

Description

Elevate your gaming experience with WD_BLACK Gaming Hard Drives boasting capacities of up to 10TB1. Say goodbye to storage constraints and hello to seamless gaming sessions. With WD_BLACK, you can effortlessly download the latest AAA titles and maintain your extensive library of classics and favorites without compromise. Expand your gaming horizons, store more, and immerse yourself in endless adventures with WD_BLACK Gaming Hard Drives.

Gaming Performance and Capacity
WD_BLACK is purpose-built to enhance your PC gaming experience. Available with an impressive 256 MB of DRAM cache on higher capacity models, the WD_BLACK HDD is performance-optimized so you can spend more time gaming and less time loading. Combine a WD_BLACK HDD with a WD_BLACK SSD for a dual-drive configuration that maximizes your gaming experience while letting you keep more of your favorite games. The WD_BLACK HDD gives you fast hard drive speeds, high capacity, and an industry-leading 5-year limited warranty for an inspiring game storage solution.

Drive Your Game
The WD_BLACK HDD is the perfect storage solution for your gaming rig, offering large cache sizes plus large capacities to store your favorite titles and their downloadable content (DLC). Paired with an SSD, the powerful drive delivers exceptional system performance and capacity.

Store More, Play More
With capacities up to 10TB, WD_BLACK Gaming Hard Drives let you download the latest AAA titles while also keeping your ever-growing catalog of classics and favorites ready to play. Don't compromise on your game collection. Store more and game more with WD_BLACK.

Increased Reliability
The WD_BLACK Gaming Hard Drive is equipped with StableTrac™ Technology (2TB1 and larger models). This secures the motor shaft inside of the hard drive to increase reliability and help reduce impact due to system-induced vibrations from other components such as additional gaming hardware. Stabilizing the platters inside the WD_BLACK drive results in more accurate tracking in a particular sector during read and write operations, optimizing performance and reliability.

Commanding Performance
The WD_BLACK drive delivers high-speed read rates and transfers of your games with impressive cache sizes of up to 256 MB of DRAM on our high-capacity models. Western Digital’s Dynamic Cache Technology improves caching algorithms in real time to allocate and optimize cache between reads and writes. Spend less time loading and more time winning.

Battle-Tested Dual Processor
When it comes to processing power, more is better for loading today's larger games. The WD_BLACK Gaming Hard Drive features a dual-core processor that offers twice the processing capability as a single-core processor to maximize drive performance for geting into the game faster.

An Industry-Leading 5-Year Limited Warranty
Compared to standard hard drives, our WD_BLACK Gaming Hard Drives pass more strenuous and aggressive internal testing over a longer period of time which is why the WD_BLACK drive is backed by an industry-leading 5-year limited warranty.

Specifications

Hard drive
Component for	PC
HDD size	3.5"
HDD capacity	8 TB
HDD average transfer rate	267 MB/s
HDD speed	7200 RPM
Interface	Serial ATA III
Certification	BSMI, ICES-003/NMB-003, CE, FCC, KC, Maghreb, RCM, UKCA, VCCI, CB-Scheme, TUV, UL
Storage drive buffer size	256 MB
Features
Type	HDD
Component for	PC
HDD size	3.5"
HDD capacity	8 TB
HDD average transfer rate	267 MB/s
HDD speed	7200 RPM
Interface	Serial ATA III
Certification	BSMI, ICES-003/NMB-003, CE, FCC, KC, Maghreb, RCM, UKCA, VCCI, CB-Scheme, TUV, UL
Storage drive buffer size	256 MB
Operational conditions
Operating temperature (T-T)	5 - 60 °C
Storage temperature (T-T)	-40 - 70 °C
Technical details
Quantity per pack	1 pc(s)
Weight & dimensions
Width	147 mm
Height	101.6 mm
Depth	26.1 mm
Packaging data
Quantity per pack	1 pc(s)
Other features
Interface	Serial ATA III
Certification	BSMI, ICES-003/NMB-003, CE, FCC, KC, Maghreb, RCM, UKCA, VCCI, CB-Scheme, TUV, UL

1 TB, USB-C, 111x82x15 mm, black

Key Features

• Effortless plug-and-play expandability of storage capacity in seconds
• Vast capacities to store your photos, videos, music, important documents and more
• USB-C® connectivity for fast, easy plug-and-play use across today’s laptops and devices

Description

Simple, fast and portable.
Discover reliable, high-capacity storage with WD Elements® portable hard drives. Featuring USB-C® connectivity, it makes it easy to back up and access your documents, photos, videos, and other important files across Windows® and Mac® computers, plus compatible devices wherever you go.

Effortless Expandability
This plug-and-play hard drive lets you expand your capacity in seconds, so you can keep your important files without any stress or complications.

High Capacity
Discover expansive storage with up to 6TB capacity, offering ample room for your cherished photos, memorable videos, and essential documents on-the-go.

Modern USB-C® Connectivity
USB-C® connectivity for fast, easy plug-and-play performance across modern laptops, desktops, and compatible mobile devices—so you can quickly connect and get to your files without extra adapters or cables.

Designed with the Planet in Mind
The enclosure of this drive is composed of more than 50% post-consumer recycled plastic. Packaging is made of over 50% post-consumer recycled pulp and is fully recyclable.

Specifications

Performance
Plug and Play	Yes
USB version	3.2 Gen 1 (3.1 Gen 1)
Wi-Fi	No
Windows operating systems supported	Windows 10, Windows 11
Hard drive
HDD capacity	1 TB
HDD size	2.5"
Ports & interfaces
USB connector	USB Type-C
Thunderbolt technology	No
USB version	3.2 Gen 1 (3.1 Gen 1)
Ethernet LAN	No
Wi-Fi	No
Features
Product colour	Black
Plug and Play	Yes
Windows operating systems supported	Windows 10, Windows 11
Design
Product colour	Black
Power
External power adapter	Yes
Operational conditions
Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	-20 - 65 °C
Weight & dimensions
Width	82.2 mm
Depth	110.8 mm
Height	15 mm
Weight	130 g
Package width	140 mm
Package depth	124 mm
Package height	44 mm
Package weight	450 g
Packaging data
Cables included	USB
User guide	Yes
Package width	140 mm
Package depth	124 mm
Package height	44 mm
Package weight	450 g
Packaging content
Cables included	USB
User guide	Yes
External power adapter	Yes
Technical details
Harmonized System (HS) code	84717050
Logistics data
Harmonized System (HS) code	84717050
Other features
Ethernet LAN	No

WD Purple Pro, SATA, 3.5", up to 272MB/s, 7200 RPM

Key Features

• Engineered for advanced AI-enabled recorders, video analytics appliances, deep-learning servers, and cloud-based storage, including RAID and JBOD
• Designed with tarnish-resistant components for harsh environments and with additional robustness for multi-bay enclosures
• Supports up to 550TB/yr workload rate
• Compatibility
• Up to 64 single-stream cameras

Description

Advanced Storage for Smart Video Solutions

WD Purple Pro drives are designed for advanced AI-enabled recorders, video analytics servers and deep learning solutions requiring additional capacity, performance and workload capability.

Purpose-built storage for your smart video solution
The WD Purple™ Pro HDD, with OptiNAND™ technology in 24TB1, delivers big capacity in an enterprise-class drive for video analytics servers, AI, and deep learning systems to enable data-driven outcomes.

Western Digital's exclusive AllFrame™ AI technology
AllFrame AI technology supports up to 32 AI streams for deep learning analytics within the system while reducing frame drops.

Multiple cameras, multiple streams
WD Purple™ Pro drives are optimized to handle up to 64 single-stream HD cameras2 in addition to 32 concurrent AI streams. This flexibility allows you to easily upgrade and scale your smart video solution to meet your changing needs.

Advanced workload capability for advanced systems
These reliable drives are built with a workload rating up to 550TB/year3 to keep up with the 24/7 data capture and analysis demands of advanced AI-enabled recorders, video analytics appliances, and deep learning analytics servers.

Designed for reliable operation
Engineered with an MTBF of up to 2.5 million hours4 and backed with a 5-year limited warranty, the WD Purple™ Pro HDD also features tarnish-resistant components and full multi-bay support for dependable operation in large-scale surveillance systems.

Proactive storage management with WDDA™
Western Digital Device Analytics™ (WDDA) provides drive health management features for compatible recorders and video management systems.

Specifications

Hard drive
Component for	Server/workstation
HDD size	3.5"
HDD capacity	12 TB
HDD average transfer rate	272 MB/s
HDD speed	7200 RPM
Interface	Serial ATA III
Mean time between failures (MTBF)	2500000 h
Certification	BSMI, ICES-003/NMB-003, CE, FCC, KC, Maghreb, RCM, UKCA, VCCI, CB-Scheme, TUV, UL
Storage drive buffer size	512 MB
Features
Type	HDD
Component for	Server/workstation
HDD size	3.5"
HDD capacity	12 TB
HDD average transfer rate	272 MB/s
HDD speed	7200 RPM
Interface	Serial ATA III
Mean time between failures (MTBF)	2500000 h
Certification	BSMI, ICES-003/NMB-003, CE, FCC, KC, Maghreb, RCM, UKCA, VCCI, CB-Scheme, TUV, UL
Storage drive buffer size	512 MB
Operational conditions
Operating temperature (T-T)	5 - 65 °C
Storage temperature (T-T)	-40 - 70 °C
Technical details
Quantity per pack	1 pc(s)
Weight & dimensions
Width	101.6 mm
Height	26.1 mm
Depth	147 mm
Weight	750 g
Packaging data
Quantity per pack	1 pc(s)
Other features
Interface	Serial ATA III
Certification	BSMI, ICES-003/NMB-003, CE, FCC, KC, Maghreb, RCM, UKCA, VCCI, CB-Scheme, TUV, UL

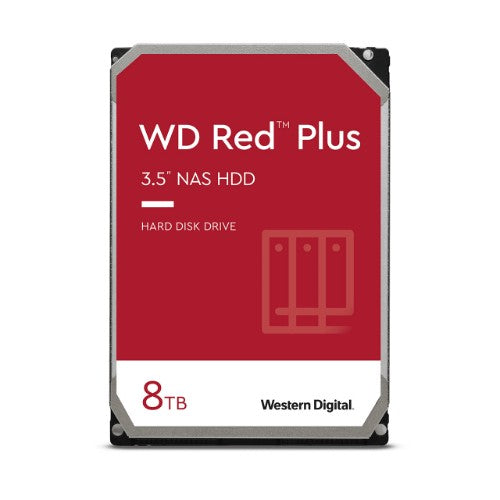

8 TB, 3.5", SATA3, 5640 RPM, 128 MB Cache, CMR

Description

Tackle Intensity with WD Red™ Plus
Packed with power to handle the small- to medium-sized business NAS environments and increased workloads1 for SOHO customers, WD Red™ Plus is ideal for archiving and sharing, as well as RAID array rebuilding on systems using ZFS and other file systems. Built and tested for up to 8-bay NAS systems, these drives give you the flexibility, versatility, and confidence in storing and sharing your precious home and work files.

For Small or Medium Businesses
Stream, backup, share, and organize your digital content with a NAS and WD Red™ Plus drives designed to effortlessly share content with the devices at your home or business. NASware™ 3.0 technology increases your drives’ compatibility with your existing network and devices. For larger businesses with up to 24 bays, count on WD Red™ Pro drives to deliver exceptional performance.

Exclusive NASware 3.0
Not just any drive will do. Get up to 112TB of capacity in your 8-bay NAS system and with Western Digital's exclusive NASware 3.0 technology, you can optimize each and every drive. Built into every WD Red™ Plus hard drive, NASware 3.0’s advanced technology improves storage performance by increasing compatibility, integration, upgradeability, and reliability.

Built for Optimum NAS Compatibility
WD Red™ Plus drives with NASware™ technology takes the guesswork out of selecting a drive. Optimized for NAS systems, our unique algorithm balances performance and reliability in NAS and RAID environments. Simply put, a WD Red™ Plus drive is one of the most compatible drives available for NAS enclosures. But don’t take our word for it. WD Red™ Plus drives are a reflection of extensive NAS partner technology engagement and compatibility-testing.

WD Red™ Pro for Big Business
If you’re looking for heavy duty performance for NAS, WD Red™ Pro drives deliver exceptional performance for the medium to large business customer with extreme demands. For NAS environments with 9 to 24 bays, WD Red™ Pro drives deliver uncompromising performance and unwavering assurance backed by a 5-year limited warranty.

3D Active Balance Plus
Our enhanced dual-plane balance control technology significantly improves the overall drive performance and reliability. Hard drives that are not properly balanced may cause excessive vibration and noise in a multi-drive system, reduce the hard drive life span, and degrade the performance over time.

24/7 Environment
Since your NAS system is always on, a reliable drive is essential. With an MTBF of up to 1 million hours, the WD Red™ Plus drive is engineered to tackle 24x7 environments.

Desktop Drives vs. WD Red™ Plus
Do right by your NAS and choose the drive purpose-built for NAS with an array of features to help preserve your data and maintain optimum performance. Take the following into consideration when choosing a hard drive for your NAS:
- Compatibility: Unlike desktop drives, these drives are specifically tested for compatibility with NAS systems for optimum performance.
- Reliability: The always-on environment of a NAS or RAID is a hot one, and desktop drives aren’t typically designed and tested under those conditions like WD Red™ Plus drives are.
- Error Recovery Controls: WD Red™ Plus NAS hard drives are specifically designed with RAID error recovery control to help reduce failures within the NAS system.
- Noise and Vibration Protection: Designed to operate solo, desktop drives typically offer little or no protection from the noise and vibration present in a multi-drive system. WD Red™ Plus drives are designed to thrive in multi-bay NAS system environments.

Specifications

Hard drive
Component for	NAS
HDD size	3.5"
HDD capacity	8 TB
Workload rate limit	180 TB/year
HDD speed	5640 RPM
Interface	Serial ATA III
HDD interface transfer rate	6 Gbit/s
Mean time between failures (MTBF)	1000000 h
Storage drive buffer size	256 MB
Features
Type	HDD
Component for	NAS
HDD size	3.5"
HDD capacity	8 TB
Workload rate limit	180 TB/year
HDD speed	5640 RPM
Interface	Serial ATA III
HDD interface transfer rate	6 Gbit/s
Mean time between failures (MTBF)	1000000 h
Storage drive buffer size	256 MB
Noise level (idle)	25 dB
Power
Power consumption (standby)	0.4 W
Power consumption (write)	6.2 W
Power consumption (read)	6.2 W
Power consumption (idle)	4.1 W
Operational conditions
Operating temperature (T-T)	0 - 65 °C
Storage temperature (T-T)	-40 - 70 °C
Non-operating shock	250 G
Technical details
Harmonized System (HS) code	84717050
Compliance certificates	RoHS
Weight & dimensions
Width	101.6 mm
Height	26.1 mm
Depth	147 mm
Weight	750 g
Logistics data
Harmonized System (HS) code	84717050
Other features
Interface	Serial ATA III
Compliance certificates	RoHS
