Collection: Signage Displays

85", VA, 3840 x 2160, 4000:1, 594MHz, 3 x HDMI, DP, HDCP, 2 x USB, IR, RS232, RJ45, WiFi, Bluetooth, Tizen 7.0, 16GB, AC220-240V, 50/60Hz, 1904.3 x 1085.3 x 28.5 mm, 41.9 kg, Black

Key Features

• Ultra slim depth
• Even bezel for clean visuals
• Centred VESA mount holes

Description

Slim design. Stunning performance.
Introducing QMC, the slimmest display in Samsung’s Professional Display range. It brings elegance to business while maximising space. With built-in solutions and intuitive home screen UX, the QMC is easy to use and helps enable businesses in various verticals to achieve growth with its efficiency and design innovation.

Maximum impact in minimum space
Ultra Slim Depth
The QMC's ultra-slim thickness of 28.5mm makes it the thinnest option in Samsung’s UHD 4K series. Its sleek design and Slim Fit Wall Mount, helps you optimise space and install it neatly in a wide range of business environments.

Clean visuals in landscape or portrait mode
Even Bezel
The QMC’s bezels are consistent and even on all four sides of the display, with the same thickness and dimensions. The new even bezel design helps prevent visual issues from arising when the display is adjusted to portrait mode.

Secure and even mounting
Centred VESA Holes
The central positioning of the VESA holes on the back of the display helps evenly distribute its weight for secure mounting. With the VESA holes positioned in the centre, this helps prevent the display from tilting unintentionally when adjusted into portrait mode.

Lifelike colour expression
Dynamic Crystal Colour
The QMC series features Dynamic Crystal Display, using 10 bit processing for vivid colour expression, allowing viewers to enjoy a wide spectrum of colours.

View lifelike shades of colour in powerful 4K
Quantum Processor Lite 4K
Intelligent UHD upscaling technology, made possible by Samsung’s Crystal Processor 4K, enables content developed at a lower resolution to be elevated to UHD-level quality. It also performs edge restoration and noise reduction to help optimise on-screen text and imagery.

Clear visibility
Non-Glare
The QMC features non-glare panels that help provide visibility across a variety of environments. This helps allow businesses to deliver accurate information in various ambient lighting conditions.

Connect with convenience
Home User Interface (UI)
The QMC series’ home screen UI displays popular categories like Favourites, Sources and Settings on the same screen for convenience. The Favourites folder grants users quick, easy access to frequently used features.

Collaborate between screens with wire-free speed
Smartview+
SmartView+ enables wireless screen sharing without cable connections to assist with easy collaboration. Users can now enable the screen sharing functionality at the start of a meeting, allowing the meeting admin to quickly switch between screens with one click.

Streamlined calibration between screens with mobile app
Smart Calibration
Maintain brand consistency across every display in every location. Using the Samsung mobile app, Smart Calibration helps ensure every display is calibrated correctly, showcasing brand logos and other collateral in the exact colours required.

Enhance professional environments with expert tools
Professional Modes
Built-in professional modes enable more possibilities in specific verticals. Director Mode minimises post-processing enhancements, helping to align content to the director’s original intention. Medical teams can simulate medical images such as X-rays with DICOM Simulation Mode, meeting DICOM's full greyscale standards.

Smooth and virtually seamless content playback
MagicINFO S10 Player
The embedded MagicINFO™ S10 player, backed by the powerful Tizen operating system, helps boost the overall performance of the display and offers painless management. This helps ensure seamless transitions and playback to deliver a better experience for both customers and store managers.

Everyday Sustainability
Energy Star, EPEAT and TÜV Rheinland Carbon Footprint Certification
Samsung is making diverse efforts to reduce our environmental impact in smart display, and encouraging users to pursue a more sustainable life. The QMC series has earned a series of certifications for environmentally preferable products from highly recognised institutes in Germany and the U.S.

Specifications

Display
Display diagonal	2.16 m (85")
Display resolution	3840 x 2160 pixels
Display brightness	500 cd/m²
HD type	4K Ultra HD
Response time	10 ms
Contrast ratio (typical)	4000:1
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Pixel pitch	0.487 x 0.487 mm
Vertical scan range	48 - 75 Hz
Touchscreen	No
Panel type	VA
Horizontal scan range	30 - 81 kHz
Display technology	LED
Ports & interfaces
Remote (IR) input	1
Ethernet LAN	Yes
HDMI ports quantity	3
USB port	Yes
HDMI version	2.0
DVI port	No
Ethernet LAN (RJ-45) ports	1
RS-232 interface	Yes
Wi-Fi	Yes
USB ports quantity	2
PC Audio out	Yes
DisplayPorts quantity	1
DisplayPorts in	1
HDMI input ports quantity	3
Audio
Built-in speaker(s)	No
Design
Product design	Digital signage flat panel
Product colour	Black
Placement supported	Indoor
Panel mounting interface	600 x 400 mm
Bezel width (top)	1.39 cm
Bezel width (side)	1.39 cm
Bezel width (bottom)	1.39 cm
Certification	EMC Class A Safety 60950-1, 62368-1
VESA mounting	Yes
Mounting type	Wall
Wall mountable	Yes
Performance
Purpose	Universal
Operating hours (hours/days)	24/7
HDCP	Yes
HDCP version	2.2
Wi-Fi	Yes
Power
Power consumption (typical)	330 W
AC input voltage	220-240 V
AC input frequency	50/60 Hz
Power consumption (sleep)	0.5 W
Computer system
Computer system	No
Operating system installed	Tizen
Built-in processor	No
Operating system version	7.0
Weight & dimensions
Display width	1904.3 mm
Display depth	28.5 mm
Display height	1085.3 mm
Display weight	41.9 kg
Packaging data
Package width	1222 mm
Package depth	210 mm
Package height	2077 mm
Package weight	53.9 kg
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 80%
Certificates
Certification	EMC Class A Safety 60950-1, 62368-1
Technical details
VESA mounting	Yes
Panel type	VA
DisplayPorts in	1
Network
Ethernet LAN	Yes
Wi-Fi	Yes
Thin Client
Operating system installed	Tizen
Features
Wall mountable	Yes
Other features
Wi-Fi	Yes
PC Audio out	Yes
Panel type	VA
DisplayPorts in	1
Display technology	LED
Bezel width (top)	1.39 cm
Bezel width (side)	1.39 cm
Bezel width (bottom)	1.39 cm

65", VA, 3840 x 2160, 4000:1, 594MHz, 3 x HDMI, DP, HDCP, 2 x USB, IR, RS232, RJ45, WiFi, Bluetooth, Tizen 7.0, 16GB, AC100-240V, 50/60Hz, 1456.8 x 831.9 x 28.5 mm, 21.5 kg, Black

Key Features

• Ultra slim depth
• Even bezel for clean visuals
• Centred VESA mount holes

Description

Slim design. Stunning performance.
Introducing QMC, the slimmest display in Samsung’s Professional Display range. It brings elegance to business while maximising space. With built-in solutions and intuitive home screen UX, the QMC is easy to use and helps enable businesses in various verticals to achieve growth with its efficiency and design innovation.

Maximum impact in minimum space
Ultra Slim Depth
The QMC's ultra-slim thickness of 28.5mm makes it the thinnest option in Samsung’s UHD 4K series. Its sleek design and Slim Fit Wall Mount, helps you optimise space and install it neatly in a wide range of business environments.

Clean visuals in landscape or portrait mode
Even Bezel
The QMC’s bezels are consistent and even on all four sides of the display, with the same thickness and dimensions. The new even bezel design helps prevent visual issues from arising when the display is adjusted to portrait mode.

Secure and even mounting
Centred VESA Holes
The central positioning of the VESA holes on the back of the display helps evenly distribute its weight for secure mounting. With the VESA holes positioned in the centre, this helps prevent the display from tilting unintentionally when adjusted into portrait mode.

Lifelike colour expression
Dynamic Crystal Colour
The QMC series features Dynamic Crystal Display, using 10 bit processing for vivid colour expression, allowing viewers to enjoy a wide spectrum of colours.

View lifelike shades of colour in powerful 4K
Quantum Processor Lite 4K
Intelligent UHD upscaling technology, made possible by Samsung’s Crystal Processor 4K, enables content developed at a lower resolution to be elevated to UHD-level quality. It also performs edge restoration and noise reduction to help optimise on-screen text and imagery.

Clear visibility
Non-Glare
The QMC features non-glare panels that help provide visibility across a variety of environments. This helps allow businesses to deliver accurate information in various ambient lighting conditions.

Connect with convenience
Home User Interface (UI)
The QMC series’ home screen UI displays popular categories like Favourites, Sources and Settings on the same screen for convenience. The Favourites folder grants users quick, easy access to frequently used features.

Collaborate between screens with wire-free speed
Smartview+
SmartView+ enables wireless screen sharing without cable connections to assist with easy collaboration. Users can now enable the screen sharing functionality at the start of a meeting, allowing the meeting admin to quickly switch between screens with one click.

Streamlined calibration between screens with mobile app
Smart Calibration
Maintain brand consistency across every display in every location. Using the Samsung mobile app, Smart Calibration helps ensure every display is calibrated correctly, showcasing brand logos and other collateral in the exact colours required.

Enhance professional environments with expert tools
Professional Modes
Built-in professional modes enable more possibilities in specific verticals. Director Mode minimises post-processing enhancements, helping to align content to the director’s original intention. Medical teams can simulate medical images such as X-rays with DICOM Simulation Mode, meeting DICOM's full greyscale standards.

Smooth and virtually seamless content playback
MagicINFO S10 Player
The embedded MagicINFO™ S10 player, backed by the powerful Tizen operating system, helps boost the overall performance of the display and offers painless management. This helps ensure seamless transitions and playback to deliver a better experience for both customers and store managers.

Everyday Sustainability
Energy Star, EPEAT and TÜV Rheinland Carbon Footprint Certification
Samsung is making diverse efforts to reduce our environmental impact in smart display, and encouraging users to pursue a more sustainable life. The QMC series has earned a series of certifications for environmentally preferable products from highly recognised institutes in Germany and the U.S.

Specifications

Display
Display diagonal	165.1 cm (65")
Display resolution	3840 x 2160 pixels
Display brightness	500 cd/m²
HD type	4K Ultra HD
Response time	10 ms
Contrast ratio (typical)	4000:1
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Pixel pitch	0.372 x 0.372 mm
Vertical scan range	48 - 75 Hz
Touchscreen	No
Panel type	VA
Horizontal scan range	30 - 81 kHz
Display technology	LED
Ports & interfaces
Remote (IR) input	1
Ethernet LAN	Yes
HDMI ports quantity	3
USB port	Yes
HDMI version	2.0
DVI port	No
Ethernet LAN (RJ-45) ports	1
RS-232 interface	Yes
Wi-Fi	Yes
USB ports quantity	2
PC Audio out	Yes
DisplayPorts quantity	1
DisplayPorts in	1
HDMI input ports quantity	3
Audio
Built-in speaker(s)	No
Design
Product design	Digital signage flat panel
Product colour	Black
Placement supported	Indoor
Panel mounting interface	400 x 300 mm
Bezel width (top)	1.15 cm
Bezel width (side)	1.15 cm
Bezel width (bottom)	1.15 cm
Certification	EMC Class A Safety 60950-1, 62368-1
VESA mounting	Yes
Mounting type	Wall
Wall mountable	Yes
Performance
Purpose	Universal
Operating hours (hours/days)	24/7
HDCP	Yes
HDCP version	2.2
Wi-Fi	Yes
Power
Power consumption (typical)	187 W
AC input voltage	100-240 V
AC input frequency	50/60 Hz
Power consumption (sleep)	0.5 W
Computer system
Computer system	No
Operating system installed	Tizen
Built-in processor	No
Operating system version	7.0
Weight & dimensions
Display width	1456.8 mm
Display depth	28.5 mm
Display height	831.9 mm
Display weight	21.5 kg
Packaging data
Package width	945 mm
Package depth	164 mm
Package height	1616 mm
Package weight	28 kg
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 80%
Certificates
Certification	EMC Class A Safety 60950-1, 62368-1
Technical details
VESA mounting	Yes
Panel type	VA
DisplayPorts in	1
Network
Ethernet LAN	Yes
Wi-Fi	Yes
Thin Client
Operating system installed	Tizen
Features
Wall mountable	Yes
Other features
Wi-Fi	Yes
PC Audio out	Yes
Panel type	VA
DisplayPorts in	1
Display technology	LED
Bezel width (top)	1.15 cm
Bezel width (side)	1.15 cm
Bezel width (bottom)	1.15 cm

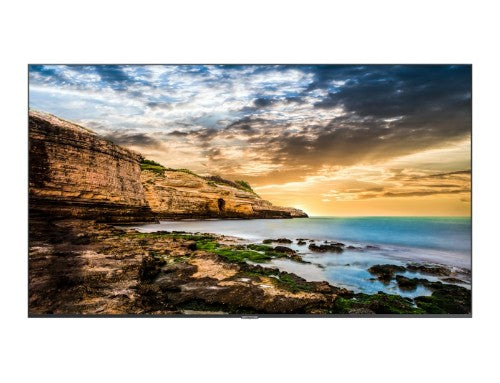

75", 3840 x 2160, VA, 0.429x0.429mm, 16/7, 214.5 W, 1682.3 x 960.4 x 28.5 mm, 33.4 kg

Key Features

• QB75C
• Ultra slim depth
• Even bezel for clean visuals
• Centred VESA mount holes

Description

Slim design. Stunning performance.
Introducing QBC, the slimmest display in the Samsung UHD Signage. It brings elegance to business while maximizing space. Its enhanced internal solutions and intuitive home screen UX make it easy to use. Businesses in various verticals can achieve growth with QBC’s efficiency and design innovation.

Maximum impact in minimum space
The QBC's unparalleled ultra-slim thickness of 28.5mm makes it the thinnest option in Samsung’s UHD series. It comes with the Slim Fit Wall Mount, which allows you to install it neatly and easily in any environment. QBC optimizes space with its sleek design that blends seamlessly into your business.

Clean visuals in landscape or portrait mode
Even bezel
The bezels are consistent and even on all four sides of the display, with the same thickness and dimensions. The new even bezel design prevents any visual issues from arising when the display is adjusted to portrait mode.

Secure and even mounting
Centered VESA Holes
The central positioning of the VESA holes on the back of the display evenly distribute its weight for secure mounting. With the VESA holes now shifted to the center, users can adjust the display to portrait mode without the display tilting unintentionally.

Lifelike color, born in a pure state with fine crystal
Dynamic Crystal Color
Every picture is more immersive with one billion shades of color. Dynamic Crystal Color delivers true-to-life variations, allowing customers to see every subtlety.

View lifelike shades of color in powerful 4K
Crystal Processor 4K
Samsung’s industry-leading video processing technology enhances every piece of content for clarity and consistency. Intelligent UHD upscaling technology, powered by Samsung’s Quantum Processor Lite 4K, elevates lower-resolution video to UHD, providing a professional picture quality.

Connect with convenience
Home UI
QBC boasts greater usability with an upgraded home screen UI. Popular categories like Favorites, Sources and Settings are displayed on the same screen for convenient availability. The Favorites folder grants users quick, easy access to frequently used features in a single click.

Simplified calibration between screens with mobile app
Smart Calibration
Guarantee complete brand consistency across every display in every location. Using the Samsung mobile app, Smart Calibration ensures every display is calibrated correctly, showcasing brand logos and other collateral in the exact colors required.

Enhance professional environments with expert tools
Professional Modes
Built-in professional modes enable more possibilities in specific verticals. Director Mode minimizes post-processing, aligning content to the director’s original intention. Medical teams can simulate medical images such as X-rays with DICOM Simulation Mode, meeting DICOM's full grayscale standards

Change the way to manage your display
Samsung VXT
Samsung VXT CMS is a cloud-based solution that brings together content management and remote device management capabilities, allowing users to remotely manage hardware settings and troubleshoot issues while effortlessly creating and deploying content with no previous training needed.

Everyday Sustainability
Energy Star / EPEAT*
Samsung is making diverse efforts to reduce our environmental impact in smart signage, and encouraging users to pursue a more sustainable life.

Specifications

Display
Dynamic contrast ratio marketing name	Mega Contrast
Display diagonal	190.5 cm (75")
Display resolution	3840 x 2160 pixels
Display brightness	350 cd/m²
HD type	4K Ultra HD
Response time	8 ms
Contrast ratio (typical)	4000:1
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Pixel pitch	0.372 x 0.372 mm
Vertical scan range	48 - 75 Hz
Panel type	VA
Horizontal scan range	30 - 81 kHz
Display technology	LED
Colour saturation	72%
Haze rate	2%
RGB colour space	NTSC
Ports & interfaces
Ethernet LAN	Yes
HDMI ports quantity	3
USB port	Yes
HDMI version	2.0
DVI port	No
Ethernet LAN (RJ-45) ports	1
RS-232 interface	Yes
Wi-Fi	Yes
USB ports quantity	2
DisplayPorts quantity	0
HDMI input ports quantity	3
Design
Product design	Digital signage flat panel
Product colour	Black
Panel mounting interface	400 x 400 mm
VESA mounting	Yes
Performance
Purpose	Universal
Operating hours (hours/days)	16/7
HDCP	Yes
HDCP version	2.2
Wi-Fi	Yes
Power
Power consumption (typical)	214.5 W
Power consumption (standby)	0.5 W
AC input voltage	100-240 V
AC input frequency	50-60 Hz
Computer system
Operating system installed	Tizen
Internal memory	8 GB
Operating system version	Tizen 7.0
Weight & dimensions
Display width	1682.3 mm
Display depth	28.5 mm
Display height	960.4 mm
Display weight	33.4 kg
Packaging data
Package width	1839 mm
Package depth	180 mm
Package height	1113 mm
Package weight	43.5 kg
Packaging content
Stand included	Yes
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 80%
Technical details
VESA mounting	Yes
Stand included	Yes
Panel type	VA
Network
Ethernet LAN	Yes
Wi-Fi	Yes
Thin Client
Operating system installed	Tizen
Internal memory	8 GB
Other features
Wi-Fi	Yes
Stand included	Yes
Panel type	VA
Display technology	LED

85" LED, 4K (3840 x 2160), 300 nit, 8 ms, 4000:1, 178/178, HDMI, USB, LAN, RS232

Key Features

• Upgrade your business with efficient digital displays
• Incredible UHD picture quality
• Crystal Display

Description

Upgrade your business with efficient digital displays

Samsung’s QET series features intelligent upscaling technology that displays all content in eye-catching UHD resolution along with a boundless design and simple content management features.
Upgrade your business with efficient digital displays Upgrade your business with efficient digital displays

Incredible UHD picture quality

Samsung’s QET series is able to capture customer attention by providing an incredibly clear picture, showing likelike images in highly advanced picture quality.
Incredible UHD picture quality Incredible UHD picture quality

Crystal Display

Samsung's QET series features a Crystal Display which optimises colour tones without distortion, ensuring each backlight unit is fine-tuned to match each colour filter and create a clear native white.

Crystal Display

Intelligent UHD upscaling technology, made possibly by Samsung’s Crystal Processor 4K, allows content developed at a lower resolution to be elevated to UHD-level quality. It also performs edge restoration and noise reduction to optimize on-screen text and imagery.

Crystal Processor 4K

Intelligent UHD upscaling technology, made possibly by Samsung’s Crystal Processor 4K, allows content developed at a lower resolution to be elevated to UHD-level quality. It also performs edge restoration and noise reduction to optimize on-screen text and imagery.

Boundless design for an immersive experience

The boundless design of the display is optimised to allow the viewer to be completely immersed by content and the display seamlessly integrates into any business environment.
Boundless design for an immersive experience Boundless design for an immersive experience

Integrated content management solution

With a range of on-demand images and videos, MagicINFO Lite Player makes content management easier than ever before. New content can be added from a personal computer or USB drive by connecting directly to the display.

Specifications

Display
Display number of colours	16.7 million colours
Display diagonal	2.16 m (85")
Display resolution	3840 x 2160 pixels
Display brightness	300 cd/m²
HD type	4K Ultra HD
Response time	8 ms
Contrast ratio (typical)	4000:1
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Pixel pitch	0.47025 x 0.47025 mm
Touchscreen	No
Native aspect ratio	16:9
LED backlighting type	Direct-LED BLU
Display technology	LED
Colour saturation	72%
Haze rate	2%
Ports & interfaces
Ethernet LAN	Yes
HDMI ports quantity	2
USB port	Yes
DVI port	No
Ethernet LAN (RJ-45) ports	1
Wi-Fi	No
USB version	2.0
USB ports quantity	1
RS-232C	Yes
Audio
Number of built-in speakers	2
RMS rated power	20 W
Built-in speaker(s)	Yes
Design
Product design	Digital signage flat panel
Product colour	Black
Placement supported	Indoor
Panel mounting interface	600 x 400 mm
VESA mounting	Yes
Performance
Purpose	Universal
Operating hours (hours/days)	16/7
HDCP	Yes
HDCP version	2.2
Wi-Fi	No
Power
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Annual energy consumption	304 kWh
Energy efficiency scale	A+++ to D
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 80%
Technical details
VESA mounting	Yes
LED backlighting type	Direct-LED BLU
Network
Ethernet LAN	Yes
Wi-Fi	No
Other features
Wi-Fi	No
Display technology	LED
Annual energy consumption	304 kWh
Energy efficiency scale	A+++ to D
Energy efficiency class (old)	A

75", LED, 3840 x 2160, 4000:1, 178/178, 72%, 8ms, 594MHz, 30-81KHz, 48-75hz, Mega DCR, 100 - 240 V, 50/60 Hz

Key Features

• Upgrade your business with efficient digital displays
• Incredible UHD picture quality
• Crystal Display

Description

Upgrade your business with efficient digital displays
Samsung’s QET series features intelligent upscaling technology that displays all content in eye-catching UHD resolution along with a boundless design and simple content management features.

Incredible UHD picture quality
Samsung’s QET series is able to capture customer attention by providing an incredibly clear picture, showing likelike images in highly advanced picture quality.

Crystal Display
Samsung’s QET series features a Crystal Display which optimises colour tones without distortion, ensuring each backlight unit is fine-tuned to match each color filter and create a clear native white.

Boundless design for an immersive experience
The boundless design of the display is optimized to allow the viewer to be completely immersed by content and the display seamlessly integrates into any business environment.

Integrated content management solution
With a range of on-demand images and videos, MagicINFO Lite Player makes content management easier than ever before. New content can be added from a personal computer or USB drive by connecting directly to the display.

Specifications

Display
Dynamic contrast ratio marketing name	Mega Infinity DCR
Display diagonal	190.5 cm (75")
Display resolution	3840 x 2160 pixels
Display brightness	300 cd/m²
HD type	4K Ultra HD
Response time	8 ms
Contrast ratio (typical)	4000:1
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Pixel pitch	0.4296 x 0.4296 mm
Display diagonal (metric)	190 cm
Vertical scan range	48 - 75 Hz
Native aspect ratio	58:9
LED backlighting type	Direct-LED BLU
Horizontal scan range	30 - 81 kHz
Display technology	LED
Ports & interfaces
Ethernet LAN	Yes
HDMI ports quantity	2
USB port	Yes
DVI port	No
Composite video in	0
Component video (YPbPr/YCbCr) in	0
Ethernet LAN (RJ-45) ports	1
Wi-Fi	No
USB ports quantity	1
RS-232C	Yes
DisplayPorts quantity	0
Audio
Built-in speaker(s)	Yes
Design
Product design	Digital signage flat panel
Product colour	Black
Placement supported	Indoor
Panel mounting interface	400 x 400 mm
Bezel width (bottom)	3 mm
VESA mounting	Yes
Performance
Purpose	Universal
Wi-Fi	No
Power
Power consumption (typical)	253 W
AC input voltage	100-240 V
AC input frequency	50-60 Hz
Power consumption (sleep)	0.5 W
Annual energy consumption	250 kWh
Energy efficiency scale	A+++ to D
Weight & dimensions
Width	1673.2 mm
Depth	59.9 mm
Height	958.2 mm
Weight	30.9 kg
Packaging data
Package width	1840 mm
Package depth	198 mm
Package height	1118 mm
Package weight	41.5 kg
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 80%
Technical details
VESA mounting	Yes
LED backlighting type	Direct-LED BLU
Network
Ethernet LAN	Yes
Wi-Fi	No
Other features
Wi-Fi	No
Display technology	LED
Bezel width (bottom)	3 mm
Annual energy consumption	250 kWh
Energy efficiency scale	A+++ to D
Energy efficiency class (old)	A

22SM3G-B, 21.5", IPS, 1920 x 1080 (FHD), 250 cd/m², USB Plug & Play, Built-in Wi-Fi

Key Features

• Brightness(Typ.) : 250 cd/m²
• Bezel : 16.3mm
• Depth : 53.8mm
• Interface : HDMI(2) / USB 2.0 / RS232C / RJ45 / IR / Audio
• USB Plug & Play, Built-in Wi-Fi

Description

22" Signage with More Utility for Commercial Space
22SM3G delivers information and performs guide with more effective ways in various commercial space, which provides more convenient solution thanks to its upgraded webOS platform.

High Performance SoC with webOS
Built-in Quad Core SoC can execute several tasks at once while providing smooth content playback without the need for a media player. Also, LG webOS smart signage platform enhances user convenience with intuitive GUI and simple app development tools.

Various Sensor Applications
LG webOS smart signage platform easily supports connections with external sensors such as GPIO, NFC/RFID, temperature sensors, etc, via USB plug-in. The overall cost for maintenance is reduced as there's no need to purchase additional software or media players.

A Wide Range of Interfaces
Through its diverse interfaces, users can connect the display with various sources for optimal use. Also, the failover function supports users preparing backup sources in case an unexpected error occurs.

USB Plug & Play
22SM3G supports USB Plug & Play feature, so users can easily set content playback using a USB.

Remote Monitoring and Control
Through the Control Manager, the embedded web monitoring solution, you can control and monitor the status of multiple 22SM3G displays in different locations in real-time. It is available on internet-connected devices, allowing you to flexibly and rapidly respond to emergency situations anywhere.

Real-time Care Service with LG Signage365Care
The maintenance gets easier and faster with the optional service Signage365Care*, a cloud service solution provided by LG service. It remotely manages status of displays in client workplaces for fault diagnosis and remote-control services, ensuring stable operation of the client’s business.

Specifications

Display
Display diagonal	54.6 cm (21.5")
Display resolution	1920 x 1080 pixels
Display brightness	250 cd/m²
HD type	Full HD
Contrast ratio (typical)	1000:1
Contrast ratio (dynamic)	400000:1
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Display diagonal (metric)	55.88 cm
Touchscreen	No
Native aspect ratio	16:9
Display technology	IPS
Ports & interfaces
Ethernet LAN	Yes
HDMI ports quantity	2
USB port	Yes
DVI port	No
Audio (L/R) in	1
Ethernet LAN (RJ-45) ports	1
RS-232 interface	Yes
Wi-Fi	Yes
USB version	2.0
USB ports quantity	1
RS-232C	Yes
DisplayPorts quantity	0
Audio
Number of built-in speakers	2
RMS rated power	2 W
Built-in speaker(s)	Yes
Design
Product design	Digital signage flat panel
Product colour	Black
Orientation	Horizontal
Panel mounting interface	100 x 100 mm
Certification	CB, NRTL, EMC, FCC Class "A", CE, ErP
VESA mounting	Yes
Performance
Purpose	Universal
Operating hours (hours/days)	16/7
Wi-Fi	Yes
Power
Heat dissipation	7.89 BTU/h
Power consumption (typical)	33 W
Power consumption (standby)	30 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (sleep)	1 W
Power consumption (off)	0.5 W
Computer system
Computer system	No
Processor cores	4
Internal memory	4 GB
Built-in processor	Yes
Weight & dimensions
Width	510.3 mm
Depth	53.8 mm
Height	302.1 mm
Weight	3.34 kg
Packaging data
Package width	565 mm
Package depth	103 mm
Package height	357 mm
Package weight	3.5 kg
Remote control included	Yes
Mounting kit	Yes
Cables included	AC
Batteries included	Yes
Packaging content
Remote control included	Yes
Mounting kit	Yes
Cables included	AC
Batteries included	Yes
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 80%
Storage temperature (T-T)	-20 - 60 °C
Storage relative humidity (H-H)	5 - 85%
Certificates
Certification	CB, NRTL, EMC, FCC Class "A", CE, ErP
Technical details
VESA mounting	Yes
Network
Ethernet LAN	Yes
Wi-Fi	Yes
Thin Client
Internal memory	4 GB
Logistics data
Harmonized System (HS) code	85285210
Features
Harmonized System (HS) code	85285210
Other features
Wi-Fi	Yes
Display technology	IPS

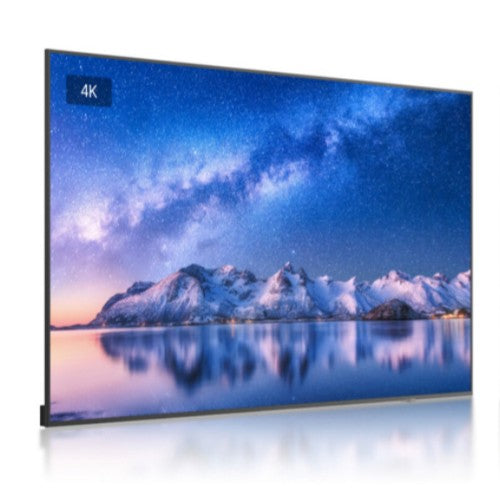

55'', 4K UHD, VA 4000:1, 450 nit, 178°(H/V), SI07B, 2x10W, ≥50000 hours

Description

MAXHUB CMA Series

A 4K Commercial Display, Equipped with Non-glare Technology and Conformal Coating - Ideal for Meeting Rooms and Commercial Settings.

Crystal-clear detail, anywhere

The combination of 4K UHD resolution and high brightness ensures true-to-life detail.

Conformal coating reduces the risk of damage from salt, dust, and humidity, ensuring stable device performance.

Stable and Multifunctional Design for Business

Our non-glare coating provides a clear view, even in bright outdoor conditions, while the increased level of haze visibility improves text readability.

The full-function USB Type-C supports ScreenShare, making content sharing easy. NetworkShare allows for effortless network sharing, and the 65W power output enables connected PC charging that is faster than a typical charger.

Choose from screen sizes of 43", 55", 65", 75", 86", and 98" to meet your application needs.

Effortlessly Manage and Distribute Content

MAXHUB Pivot is a device management tool that enables IT administrators to efficiently manage devices and remotely distribute content.

Seamless Dual WiFi sharing

Dual WiFi, allowing for WiFi-6 and hotspot connectivity simultaneously. It functions as a virtual router and can serve as a wireless access point for mobile devices, making it easier for participants to access WiFi.

Collaborate Seamlessly with MAXHUB Share

MAXHUB Share provides you with the ability to manage access and privacy while sharing your screen. The device allows for wireless screen sharing for up to four devices simultaneously.

Maximize Performance Save and Protection

Energy-star certification helps protect the environment and save costs.

Specifications

Display
LED backlight	Yes
Display diagonal	139.7 cm (55")
Display resolution	3840 x 2160 pixels
Display brightness	450 cd/m²
HD type	4K Ultra HD
Touchscreen	No
Panel type	VA
Native aspect ratio	16:9
Display technology	LED
Ports & interfaces
USB connector type	USB Type-C
USB port	Yes
Wi-Fi standards	Wi-Fi 6 (802.11ax)
Wi-Fi	Yes
Audio
Built-in speaker(s)	Yes
Design
Product design	Digital signage flat panel
Product colour	Black
Placement supported	Indoor
VESA mounting	Yes
Performance
Purpose	Universal
Wi-Fi	Yes
Power
Power consumption (standby)	0.5 W
Power consumption (off)	0.3 W
Energy efficiency class (SDR)	E
Energy efficiency class (HDR)	Not available
Energy consumption (SDR) per 1000 hours	59 kWh
Weight & dimensions
Weight	13.4 kg
Technical details
VESA mounting	Yes
USB connector type	USB Type-C
Power supply type	Internal
Panel type	VA
Network
Wi-Fi standards	Wi-Fi 6 (802.11ax)
Wi-Fi	Yes
Other features
USB connector type	USB Type-C
Power supply type	Internal
Wi-Fi standards	Wi-Fi 6 (802.11ax)
Wi-Fi	Yes
Panel type	VA
Display technology	LED
Built-in camera	No
Bluetooth	Yes
