Collection: Computer Cooling Systems

140 mm, 300-1600 RPM, 31 dB, PWM, RGB

Key Features

• Requires iCUE LINK System Hub (included with RX MAX RGB Starter Kits)
• 30mm thickness for a larger fan blade and greater performance
• PWM-controlled fan speeds up to 1,600 RPM
• High static pressure of up to 2.38mm-H2O
• Eight RGB LEDs and built-in side window
• Magnetic dome bearing for minimal noise

Description

ENHANCED AIRFLOW
UNRIVALED PERFORMANCE
5mm thicker fan blades enhance cooling performance by moving more air at the same speed as thinner fans. RX MAX RGB fans can also run quieter, as they can spin slower to produce the same airflow.

PERFORMANCE WHERE IT MATTERS
THICKER FANS, MORE POWER
At 30mm, RX MAX RGB fans are 20% thicker than the standard PC cooling fan. This translates directly into additional cooling power for your PC, with stronger airflow and static pressure generated by the larger fan blade.

SUPERIOR AIRFLOW AND STATIC PRESSURE
RX MAX RGB fans leverage CORSAIR’s expert engineering and design to maximize every benefit of its thicker housing.

AIRFLOW
A larger fan blade with an optimized blade shape pushes a greater volume of air through your PC case.

STATIC PRESSURE
High static pressure makes RX MAX RGB ideal for radiator mounting, as it can push air more effectively through dense obstructions.

LOWER NOISE
RX MAX RGB fans significantly reduce fan noise by operating at a lower RPM compared to traditional fans while still achieving the same airflow.

EVERY SOURCE OF NOISE ADDRESSED
MAGNETIC DOME BEARING
This improved bearing minimizes friction and mechanical noise, achieving a balance between high airflow performance and low acoustic footprint. On top of that, the reduced friction means greater longevity for your fan.

DESIGNED FOR REAL LIFE PERFORMANCE
RIGOROUSLY TESTED AND PERFECTED
Extensive testing bears out the RX MAX RGB Series’ exceptional cooling performance, in both case fan and radiator fan applications.

REMOVING AGE-OLD ANNOYANCES
QUIKTURN SCREW REVOLUTION
Take CORSAIR's QuikTurn screws for a single spin and see how convenient fan installation can be: as robust and secure as any traditional screw, and an absolute pleasure to use. Especially when you need to use 20 or more in a build.

Specifications

Performance
Suitable location	Computer case
Pulse-width modulation (PWM) support	Yes
Type	Fan
Rotational speed (min)	300 RPM
Rotational speed (max)	1600 RPM
Fan diameter	14 cm
Noise level (low speed)	10 dB
Noise level (high speed)	31 dB
Minimum airflow (imperial)	27.2 cfm
Maximum airflow	102.9 cfm
Minimum air pressure	0.2 mmH2O
Maximum air pressure	2.38 mmH2O
Quantity per pack	1 pc(s)
Design
Illumination colour	Multi
Product colour	Black
Illumination LED	Yes
Number of LEDs	8
Power
Fan current	0.29 A
Weight & dimensions
Fan dimensions (W x D x H)	140 x 140 x 30 mm
Fan weight	366 g
Technical details
Illumination LED	Yes
Warranty period	5 year(s)
Packaging data
Package type	Box
Packaging content
Screws included	Yes
Package type	Box

120 mm, 400-2000 RPM, 29.5 dB, PWM

Key Features

• Requires iCUE LINK System Hub (included with RX MAX Starter Kits)
• 30mm thickness for a larger fan blade and greater performance
• PWM-controlled fan speeds up to 2,000 RPM
• High static pressure of up to 4.18mm-H2O
• Premium Liquid Crystal Polymer construction
• Magnetic dome bearing for minimal noise

Description

ONE CABLE. ONE CONNECTOR.
EASIER THAN EVER WITH iCUE LINK
Say goodbye to tangled cables and complicated connectors. Link your components to each other in any order with a universal connector. If you can plug it in, it'll work.

ENHANCED AIRFLOW
UNRIVALED PERFORMANCE
5mm thicker fan blades enhance cooling performance by moving more air at the same speed as thinner fans. RX MAX fans can also run quieter, as they can spin slower to produce the same airflow.

PERFORMANCE WHERE IT MATTERS
THICKER FANS, MORE POWER
At 30mm, RX MAX fans are 20% thicker than the standard PC cooling fan. This translates directly into additional cooling power for your PC, with stronger airflow and static pressure generated by the larger fan blade.

SUPERIOR AIRFLOW AND STATIC PRESSURE
RX MAX fans leverage CORSAIR’s expert engineering and design to maximize every benefit of its thicker housing.

AIRFLOW
A larger fan blade with an optimized blade shape pushes a greater volume of air through your PC case.

STATIC PRESSURE
High static pressure makes RX MAX ideal for radiator mounting, as it can push air more effectively through dense obstructions.

LOWER NOISE
RX MAX fans significantly reduce fan noise by operating at a lower RPM compared to traditional fans while still achieving the same airflow.

RIGID MATERIAL MEANS CONSISTENT PERFORMANCE
GLASS FIBER REINFORCED LCP
Constructed from glass fiber-reinforced liquid crystal polymer, RX MAX fan blades offer the ultimate in radiator fan blade rigidity. The premium material prevents fan blade bending or buckling under varying degrees of static pressure, ensuring that optimal radiator flow is available at any fan speed.

EVERY SOURCE OF NOISE ADDRESSED
MAGNETIC DOME BEARING
This improved bearing minimizes friction and mechanical noise, achieving a balance between high airflow performance and low acoustic footprint. On top of that, the reduced friction means greater longevity for your fan.

DESIGNED FOR REAL LIFE PERFORMANCE
RIGOROUSLY TESTED AND PERFECTED
Extensive testing bears out the RX MAX Series’ exceptional cooling performance, in both case fan and radiator fan applications.

Read more about how radiator fan performance is actually measured, what the specifications mean in practice and what separates good fans from great fans.

REMOVING AGE-OLD ANNOYANCES
QUIKTURN SCREW REVOLUTION
Take CORSAIR's QuikTurn screws for a single spin and see how convenient fan installation can be: as robust and secure as any traditional screw, and an absolute pleasure to use. Especially when you need to use 20 or more in a build.

Specifications

Performance
Suitable location	Computer case
Pulse-width modulation (PWM) support	Yes
Type	Fan
Rotational speed (min)	400 RPM
Rotational speed (max)	2000 RPM
Fan diameter	12 cm
Noise level (low speed)	10 dB
Noise level (high speed)	29.5 dB
Minimum airflow (imperial)	16.5 cfm
Maximum airflow	71.6 cfm
Minimum air pressure	0.22 mmH2O
Maximum air pressure	4.18 mmH2O
Quantity per pack	1 pc(s)
Design
Product colour	Black
Power
Fan current	0.18 A
Weight & dimensions
Fan dimensions (W x D x H)	120 x 120 x 30 mm
Fan weight	326 g
Technical details
Warranty period	5 year(s)
Packaging data
Package type	Box
Packaging content
Screws included	Yes
Package type	Box

140 mm, 300-1600 RPM, 31 dB, PWM, RGB, 2 pcs

Key Features

• iCUE LINK System Hub included
• 30mm thickness for a larger fan blade and greater performance
• PWM-controlled fan speeds up to 1,600 RPM
• High static pressure of up to 2.38mm-H2O
• Eight RGB LEDs and built-in side window
• Magnetic dome bearing for minimal noise

Description

ENHANCED AIRFLOW
UNRIVALED PERFORMANCE
5mm thicker fan blades enhance cooling performance by moving more air at the same speed as thinner fans. RX MAX RGB fans can also run quieter, as they can spin slower to produce the same airflow.

PERFORMANCE WHERE IT MATTERS
THICKER FANS, MORE POWER
At 30mm, RX MAX RGB fans are 20% thicker than the standard PC cooling fan. This translates directly into additional cooling power for your PC, with stronger airflow and static pressure generated by the larger fan blade.

SUPERIOR AIRFLOW AND STATIC PRESSURE
RX MAX RGB fans leverage CORSAIR’s expert engineering and design to maximize every benefit of its thicker housing.

AIRFLOW
A larger fan blade with an optimized blade shape pushes a greater volume of air through your PC case.

STATIC PRESSURE
High static pressure makes RX MAX RGB ideal for radiator mounting, as it can push air more effectively through dense obstructions.

LOWER NOISE
RX MAX RGB fans significantly reduce fan noise by operating at a lower RPM compared to traditional fans while still achieving the same airflow.

EVERY SOURCE OF NOISE ADDRESSED
MAGNETIC DOME BEARING
This improved bearing minimizes friction and mechanical noise, achieving a balance between high airflow performance and low acoustic footprint. On top of that, the reduced friction means greater longevity for your fan.

DESIGNED FOR REAL LIFE PERFORMANCE
RIGOROUSLY TESTED AND PERFECTED
Extensive testing bears out the RX MAX RGB Series’ exceptional cooling performance, in both case fan and radiator fan applications.

REMOVING AGE-OLD ANNOYANCES
QUIKTURN SCREW REVOLUTION
Take CORSAIR's QuikTurn screws for a single spin and see how convenient fan installation can be: as robust and secure as any traditional screw, and an absolute pleasure to use. Especially when you need to use 20 or more in a build.

Specifications

Performance
Suitable location	Computer case
Pulse-width modulation (PWM) support	Yes
Type	Fan
Rotational speed (min)	300 RPM
Rotational speed (max)	1600 RPM
Fan diameter	14 cm
Noise level (low speed)	10 dB
Noise level (high speed)	31 dB
Minimum airflow (imperial)	27.2 cfm
Maximum airflow	102.9 cfm
Minimum air pressure	0.2 mmH2O
Maximum air pressure	2.38 mmH2O
Quantity per pack	2 pc(s)
Design
Illumination colour	Multi
Product colour	White
Illumination LED	Yes
Number of LEDs	8
Power
Fan current	0.29 A
Weight & dimensions
Weight	715 g
Fan dimensions (W x D x H)	140 x 140 x 30 mm
Technical details
Illumination LED	Yes
Warranty period	5 year(s)
Packaging data
Package type	Box
Packaging content
Screws included	Yes
Package type	Box
RGB controller included	Yes

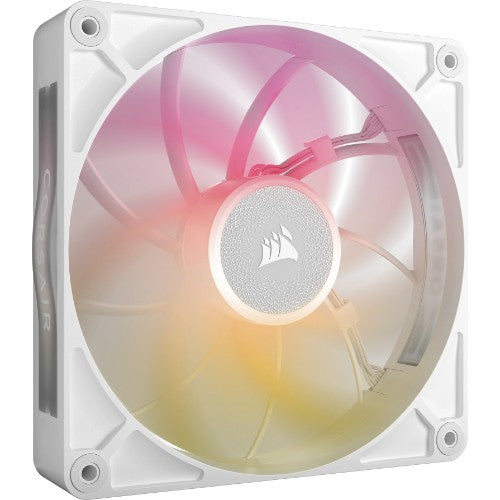

140 mm, 300-1600 RPM, 31 dB, PWM, RGB

Key Features

• Requires iCUE LINK System Hub (included with RX MAX RGB Starter Kits)
• 30mm thickness for a larger fan blade and greater performance
• PWM-controlled fan speeds up to 1,600 RPM
• High static pressure of up to 2.38mm-H2O
• Eight RGB LEDs and built-in side window
• Magnetic dome bearing for minimal noise

Description

ENHANCED AIRFLOW
UNRIVALED PERFORMANCE
5mm thicker fan blades enhance cooling performance by moving more air at the same speed as thinner fans. RX MAX RGB fans can also run quieter, as they can spin slower to produce the same airflow.

PERFORMANCE WHERE IT MATTERS
THICKER FANS, MORE POWER
At 30mm, RX MAX RGB fans are 20% thicker than the standard PC cooling fan. This translates directly into additional cooling power for your PC, with stronger airflow and static pressure generated by the larger fan blade.

SUPERIOR AIRFLOW AND STATIC PRESSURE
RX MAX RGB fans leverage CORSAIR’s expert engineering and design to maximize every benefit of its thicker housing.

AIRFLOW
A larger fan blade with an optimized blade shape pushes a greater volume of air through your PC case.

STATIC PRESSURE
High static pressure makes RX MAX RGB ideal for radiator mounting, as it can push air more effectively through dense obstructions.

LOWER NOISE
RX MAX RGB fans significantly reduce fan noise by operating at a lower RPM compared to traditional fans while still achieving the same airflow.

EVERY SOURCE OF NOISE ADDRESSED
MAGNETIC DOME BEARING
This improved bearing minimizes friction and mechanical noise, achieving a balance between high airflow performance and low acoustic footprint. On top of that, the reduced friction means greater longevity for your fan.

DESIGNED FOR REAL LIFE PERFORMANCE
RIGOROUSLY TESTED AND PERFECTED
Extensive testing bears out the RX MAX RGB Series’ exceptional cooling performance, in both case fan and radiator fan applications.

REMOVING AGE-OLD ANNOYANCES
QUIKTURN SCREW REVOLUTION
Take CORSAIR's QuikTurn screws for a single spin and see how convenient fan installation can be: as robust and secure as any traditional screw, and an absolute pleasure to use. Especially when you need to use 20 or more in a build.

Specifications

Performance
Suitable location	Computer case
Pulse-width modulation (PWM) support	Yes
Type	Fan
Rotational speed (min)	300 RPM
Rotational speed (max)	1600 RPM
Fan diameter	14 cm
Noise level (low speed)	10 dB
Noise level (high speed)	31 dB
Minimum airflow (imperial)	27.2 cfm
Maximum airflow	102.9 cfm
Minimum air pressure	0.2 mmH2O
Maximum air pressure	2.38 mmH2O
Quantity per pack	1 pc(s)
Design
Illumination colour	Multi
Product colour	White
Illumination LED	Yes
Number of LEDs	8
Power
Fan current	0.29 A
Weight & dimensions
Fan dimensions (W x D x H)	140 x 140 x 30 mm
Fan weight	366 g
Technical details
Illumination LED	Yes
Warranty period	5 year(s)
Packaging data
Package type	Box
Packaging content
Screws included	Yes
Package type	Box

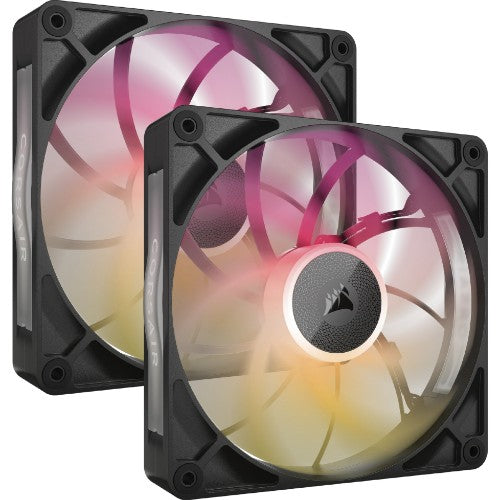

140 mm, 300-1600 RPM, 31 dB, PWM, RGB, 2 pcs

Key Features

• iCUE LINK System Hub included
• 30mm thickness for a larger fan blade and greater performance
• PWM-controlled fan speeds up to 1,600 RPM
• High static pressure of up to 2.38mm-H2O
• Eight RGB LEDs and built-in side window
• Magnetic dome bearing for minimal noise

Description

ENHANCED AIRFLOW
UNRIVALED PERFORMANCE
5mm thicker fan blades enhance cooling performance by moving more air at the same speed as thinner fans. RX MAX RGB fans can also run quieter, as they can spin slower to produce the same airflow.

PERFORMANCE WHERE IT MATTERS
THICKER FANS, MORE POWER
At 30mm, RX MAX RGB fans are 20% thicker than the standard PC cooling fan. This translates directly into additional cooling power for your PC, with stronger airflow and static pressure generated by the larger fan blade.

SUPERIOR AIRFLOW AND STATIC PRESSURE
RX MAX RGB fans leverage CORSAIR’s expert engineering and design to maximize every benefit of its thicker housing.

AIRFLOW
A larger fan blade with an optimized blade shape pushes a greater volume of air through your PC case.

STATIC PRESSURE
High static pressure makes RX MAX RGB ideal for radiator mounting, as it can push air more effectively through dense obstructions.

LOWER NOISE
RX MAX RGB fans significantly reduce fan noise by operating at a lower RPM compared to traditional fans while still achieving the same airflow.

EVERY SOURCE OF NOISE ADDRESSED
MAGNETIC DOME BEARING
This improved bearing minimizes friction and mechanical noise, achieving a balance between high airflow performance and low acoustic footprint. On top of that, the reduced friction means greater longevity for your fan.

DESIGNED FOR REAL LIFE PERFORMANCE
RIGOROUSLY TESTED AND PERFECTED
Extensive testing bears out the RX MAX RGB Series’ exceptional cooling performance, in both case fan and radiator fan applications.

REMOVING AGE-OLD ANNOYANCES
QUIKTURN SCREW REVOLUTION
Take CORSAIR's QuikTurn screws for a single spin and see how convenient fan installation can be: as robust and secure as any traditional screw, and an absolute pleasure to use. Especially when you need to use 20 or more in a build.

Specifications

Performance
Suitable location	Computer case
Pulse-width modulation (PWM) support	Yes
Type	Fan
Rotational speed (min)	300 RPM
Rotational speed (max)	1600 RPM
Fan diameter	14 cm
Noise level (low speed)	10 dB
Noise level (high speed)	31 dB
Minimum airflow (imperial)	27.2 cfm
Maximum airflow	102.9 cfm
Minimum air pressure	0.2 mmH2O
Maximum air pressure	2.38 mmH2O
Quantity per pack	2 pc(s)
Design
Illumination colour	Multi
Product colour	Black
Illumination LED	Yes
Number of LEDs	8
Power
Fan current	0.29 A
Weight & dimensions
Weight	715 g
Fan dimensions (W x D x H)	140 x 140 x 30 mm
Technical details
Illumination LED	Yes
Warranty period	5 year(s)
Packaging data
Package type	Box
Packaging content
Screws included	Yes
Package type	Box
RGB controller included	Yes

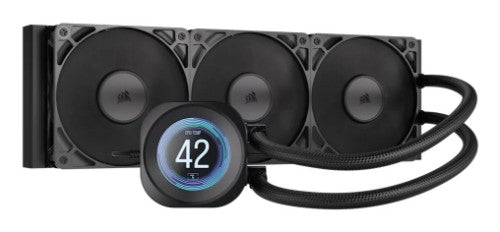

NAUTILUS 360 RS LCD Liquid CPU Cooler - Black, 2100 RPM, 3 fans, 13.3 - 72.8 CFM, 10 - 36 dBA

Key Features

• Efficient low-noise cooling
• Brightly lit 2.1" IPS LCD screen
• High static pressure RS120 fans
• Precise PWM fan speed control with Zero RPM mode
• Compatibility with Intel® LGA 1851, LGA 1700, and AMD® AM5, AM4

Description

BRILLIANT IPS LCD DISPLAY
Showcase CPU temperature, animated GIFs, memes, or your team’s logo on a crisp 480 x 480 IPS screen at 30 FPS with an ultra-bright 600cd/m² backlight and over 16.7 million colors. iCUE Software includes full in-app GIPHY integration, giving you access to thousands of your favorite memes and GIFs.

FLOWDRIVECOOLING ENGINE
Designed in-house by CORSAIR's expert engineers, the pump is powered by a three-phase motor with a higher flow rate and even lower noise levels than its predecessors. Add to that a precision-engineered cold plate surface profile that maximizes contact with your CPU’s IHS, and you have a recipe for consistently lower temperatures.

EASY INSTALLATION
Simply connect the included cable to an available USB 2.0 (9-pin) header on your motherboard to power and control the LCD display. That’s all it takes.

MAXIMUM CONTACT
The slightly convex design ensures optimal contact with your CPU’s integrated heat spreader, with thermal paste applied in an optimized pattern to speed up installation.

HIGH AIRFLOW AND STATIC PRESSURE
RS Fans push air efficiently through the radiator, while CORSAIR AirGuide technology and Magnetic Dome bearings deliver strong cooling with low noise.

DAISY-CHAINED CONNECTIONS
Minimize cable-clutter in your system by daisy-chaining your RS fans to a single 4-pin PWM header on your motherboard.

QUIET AND EFFICIENT
The efficient, low-noise pump circulates coolant with a high flow rate at a whisper-quiet 20 dBA. PWM control lets you set your fan speed up to 2,100 RPM, with support for Zero RPM mode for quiet operation.

Specifications

Performance
Suitable location	Processor
Fan connector	4-pin
Pulse-width modulation (PWM) support	Yes
Type	All-in-one liquid cooler
Rotational speed (min)	420 RPM
Rotational speed (max)	2100 RPM
Bearing type	Magnetic levitation bearing
Fan diameter	12 cm
Supported processor sockets	LGA 1700, LGA 1851, Socket AM4, Socket AM5
Compatible processor series	Intel® Celeron®, Intel Core Ultra (Series 2), Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®, Intel® Pentium® Gold
Noise level (low speed)	10 dB
Noise level (high speed)	36 dB
Maximum airflow	72.8 cfm
Minimum air pressure	0.2 mmH2O
Maximum air pressure	4.15 mmH2O
Number of fans	3 fan(s)
Design
Fan connector	4-pin
Number of fans	3 fan(s)
Product colour	Black
Illumination LED	No
Radiator material	Aluminum
Base plate material	Copper
Display type	IPS
Ports & interfaces
Fan connector	4-pin
Weight & dimensions
Width	125 mm
Depth	396 mm
Height	125 mm
Weight	2.39 kg
Tube length	45 cm
Technical details
Fan connector	4-pin
Illumination LED	No

ProLiant DL380 Gen11 Standard Heat Sink Kit

Description

.

Specifications

Performance
Suitable location	Processor
Type	Heatsink/Radiator
Compatible products	Platform DL380 Gen11
Design
Product colour	Silver
Display type	Not applicable
Weight & dimensions
Width	167 mm
Depth	204 mm
Height	161 mm
Weight	640 g
Radiator width	20.4 cm
Radiator depth	16.1 cm
Other features
Weight (imperial)	0.64 kg (1.41 lbs)

ProLiant DL380 Gen11 Standard Fan Kit

Description

.

Specifications

Performance
Suitable location	Computer case
Type	Fan
Design
Product colour	Black
Display type	Not applicable
Weight & dimensions
Width	207 mm
Depth	280 mm
Height	102 mm
Weight	570 g
