Collection: Products

24.5", 1920 x 1080 FHD, IPS, ELED, 240Hz, 0.5ms, 350 cd/m², 8 bit, 16.7M, 1000: 1, 3 H, DP 1.4, HDMI 2.0, Black

Key Features

• Wide color gamut, 85% NTSC. It meets the designer's demand of image texture
• 178°H/178°V extra-wide viewing angle for all-round viewing performance
• Adaptive sync can effectively solve picture lagging and tearing problems
• 0.5 ms fast response time with no image blurring or ghosting (with OD)

Description

Displays

Specifications

Display
Display brightness (typical)	350 cd/m²
Screen shape	Flat
Display number of colours	16.7 million colours
Native aspect ratio	16:9
Maximum refresh rate	240 Hz
Display diagonal	62.2 cm (24.5")
Display resolution	1920 x 1080 pixels
Display technology	LCD
Contrast ratio (typical)	1000:1
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Pixel pitch	0.0944 x 0.2802 mm
Viewable size, horizontal	54.4 cm
Viewable size, vertical	30.3 cm
HD type	Full HD
Supported graphics resolutions	1920 x 1080 (HD 1080)
Supported video modes	1080p
Pixel density	89.91 ppi
Backlight type	Edge LED
Surface hardness	3H
Response time (fast)	0.5 ms
NTSC coverage (typical)	85%
Touchscreen	No
High Dynamic Range (HDR) supported	Yes
Panel type	IPS
Colour depth	8 bit
High Dynamic Range (HDR) technology	High Dynamic Range 10 (HDR10)
Display diagonal (metric)	62 cm
Haze rate	25%
LED backlight	Yes
Colour gamut standard	NTSC
Response time (MPRT)	1 ms
Performance
AMD FreeSync	No
NVIDIA G-SYNC	No
VESA Adaptive Sync support	Yes
Low Blue Light technology	Yes
Multimedia
Built-in speaker(s)	No
Built-in camera	No
Design
Market positioning	Gaming
Product colour	Black
Feet colour	Black
Front bezel colour	Black
Frameless design	No
Illuminated stand	No
Ports & interfaces
Built-in USB hub	No
HDMI ports quantity	1
DisplayPorts quantity	1
Headphone out	Yes
HDMI	Yes
HDMI version	2.0
DisplayPort version	1.4
Bluetooth	No
Wi-Fi	No
Network
Bluetooth	No
Wi-Fi	No
Ergonomics
Wall mountable	Yes
VESA mounting	Yes
Panel mounting interface	1100 x 100 mm
LED indicators	Status
Tilt angle range	-5 - 20°
Height adjustment	No
Plug and Play	Yes
Power
Power supply type	Internal
Power consumption (max)	23.8 W
Power consumption (standby)	0.5 W
Power consumption (typical)	19 W
Power consumption (off)	0.3 W
Input current	3 A
Energy efficiency scale	A to G
AC adapter output voltage	12 V
Energy efficiency class (SDR)	E
Energy efficiency class (HDR)	G
Energy consumption (SDR) per 1000 hours	18 kWh
Energy consumption (HDR) per 1000 hours	33 kWh
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	10 - 80%
Storage relative humidity (H-H)	5 - 90%
Weight & dimensions
Width (with stand)	557.7 mm
Depth (with stand)	205.7 mm
Height (with stand)	431.7 mm
Bezel width (side)	6.98 mm
Bezel width (top)	6.98 mm
Bezel width (bottom)	1.96 cm
Width (without stand)	557.7 mm
Height (without stand)	330.6 mm
Depth (without stand)	58 mm
Weight (without stand)	2.93 kg
Package width	620 mm
Package depth	134 mm
Package height	431 mm
Package weight	4 kg
Packaging data
Package width	620 mm
Package depth	134 mm
Package height	431 mm
Package weight	4 kg
Stand included	Yes
Manual	Yes
Cables included	DisplayPort
Power adapter included	Yes
Packaging content
Stand included	Yes
Manual	Yes
Cables included	DisplayPort
Power adapter included	Yes
Other features
Automatic brightness control	No
Compliance certificates	CE, Electromagnetic Compatibility (EMC), Low Voltage Directive (LVD)
Power consumption (max)	23.8 W
Bluetooth	No
Width (without stand)	557.7 mm
Height (without stand)	330.6 mm
HDMI	Yes
Depth (without stand)	58 mm
Surface hardness	3H
Energy efficiency scale	A to G
Power supply type	Internal
Manual	Yes
Touchscreen	No
Front bezel colour	Black
Technical details
Compliance certificates	CE, Electromagnetic Compatibility (EMC), Low Voltage Directive (LVD)
Power supply type	Internal
Surface hardness	3H
Touchscreen	No

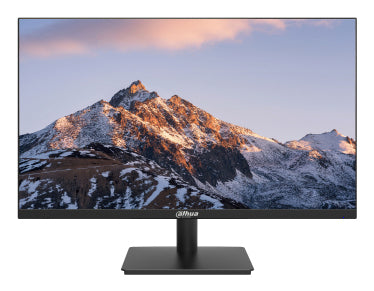

27", 1920 x 1080 FHD, 144 Hz, IPS, ELED, 16:9, 250 cd/m², 1200:1, MPRT 1 ms, 6 bit + FRC, 3H, VGA, HDMI 1.4, Black

Key Features

• Light and cost-effective plastic housing
• Ultra-narrow bezel , elegant appearance, plastic base
• Support multiple signal inputs such as HDMI, VGA
• 144Hz high refresh rate
• 1ms rapid response time

Description

Monitors

Specifications

Display
Display brightness (typical)	250 cd/m²
Screen shape	Flat
Native aspect ratio	16:9
Maximum refresh rate	144 Hz
Display diagonal	68.6 cm (27")
Display resolution	1920 x 1080 pixels
Display technology	LED
Contrast ratio (typical)	1200:1
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Pixel pitch	0.3114 x 0.3114 mm
Viewable size, horizontal	59.8 cm
Viewable size, vertical	33.6 cm
HD type	Full HD
Supported graphics resolutions	1920 x 1080 (HD 1080)
Supported video modes	1080p
Pixel density	81.59 ppi
Backlight type	Edge LED
Surface hardness	3H
NTSC coverage (typical)	72%
Touchscreen	No
Panel type	IPS
Colour depth	6 bit
Display diagonal (metric)	69 cm
Haze rate	25%
LED backlight	Yes
Colour gamut standard	NTSC
Response time (MPRT)	1 ms
Performance
AMD FreeSync	No
NVIDIA G-SYNC	No
Flicker-free technology	Yes
Multimedia
Built-in speaker(s)	No
Built-in camera	No
Design
Market positioning	Office
Product colour	Black
Feet colour	Black
Frameless design	No
Detachable stand	Yes
Illuminated stand	No
Housing material	Plastic
Ports & interfaces
Built-in USB hub	No
VGA (D-Sub) ports quantity	1
HDMI ports quantity	1
HDMI	Yes
HDMI version	1.4
Bluetooth	No
Wi-Fi	No
Network
Bluetooth	No
Wi-Fi	No
Ergonomics
Wall mountable	Yes
VESA mounting	Yes
Panel mounting interface	100 x 100 mm
Tilt angle range	-5 - 20°
Height adjustment	No
Plug and Play	Yes
Tilt adjustment	Yes
Power
Power supply type	External
Power consumption (max)	28 W
Power consumption (standby)	0.5 W
Power consumption (typical)	27.1 W
Power consumption (off)	0.3 W
Input current	3 A
Energy efficiency scale	A to G
AC adapter output voltage	12 V
Energy efficiency class (SDR)	D
Energy efficiency class (HDR)	Not available
Energy consumption (SDR) per 1000 hours	14.9 kWh
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	10 - 85%
Storage relative humidity (H-H)	5 - 90%
Weight & dimensions
Width (with stand)	615.1 mm
Depth (with stand)	189 mm
Height (with stand)	455.5 mm
Bezel width (side)	2.8 mm
Bezel width (top)	2.8 mm
Bezel width (bottom)	1.82 cm
Width (without stand)	615.1 mm
Height (without stand)	364.1 mm
Depth (without stand)	49.1 mm
Weight (without stand)	3.4 kg
Package width	678 mm
Package depth	118 mm
Package height	450 mm
Package weight	4.7 kg
Packaging data
Package width	678 mm
Package depth	118 mm
Package height	450 mm
Package weight	4.7 kg
Quick start guide	Yes
Cables included	HDMI
Power adapter included	Yes
Packaging content
Quick start guide	Yes
Cables included	HDMI
Power adapter included	Yes
Other features
E-manual	Yes
Automatic brightness control	No
Compliance certificates	CE, Electromagnetic Compatibility (EMC), Low Voltage Directive (LVD)
Power consumption (max)	28 W
Bluetooth	No
Width (without stand)	615.1 mm
Quick start guide	Yes
Height (without stand)	364.1 mm
HDMI	Yes
Depth (without stand)	49.1 mm
Surface hardness	3H
Energy efficiency scale	A to G
Power supply type	External
Touchscreen	No
Technical details
Compliance certificates	CE, Electromagnetic Compatibility (EMC), Low Voltage Directive (LVD)
Power supply type	External
Surface hardness	3H
E-manual	Yes
Touchscreen	No

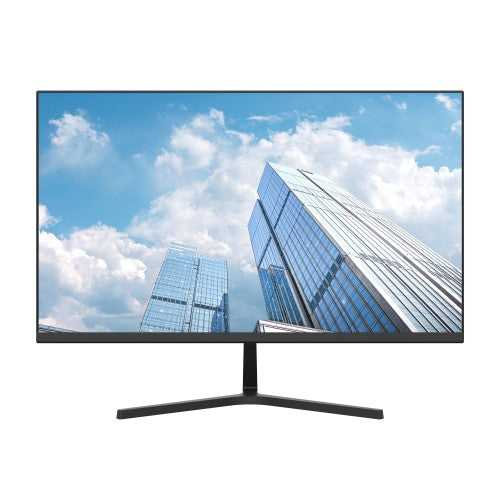

27", IPS, 1920 x 1080, LED, 1000:1, 16.7M, 4 ms, 100 Hz, Black

Key Features

• Light and cost-effective plastic housing
• Ultra-narrow bezel , elegant appearance, Metal base
• 178°H/178°V extra-wide viewing angle for overall viewing performance
• High fidelity digital processing for a brilliant and vivid video
• Support multiple signal inputs such as HDMI, VGA
• Physical button control mode
• Low energy consumption, long service life
• Anti-blue light design,eye-protective

Description

Monitors

Specifications

Display
Display brightness (typical)	250 cd/m²
Screen shape	Flat
Display number of colours	16.7 million colours
Native aspect ratio	16:9
Maximum refresh rate	100 Hz
Display diagonal	68.6 cm (27")
Response time	4 ms
Display resolution	1920 x 1080 pixels
Display technology	LCD
Contrast ratio (typical)	1000:1
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
HD type	Full HD
Backlight type	LED
Touchscreen	No
Panel type	IPS
Performance
Low Blue Light technology	Yes
Multimedia
Number of speakers	2
Built-in speaker(s)	Yes
Built-in camera	No
RMS rated power	2 W
Design
Market positioning	Home
Product colour	Black
Certification	CE
Ports & interfaces
Built-in USB hub	No
VGA (D-Sub) ports quantity	1
HDMI ports quantity	1
Headphone out	No
HDMI	Yes
Ergonomics
VESA mounting	Yes
Panel mounting interface	75 x 75 mm
Tilt adjustment	Yes
Power
Power supply type	External
Power consumption (standby)	0.5 W
Power consumption (typical)	36 W
Power consumption (off)	0.3 W
AC adapter output voltage	12 V
Energy efficiency class (SDR)	E
Energy efficiency class (HDR)	Not available
Energy consumption (SDR) per 1000 hours	21 kWh
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 85%
Weight & dimensions
Width (with stand)	614.1 mm
Depth (with stand)	58.7 mm
Height (with stand)	363 mm
Bezel width (side)	3 mm
Bezel width (top)	3 mm
Bezel width (bottom)	1.61 cm
Weight (with stand)	3.84 kg
Package width	694 mm
Package depth	458 mm
Package height	114 mm
Package weight	5.25 kg
Packaging data
Package width	694 mm
Package depth	458 mm
Package height	114 mm
Package weight	5.25 kg
Stand included	Yes
Cables included	HDMI
Power adapter included	Yes
Packaging content
Stand included	Yes
Cables included	HDMI
Power adapter included	Yes
Other features
Certification	CE
HDMI	Yes
Power supply type	External
Touchscreen	No
Certificates
Certification	CE
Technical details
Power supply type	External
Weight (with stand)	3.84 kg
Touchscreen	No

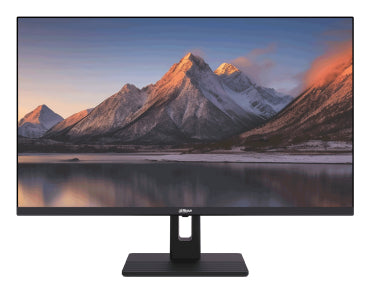

27", 2560 x 1440 QHD, 100 Hz, IPS, ELED, 300 cd/m², OD 5 ms, 8 bit, 16:9, 1200: 1, HDMI 1.4, DP 1.2, Black

Key Features

• The 2560 × 1440 resolution produces clearer and more vivid images
• IPS panel for wide viewing angles with 3-sided frameless design
• 178° (H) / 178° (V)extra-wide viewing angle for overall viewing performance
• 5 ms fast response time with no image blurring or ghosting
• Low blue light technology can support a comfortable viewing experience

Description

Displays

Specifications

Display
Display brightness (typical)	300 cd/m²
Screen shape	Flat
Native aspect ratio	16:9
Maximum refresh rate	100 Hz
Display diagonal	68.6 cm (27")
Response time	5 ms
Display resolution	2560 x 1440 pixels
Display technology	LED
Contrast ratio (typical)	1200:1
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
HD type	Quad HD
Supported graphics resolutions	2560 x 1440
Supported video modes	1440p
Backlight type	Edge LED
Response time (fast)	5 ms
NTSC coverage (typical)	85%
Touchscreen	No
Panel type	IPS
Colour depth	8 bit
Display diagonal (metric)	69 cm
Haze rate	25%
LED backlight	Yes
Colour gamut standard	NTSC
Performance
AMD FreeSync	No
NVIDIA G-SYNC	No
Low Blue Light technology	Yes
Multimedia
Built-in speaker(s)	No
Built-in camera	No
Design
Market positioning	Office
Product colour	Black
Feet colour	Black
Front bezel colour	Black
Frameless design	Yes
Detachable stand	Yes
Illuminated stand	No
Ports & interfaces
Built-in USB hub	No
HDMI ports quantity	1
DisplayPorts quantity	1
Headphone connectivity	3.5 mm
Headphone out	Yes
HDMI	Yes
HDMI version	1.4
DisplayPort out version	1.2
Bluetooth	No
Wi-Fi	No
Network
Bluetooth	No
Wi-Fi	No
Ergonomics
Wall mountable	Yes
VESA mounting	Yes
Panel mounting interface	75 x 75 mm
Tilt angle range	-5 - 15°
Height adjustment	No
Plug and Play	Yes
Tilt adjustment	Yes
Power
Power supply type	External
Power consumption (max)	30 W
Power consumption (standby)	0.5 W
Power consumption (typical)	30 W
Power consumption (off)	0.3 W
Input current	3 A
Energy efficiency scale	A to G
AC adapter output voltage	12 V
Energy efficiency class (SDR)	F
Energy efficiency class (HDR)	Not available
Energy consumption (SDR) per 1000 hours	25 kWh
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Weight & dimensions
Width (with stand)	614.1 mm
Depth (with stand)	198 mm
Height (with stand)	461.3 mm
Bezel width (side)	1.9 mm
Bezel width (top)	1.9 mm
Bezel width (bottom)	1.61 cm
Width (without stand)	614.1 mm
Height (without stand)	363 mm
Depth (without stand)	51.1 mm
Weight (without stand)	4.8 kg
Package width	694 mm
Package depth	126 mm
Package height	458 mm
Package weight	6.3 kg
Packaging data
Package width	694 mm
Package depth	126 mm
Package height	458 mm
Package weight	6.3 kg
Stand included	Yes
Quick start guide	Yes
Cables included	HDMI
Power adapter included	Yes
Packaging content
Stand included	Yes
Quick start guide	Yes
Cables included	HDMI
Power adapter included	Yes
Other features
E-manual	Yes
Automatic brightness control	No
Compliance certificates	CE, Electromagnetic Compatibility (EMC), Low Voltage Directive (LVD)
Power consumption (max)	30 W
Bluetooth	No
Width (without stand)	614.1 mm
Quick start guide	Yes
Height (without stand)	363 mm
HDMI	Yes
Depth (without stand)	51.1 mm
Energy efficiency scale	A to G
Power supply type	External
Touchscreen	No
Front bezel colour	Black
Technical details
Compliance certificates	CE, Electromagnetic Compatibility (EMC), Low Voltage Directive (LVD)
Power supply type	External
E-manual	Yes
Touchscreen	No

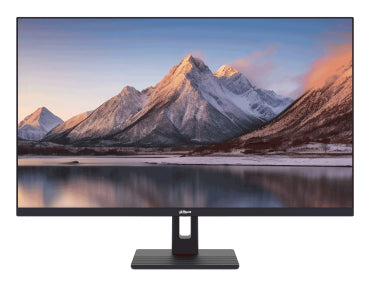

32", QHD, IPS, 2560 x 1440, 2 × HDMI 1.4, DP 1.2, 12 VDC, 4 A, 6.65 kg

Key Features

• The 2560 × 1440 resolution produces clearer and more vivid images
• IPS panel for wide viewing angles with 3-sided frameless design
• 178° (H) / 178° (V) extra-wide viewing angle for overall viewing performance
• 5 ms fast response time with no image blurring or ghosting
• Low blue light technology can support a comfortable viewing experience

Description

Displays

Specifications

Display
Display brightness (typical)	300 cd/m²
Screen shape	Flat
Native aspect ratio	16:9
Maximum refresh rate	75 Hz
Display diagonal	81.3 cm (32")
Response time	5 ms
Display resolution	2560 x 1440 pixels
Display technology	LED
Contrast ratio (typical)	1200:1
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
HD type	Full HD
Backlight type	Edge LED
Touchscreen	No
Panel type	IPS
Colour depth	8 bit
LED backlight	Yes
Performance
AMD FreeSync	No
NVIDIA G-SYNC	No
Low Blue Light technology	Yes
Multimedia
Built-in speaker(s)	No
Built-in camera	No
Design
Market positioning	Business
Product colour	Black
Feet colour	Black
Certification	CE EMC, CE LVD, CE ERP
Ports & interfaces
Built-in USB hub	No
HDMI ports quantity	2
DisplayPorts quantity	1
Audio output	Yes
Headphone out	No
HDMI	Yes
HDMI version	1.4
DisplayPort out version	1.2
Ergonomics
VESA mounting	Yes
Panel mounting interface	75 x 75 mm
Tilt angle range	-5 - 15°
Tilt adjustment	Yes
Power
Power supply type	External
Power consumption (standby)	0.5 W
Power consumption (typical)	44 W
Power consumption (off)	0.3 W
Input current	4 A
Energy efficiency class (SDR)	F
Energy efficiency class (HDR)	Not available
Energy consumption (SDR) per 1000 hours	32 kWh
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Weight & dimensions
Width (without stand)	715.1 mm
Height (without stand)	422.8 mm
Depth (without stand)	47.3 mm
Weight (without stand)	6.65 kg
Package width	796 mm
Package depth	128 mm
Package height	515 mm
Package weight	8.27 kg
Packaging data
Package width	796 mm
Package depth	128 mm
Package height	515 mm
Package weight	8.27 kg
Stand included	Yes
Manual	Yes
Cables included	HDMI
Packaging content
Stand included	Yes
Manual	Yes
Cables included	HDMI
Other features
Certification	CE EMC, CE LVD, CE ERP
Width (without stand)	715.1 mm
Height (without stand)	422.8 mm
HDMI	Yes
Depth (without stand)	47.3 mm
Power supply type	External
Manual	Yes
Touchscreen	No
Certificates
Certification	CE EMC, CE LVD, CE ERP
Technical details
Power supply type	External
Touchscreen	No

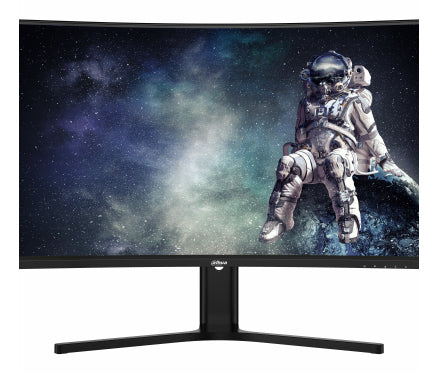

31.5", 2560 x 1440 QHD, VA, ELED, 1500R, 16:9, 180 Hz, 300 cd/m², MPRT 1 ms, 3000:1, 8 bit, 85% NTSC, 3H, 2 x HDMI 2.0, 2 x DP 1.4, Black

Key Features

• R1500 curved screen makes the vision more shocking
• 180 Hz high refresh rate and 1ms fast response time to seize the game and improve the odds of winning
• Adaptive sync technology reduces image quality loss and improves visual fluency
• Wide color gamut, 85% NTSC. It meets the designer's demand of image texture
• 1 ms fast response time with no image blurring or ghosting
• The angle can be adjusted to meet different needs

Description

Displays

Specifications

Display
Display brightness (typical)	300 cd/m²
Screen shape	Curved
Native aspect ratio	16:9
Maximum refresh rate	180 Hz
Display diagonal	80 cm (31.5")
Display resolution	2560 x 1440 pixels
Display technology	LCD
Contrast ratio (typical)	3000:1
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Pixel pitch	0.2724 x 0.2724 mm
Viewable size, horizontal	69.7 cm
Viewable size, vertical	39.2 cm
HD type	Quad HD
Supported graphics resolutions	2560 x 1440
Supported video modes	1440p
Pixel density	93.2 ppi
Backlight type	Edge LED
Surface hardness	3H
NTSC coverage (typical)	85%
Touchscreen	No
High Dynamic Range (HDR) supported	Yes
Panel type	VA
Colour depth	8 bit
High Dynamic Range (HDR) technology	High Dynamic Range 10 (HDR10)
Screen curvature rating	1500R
Display diagonal (metric)	80 cm
Haze rate	40%
LED backlight	Yes
Colour gamut standard	NTSC
Response time (MPRT)	1 ms
Performance
AMD FreeSync	No
NVIDIA G-SYNC	No
VESA Adaptive Sync support	Yes
Low Blue Light technology	Yes
Flicker-free technology	Yes
Multimedia
Built-in speaker(s)	No
Built-in camera	No
Design
Market positioning	Gaming
Product colour	Black
Feet colour	Black
Front bezel colour	Black
Frameless design	No
Detachable stand	Yes
Illuminated stand	No
Ports & interfaces
Built-in USB hub	No
HDMI ports quantity	2
DisplayPorts quantity	2
Headphone out	Yes
HDMI	Yes
HDMI version	2.0
DisplayPort version	1.4
Bluetooth	No
Wi-Fi	No
Network
Bluetooth	No
Wi-Fi	No
Ergonomics
Wall mountable	Yes
VESA mounting	Yes
Panel mounting interface	100 x 100 mm
LED indicators	Status
Swivelling	Yes
Swivel angle range	-35 - 35°
Tilt angle range	-5 - 15°
Height adjustment	Yes
Plug and Play	Yes
Tilt adjustment	Yes
Adjustable height (max)	10 cm
Power
Power supply type	External
Power consumption (max)	72 W
Power consumption (standby)	0.5 W
Power consumption (typical)	46.5 W
Power consumption (off)	0.3 W
Input current	3.42 A
Energy efficiency scale	A to G
AC adapter output voltage	19 V
Energy efficiency class (SDR)	F
Energy efficiency class (HDR)	G
Energy consumption (SDR) per 1000 hours	32 kWh
Energy consumption (HDR) per 1000 hours	42.2 kWh
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	10 - 85%
Storage relative humidity (H-H)	5 - 90%
Weight & dimensions
Width (with stand)	717.7 mm
Depth (with stand)	242.8 mm
Height (with stand)	553 mm
Bezel width (side)	3.8 mm
Bezel width (top)	3.8 mm
Bezel width (bottom)	1.72 cm
Width (without stand)	717.7 mm
Height (without stand)	422.4 mm
Depth (without stand)	118.3 mm
Weight (without stand)	7 kg
Package width	954 mm
Package depth	183 mm
Package height	523 mm
Package weight	9.1 kg
Packaging data
Package width	954 mm
Package depth	183 mm
Package height	523 mm
Package weight	9.1 kg
Stand included	Yes
Manual	Yes
Cables included	DisplayPort, Power
Power adapter included	No
Packaging content
Stand included	Yes
Manual	Yes
Cables included	DisplayPort, Power
Power adapter included	No
Other features
Automatic brightness control	No
Compliance certificates	CE, Electromagnetic Compatibility (EMC), Low Voltage Directive (LVD)
Power consumption (max)	72 W
Bluetooth	No
Width (without stand)	717.7 mm
Height (without stand)	422.4 mm
HDMI	Yes
Depth (without stand)	118.3 mm
Surface hardness	3H
Energy efficiency scale	A to G
Power supply type	External
Manual	Yes
Touchscreen	No
Front bezel colour	Black
Technical details
Compliance certificates	CE, Electromagnetic Compatibility (EMC), Low Voltage Directive (LVD)
Power supply type	External
Surface hardness	3H
Touchscreen	No

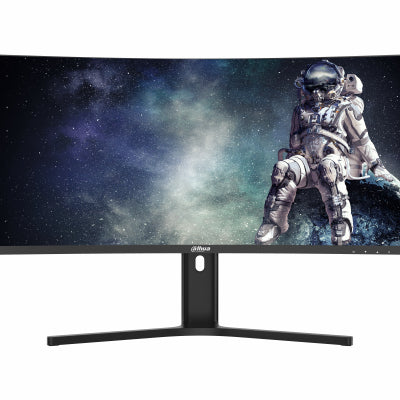

Dahua 34" WQHD Gaming Monitor

Key Features

• The 3440 × 1440 resolution produces clearer and more vivid pictures
• Comfortable 1500R exquisite curvature, close to the natural look and feel of the human eye, bringing immersive visual enjoyment
• Wide color gamut, 120% sRGB, 85% NTSC, 85% DCI-P3, 85% Adobe RGB. It meets the designer's demand of image texture
• Adaptive sync can effectively solve picture lagging and tearing problems
• 1ms Fast response time with no image blurring or ghosting

Description

Displays

Specifications

Display
Display brightness (typical)	300 cd/m²
Screen shape	Curved
Native aspect ratio	21:9
Maximum refresh rate	200 Hz
sRGB coverage (typical)	120%
Adobe RGB coverage	85%
Display diagonal	86.4 cm (34")
Response time	1 ms
Display resolution	3440 x 1440 pixels
Display technology	LCD
Contrast ratio (typical)	3500:1
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Pixel pitch	0.2318 x 0.2318 mm
Viewable size, horizontal	79.7 cm
Viewable size, vertical	33.4 cm
HD type	UltraWide Quad HD
Pixel density	109.7 ppi
Backlight type	Edge LED
NTSC coverage (typical)	85%
Touchscreen	No
High Dynamic Range (HDR) supported	Yes
Panel type	VA
Colour depth	8 bit
DCI-P3 coverage	85%
High Dynamic Range (HDR) technology	High Dynamic Range 10 (HDR10)
Screen curvature rating	1500R
Haze rate	25%
Response time (MPRT)	1 ms
Performance
Low Blue Light technology	Yes
Flicker-free technology	Yes
Multimedia
Built-in speaker(s)	No
Built-in camera	No
Design
Market positioning	Gaming
Product colour	Black
Ports & interfaces
Built-in USB hub	No
HDMI ports quantity	2
DisplayPorts quantity	2
Headphone out	Yes
HDMI	Yes
HDMI version	2.0
DisplayPort version	1.4
Ergonomics
VESA mounting	Yes
Panel mounting interface	100 x 100 mm
Swivelling	Yes
Swivel angle range	-35 - 35°
Tilt angle range	-5 - 15°
Height adjustment	Yes
Tilt adjustment	Yes
Adjustable height (max)	10 cm
Power
Power supply type	External
Power consumption (max)	70 W
Power consumption (standby)	0.5 W
Power consumption (typical)	47 W
Power consumption (off)	0.3 W
Input current	3.42 A
Energy efficiency scale	A to G
AC adapter output voltage	19 V
Energy efficiency class (SDR)	F
Energy efficiency class (HDR)	Not available
Energy consumption (SDR) per 1000 hours	30 kWh
Energy consumption (HDR) per 1000 hours	43 kWh
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	10 - 85%
Storage relative humidity (H-H)	5 - 90%
Weight & dimensions
Width (without stand)	810 mm
Height (without stand)	361.5 mm
Depth (without stand)	132.1 mm
Weight (without stand)	7.3 kg
Package width	21124 mm
Package depth	193 mm
Package height	1468 mm
Package weight	10.2 kg
Packaging data
Package width	21124 mm
Package depth	193 mm
Package height	1468 mm
Package weight	10.2 kg
Other features
DCI-P3 coverage	85%
Power consumption (max)	70 W
Width (without stand)	810 mm
Height (without stand)	361.5 mm
HDMI	Yes
Depth (without stand)	132.1 mm
Energy efficiency scale	A to G
Power supply type	External
Touchscreen	No
Technical details
Power supply type	External
Touchscreen	No

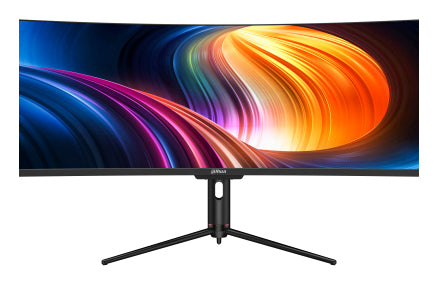

49" DQHD, VA, ELED, 1800 R, 32:9, 178°, 120 Hz, MPRT 1 ms, 85% NTSC, 8 bit, RJ-45, DP 1.4, HDMI 2.1, USB-C, VESA 75 x 75, 2 x 3W, Black, 11.5 kg

Description

- With DQHD resolution, the 32:9 ultra-wide screen offers a broader field of view, making it easy to display game maps and business reports.
- > Designed with a 1800R curvature, the device provides an unparalleled immersive experience with depth in its visuals.
- > With a wide color gamut of 99% sRGB and 85% NTSC, as well as an average color accuracy of ΔE < 2, the device ensures that visuals are accurately displayed in rich colors.
- > Equipped with a USB-C port, it easily connects to laptops, smartphones, tablets, and other mobile devices, allowing seamless screen sharing on a large display, while enhancing your web browsing and entertainment experience. It also supports up to 65 W power output for charging mobile devices.
- > The RJ-45 port supports network signal transmission, allowing the device to be connected to laptops that do not have Ethernet ports.
- > Supports Picture-by-Picture (PBP), allowing two signals from channels to be processed and displayed on the screen simultaneously, enabling you to conveniently watch movies, play games, and enjoy other forms of entertainment at the same time.
- > Easily switches to blue light mode to help reduce eye strain and make your viewing experience more comfortable.
- > The ergonomic stand can be adjusted horizontally and tilted forward and backward, providing you with a comfortable entertainment experience.

Specifications

Display
Screen shape	Curved
Native aspect ratio	32:9
Maximum refresh rate	120 Hz
sRGB coverage (typical)	99%
Display diagonal	124.5 cm (49")
Display resolution	5120 x 1440 pixels
Display technology	LCD
Contrast ratio (typical)	3000:1
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Pixel pitch	0.2382 x 0.2382 mm
Viewable size, horizontal	119.2 cm
Viewable size, vertical	33.5 cm
HD type	Dual QHD
Supported graphics resolutions	5120 x 1440
Supported video modes	1440p
Pixel density	108.54 ppi
Backlight type	Edge LED
Surface treatment	Haze 25%, 3H
NTSC coverage (typical)	85%
Display brightness (peak)	400 cd/m²
Touchscreen	No
High Dynamic Range (HDR) supported	Yes
Panel type	VA
Colour depth	8 bit
Screen curvature rating	1800R
Display diagonal (metric)	124 cm
LED backlight	Yes
Colour gamut standard	NTSC, sRGB
Response time (MPRT)	1 ms
Performance
Low Blue Light technology	Yes
Flicker-free technology	Yes
Multimedia
Number of speakers	2
Built-in speaker(s)	Yes
Built-in camera	No
RMS rated power	6 W
Design
Market positioning	Gaming
Product colour	Black
Feet colour	Black
Refurbished	No
Ports & interfaces
Built-in USB hub	No
USB Type-A downstream ports quantity	2
HDMI ports quantity	1
DisplayPorts quantity	1
Audio output	Yes
HDMI	Yes
HDMI version	2.1
DisplayPort version	1.4
USB Type-C DisplayPort Alternate Mode	Yes
Number of USB Type-B upstream ports quantity	1
Number of USB Type-C upstream ports quantity	1
Bluetooth	No
Wi-Fi	No
Ethernet LAN	Yes
Network
Bluetooth	No
Wi-Fi	No
Ethernet LAN	Yes
Ergonomics
Wall mountable	Yes
VESA mounting	Yes
Panel mounting interface	75 x 75 mm
Tilt angle range	-5 - 15°
Height adjustment	Yes
Plug and Play	Yes
Tilt adjustment	Yes
Adjustable height (max)	9.5 cm
Picture-by-Picture (PbP)	Yes
Power
Power supply type	Internal
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (max)	180 W
Power consumption (standby)	0.5 W
Power consumption (typical)	72 W
Power consumption (off)	0.3 W
Energy efficiency scale	A to G
Energy efficiency class (SDR)	F
Energy efficiency class (HDR)	G
Energy consumption (SDR) per 1000 hours	42 kWh
Energy consumption (HDR) per 1000 hours	63 kWh
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	10 - 85%
Storage relative humidity (H-H)	5 - 90%
Weight & dimensions
Width (with stand)	1198.5 mm
Depth (with stand)	160.2 mm
Height (with stand)	375.6 mm
Weight (with stand)	11.5 kg
Package width	1305 mm
Package depth	284 mm
Package height	486 mm
Package weight	15.6 kg
Packaging data
Package width	1305 mm
Package depth	284 mm
Package height	486 mm
Package weight	15.6 kg
Stand included	Yes
Quick start guide	Yes
Cables included	DisplayPort, Power, USB Type-C
Packaging content
Stand included	Yes
Quick start guide	Yes
Cables included	DisplayPort, Power, USB Type-C
Other features
RJ-45 ports quantity	1
Display viewable area (HxV)	1191.9 x 335.2 mm
E-manual	Yes
Picture-by-Picture (PbP)	Yes
Compliance certificates	CE, Electromagnetic Compatibility (EMC), Low Voltage Directive (LVD)
Supplied AC adapter type	42
Power consumption (max)	180 W
Bluetooth	No
Quick start guide	Yes
HDMI	Yes
Energy efficiency scale	A to G
USB Type-C DisplayPort Alternate Mode	Yes
Power supply type	Internal
Ethernet LAN	Yes
Display brightness (peak)	400 cd/m²
Touchscreen	No
Technical details
Compliance certificates	CE, Electromagnetic Compatibility (EMC), Low Voltage Directive (LVD)
Power supply type	Internal
Weight (with stand)	11.5 kg
E-manual	Yes
Touchscreen	No
