Collection: Products

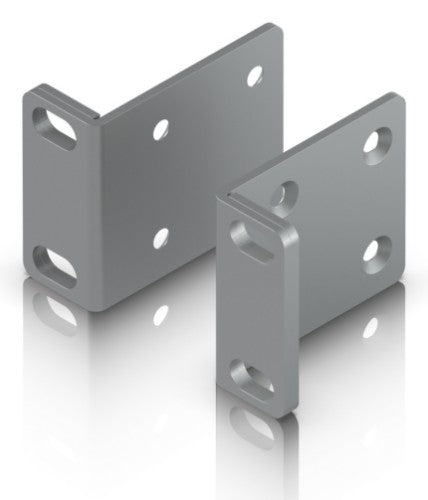

Galvanized steel, 1U

Description

Replacement rack ears for UniFi 1U or 2U rack-mount devices with included Precision Rack Mount inserts and screws.

Specifications

Features
Type	Mounting kit
Rack capacity	1U
Product colour	Grey
Housing material	Galvanized steel
Weight & dimensions
Weight	50 g
Packaging data
Quantity per pack	2 pc(s)

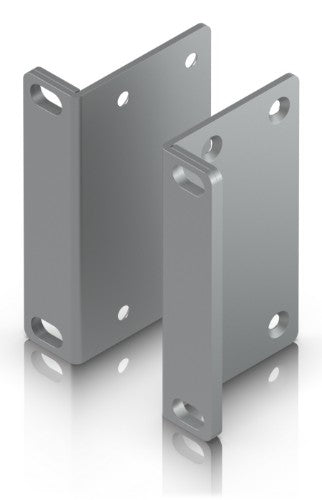

Galvanized steel, 2U

Description

Replacement rack ears for UniFi 1U or 2U rack-mount devices with included Precision Rack Mount inserts and screws.

Specifications

Features
Type	Mounting kit
Rack capacity	2U
Product colour	Grey
Housing material	Galvanized steel
Weight & dimensions
Weight	105 g
Packaging data
Quantity per pack	2 pc(s)

20x, 1U

Key Features

• Easy installation and removal
• Pair multiple inserts to mount larger devices
• (20) Precision Rack Mount inserts per kit

Description

1U snap-in inserts with two vertically aligned cage nuts designed to ensure uniform rack installations.

Specifications

Features
Type	Mounting kit
Rack capacity	1U
Product colour	Stainless steel
Housing material	Thermoplastic
Weight & dimensions
Width	15.5 mm
Weight	4 g
Height	8.7 mm
Depth	42.7 mm
Packaging data
Quantity per pack	20 pc(s)

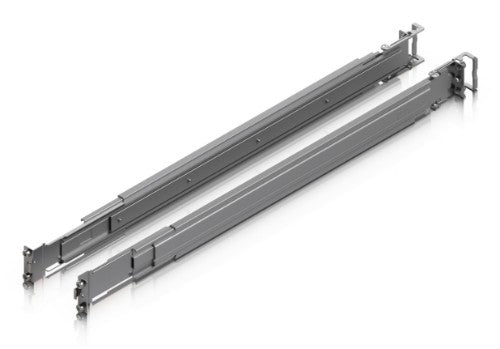

UniFi Sliding Rack Rails, SGCC steel, for 600-1066 mm

Description

Adjustable sliding rails for UniFi rack-mount gear, designed for smooth sliding and flexible fit in 4-post racks.

Specifications

Features
Type	Rack rail
Maximum weight capacity	45 kg
Product colour	Grey
Compatibility	USW-Pro-XG-24 USW-Pro-XG-24-PoE USW-Pro-XG-48 USW-Pro-XG-48-PoE USW-Pro-HD-24 USW-Pro-XG-10-PoE USW-Pro-HD-24-PoE USW-Pro-XG-Aggregation
Housing material	SGCC
Weight & dimensions
Width	43 mm
Weight	2.5 kg
Height	21 mm
Depth	625 mm
Minimum rack depth supported	60 cm
Maximum rack depth supported	106.6 cm

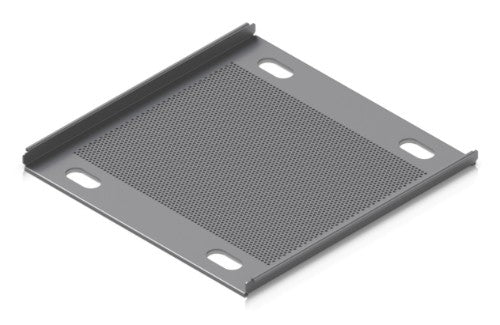

Toolless Mini Rack Shelf, up to 20 kg, Cold rolled carbon steel (SPCC), 453.8 x 460 x 27.4 mm (17.9 x 18.1 x 1.1")

Key Features

• Easy and toolless installation
• Robust design supports a total weight of up to 20 kg

Description

Fixed shelf accessory for installing non-rack-mountable devices in the toolless mini rack.

Specifications

Features
Type	Rack shelf
Maximum weight capacity	20 kg
Product colour	Grey
Housing material	SPCC
Perforated	Yes
Weight & dimensions
Width	460 mm
Weight	2.8 kg
Height	27.4 mm
Depth	453.8 mm
Packaging data
Quantity per pack	1 pc(s)

DIN Rail Mount, Polycarbonate, 125.7 x 40.5 x 20.6 mm

Description

DIN rail mount for UniFi compact switches.

Specifications

Technical details
Material	Polycarbonate (PC)
Product colour	White
Compatibility	USW-Ultra (42W) USW-Flex-2.5G-8 USW-Ultra-60W (52W) USW-Flex-2.5G-8-PoE USW-Ultra-210W (202W)
Quantity per pack	1 pc(s)
Weight & dimensions
Weight	36.8 g
Width	40.5 mm
Depth	20.6 mm
Height	125.7 mm
Packaging data
Quantity per pack	1 pc(s)

Floating Mount, Polycarbonate, silicone rubber, 125.6 x 40.4 x 10.4 mm

Description

Sleek magnetic wall mount for UniFi compact switches.

Specifications

Technical details
Material	Polycarbonate (PC), Silicone
Product colour	White
Compatibility	USW-Flex-2.5G-8-PoE, USW-Flex-2.5G-8
Quantity per pack	1 pc(s)
Weight & dimensions
Weight	56.1 g
Width	40.4 mm
Depth	10.4 mm
Height	125.6 mm
Packaging data
Quantity per pack	1 pc(s)

Desktop, 2x 3.5" drive bays, 2.5 GbE RJ45 (2.5G/1G/100M/10M), 5 Gbps USB-C, PoE++, Quad-Core ARM Cortex-A55 at 1.7 GHz, Bluetooth 4.1, 1.47" color LCM

Description

UniFi Network Attached Storage with (2) 3.5" HDD bays, 2.5 GbE networking, USB-C connectivity, and an included PoE++ adapter, all in a compact footprint.

Specifications

Storage
Storage drives installed	No
Installed storage drive type	No
Supported storage drive types	HDD
Number of storage drives supported	2
Storage drive size	3.5"
RAID support	Yes
RAID levels	1
Hot-swap drive bays	No
Storage drive sizes supported	3.5"
Processor
Processor manufacturer	ARM
Processor architecture	ARM Cortex-A57
Processor family	Cortex-A
Processor model	Cortex-A57
Processor frequency	1.7 GHz
Processor cores	4
Memory
Internal memory	4 GB
Network
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000,2500 Mbit/s
Ports & interfaces
USB port	Yes
Ethernet LAN (RJ-45) ports	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
Design
Chassis type	Desktop
Product colour	Black
Housing material	Polycarbonate (PC)
LED indicators	Status, System
Built-in display	Yes
Display type	LCM
Performance
Type	NAS
Backup function	Yes
Web-based management	Yes
Other operating systems supported	Android, iOS
Software
Other operating systems supported	Android, iOS
Power
Power consumption (max)	60 W
Power supply location	External
Weight & dimensions
Width	129 mm
Depth	135 mm
Height	223.7 mm
Weight	1.3 kg
Technical details
Compliance certificates	CE, Federal Communications Commission (FCC), Industry Canada (IC), National Defense Authorization Act (NDAA)
Packaging content
External power adapter	Yes
Cables included	Power
Power cables quantity	1
Operational conditions
Operating temperature (T-T)	-5 - 40 °C
Operating relative humidity (H-H)	10 - 90%
Other features
Compliance certificates	CE, Federal Communications Commission (FCC), Industry Canada (IC), National Defense Authorization Act (NDAA)
