Collection: Products

StarTech 3-Port USB Hub with Ethernet - 3x USB-A Ports - Gigabit Ethernet (RJ-45) - USB 3.0 (5Gbps) - Bus-Powered - 1ft/30cm Long Cable - Portable Laptop USB Hub Adapter w/ GbE (5G3AGBB-USB-A-HUB)

Key Features

• 3 PORT USB HUB: Bus-powered USB 3.2 Gen 1 (5Gbps) expansion hub features a USB-A host connector and 3-port USB-A hub, Overcurrent Protection (OCP) & Wake on USB - 4.5W of bus power dynamically shared between 3 downstream ports
• GIGABIT ETHERNET: Features a built-in GbE adapter to provide the reliability and security of wired RJ45 Ethernet to a laptop or desktop - The GbE controller is fully compatible w/IEEE 802.3u/ab standards and supports WoL, Jumbo Frames, and V-LAN Tagging
• AUXILIARY POWER INPUT: The USB hub features a Micro USB power input (cable sold separately) to add 4.5W (5V/0.9A) of power to the hub for applications where additional power may be required, such as connecting high power USB devices like SSDs/HDDs
• EXTRA-LONG CABLE: Attached 1ft/30cm cable provides longer reach for easy setup and prevents adapter from dangling on the USB-A host connector - Ideal cable length to reduce port strain on 2-in-1 convertible laptops, or host laptops on riser stands
• CONNECTIVITY TOOLS: Optimize the performance and security of this USB-A hub, using the included MAC Address Changer, USB Event Monitoring, Wi-Fi Auto Switch utilities (available for download) - Hub compatible with Windows/macOS/Linux/ChromeOS/Android

Description

10/100/1000Mbps Ethernet | USB Type-A to 3x USB Type-A | USB 3.2 Gen 1 (5Gbps) | 1ft (30cm) Built-In Host Cable

This USB Hub adds three USB-A 3.2 Gen 1 (5Gbps) ports and one Gigabit Ethernet port to a USB-A enabled desktop or laptop computer. The USB Hub connects to a USB-A port on a computer, using the built-in 1ft. (30cm) host cable. The USB hub is backward compatible with USB 2.0 (480Mbps) devices, ensuring support for a wide range of modern and legacy USB peripherals (e.g., thumb drives, external HDDs/SSDs, HD cameras, mice, keyboards, webcams, and audio headsets).The USB hub is compact in size, facilitating portability when travelling.

Gigabit Ethernet

The USB hub features a Gigabit Ethernet adapter. The Ethernet controller is compatible with the IEEE 802.3u/ab standards and supports Wake-on-LAN (WoL), Jumbo Frames, and V-LAN Tagging. The network adapter enhances laptop network reliability, security, and performance, by utilizing wired 10/100/1000Mbps Ethernet.

Bus-Powered with Optional Auxiliary Power

The USB hub can operate with bus power alone, but features a Micro USB power input that can be connected to a USB power adapter (not included), providing up to 4.5W (5V/0.9A) of power in addition to the 4.5W of bus power from the USB host. This flexibility is ideal for applications where additional power may be required, such as connecting a high-powered USB device, like an external SSD, while using the other ports to connect lower powered devices. For added protection, the USB hub features Overcurrent Protection (OCP). OCP prevents faulty USB peripherals from drawing more power than is safely allocated.

Plug and Play

This device is OS independent, supporting all operating systems, including Windows, macOS, ChromeOS, and Android. The Hub is automatically detected, configured, and installed upon connection to a host computer, such as Apple MacBook, Lenovo X1 Carbon, and Dell XPS. The extra-long built-in 1ft. (30 cm) USB-A host cable enables quick and convenient setup and reduces connector strain on 2-in-1 devices, such as the Surface Pro 7 and laptops on riser stands.

Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application

Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that is compatible with a wide variety of IT connectivity accessories. The software suite includes:

• MAC Address Pass-Through Utility : Improve network security.

• USB Event Monitoring Utility : Track and log connected USB devices.

• Wi-Fi Auto Switch Utility : Enable users to quickly access faster network speeds via wired LAN.

For more information and to download the StarTech.com Connectivity Tools application, please visit: www.StarTech.com/connectivity-tools

This product is backed for 2-years by StarTech.com, including free lifetime 24/5 multi-lingual technical assistance.

Specifications

Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
Connectivity technology	Wired
Host interface	USB 3.2 Gen 1 (3.1 Gen 1) Type-A
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	0
Micro-USB 2.0 ports quantity	1
Microphone in	No
Headphone outputs	0
DC-in jack	No
Network
Wake-on-LAN ready	Yes
Full duplex	Yes
Auto MDI/MDI-X	Yes
Networking standards	IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Ethernet LAN (RJ-45) ports	1
Flow control support	Yes
VLAN tagging	Yes
Jumbo frames support	Yes
Jumbo frames	9000
Performance
UASP support	Yes
Full duplex	Yes
Auto MDI/MDI-X	Yes
Product colour	Grey
Card reader integrated	No
LED indicators	Activity, Link
Flow control support	Yes
VLAN tagging	Yes
Jumbo frames support	Yes
Jumbo frames	9000
Housing material	Plastic
Hub interfaces	Micro-USB, RJ-45, USB 3.2 Gen 1 (3.1 Gen 1) Type-A
Storage
Card reader integrated	No
Power
Power source type	USB
Power supply type	USB
Wireless charging	No
USB cable length	0.3 m
Software
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Mac operating systems supported	Mac OS X 10.11 El Capitan, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura
Linux operating systems supported	Yes
Other operating systems supported	Android
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	0 - 85%
Sustainability
Sustainability compliance	Yes
Sustainability certificates	CE, RoHS
Weight & dimensions
Width	50 mm
Depth	420 mm
Height	15 mm
Weight	84 g
Package width	170 mm
Package depth	145 mm
Package height	31 mm
Package weight	140 g
Design
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Mac operating systems supported	Mac OS X 10.11 El Capitan, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura
Product colour	Grey
LED indicators	Activity, Link
Packaging data
Package width	170 mm
Package depth	145 mm
Package height	31 mm
Package weight	140 g
Technical details
Sustainability compliance	Yes
Sustainability certificates	CE, RoHS
Compliance certificates	CE, RoHS
Products per master (outer) case	70 pc(s)
Master (outer) case width	481 mm
Master (outer) case length	344 mm
Master (outer) case height	444 mm
Logistics data
Products per master (outer) case	70 pc(s)
Master (outer) case width	481 mm
Master (outer) case length	344 mm
Master (outer) case height	444 mm
Other features
Power supply type	USB
Chipset	VIA - VL817, Asix - AX88179A
Cable length	0.3 m

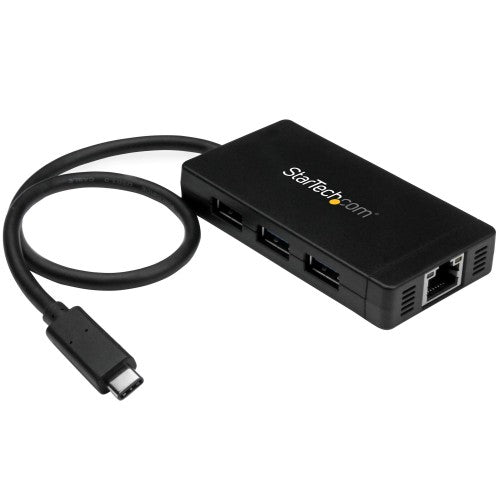

StarTech 3 Port USB C Hub with Ethernet - USB-C to 3x USB-A w/ Power Adapter & Gigabit Ethernet - Thunderbolt 3 Compatible - USB C Network Adapter , TAA (HB30C3A1GE)

Key Features

• TAA Compliant
• Expand your laptop’s connectivity through USB-C by adding three USB-A ports (5Gbps) and a GbE RJ45 port
• Compact, small-footprint design makes it perfect for travel, or for desktop placement
• Built-in, extended length (30 cm) USB Type-C cable, for flexible desk placement options
• Included power adapter ensures your connected devices are fully powered and operational
• Integrated cable features a small and reversible USB-C connector, and it’s Thunderbolt 3 data port compatible
• Fast, easy installation with native support in most operating systems
• Supports Wake-On-LAN, Energy-Efficient Ethernet, jumbo frames, full duplex flow control, VLAN tagging, and layer 2 priority encoding
• Backward compatible, for use with your older USB 3.2 Gen 1 and 2.0 devices
• Dongle-style combination hub provides three SuperSpeed USB 3.2 Gen 1 (5Gbps) ports, with throughput support up to 5Gbps

Description

Turn a USB Type-C port on your laptop into three USB Type-A ports (5Gbps) and one Gigabit Ethernet port

If you have a USB-C™ equipped laptop, but lack other important connection ports, then this hub can help. It couples your USB peripheral and RJ45 network connections into a single, convenient combination hub. known as USB 3.2 Gen 1.

Through the USB-C host connector, this hub gives you three traditional USB-A ports, and a Gigabit Ethernet connection, making it a must-have laptop accessory. Plus, the integrated 30 cm (12 in.) cable lets you place the hub, your devices, and your network connection, exactly where you need them.

It's ideal for virtually any USB-C equipped laptop, such as Dell™ XPS, MacBook Pro, Chromebook Pixel™, or other MacOS or Windows based laptop or tablet.

Take advantage of USB-C

This dynamic USB 3.2 Gen 1 hub is TAA compliant and integrates an easy-to-use USB Type-C™ connector. It’s small and reversible, which makes for easier insertions, and you can connect the plug with either side facing up, which means less risk of damaging your ports and less frustration.

While your USB-C equipped laptop, or MacBook is lightweight and portable, it might be missing vital connectivity ports, such as wired Internet. Because this hub offers a Gigabit Ethernet port, you can connect to a network in locations were Wi-Fi® is unreliable or unavailable.

Compact design for portability or permanent placement

With a small footprint and lightweight housing, you can easily tuck the hub and the included power adapter into your laptop bag to expand your connectivity when you’re traveling.

Plus, the compact USB 3.2 Gen 1 hub takes up minimal space on a desk, so it fits perfectly in office, hot-desk (short-term guest), and BYOD workstation environments.

Extended-length cable eliminates aggravation

The hub’s built-in USB cable is long enough to reach your laptop or tablet’s USB 3.2 Gen 1 port, regardless of where the port is located. Now, you can eliminate the worry and frustration when your hub’s built-in cable is too short and doesn’t reach your laptop’s USB port location.

Plus, the extended-length cable provides you with more desk placement options, which makes it easier to create a comfortable, space-efficient work area.

Save money and time

This easy-to-use hub is natively supported in most operating systems, and you can install it quickly, without having to install additional drivers or software. You can also avoid the nuisance and cost of purchasing new devices, by using the USB 3.2 Gen 1 hub with your current USB 2.0 and 1.x devices.

The HB30C3A1GE is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Specifications

Ports & interfaces
Internal	No
USB version	3.2 Gen 1 (3.1 Gen 1)
USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity	3
Connectivity technology	Wired
Host interface	USB
Interface	Ethernet
Ethernet LAN (RJ-45) ports	1
Bandwidth
Maximum data transfer rate	1000 Mbit/s
Full duplex	Yes
Network
Chipset	Genesys Logic - GL3522, ASIX - AX88179
VLAN tagging	Yes
Jumbo frames	4000
Maximum data transfer rate	1000 Mbit/s
Networking standards	IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Wake-on-LAN ready	Yes
Auto MDIX IEEE	Yes
Jumbo frames support	Yes
Full duplex	Yes
Auto-negotiation	Yes
Flow control support	Yes
Power
Power plug type	Type H
Output voltage	5 V
Output current	2 A
Input current	0.5 A
Power consumption (typical)	10 W
AC input voltage	100-240 V
Design
Internal	No
Product colour	Black
Chipset	Genesys Logic - GL3522, ASIX - AX88179
Certification	CE, FCC, TAA
Plug and Play	Yes
Hot-swap	Yes
LED indicators	Activity, Link
Housing material	Plastic
System requirements
Server operating systems supported	Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 13.0 Ventura
Other operating systems supported	ChromeOS
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-10 - 70 °C
Operating relative humidity (H-H)	0 - 85%
Weight & dimensions
Width	45 mm
Depth	87 mm
Height	14 mm
Weight	50 g
Package width	220 mm
Package depth	155 mm
Package height	56 mm
Package weight	340 g
Packaging data
Included power plug types	AU, EU, NA, UK
AC adapter included	Yes
Package width	220 mm
Package depth	155 mm
Package height	56 mm
Package weight	340 g
Performance
Server operating systems supported	Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016
Wake-on-LAN ready	Yes
Auto MDIX IEEE	Yes
Plug and Play	Yes
Hot-swap	Yes
Cable length	0.3 m
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 13.0 Ventura
Other operating systems supported	ChromeOS
Auto-negotiation	Yes
Technical details
Harmonized System (HS) code	85176990
Compliance certificates	RoHS
Certificates
Certification	CE, FCC, TAA
Other features
Chipset	Genesys Logic - GL3522, ASIX - AX88179
Power plug type	Type H
Jumbo frames	4000
Housing material	Plastic
Flow control support	Yes
Cable length	0.3 m
AC input voltage	100-240 V
Harmonized System (HS) code	85176990
Packaging content
Included power plug types	AU, EU, NA, UK
AC adapter included	Yes
Logistics data
Master (outer) case width	459 mm
Master (outer) case length	340 mm
Master (outer) case height	309 mm
Products per master (outer) case	20 pc(s)
Harmonized System (HS) code	85176990

StarTech 3 Port USB C Hub w/ Gigabit Ethernet – USB Type C to 3 x USB-A - 5Gbps - Multi Port USB 3.0 Hub for MacBook Pro (HB30C3A1GEA)

Key Features

• Expand your laptop or MacBook connectivity through USB-C by adding three USB-A ports (5Gbps) and a GbE RJ45 port
• Compact, lightweight housing with a small-footprint design for travel or desktop placement
• USB bus-powered and features a built-in USB Type-C cable, so you can carry the hub with you anywhere
• Integrated cable features a small and reversible USB-C connector, and it’s Thunderbolt 3 data port compatible
• Multi-platform compatible, with native support in most operating systems including Windows® 10, macOS Sierra (10.12), and Chrome OS™
• Backward compatibility lets you save money by connecting your existing USB 2.0 and 1.x devices
• Offers plug-and-play installation, and supports hot-swapping or hot-plugging
• Supports Wake-On-LAN, Energy-Efficient Ethernet, jumbo frames, full-duplex flow control, VLAN tagging, and layer 2 priority encoding

Description

Turn a USB Type-C port on your laptop into three USB Type-A ports (5Gbps) and one GbE port

Here’s a must-have accessory for your USB-C™ equipped MacBook Pro, Chromebook™ or laptop. This USB 3.2 Gen 1 hub merges your USB peripheral and RJ45 network connections into a single combination hub. It gives you two vital connection types, with Ethernet and USB Type-A, which are often missing from modern laptops.

Easily connect to your network and peripherals through USB-C

This 3-port USB hub features an easy-to-use USB-C connector. USB Type-C connectors are easier to insert than past generations. They're small and reversible, and you can connect the plug with either side facing up.

Merges two vital port types into one stylish hub

If your MacBook or laptop is missing the ports you need, this hub can help. known as USB 3.2 Gen 1. The versatile USB 3.2 Gen 1 hub gives you access to not only your USB peripheral devices but also a wired internet connection. It offers a Gigabit Ethernet port, so you can connect to a network in locations where Wi-Fi® is unreliable or unavailable.

The stylish USB hub features an attractive white finish.

Rugged, portable, and bus powered

The hub features a rugged yet lightweight housing, so there’s no need to sacrifice dependability for portability. Its USB-powered design means you don’t need to carry a separate power adapter, so you can tuck the USB 3.2 Gen 1 hub neatly into your travel bag.

This hub is perfect for travel, and it takes up minimal space on a desk, so you can use it in hot-desk or BYOD (Bring Your Own Device) environments.

Built-in cable eliminates aggravation

The hub’s built-in USB-C cable makes connections easy, and you don’t need to carry a separate cable to attach the hub to your laptop.

The HB30C3A1GEA is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Specifications

Ports & interfaces
Internal	No
USB version	3.2 Gen 1 (3.1 Gen 1)
USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity	3
USB ports quantity	3
Connectivity technology	Wired
Host interface	USB
Interface	Ethernet
Ethernet LAN (RJ-45) ports	1
Bandwidth
Maximum data transfer rate	1000 Mbit/s
Full duplex	Yes
Network
Chipset	VIA/VLI - VL812, Realtek - RTL8153
VLAN tagging	Yes
Ethernet interface type	Gigabit Ethernet
Jumbo frames	9000
Maximum data transfer rate	1000 Mbit/s
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000BaseT(X)
Networking standards	IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Wake-on-LAN ready	Yes
Auto MDIX IEEE	Yes
Jumbo frames support	Yes
Full duplex	Yes
Auto-negotiation	Yes
Flow control support	Yes
Design
Internal	No
Product colour	White
Chipset	VIA/VLI - VL812, Realtek - RTL8153
Certification	CE, FCC
Plug and Play	Yes
Hot-swap	Yes
Hot-Plug support	Yes
Housing material	Plastic
Power
USB powered	Yes
System requirements
Mac operating systems supported	Mac OS X 13.0 Ventura
Operational conditions
Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-10 - 70 °C
Operating relative humidity (H-H)	5 - 90%
Weight & dimensions
Width	41 mm
Depth	78 mm
Height	15 mm
Weight	36 g
Package width	123 mm
Package depth	149 mm
Package height	30 mm
Package weight	102 g
Packaging data
Package width	123 mm
Package depth	149 mm
Package height	30 mm
Package weight	102 g
Performance
UASP support	Yes
Wake-on-LAN ready	Yes
Auto MDIX IEEE	Yes
Plug and Play	Yes
Hot-swap	Yes
Hot-Plug support	Yes
Cable length	0.095 m
Mac operating systems supported	Mac OS X 13.0 Ventura
Auto-negotiation	Yes
Technical details
Harmonized System (HS) code	85176990
Compliance certificates	RoHS
Certificates
Certification	CE, FCC
Other features
Chipset	VIA/VLI - VL812, Realtek - RTL8153
UASP support	Yes
Jumbo frames	9000
Housing material	Plastic
Flow control support	Yes
Cable length	0.095 m
Harmonized System (HS) code	85176990
Logistics data
Master (outer) case width	330 mm
Master (outer) case length	460 mm
Master (outer) case height	270 mm
Products per master (outer) case	60 pc(s)
Harmonized System (HS) code	85176990

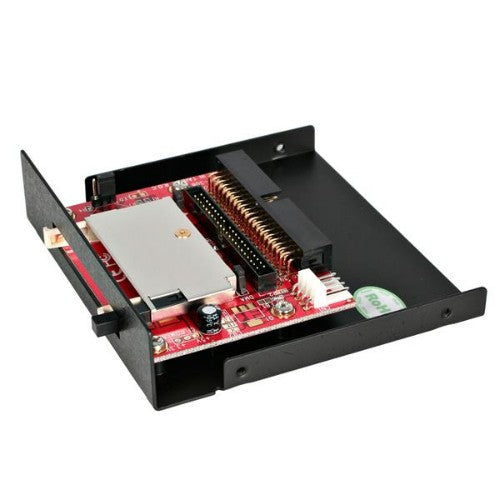

StarTech 3.5in Drive Bay IDE to Single CF SSD Adapter Card Reader , TAA (35BAYCF2IDE)

Key Features

• Quick and driver free installation into any IDE 40 pin and 44 pin slot
• Fully compatible with Compact Flash Type I/II and IBM Micro-drive
• Allows Compact flash card to be used as bootable storage
• Easy to use jumpers offer simple master/slave drive setting
• Can be mounted in the front or rear panel of your case, to fit into any 3.5” bay or available expansion slot
• Easily swap cards in and out with built-in push button ejector

Description

Connect a CF card to a computer through an IDE connector

This Compact Flash IDE adapter is a perfect solution for accessing CompactFlash (CF I, CF II) and IBM Micro Drive media, allowing you to access the flash/micro drive media as if it were an IDE hard drive. The CF/IDE adapter can be installed in the computer case through simple mounting in an available 3.5in drive bay, for connection to the computer IDE bus through either a 40 or 44-pin connection. Designed and constructed to provide a reliable media card platform, the CF IDE adapter is backed by StarTech.com's 2-year warranty.

Specifications

Ports & interfaces
Internal	Yes
Host interface	IDE
Output interface	CF
Performance
Data transfer rate (max)	0.133 Gbit/s
Harmonized System (HS) code	84733020
Design
Internal	Yes
Features
Data transfer rate (max)	0.133 Gbit/s
Harmonized System (HS) code	84733020
Operational conditions
Operating temperature (T-T)	-55 - 85 °C
Storage temperature (T-T)	-55 - 85 °C
Operating relative humidity (H-H)	5 - 85%
Technical details
Harmonized System (HS) code	84733020
Compliance certificates	RoHS
Weight & dimensions
Width	97 mm
Depth	100 mm
Height	25 mm
Weight	145 g
Package width	143 mm
Package depth	173 mm
Package height	34 mm
Package weight	215 g
Packaging data
User guide	Yes
Package width	143 mm
Package depth	173 mm
Package height	34 mm
Package weight	215 g
Logistics data
Products per master (outer) case	40 pc(s)
Master (outer) case width	360 mm
Master (outer) case length	370 mm
Master (outer) case height	320 mm
Harmonized System (HS) code	84733020
Packaging content
User guide	Yes

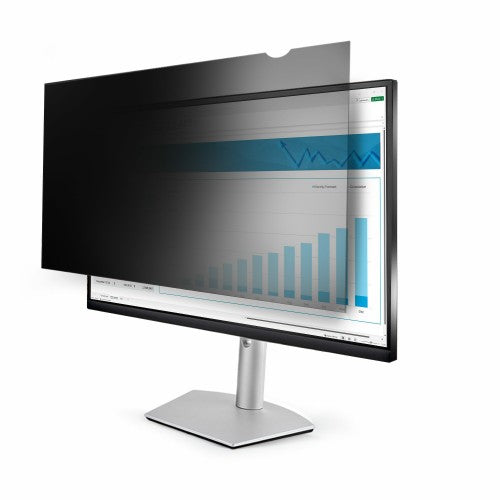

StarTech 31.5-inch 16:9 Computer Monitor Privacy Screen, Anti-Glare Privacy Filter, Monitor Screen Protector, +/- 30 Deg

Key Features

• PROTECT SENSITIVE VISUAL DATA: Privacy screen uses Microlouver technology to obscure the display when viewed from the sides (+/- 30 degrees from the center); Keep data private and prevent visual eavesdropping
• ENSURING THE RIGHT FIT: Designed to fit computer widescreen monitors with a 31.5" 16:9 display; Dimensions 27.4x15.4-inch (696x393mm)
• REDUCE EYE STRAIN: This computer monitor privacy screen reduces blue light exposure to improve visual comfort during prolonged use; 60% light transmittance for better screen readability
• REVERSIBLE FILTER: Privacy shield features an anti-glare matte side for environments prone to glare and a high-gloss side that helps retain color vibrancy; Matte side features an additional coating to protect against scratches and fingerprints
• HASSLE-FREE APPLICATION: Includes adhesive strips to install the screen protector on bezel-less/slim bezel displays, and mounting tabs for monitors with raised bezels; Extra adhesive strips & mounting tabs (MON-PRIVACY-SCREEN-K) sold separately

Description

Prevent visual eavesdropping by limiting the viewing angle of a computer monitor screen

Monitor privacy screen features a universal design compatible with 31.5" 16:9 aspect ratio monitors obscuring the view of sensitive on-screen information.

Prevent Visual Eavesdropping

This privacy filter is a convenient and cost-effective solution to protect confidential data from unwanted viewers. The privacy shield obscures the computer's screen from the sides while providing a clear viewing angle of 60 degrees (+/- 30 degrees from center) to the user.

Reversible Filter

The privacy screen protector is reversible, with a matte anti-glare side for environments prone to glare and a high-gloss side that helps retain color vibrancy. The matte side provides additional screen protection with a fingerprint and scratch resistant coating. The privacy shield has a light transmittance of 60% providing optimal screen brightness with enhanced levels of privacy.

Hassle-free Installation

Affix the privacy screen shield using the provided residue-free transparent adhesive strips or the side mounting tabs. The cutout on the top corner of the privacy screen makes it easy to remove for sharing content with trusted audiences or switching between the matte and glossy finishes.

Blue Light Reduction

Reduce eye strain and improve visual comfort by reducing blue light exposure. The computer monitor filter blocks blue light emitted from the display, decreasing exposure and improving visual comfort.

Specifications

Design
Maximum screen size	80 cm (31.5")
Type	Frameless display privacy filter
Suitable for	Monitor
Filter colour	Black
Reversibility	Matte-to-Glossy
Material	Plastic
Product colour	Black, Transparent
Features
Privacy filtering orientation	Landscape
Installation type	Adhesive strip + Slide mount tab
Fingerprint resistant	Yes
Display filter features	Anti-blue, Anti-glare
Display types supported	LCD
Aspect ratio	16:9
Surface finish	Glossy / Matt
Light transmission	60%
Cleaning cloth	Yes
Protection features	Scratch resistant
Limits viewing angle	30°
Blue light filter	Yes
Ergonomics
Maximum screen size	80 cm (31.5")
Reversibility	Matte-to-Glossy
Weight & dimensions
Depth	0.4 mm
Width	696 mm
Height	393 mm
Weight	100 g
Package width	738 mm
Package depth	422 mm
Package height	15 mm
Package weight	600 g
Packaging data
Package width	738 mm
Package depth	422 mm
Package height	15 mm
Package weight	600 g
Packaging content
Quick start guide	Yes
Logistics data
Master (outer) case width	790 mm
Master (outer) case length	461 mm
Master (outer) case height	174 mm
Products per master (outer) case	25 pc(s)

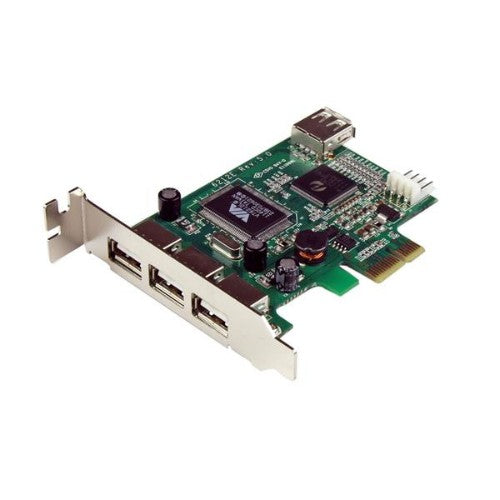

StarTech.com 4 Port PCI Express Low Profile High Speed USB Card - PCIe USB 2.0 Card - PCI-E USB 2.0 Card

Description

Add 4 USB 2.0 ports to your low profile/small form factor computer through a PCI Express expansion slot

The PEXUSB4DP is a low profile 4 port USB card designed for versatility and performance. Providing simple system expansion for added peripheral connections, this PCI Express USB card adds 3 external USB 2.0 slots and 1 internal USB 2.0 slot, with support for high speed USB 2.0 data transfer rates of up to 480 Mbps, and includes WHQL certified drivers and easy plug and play installation. Capable of adapting to virtually any PC case form factor, the low profile USB card includes a standard profile bracket for installation in full form factor cases.

The StarTech.com Advantage

- Add 4 USB 2.0 ports to a low profile/small form factor (SFF) computer system, to conserve expansion port availability
- Dedicated power input ensures each port receives the full amount of power capable under USB 2.0 specification
- Backed by a StarTech.com 2-year warranty and free lifetime technical support

Specifications

Ports & interfaces
Internal	Yes
Host interface	PCIe
Output interface	USB 2.0
USB 2.0 ports quantity	3
Internal USB 2.0 ports quantity	1
Performance
Chipset	VIA/VLI - VT6212
Data transfer rate (max)	0.48 Gbit/s
Product colour	Green
Harmonized System (HS) code	84733020
Design
Internal	Yes
Product colour	Green
Certification	CE, FCC, REACH, TAA
Features
Chipset	VIA/VLI - VT6212
Data transfer rate (max)	0.48 Gbit/s
Harmonized System (HS) code	84733020
Operational conditions
Operating temperature (T-T)	0 - 75 °C
Storage temperature (T-T)	-40 - 125 °C
Operating relative humidity (H-H)	0 - 80%
Technical details
Harmonized System (HS) code	84733020
Compliance certificates	RoHS
System requirements
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 2000, Windows 2000 Professional, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows Vista x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Linux operating systems supported	Yes
Server operating systems supported	Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2016, Windows Server 2019
Weight & dimensions
Width	80 mm
Depth	90 mm
Height	20 mm
Weight	46 g
Package width	174 mm
Package depth	144 mm
Package height	32 mm
Package weight	132 g
Packaging data
Mounting brackets included	Yes
Manual	Yes
Drivers included	Yes
Package width	174 mm
Package depth	144 mm
Package height	32 mm
Package weight	132 g
Quantity	1
Logistics data
Harmonized System (HS) code	84733020
Packaging content
Mounting brackets included	Yes
Manual	Yes
Drivers included	Yes
Quantity	1
Other features
Chipset	VIA/VLI - VT6212

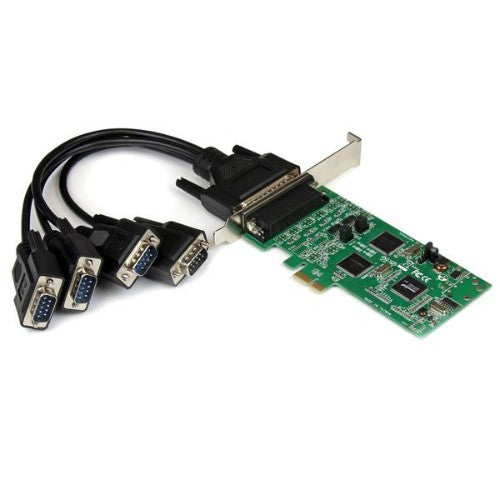

StarTech 4 Port PCI Express PCIe Serial Combo Card with Breakout Cable - 2 x RS232 2 x RS422 / RS485 - Dual Profile , TAA (PEX4S232485)

Key Features

• 4 port (2 x RS232, 2 x RS422/485) serial combo card
• RS232 data transfer rates up to 460 Kbps
• Supports 2-Wire / 4-Wire RS485 modes
• 256-byte deep FIFO per transmitter and receiver
• Standard and low-profile bracket included
• Compliant with PCI-Express Specification 1.0a
• Supports PCI Power Management 1.1

Description

Add two RS232, and two RS422/485 serial ports to your PC through a PCI-Express expansion slot

The PEX4S232485 4 Port PCI Express PCIe Serial Combo Card - 2 x RS232 2 x RS422 / RS485 lets you add two RS232, and two RS422/485 serial ports to your PC through a PCI-Express expansion slot.

This PCI express serial card is a single card solution that is compatible with nearly any serial communication protocol, supporting RS-232, RS-422, RS-485 2-wire or RS-485 4-wire operating modes.

A flexible solution for adding serial ports to full-sized, or small form factor systems, the 4-port serial card includes both low and full profile brackets while the included breakout cable helps to avoid cluttered connections.

Backed by a StarTech.com lifetime warranty and free lifetime technical support.

Specifications

Ports & interfaces
Internal	Yes
Host interface	PCIe
Output interface	Serial
Serial interface type	RS-232/422/485
Serial ports quantity	4
Performance
Chipset	SystemBase SB16C1052PCI
FIFO (First In, First Out)	256 B
Harmonized System (HS) code	84733020
Design
Internal	Yes
Features
Chipset	SystemBase SB16C1052PCI
FIFO (First In, First Out)	256 B
Harmonized System (HS) code	84733020
Operational conditions
Operating temperature (T-T)	0 - 100 °C
Storage temperature (T-T)	0 - 150 °C
Operating relative humidity (H-H)	20 - 80%
Technical details
Harmonized System (HS) code	84733020
Compliance certificates	RoHS
System requirements
Windows operating systems supported	Windows 2000, Windows 2000 Professional, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Linux operating systems supported	Yes
Weight & dimensions
Width	125 mm
Depth	70 mm
Height	20 mm
Weight	67.4 g
Package width	146 mm
Package depth	210 mm
Package height	41 mm
Package weight	390 g
Packaging data
User guide	Yes
Package width	146 mm
Package depth	210 mm
Package height	41 mm
Package weight	390 g
Logistics data
Products per master (outer) case	25 pc(s)
Master (outer) case width	344 mm
Master (outer) case length	474 mm
Master (outer) case height	240 mm
Harmonized System (HS) code	84733020
Other features
Data transfer rate	0.4608 Mbit/s
Connectivity technology	Wired
Chipset	SystemBase SB16C1052PCI
Packaging content
User guide	Yes

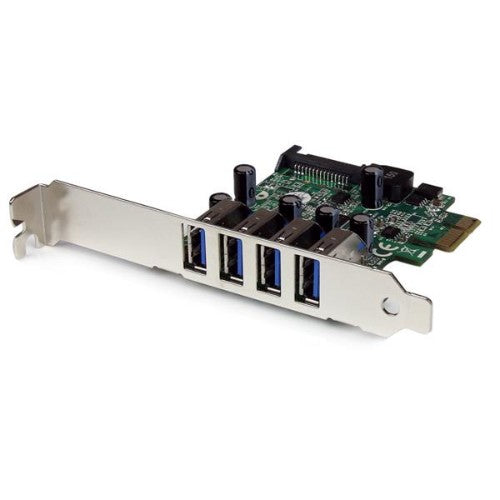

StarTech 4-Port PCI Express SuperSpeed USB 3.0 Controller Card with UASP - 5Gbps - USB 3.0 Expansion Card with SATA Power , TAA (PEXUSB3S4V)

Key Features

• 4 external USB 3.2 Gen 1 (5Gbps) ports in a stacked layout
• UASP support for more efficient data transfer
• Fully compliant with USB 3.2 Gen 1 revision 1.0 specifications and Intel xHCI rev0.95 specifications
• Built-in optional SATA power connector for bus-powered USB devices
• Optionally provides up to 900mA per USB port
• Backward compatible with USB 2.0 and USB 1.0/1.1 devices
• Compliant with PCI Express 2.0 specifications
• Includes a Low Profile/half-height installation bracket

Description

Add 4 external USB 3.0 (USB 3.2 Gen 1) ports to a low profile or standard computer, through PCI Express

The PEXUSB3S4V PCI Express USB 3.2 Gen 1 Card (with SATA Power) adds 4 external USB 3.2 Gen 1 ports to any PCI Express-enabled computer system with support for data rates up to 5 Gbps, while remaining backward compatible with USB 2.0 / 1.x devices.

Enhanced with UASP support (USB Attached SCSI Protocol), this USB 3.2 Gen 1 controller performs up to 70% faster than conventional USB 3.2 Gen 1 when paired with a UASP supported enclosure (Note: UASP requires a compatible operating system). Using a more efficient protocol than the traditional USB BOT (Bulk-Only Transport), UASP technology optimizes transfers by allowing multiple commands to be processed simultaneously, significantly increasing transfer speeds for less wait time on data transfers. See our UASP test results below for further details.

The card uses a "stacked" port layout that places the ports one on top of the other, enabling all four USB 3.2 Gen 1 ports to be external facing, while still allowing the card to fit into a small form factor/low profile computer system using the included low profile bracket.

Plus, with a built-in SATA power connector, each USB port can provide up to 900mA of power to devices that draw power from a host bus connection (500mA for USB 2.0) by connecting to your computer power supply.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

Improved Performance with UASP

UASP is supported in Windows® 8 and Server 2012. In testing UASP performed with up to a 70% faster read / 40% faster write speed over traditional USB 3.2 Gen 1 at peak performance.

At the same peak in testing, UASP also showed up to an 80% reduction in required processor resources.

Test results were obtained using an Intel® Ivy Bridge system, StarTech.com add-on USB 3.2 Gen 1 cards, a UASP-enabled StarTech.com enclosure, and a SATA III solid state drive.

Specifications

Ports & interfaces
Internal	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
Host interface	PCIe
Output interface	USB 3.2 Gen 1 (3.1 Gen 1)
Internal SATA ports quantity	1
Expansion card standard	PCIe 2.0
Performance
UASP support	Yes
Chipset	NEC uPD720201
Data transfer rate (max)	5 Gbit/s
Harmonized System (HS) code	84733020
Design
Internal	Yes
Certification	CE, FCC
Features
UASP support	Yes
Chipset	NEC uPD720201
Data transfer rate (max)	5 Gbit/s
Harmonized System (HS) code	84733020
Operational conditions
Operating temperature (T-T)	5 - 50 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	20 - 80%
Technical details
Harmonized System (HS) code	84733020
Compliance certificates	RoHS
System requirements
Windows operating systems supported	Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows Vista x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Server operating systems supported	Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
Weight & dimensions
Width	68 mm
Depth	19 mm
Height	75 mm
Weight	45 g
Package width	131 mm
Package depth	162 mm
Package height	33 mm
Package weight	138 g
Packaging data
Mounting brackets included	Yes
Manual	Yes
Drivers included	Yes
Package width	131 mm
Package depth	162 mm
Package height	33 mm
Package weight	138 g
Logistics data
Products per master (outer) case	100 pc(s)
Master (outer) case width	566 mm
Master (outer) case length	504 mm
Master (outer) case height	340 mm
Harmonized System (HS) code	84733020
Other features
Mac compatibility	No
Ethernet LAN (RJ-45) ports	0
Compatible operating systems	Windows XP (32/64-bit)/ Server 2003 (32/64-bit)/ Server 2008 R2/ Vista (32/64-bit)/ 7 (32/64-bit)/ 8 (32/64-bit)
Chipset	NEC uPD720201
Packaging content
Mounting brackets included	Yes
Manual	Yes
Drivers included	Yes
