Collection: Products

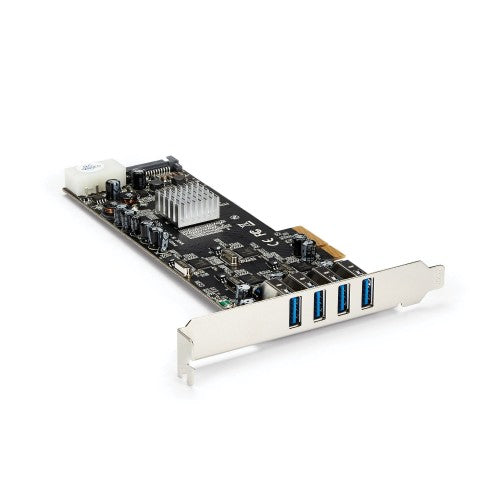

StarTech 4 Port USB 3.0 PCIe Card w/ 4 Dedicated 5Gbps Channels (USB 3.2 Gen 1) - UASP - SATA / LP4 Power - PCI Express Adapter Card (PEXUSB3S44V)

Key Features

• HIGH-PERFORMANCE EXPANSION CARD: Increase the efficiency of your USB 3.0 devices with four dedicated USB 3.0 channels and up to 5 Gbps of bandwidth per channel with this 4 port USB 3.0 PCIe card
• POWER & CHARGE: Use this USB 3.0 add on card to power high-powered USB devices as necessary, with the optional LP4 or SATA power connector
• MULTI-USE USB CONNECTOR: Connect additional external hard drives, VR headsets, game controllers, digital equipment and more to your computer by connecting this USB adapter card through an internal PCI Express slot
• USB 3.0 WITH UASP SUPPORT: This PCIe to USB adapter card lets you experience speeds up to 70% faster than traditional USB 3.0 when used with a UASP-supported enclosure
• THE IT PRO'S CHOICE: Designed and built for IT Professionals, this 4 port USB 3.0 PCIe card is backed for 2-years, including free lifetime 24/5 multi-lingual technical assistance

Description

Add four USB 3.0 (USB 3.2 Gen 1) ports with four independent channels, LP/SATA power, and charging support to your PC through a PCI Express slot

The PEXUSB3S44V 4-Port PCI Express USB 3.2 Gen 1 Card lets you add four, dedicated 5 Gbps USB 3.2 Gen 1 ports to your PCIe x4-enabled PC. This independent port architecture improves USB 3.2 Gen 1 performance by transferring data on four individual channels to your computer, giving you faster file transfers.

When multiple devices are connected, traditional single bus USB 3.2 Gen 1 cards share your maximum bandwidth between all ports. By employing four host controller chipsets, each port operates on a separate independent transmission channel. Dedicating up to 5 Gbps to each USB port reduces performance bottlenecks, and effectively quadruples your total available to bandwidth to 20 Gbps.

Enhanced with UASP support (USB Attached SCSI Protocol), this USB 3.2 Gen 1 controller performs up to 70% faster than conventional USB 3.2 Gen 1 when paired with a UASP supported enclosure (Note: UASP requires a compatible operating system). Using a more efficient protocol than the traditional USB BOT (Bulk-Only Transport), UASP technology optimizes transfers by allowing multiple commands to be processed simultaneously, significantly increasing transfer speeds for less wait time on data transfers. See our UASP test results below for further details.

For high-power USB devices, this PCIe USB 3.2 Gen 1 card includes an optional SATA or LP4 power connector to connect to your system power supply and deliver up to 900mA of power per port to USB 3.2 Gen 1 bus-powered devices (500mA for USB 2.0). The USB 3.2 Gen 1 card also supports USB Battery Charging Specification 1.2 (Apple Mode only), letting you charge compatible Apple devices (iPhones and iPads) faster than a standard USB 3.2 Gen 1 port.

The controller card is compliant with USB 3.2 Gen 1 standards while offering backward compatibility with existing USB 2.0 / 1.1 devices. For added versatility, the USB 3.2 Gen 1 PCIe card is equipped with a standard profile bracket and includes a low-profile/half-height bracket for installation in small form-factor computers.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

Improved Performance with UASP

UASP is supported in Windows® 8, 8.1, Server 2012 and Linux kernel 2.6.37 or later. In testing UASP performed with up to a 70% faster read / 40% faster write speed over traditional USB 3.2 Gen 1 at peak performance.

At the same peak in testing, UASP also showed up to an 80% reduction in required processor resources.

Test results were obtained using an Intel® Ivy Bridge system, StarTech.com add-on USB 3.2 Gen 1 cards, a UASP-enabled StarTech.com enclosure, and a SATA III solid state drive.

Specifications

Ports & interfaces
Internal	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
Host interface	PCIe
Output interface	USB 3.2 Gen 1 (3.1 Gen 1)
Peripheral (Molex) power connectors (4-pin)	1
Expansion card form factor	Full-height / Low-profile
Expansion card standard	PCIe 2.0
Performance
UASP support	Yes
Maximum cable length	3 m
Chipset	Renesas/NEC - µPD720202
Data transfer rate (max)	20 Gbit/s
Product colour	Black
Harmonized System (HS) code	84733020
Design
Maximum cable length	3 m
Internal	Yes
Product colour	Black
Features
UASP support	Yes
Chipset	Renesas/NEC - µPD720202
Data transfer rate (max)	20 Gbit/s
Harmonized System (HS) code	84733020
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	5 - 85%
Technical details
Harmonized System (HS) code	84733020
Compliance certificates	RoHS
System requirements
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows Vista x64
Linux operating systems supported	Yes
Server operating systems supported	Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
Weight & dimensions
Width	15 mm
Depth	167 mm
Height	120 mm
Weight	92 g
Package width	211 mm
Package depth	146 mm
Package height	41 mm
Package weight	202 g
Packaging data
Manual	Yes
Drivers included	Yes
User guide	Yes
Package width	211 mm
Package depth	146 mm
Package height	41 mm
Package weight	202 g
Logistics data
Products per master (outer) case	40 pc(s)
Master (outer) case width	444 mm
Master (outer) case length	425 mm
Master (outer) case height	319 mm
Harmonized System (HS) code	84733020
Packaging content
Manual	Yes
Drivers included	Yes
User guide	Yes
Other features
Chipset	Renesas/NEC - µPD720202

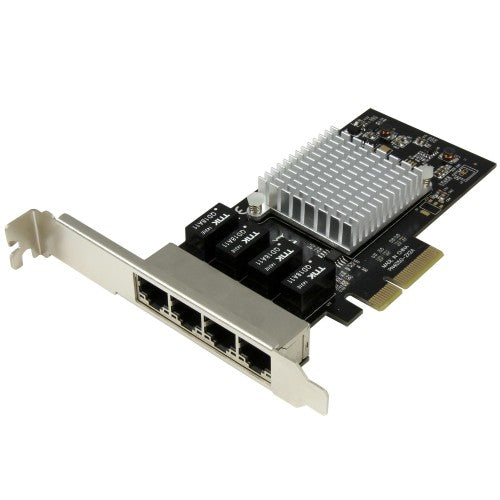

StarTech 4 Port PCIe Network Card - RJ45 Port - Intel i350 Chipset - Ethernet Server / Desktop Network Card - Dual Gigabit NIC Card (ST4000SPEXI)

Key Features

• Add four 10/100/1000 RJ-45 Ethernet ports to a client, server or desktop through one PCIe slot
• Intel I350-AM4 chipset with Intel® Virtualization Technology for connectivity
• PXE network boot
• Fully compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
• Auto MDIX support
• Autonegotiation support
• Wake-on-LAN support
• Up to 9K jumbo frame support
• IEEE802.3az Energy Efficient Ethernet (EEE)
• Supports IEEE 802.1Q VLAN tagging

Description

Add four Gigabit Ethernet ports to a client, server or workstation through a single PCI Express slot

Here’s a dependable and cost-effective way to add four high-performance Gigabit Ethernet ports to your server or desktop computer, through one PCI Express slot.

Reliable network connectivity with high performance

This Gigabit Ethernet network card features the Intel® I350-AM4 chipset, designed to deliver the power, performance and enhanced capabilities you need for reliable network connections to your server or computer. The Intel chip provides a number of advanced driver options including IEEE 802.3ad link aggregation / teaming support, which enables you to add additional bandwidth to your system.

Compliant with IEEE 802.3/u/ab standards, the network card provides full support for high-performance, four-channel networking and maximum throughput up to 1000Mbps in each direction (2000 Mbps total) - up to ten times faster than 10/100 Ethernet.

Cost-effective access to multiple networks

The quad-port Gigabit network card makes it easy to access multiple networks. It offers a cost-effective solution for IT professionals in government, educational, corporate, health care, or business environments where access to multiple networks from numerous workstations is needed. The server adapter card gives you four redundant, independent Gigabit Ethernet ports and it supports advanced features such as Jumbo Frames and VLAN tagging.

Enhanced versatility and efficiency

Compatible with a broad range of operating systems, this versatile PCIe Gigabit NIC is suitable for many business and enterprise applications - including virtualized environments with multiple operating systems, requiring multiple shared or dedicated NICs. The 4-port Gigabit network card is equipped with Intel® Virtualization Technology for Connectivity (Intel® VT-c) which reduces system latency and improves networking throughput. Four dedicated ports allow you to maximize your virtualized server’s networking efficiency and create a more agile data center.

With a dual-profile design, the PCI Express network card installs easily into a wide range of computer/server chassis, regardless of form factor. The card is equipped with a full-sized bracket, and includes a low-profile/half-height installation bracket that you can use as needed.

Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application

Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:

• Mac Address Pass-Through Utility : To improve network security.

• Wi-Fi Auto Switch Utility : Enabling users to quickly access faster network speeds via wired LAN.

For more information and to download the StarTech.com Connectivity Tools application, please visit: www.StarTech.com/Connectivity-Tools

The ST4000SPEXI is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Specifications

Ports & interfaces
Internal	Yes
Connectivity technology	Wired
Host interface	PCI Express
Interface	Ethernet
Ethernet LAN (RJ-45) ports	4
Bandwidth
Maximum data transfer rate	2000 Mbit/s
Full duplex	Yes
Network
Chipset	Intel® I350-AM4
VLAN tagging	Yes
Maximum data transfer rate	2000 Mbit/s
Ethernet LAN	Yes
Cabling technology	10/100/1000BaseT(X)
Networking standards	IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Wake-on-LAN ready	Yes
Auto MDIX IEEE	Yes
Jumbo frames support	Yes
Full duplex	Yes
Design
Internal	Yes
Product colour	Black, Metallic
Chipset	Intel® I350-AM4
LED indicators	Activity, Link
Power
Power consumption (typical)	4.4 W
System requirements
Server operating systems supported	Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
Windows operating systems supported	Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 2000, Windows 2000 Professional, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows Vista x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Linux operating systems supported	Yes
Operational conditions
Operating temperature (T-T)	5 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	20 - 80%
Sustainability
Sustainability compliance	Yes
Weight & dimensions
Width	18 mm
Depth	132 mm
Height	120 mm
Weight	95 g
Package width	392 mm
Package depth	198 mm
Package height	31 mm
Package weight	162 g
Packaging data
Low-profile bracket	Yes
Package width	392 mm
Package depth	198 mm
Package height	31 mm
Package weight	162 g
Mounting brackets included	Yes
Manual	Yes
Packaging content
Mounting brackets included	Yes
Manual	Yes
Low-profile bracket	Yes
Performance
Server operating systems supported	Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
Wake-on-LAN ready	Yes
Auto MDIX IEEE	Yes
Windows operating systems supported	Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 2000, Windows 2000 Professional, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows Vista x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Linux operating systems supported	Yes
Technical details
Harmonized System (HS) code	85176990
Sustainability compliance	Yes
Compliance certificates	CE, RoHS
Other features
Chipset	Intel® I350-AM4
Manual	Yes
Harmonized System (HS) code	85176990
Logistics data
Master (outer) case width	601 mm
Master (outer) case length	402 mm
Master (outer) case height	372 mm
Products per master (outer) case	80 pc(s)
Harmonized System (HS) code	85176990

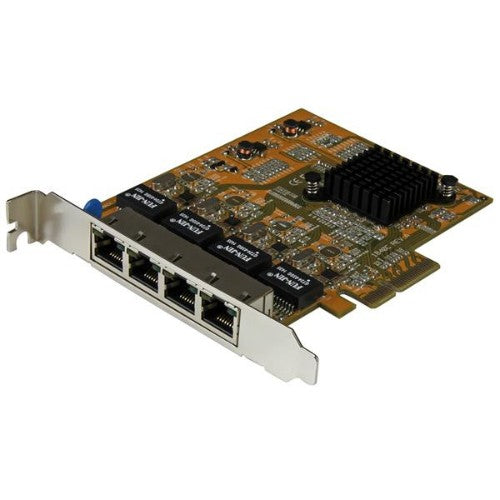

StarTech 4 Port PCIe Network Card - Standard Profile - RJ45 Port - Realtek RTL8111H Chipset - Ethernet Network Card - NIC Server Adapter Network Card , TAA (ST1000SPEX43)

Key Features

• Add four independent Gigabit RJ45 ports to connect to multiple networks for high-bandwidth workstations and servers
• Realtek RTL8111H chipset for reliable performance
• Supports full-duplex flow control
• Fully compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab networks
• Supports autonegotiation with next-page capacity
• Crossover detection and auto-correction (Auto-MDIX)
• Up to 9K jumbo frame support
• Support for IEEE 802.1Q VLAN tagging and IEEE 802.1P layer 2 priority encoding
• Microsoft NDIS5 checksum offload (IP, TCP, UDP) and large send offload support

Description

Add four Gigabit Ethernet ports to a client, server or workstation through one PCI Express slot

Now you can add four separate Gigabit network ports to your client, server or workstation through just one PCI Express slot, to provide connectivity to multiple networks without draining your budget.

Reliable connectivity to multiple networks

This 4-port network card delivers powerful connectivity for your business, corporate or government office environment, with support for high-performance, 4-channel networking and a maximum throughput of up to 1000Mbps in each direction (2000 Mbps total). The network adapter card features the Realtek RTL8111H chipset, which is designed to deliver the performance and enhanced capabilities you need for reliable network connections to your server or computer.

A versatile and cost-effective solution

This versatile quad-port network card is ideal for many business applications requiring upgrades to servers or workstations, adding feature-rich Gigabit networking with four independent ports. Compatible with a broad range of operating systems, this cost-effective PCIe Gigabit NIC is suitable for many SMB and Enterprise applications such as virtualized environments that require multiple NICs (check your VM software for chipset compatibility).

The ST1000SPEX43 is backed by a StarTech.com 2-year hardware warranty and free lifetime technical support.

Specifications

Ports & interfaces
Internal	Yes
Connectivity technology	Wired
Host interface	PCI Express
Interface	Ethernet
Ethernet LAN (RJ-45) ports	4
Bandwidth
Maximum data transfer rate	2000 Mbit/s
Full duplex	Yes
Network
Chipset	Realtek RTL8111G
Maximum data transfer rate	2000 Mbit/s
Ethernet LAN	Yes
Ethernet LAN data rates	10,1000,100 Mbit/s
Cabling technology	10/100/1000BaseT(X)
Networking standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Wake-on-LAN ready	Yes
Auto MDIX IEEE	No
Jumbo frames support	Yes
Full duplex	Yes
Flow control support	Yes
Design
Internal	Yes
Chipset	Realtek RTL8111G
LED indicators	Activity, Link
System requirements
Server operating systems supported	Windows Server 2003, Windows Server 2012, Windows Server 2016, Windows Server 2019
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Linux operating systems supported	Yes
Operational conditions
Operating temperature (T-T)	0 - 55 °C
Storage temperature (T-T)	-40 - 75 °C
Operating relative humidity (H-H)	5 - 95%
Weight & dimensions
Width	120 mm
Depth	138 mm
Height	18 mm
Weight	95 g
Package width	145 mm
Package depth	210 mm
Package height	41 mm
Package weight	184 g
Packaging data
Package width	145 mm
Package depth	210 mm
Package height	41 mm
Package weight	184 g
Performance
Server operating systems supported	Windows Server 2003, Windows Server 2012, Windows Server 2016, Windows Server 2019
Wake-on-LAN ready	Yes
Auto MDIX IEEE	No
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Linux operating systems supported	Yes
Technical details
Harmonized System (HS) code	85176990
Compliance certificates	CE, RoHS
Case colour	Yellow
Other features
Chipset	Realtek RTL8111G
Case colour	Yellow
Flow control support	Yes
Harmonized System (HS) code	85176990
Logistics data
Master (outer) case width	446 mm
Master (outer) case length	530 mm
Master (outer) case height	338 mm
Products per master (outer) case	50 pc(s)
Harmonized System (HS) code	85176990

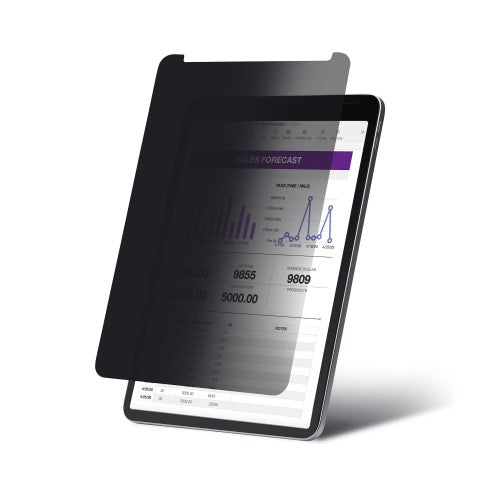

StarTech.com 4-Way Privacy Screen For 11-inch iPad Pro, For Portrait/Landscape Orientations, Touch-Enabled, +/- 30 Deg. View

Key Features

• PROTECT SENSITIVE VISUAL DATA: 4-way privacy screen for 11" iPad Pro featuring Micro-louver technology that obscures the view outside a 60-degree viewing angle; Keep confidential data private and prevent visual eavesdropping in public spaces or travel
• 11-INCH IPAD PRO: Designed to fit 11-inch iPad Pro display (up to 4th Gen, M3) without blocking the camera, sensors, or speakers; Screen protector with anti-glare matte finish; Compatibility note: Not compatible with 11-inch iPad Pro M4
• 4-WAY PRIVACY AND TOUCH SUPPORT: Security shield maintains privacy within a range of +/- 30 degrees from the center in portrait or landscape modes; Touch-enabled privacy filter ensures an interactive experience while safeguarding on-screen content
• SELF-ADHESIVE APPLICATION: Includes full installation kit and instructions for one-time application directly to the iPad screen for a secure and long-lasting fit
• REDUCE EYE STRAIN: iPad privacy screen protector blocks up to 51% of blue light, helping to reduce digital eye strain and improve visual comfort during prolonged use; 60% light transmittance for improved screen readability

Description

Prevent visual eavesdropping by limiting the viewing angle of an iPad screen

This 11-inch iPad Pro Privacy Screen smoothly transitions from a clear view to an obscured screen beyond the intended viewing angle, significantly enhancing visual privacy in office or public environments. The anti-glare matte finish helps to reduce reflections in glare-prone environments and provides additional screen protection with a scratch and fingerprint-resistant coating.

4-Way Privacy and Touch Support

The security filter ensures optimal privacy in portrait or landscape orientations when viewed beyond 30° from the center, covering a total visible area of 60°. It supports touchscreen input and gestures, preserving the interactive experience of an iPad while maintaining the confidentiality of on-screen content.

Installation

The screen protector is compatible with all generations of the 11" iPad Pro up to Gen 4/M3 and features a precise fit that does not interfere with the display, camera, or speakers. The included installation kit and step-by-step instructions allow for a one-time application to the iPad screen. Please note that due to the camera's repositioning to landscape orientation in newer models, this privacy filter is not compatible with the 11-inch iPad Pro M4 .

Blue Light Reduction

This Blue Light Reduction Privacy Shield reduces eye strain and improves visual comfort by blocking 40% - 51% of the blue light emitted from the display (in the 380nm - 480nm wavelength range). Symptoms of digital eye strain, such as headaches, dry eyes, and blurred vision, can be alleviated by using blue-light filtering privacy screens.

The StarTech.com Advantage

Specifications

Design
Maximum screen size	27.9 cm (11")
Screen size HxW	170 x 245 mm
Type	Frameless display privacy filter
Suitable for	Tablet
Filter colour	Black
Material	Plastic
Product colour	Black
Features
Privacy filtering orientation	Landscape & portrait
Installation type	Full adhesive
Display filter features	Anti-glare, Privacy
Display types supported	LCD
Compatibility	iPad Pro
Light transmission	60%
Cleaning cloth	Yes
Limits viewing angle	30°
Reduces blue light up to	51%
Blue light filter	Yes
Brand compatibility	Apple
Ergonomics
Maximum screen size	27.9 cm (11")
Screen size HxW	170 x 245 mm
Compatibility	iPad Pro
Weight & dimensions
Weight	43 g
Package width	390 mm
Package depth	245 mm
Package height	6 mm
Package weight	140 g
Packaging data
Package width	390 mm
Package depth	245 mm
Package height	6 mm
Package weight	140 g
Logistics data
Master (outer) case width	440 mm
Master (outer) case length	280 mm
Master (outer) case height	200 mm
Products per master (outer) case	25 pc(s)

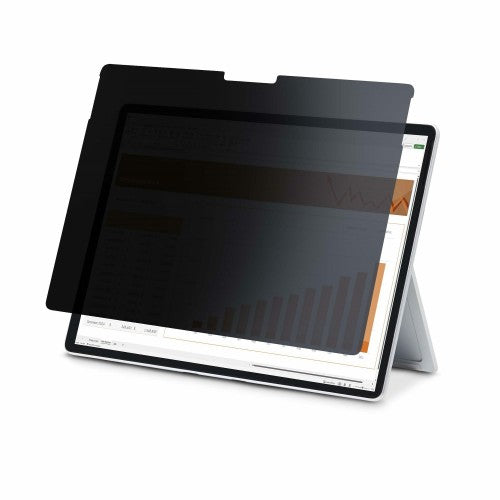

StarTech 4-Way Privacy Screen For 13-inch Surface Pro 8/9/X/11 Laptop, Portrait/Landscape, Touch-Enabled, +/- 30 Deg. View

Key Features

• PROTECT SENSITIVE VISUAL DATA: 4-way privacy screen for 13" Surface Pro laptop featuring Micro-louver technology that obscures the view outside a 60-degree viewing angle; Keep confidential data private and prevent visual eavesdropping in public spaces or travel
• FOR 13-INCH SURFACE PRO: Privacy shield designed to fit 13-inch Surface Pro 8, 9, 11 and X models; Exact fit will not interfere with the camera, sensors around the display, or speakers; Screen protector with anti-glare matte finish
• 4-WAY PRIVACY AND TOUCH SUPPORT: Security shield maintains privacy within a range of +/- 30 degrees from the center in both portrait and landscape modes; Touch-enabled privacy filter ensures an interactive experience while safeguarding on-screen content
• SELF-ADHESIVE APPLICATION: Includes full installation kit and instructions for one-time application directly to the computer screen for a secure and long-lasting fit
• REDUCE EYE STRAIN: Surface privacy screen protector blocks up to 51% of blue light, helping to reduce digital eye strain and improve visual comfort during prolonged use; 60% light transmittance for improved screen readability

Description

Prevent visual eavesdropping by limiting the viewing angle of a Surface Pro screen

This Privacy Screen for 13-inch Surface Pro 8, 9, X and 11 models smoothly transitions from a clear view to an obscured screen beyond the intended viewing angle, significantly enhancing visual privacy in office or public environments. The anti-glare matte finish helps to reduce reflections in glare-prone environments and provides additional screen protection with a scratch and fingerprint-resistant coating.

4-Way Privacy and Touch Support

The security filter ensures optimal privacy in portrait or landscape orientations when viewed beyond 30° from the center, covering a total visible area of 60°. It supports touchscreen input and gestures, preserving the interactive experience of an Surface Pro laptop while maintaining the confidentiality of on-screen content.

Installation

The screen protector is compatible with the 13" Surface Pro 8, 9, X and 11 models and features a precise fit that does not interfere with the display, camera, or speakers. The included installation kit and step-by-step instructions allow for a one-time application to the computer screen.

Blue Light Reduction

This Blue Light Reduction Privacy Shield reduces eye strain and improves visual comfort by blocking 40% - 51% of the blue light emitted from the display (in the 380nm - 480nm wavelength range). Symptoms of digital eye strain, such as headaches, dry eyes, and blurred vision, can be alleviated by using blue-light filtering privacy screens.

Specifications

Design
Maximum screen size	33 cm (13")
Type	Frameless display privacy filter
Suitable for	Laptop
Material	Plastic
Features
Storage folder	Yes
Privacy filtering orientation	Landscape & portrait
Display filter features	Anti-blue, Anti-glare, Privacy
Display types supported	LCD
Compatibility	Surface Pro 8/9/X
Light transmission	60%
Cleaning cloth	Yes
Limits viewing angle	30°
Reduces blue light up to	51%
Blue light filter	Yes
Brand compatibility	Microsoft
Ergonomics
Maximum screen size	33 cm (13")
Compatibility	Surface Pro 8/9/X
Weight & dimensions
Depth	204 mm
Width	283 mm
Height	0.4 mm
Weight	100 g
Package width	388 mm
Package depth	243 mm
Package height	12 mm
Package weight	184 g
Packaging data
Package width	388 mm
Package depth	243 mm
Package height	12 mm
Package weight	184 g
Logistics data
Master (outer) case width	455 mm
Master (outer) case length	292 mm
Master (outer) case height	212 mm
Products per master (outer) case	25 pc(s)

StarTech.com 4K USB-C Dock, Triple UHD 4K Monitor Docking Station, Mac/Windows, HDMI & DisplayPort, 100W PD, 5x USB 5Gbps Hub, TAA

Key Features

• FULL-FEATURED DOCK: USB-C Dock with 3 video outputs (2x DP & 1x HDMI), 100W Power Delivery, 4x USB-A & 1x USB-C 5Gbps Hub, Gigabit Ethernet, headset + separate speaker/mic audio ports, K-Slot & 1m/3.3ft USB-C cable; Includes DisplayLink Update Utility
• TRIPLE DISPLAY ON MACBOOK AIR: Enable three external displays on Apple MacBook Air/Pro (base M-Series) laptops that natively only support one; Dual or Triple video connectivity w/ DisplayPort or HDMI ports; Driver installation required on Windows/macOS
• WORKS WITH ANY LAPTOP: Simplify your deployment with a USB-IF, VESA & DisplayLink compliant docking station that offers optimal performance and universal compatibility with any laptop (Windows, macOS and Ubuntu) or Chromebook (ChromeOS)
• UNIVERSAL USB-C & USB-A FUNCTIONALITY: Also connects to USB-A laptops with a USB-C to A cable adapter (USB315AC1M, sold separately); Note: Power Delivery to charge your laptop is not available through USB-A, and only dual display is supported
• IT-PRO ADVANTAGES: Included connectivity tools for IT Pros and IT help-desk support teams with Network MAC Address Pass-Through for network security, WiFi Auto Switching for improved network performance, USB Event Monitoring, and Windows Layout

Description

Laptop Docking Station | Mac, Windows® & Chrome OS™ | 2x 4K 60Hz DP + HDMI

This triple-4K dock for Mac, Windows and Chrome USB-C laptops helps you take productivity to a whole new level. With three 4K video connections, 100W Power Delivery, and 5x USB 3.0 ports, the USB-C dock is perfect for your MacBook, Dell XPS, Chromebook or other USB-C laptop requiring additional ports.

You can also connect the dock to your USB 3.0 laptop through a USB-A port, using a USB-C to A cable, such as the USB315AC1M(sold separately). Note: Power Delivery to charge your laptop is not available through USB-A, and only dual display is supported.

Enhance Productivity

The 4K USB-C docking station lets you create a three-monitor Ultra HD workstation. Connect:

• 2x 4K DisplayPort (DisplayLink) at 4096 x 2160 resolution @ 60Hz / 3840 x 2160 @ 60Hz and
• 1x 4K HDMI (DP Alt Mode) at 4096 x 2160 resolution @ 24Hz / 3840 x 2160 @ 30Hz

For high-resolution applications, you can connect the dock to a 5K display at 60Hz, using the two DisplayPort ports.

100W Power Delivery

Using a single cable, the USB-C dock will power and charge power-hungry laptops, with up to 100W Power Delivery, and power your peripherals with its 150W power adapter.

Powerful Connections

This triple-monitor docking station lets you transform your laptop into a full-sized workstation. It gives you five USB 3.0 ports (1x USB Type-C and 4x USB Type-A incl. 1x Fast-Charge port), a Gigabit Ethernet port, headset jack, and separate 3.5 mm audio and microphone ports.

Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application

Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:

•

Advanced Windows Layout Utility : To setup and save custom windows layouts.

•

Mac Address Pass-Through Utility : To improve network security.

•

USB Event Monitoring Utility : To track and log connected USB devices

•

Wi-Fi Auto Switch Utility : Enabling users to quickly access faster network speeds via wired LAN.

For more information and to download the StarTech.com Connectivity Tools application, please visit: www.StarTech.com/Connectivity-Tools

The TAA compliant DK30CH2DEP is backed by a StarTech.com 3-year warranty and free lifetime technical support.

The StarTech.com Advantage

Specifications

Ports & interfaces
Combo headphone/mic port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	2
Connectivity technology	Wired
USB 2.0 ports quantity	0
Host interface	USB 3.2 Gen 1 (3.1 Gen 1) Type-C
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
DisplayPorts quantity	2
Microphone in	Yes
Headphone outputs	2
Headphone connectivity	3.5 mm
DC-in jack	Yes
Network
Full duplex	Yes
Auto MDI/MDI-X	Yes
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	1
Performance
UASP support	Yes
Maximum digital resolution	5120 x 2880 pixels
Full duplex	Yes
Auto MDI/MDI-X	Yes
Product colour	Black, Silver
On/off switch	Yes
Cable lock slot	Yes
Data transfer rate	5 Gbit/s
Certification	FCC, TAA, CE, REACH
Housing material	Plastic
Power
Compatible power plug types	AU, JP, US
Input current	2.5 A
Power plug type	Type N
AC input voltage	100 - 240 V
Output voltage	20 V
Output current	7.5 A
Power supply	100 W
Software
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.9 Mavericks, Mac OS X 13.0 Ventura
Mac compatibility	Yes
Other operating systems supported	ChromeOS
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 70%
Weight & dimensions
Width	82 mm
Depth	270 mm
Height	34 mm
Weight	382 g
Package width	160 mm
Package depth	320 mm
Package height	80 mm
Package weight	1.65 kg
Design
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.9 Mavericks, Mac OS X 13.0 Ventura
Product colour	Black, Silver
Cable lock slot	Yes
Certification	FCC, TAA, CE, REACH
Packaging data
Package width	160 mm
Package depth	320 mm
Package height	80 mm
Package weight	1.65 kg
Packaging content
Manual	Yes
Cables included	USB Type-C
AC adapter included	Yes
Anti-slip pads	Yes
Technical details
Compliance certificates	RoHS
Products per master (outer) case	8 pc(s)
Master (outer) case width	365 mm
Master (outer) case length	370 mm
Master (outer) case height	370 mm
Logistics data
Products per master (outer) case	8 pc(s)
Master (outer) case width	365 mm
Master (outer) case length	370 mm
Master (outer) case height	370 mm
Other features
Chipset	DisplayLink - DL-6950, Genesys Logic - GL3523, Genesys Logic - GL3523S, Texas Instruments - TPS65982, Parade Technologies - PS176

StarTech.com 4K USB-C Dock, Triple UHD 4K Monitor Docking Station, Mac/Windows, HDMI & DisplayPort, 60W PD, 5x USB 5Gbps Hub, TAA

Key Features

• FULL-FEATURED DOCK: USB-C Dock with 3 video outputs (2x DP & 1x HDMI), 60WPower Delivery, 4x USB-A & 1x USB-C 5Gbps Hub, Gigabit Ethernet, headset + separate speaker/mic audio ports, K-Slot & 1m/3.3ft USB-C cable; Includes DisplayLink Update Utility
• TRIPLE DISPLAY ON MACBOOK AIR: Enable three external displays on Apple MacBook Air/Pro (base M-Series) laptops that natively only support one; Dual or Triple video connectivity w/ DisplayPort or HDMI ports; Driver installation required on Windows/macOS
• WORKS WITH ANY LAPTOP: Simplify your deployment with a USB-IF, VESA & DisplayLink compliant docking station that offers optimal performance and universal compatibility with any laptop (Windows, macOS and Ubuntu) or Chromebook (ChromeOS)
• UNIVERSAL USB-C & USB-A FUNCTIONALITY: Also connects to USB-A laptops with a USB-C to A cable adapter (USB315AC1M, sold separately); Note: Power Delivery to charge your laptop is not available through USB-A, and only dual display is supported
• IT-PRO ADVANTAGES: Included connectivity tools for IT Pros and IT help-desk support teams with Network MAC Address Pass-Through for network security, WiFi Auto Switching for improved network performance, USB Event Monitoring, and Windows Layout

Description

Laptop Docking Station | Mac & Windows® | 60W Power Delivery| 4K 60 DP + HDMI

This TAA compliant 4K USB-C™ dock for Mac and Windows® laptops takes productivity to a whole new level, with support for triple 4K monitors - a first in the market. The USB Type-C dock provides 60W charging power, and 5x USB 3.0 ports to connect your peripheral devices. It’s the perfect accessory for your Dell™ XPS 15, Chromebook Pixel™, or another USB-C enabled PC laptop.

The dock also connects to USB 3.0 laptops with a USB-A port (using a USB-C to A cable such as the USB315AC1M, sold separately).

Note: Power Delivery to charge your laptop is not available through USB-A, and only dual display is supported.

Enhance Productivity

The 4K USB-C Dock for Mac and Windows lets you create a three-monitor Ultra HD workstation. Connect:

2x 4K DisplayPort (DisplayLink) at 4096 x 2160 resolution / 3840 x 2160 @ 60Hz and

1x 4K HDMI (DP Alt Mode) at 4096 x 2160 resolution @ 24Hz / 3840 x 2160 @ 30Hz

For high-resolution applications, the universal laptop docking station can also connect to a 5K display (5120 x 2880 resolution) at 60Hz, by connecting the two DisplayPort ports to a single 5K display.

Powerful Connections

This triple-monitor docking station lets you connect your peripherals to transform your laptop into a full-sized workstation. With five USB 3.0 ports (1x USB Type-C and 4x USB Type-A incl 1x Fast-Charge port), a Gigabit Ethernet port, headset jack and separate 3.5 mm audio and microphone ports, you have all the connections you need for maximum performance.

60W Power Delivery

Using a single cable, the USB-C docking station with Power Delivery (up to 60W) will power and charge your laptop, and power your peripherals with its 120W power adapter.

The DK30CH2DPPD is backed by a StarTech.com 3-year warranty and free lifetime technical support.

The StarTech.com Advantage

Specifications

Ports & interfaces
Combo headphone/mic port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	2
Connectivity technology	Wired
USB 2.0 ports quantity	0
Host interface	USB 3.2 Gen 1 (3.1 Gen 1) Type-C
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
DisplayPorts quantity	2
Number of microphone inputs	1
Microphone in	Yes
Headphone outputs	1
Headphone connectivity	3.5 mm
DC-in jack	Yes
Network
Full duplex	Yes
Auto MDI/MDI-X	Yes
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Ethernet LAN (RJ-45) ports	1
Performance
UASP support	Yes
Maximum digital resolution	4096 x 2160 pixels
Full duplex	Yes
Auto MDI/MDI-X	Yes
Product colour	Black, Silver
On/off switch	Yes
Card reader integrated	No
Brand compatibility	Any brand
Cable lock slot	Yes
Data transfer rate	5 Gbit/s
Certification	CE, FCC, TAA, REACH
Housing material	Plastic
Storage
Card reader integrated	No
Power
Compatible power plug types	AU, JP
Input current	2 A
Power plug type	Type N
AC input voltage	100 - 240 V
Output voltage	20 V
Output current	6 A
Power supply	60 W
Software
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64
Mac operating systems supported	Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 13.0 Ventura
Mac compatibility	Yes
Other operating systems supported	ChromeOS
Operational conditions
Operating temperature (T-T)	0 - 60 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 95%
Weight & dimensions
Width	82 mm
Depth	270 mm
Height	34 mm
Weight	385 g
Package width	161 mm
Package depth	296 mm
Package height	71 mm
Package weight	1.4 kg
Design
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64
Mac operating systems supported	Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 13.0 Ventura
Product colour	Black, Silver
Cable lock slot	Yes
Certification	CE, FCC, TAA, REACH
Packaging data
Package width	161 mm
Package depth	296 mm
Package height	71 mm
Package weight	1.4 kg
Packaging content
Manual	Yes
Cables included	USB Type-C
AC adapter included	Yes
Technical details
Compliance certificates	RoHS
Products per master (outer) case	10 pc(s)
Master (outer) case width	318 mm
Master (outer) case length	370 mm
Master (outer) case height	382 mm
Logistics data
Products per master (outer) case	10 pc(s)
Master (outer) case width	318 mm
Master (outer) case length	370 mm
Master (outer) case height	382 mm
Other features
Number of microphone inputs	1
Chipset	DisplayLink - DL-6950, Genesys Logic - GL3523, Texas Instruments - TPS65982, Parade Technologies - PS176

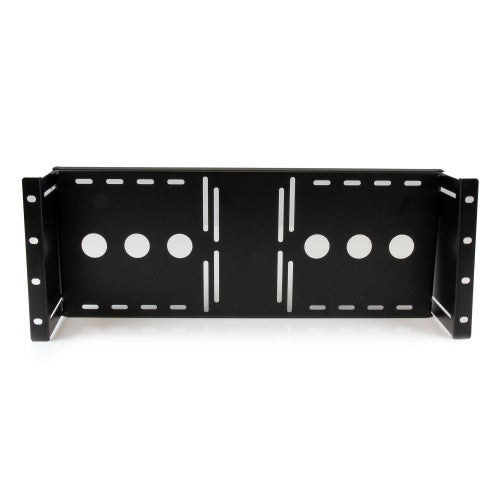

StarTech 4U Universal VESA LCD Monitor Mounting Bracket for 19-inch Rack or Cabinet - TAA Compliant - Cold-Pressed Steel Bracket (RKLCDBK)

Key Features

• STURDY DESIGN: The LCD mounting bracket made of solid cold pressed steel (SPCC), is designed to support 100mm & 75mm VESA mounted LCD panels, and meets ANSI/EIA RS-310-D standards rack mounting
• ADJUSTABLE DEPTH: A unique adjustable design enables an LCD panel to be mounted into the AV rack cabinet at various depths, allowing the rack/cabinet door to be closed
• ADDED FUNCTIONALITY: The rackmount monitor bracket supports wall-mounted LCD installations by inverting or adding this bracket to a wall mount bracket or rack, such as the 6U Wall mount Bracket
• TAA COMPLIANT: This TAA compliant Universal VESA LCD Monitor Mounting Bracket adheres to the requirements of the US Federal Trade Agreements Act (TAA), allowing government GSA Schedule purchases
• THE IT PRO'S CHOICE: Designed and built for IT Professionals, this LCD mounting bracket is backed for life, including free lifetime 24/5 multi-lingual technical assistance

Description

Mount a 17-19 inch LCD panel into a standard 19 inch rack/cabinet

The RKLCDBK Universal VESA LCD Monitor Mounting Bracket for 19in Rack or Cabinet lets you mount almost any retail LCD or Touch screen panel into a server/storage rack/cabinet. This TAA compliant product adheres to the requirements of the US Federal Trade Agreements Act (TAA), allowing government GSA Schedule purchases.

The LCD mounting bracket is made of solid cold pressed steel (SPCC), is designed to support 100mm and 75mm VESA mounted LCD panels, and meets ANSI/EIA RS-310-D standards rack mounting. A unique adjustable design enables an LCD panel to be mounted into the cabinet at various depths - allowing the rack/cabinet door to be closed.

The LCD mounting bracket also supports wall-mounted LCD installation, by inverting the adjustable bracket or by adding this bracket to a wall mount bracket or rack, such as the 6U (10 inch) Wallmount Bracket for 19" Rack Equipment (WALLMOUNT6) or 8U Open Frame Wall Mount Equipment Rack (RK812WALLO).

Backed by a StarTech.com Lifetime warranty.

Specifications

Features
Type	Mounting bracket
Rack capacity	4U
Product colour	Black
Certification	CE, REACH, TAA
Compliance industry standards	EIA RS310-D
Harmonized System (HS) code	85389099
Housing material	Steel
Weight & dimensions
Package width	469 mm
Package depth	201 mm
Package height	53 mm
Package weight	2 kg
Width	842 mm
Weight	1.7 kg
Mounting depth (min)	0 mm
Mounting depth (max)	8.89 cm
Height	177 mm
Depth	107.5 mm
Packaging data
Package width	469 mm
Package depth	201 mm
Package height	53 mm
Package weight	2 kg
Packaging content
Screws included	Yes
Mounting kit	Yes
Nuts included	Yes
Number of screws	16
Number of nuts	8
Quick installation guide	Yes
Screw type	M5, M4
Washers included	Yes
Number of washers included	4
Technical details
Harmonized System (HS) code	85389099
Compliance certificates	RoHS
Logistics data
Master (outer) case width	524 mm
Master (outer) case length	187 mm
Master (outer) case height	590 mm
Products per master (outer) case	156 pc(s)
Harmonized System (HS) code	85389099
