Collection: Products

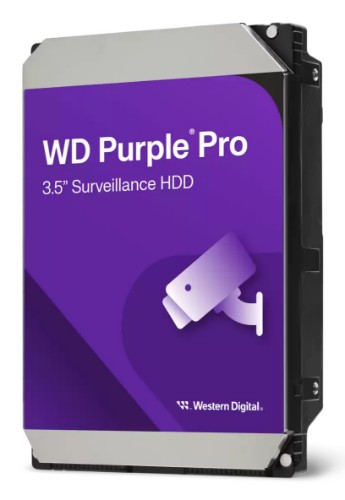

WD Purple Pro, SATA, 3.5", up to 272MB/s, 7200 RPM

Key Features

• Engineered for advanced AI-enabled recorders, video analytics appliances, deep-learning servers, and cloud-based storage, including RAID and JBOD
• Designed with tarnish-resistant components for harsh environments and with additional robustness for multi-bay enclosures
• Supports up to 550TB/yr workload rate
• Compatibility
• Up to 64 single-stream cameras

Description

Advanced Storage for Smart Video Solutions

WD Purple Pro drives are designed for advanced AI-enabled recorders, video analytics servers and deep learning solutions requiring additional capacity, performance and workload capability.

Purpose-built storage for your smart video solution
The WD Purple™ Pro HDD, with OptiNAND™ technology in 24TB1, delivers big capacity in an enterprise-class drive for video analytics servers, AI, and deep learning systems to enable data-driven outcomes.

Western Digital's exclusive AllFrame™ AI technology
AllFrame AI technology supports up to 32 AI streams for deep learning analytics within the system while reducing frame drops.

Multiple cameras, multiple streams
WD Purple™ Pro drives are optimized to handle up to 64 single-stream HD cameras2 in addition to 32 concurrent AI streams. This flexibility allows you to easily upgrade and scale your smart video solution to meet your changing needs.

Advanced workload capability for advanced systems
These reliable drives are built with a workload rating up to 550TB/year3 to keep up with the 24/7 data capture and analysis demands of advanced AI-enabled recorders, video analytics appliances, and deep learning analytics servers.

Designed for reliable operation
Engineered with an MTBF of up to 2.5 million hours4 and backed with a 5-year limited warranty, the WD Purple™ Pro HDD also features tarnish-resistant components and full multi-bay support for dependable operation in large-scale surveillance systems.

Proactive storage management with WDDA™
Western Digital Device Analytics™ (WDDA) provides drive health management features for compatible recorders and video management systems.

Specifications

Hard drive
Component for	Server/workstation
HDD size	3.5"
HDD capacity	12 TB
HDD average transfer rate	272 MB/s
HDD speed	7200 RPM
Interface	Serial ATA III
Mean time between failures (MTBF)	2500000 h
Certification	BSMI, ICES-003/NMB-003, CE, FCC, KC, Maghreb, RCM, UKCA, VCCI, CB-Scheme, TUV, UL
Storage drive buffer size	512 MB
Features
Type	HDD
Component for	Server/workstation
HDD size	3.5"
HDD capacity	12 TB
HDD average transfer rate	272 MB/s
HDD speed	7200 RPM
Interface	Serial ATA III
Mean time between failures (MTBF)	2500000 h
Certification	BSMI, ICES-003/NMB-003, CE, FCC, KC, Maghreb, RCM, UKCA, VCCI, CB-Scheme, TUV, UL
Storage drive buffer size	512 MB
Operational conditions
Operating temperature (T-T)	5 - 65 °C
Storage temperature (T-T)	-40 - 70 °C
Technical details
Quantity per pack	1 pc(s)
Weight & dimensions
Width	101.6 mm
Height	26.1 mm
Depth	147 mm
Weight	750 g
Packaging data
Quantity per pack	1 pc(s)
Other features
Interface	Serial ATA III
Certification	BSMI, ICES-003/NMB-003, CE, FCC, KC, Maghreb, RCM, UKCA, VCCI, CB-Scheme, TUV, UL

2TB, WD Red Plus NAS Hard Drive 3.5-Inch

Description

Tackle intensity with a WD Red™ Plus Hard Drive

Packed with power to handle the small- to medium-sized business NAS environments and increased workloads1 for SOHO customers, WD Red™ Plus is ideal for archiving and sharing, as well as RAID array rebuilding on systems using ZFS and other file systems. Built and tested for up to 8-bay NAS systems, these drives give you the flexibility, versatility, and confidence in storing and sharing your precious home and work files.

For Small or Medium Businesses
Stream, backup, share, and organize your digital content with a NAS and WD Red™ Plus drives designed to effortlessly share content with the devices at your home or business. NASware™ technology increases your drives’ compatibility with your existing network and devices. For larger businesses with up to 24 bays, count on WD Red™ Pro drives to deliver exceptional performance.

Exclusive NASware
Not just any drive will do. Get up to 112TB of capacity in your 8-bay NAS system and with Western Digital's exclusive NASware technology, you can optimize each and every drive. Built into every WD Red™ hard drive, NASware advanced technology improves storage performance by increasing compatibility, integration, upgradeability, and reliability.

Built for Optimum NAS Compatibility
WD Red™ Plus drives with NASware™ technology takes the guesswork out of selecting a drive. Optimized for NAS systems, our unique algorithm balances performance and reliability in NAS and RAID environments. Simply put, a WD Red™ Plus drive is one of the most compatible drives available for NAS enclosures. But don’t take our word for it. WD Red™ Plus drives are a reflection of extensive NAS partner technology engagement and compatibility-testing.

WD Red™ Pro for Big Business
If you’re looking for heavy-duty performance for NAS, WD Red™ Pro NAS hard drives deliver exceptional performance for medium to large business customers with extreme demands. For NAS environments with 9 to 24 bays, WD Red™ Pro drives deliver uncompromising performance and unwavering assurance backed by a 5-year limited warranty.

3D Active Balance Plus
Our enhanced dual-plane balance control technology significantly improves the overall drive performance and reliability. Hard drives that are not properly balanced may cause excessive vibration and noise in a multi-drive system, reduce the hard drive life span, and degrade the performance over time.

24/7 Environment
Since your NAS system is always on, a reliable drive is essential. With an MTBF of up to 1 million hours, the WD Red™ Plus drive is engineered to tackle 24x7 environments.

Premium Support and a 3-year Limited Warranty
Confidently upgrade your NAS performance with the assurance of a 3-year limited warranty, coupled with world-class support services included with every WD Red™ Plus drive.

Specifications

Hard drive
Component for	NAS
HDD size	3.5"
HDD capacity	2 TB
HDD speed	5400 RPM
Interface	Serial ATA
Start/stop cycles	600000
Hot-swap	Yes
HDD sustained transfer rate	150 MiB/s
HDD interface transfer rate	6 Gbit/s
Mean time between failures (MTBF)	1000000 h
Storage drive buffer size	64 MB
Features
Type	HDD
Component for	NAS
HDD size	3.5"
HDD capacity	2 TB
HDD speed	5400 RPM
Interface	Serial ATA
Start/stop cycles	600000
Hot-swap	Yes
HDD sustained transfer rate	150 MiB/s
HDD interface transfer rate	6 Gbit/s
Mean time between failures (MTBF)	1000000 h
Storage drive buffer size	64 MB
Power
Power consumption (standby)	0.4 W
Power consumption (write)	3.3 W
Power consumption (read)	3.3 W
Power consumption (idle)	2.3 W
Start-up current	1.2 A
Operating voltage	5 / 12 V
Operational conditions
Operating temperature (T-T)	0 - 65 °C
Storage temperature (T-T)	-40 - 70 °C
Operating shock	30 G
Non-operating shock	350 G
Technical details
Quantity per pack	1 pc(s)
Weight & dimensions
Width	101.6 mm
Height	26.1 mm
Depth	147 mm
Weight	450 g
Packaging data
Quantity per pack	1 pc(s)
Other features
Interface	Serial ATA

8 TB, 3.5", SATA3, 5640 RPM, 128 MB Cache, CMR

Description

Tackle Intensity with WD Red™ Plus
Packed with power to handle the small- to medium-sized business NAS environments and increased workloads1 for SOHO customers, WD Red™ Plus is ideal for archiving and sharing, as well as RAID array rebuilding on systems using ZFS and other file systems. Built and tested for up to 8-bay NAS systems, these drives give you the flexibility, versatility, and confidence in storing and sharing your precious home and work files.

For Small or Medium Businesses
Stream, backup, share, and organize your digital content with a NAS and WD Red™ Plus drives designed to effortlessly share content with the devices at your home or business. NASware™ 3.0 technology increases your drives’ compatibility with your existing network and devices. For larger businesses with up to 24 bays, count on WD Red™ Pro drives to deliver exceptional performance.

Exclusive NASware 3.0
Not just any drive will do. Get up to 112TB of capacity in your 8-bay NAS system and with Western Digital's exclusive NASware 3.0 technology, you can optimize each and every drive. Built into every WD Red™ Plus hard drive, NASware 3.0’s advanced technology improves storage performance by increasing compatibility, integration, upgradeability, and reliability.

Built for Optimum NAS Compatibility
WD Red™ Plus drives with NASware™ technology takes the guesswork out of selecting a drive. Optimized for NAS systems, our unique algorithm balances performance and reliability in NAS and RAID environments. Simply put, a WD Red™ Plus drive is one of the most compatible drives available for NAS enclosures. But don’t take our word for it. WD Red™ Plus drives are a reflection of extensive NAS partner technology engagement and compatibility-testing.

WD Red™ Pro for Big Business
If you’re looking for heavy duty performance for NAS, WD Red™ Pro drives deliver exceptional performance for the medium to large business customer with extreme demands. For NAS environments with 9 to 24 bays, WD Red™ Pro drives deliver uncompromising performance and unwavering assurance backed by a 5-year limited warranty.

3D Active Balance Plus
Our enhanced dual-plane balance control technology significantly improves the overall drive performance and reliability. Hard drives that are not properly balanced may cause excessive vibration and noise in a multi-drive system, reduce the hard drive life span, and degrade the performance over time.

24/7 Environment
Since your NAS system is always on, a reliable drive is essential. With an MTBF of up to 1 million hours, the WD Red™ Plus drive is engineered to tackle 24x7 environments.

Desktop Drives vs. WD Red™ Plus
Do right by your NAS and choose the drive purpose-built for NAS with an array of features to help preserve your data and maintain optimum performance. Take the following into consideration when choosing a hard drive for your NAS:
- Compatibility: Unlike desktop drives, these drives are specifically tested for compatibility with NAS systems for optimum performance.
- Reliability: The always-on environment of a NAS or RAID is a hot one, and desktop drives aren’t typically designed and tested under those conditions like WD Red™ Plus drives are.
- Error Recovery Controls: WD Red™ Plus NAS hard drives are specifically designed with RAID error recovery control to help reduce failures within the NAS system.
- Noise and Vibration Protection: Designed to operate solo, desktop drives typically offer little or no protection from the noise and vibration present in a multi-drive system. WD Red™ Plus drives are designed to thrive in multi-bay NAS system environments.

Specifications

Hard drive
Component for	NAS
HDD size	3.5"
HDD capacity	8 TB
Workload rate limit	180 TB/year
HDD speed	5640 RPM
Interface	Serial ATA III
HDD interface transfer rate	6 Gbit/s
Mean time between failures (MTBF)	1000000 h
Storage drive buffer size	256 MB
Features
Type	HDD
Component for	NAS
HDD size	3.5"
HDD capacity	8 TB
Workload rate limit	180 TB/year
HDD speed	5640 RPM
Interface	Serial ATA III
HDD interface transfer rate	6 Gbit/s
Mean time between failures (MTBF)	1000000 h
Storage drive buffer size	256 MB
Noise level (idle)	25 dB
Power
Power consumption (standby)	0.4 W
Power consumption (write)	6.2 W
Power consumption (read)	6.2 W
Power consumption (idle)	4.1 W
Operational conditions
Operating temperature (T-T)	0 - 65 °C
Storage temperature (T-T)	-40 - 70 °C
Non-operating shock	250 G
Technical details
Harmonized System (HS) code	84717050
Compliance certificates	RoHS
Weight & dimensions
Width	101.6 mm
Height	26.1 mm
Depth	147 mm
Weight	750 g
Logistics data
Harmonized System (HS) code	84717050
Other features
Interface	Serial ATA III
Compliance certificates	RoHS

22 TB, 3.5", SATA 6 Gb/s, 7200 RPM, CMR

Description

WD Red™ Pro NAS HDD. For the Demands of Big Business.
Designed specifically with medium or large scale business customers in mind, WD Red™ Pro NAS HDDs are available for up to 24-bay NAS systems. Engineered to handle high-intensity workloads in 24x7 environments, WD Red™ Pro is ideal for archiving and sharing, as well as RAID array rebuilding on extended operating systems such as ZFS or other file systems. These drives add value to your business by enabling your employees to quickly share their files and back-up folders reliably in your NAS solution.

Exclusive NASware™ 3.0 Technology
Our exclusive advanced firmware technology, NASware™ 3.0, enables seamless integration, robust data protection and optimal performance for NAS systems operating under heavy demand. Built into every WD Red™ Pro hard drive, NASware 3.0’s advanced technology improves storage performance by increasing compatibility, integration, upgradeability, and reliability.

Built for Optimum NAS Compatibility
WD Red™ Pro drives with NASware™ technology takes the guesswork out of selecting a drive. Optimized for NAS systems, our unique algorithm balances performance and reliability in NAS and RAID environments. Simply put, a WD Red™ Pro drive is one of the most compatible drives available for NAS enclosures. But don’t take our word for it. WD Red™ Pro drives are a reflection of extensive NAS partner technology engagement and compatibility-testing.

Larger NAS Bay Shock Protection
WD Red™ Pro NAS HDDs are equipped with a multi-axis shock sensor that automatically detects subtle shock events and dynamic fly height technology which adjusts each read-write function to compensate and protect the data. This combination of technology further protects the drives in larger 24-bay NAS environments and helps increase hard drive reliability.

3D Active Balance Plus
Our enhanced dual-plane balance control technology significantly improves the overall drive performance and reliability. Hard drives that are not properly balanced may cause excessive vibration and noise in a multi-drive system, reduce the hard drive life span, and degrade the performance over time.

Error Recovery Prevention
Built specifically for RAID and NAS environments, WD Red™ Pro NAS HDDs come equipped with error recovery controls as part of NASware™ 3.0 technology to help reduce drive fallout in RAID applications.

Extended Drive Testing
A NAS environment that has up to 24 bays is very demanding on a hard drive with added vibration and heat. This is why every WD Red™ Pro drive is shipped with extended thermal cycle burn-in testing to help ensure each drive is tested for extended reliable operation.

Longer Warranty Coverage
WD Red™ Pro NAS hard drives comes with a 5-year limited warranty for an even greater peace of mind.

Desktop drives vs. WD Red™ Pro
Do right by your NAS and choose the drive purpose-built for NAS with an array of features to help preserve your data and maintain optimum performance. Take the following into consideration when choosing a hard drive for your NAS:
- Compatibility: Unlike desktop drives, these drives are specifically tested for compatibility with NAS systems for optimum performance.
- Reliability: The always-on environment of a NAS or RAID is a hot one, and desktop drives aren’t typically designed and tested under those conditions like WD Red™ Pro drives are.
- Error Recovery Controls: WD Red™ Pro NAS hard drives are specifically designed with RAID error recovery control to help reduce failures within the NAS system.
- Noise and Vibration Protection: Designed to operate solo, desktop drives typically offer little or no protection from the noise and vibration present in a multi-drive system. WD Red™ Pro drives are designed to thrive in multi-bay NAS system environments.

Specifications

Hard drive
Component for	NAS
HDD size	3.5"
HDD capacity	22 TB
Workload rate limit	300 TB/year
HDD speed	7200 RPM
Interface	Serial ATA III
Start/stop cycles	600000
Hot-swap	No
HDD interface transfer rate	6 Gbit/s
Mean time between failures (MTBF)	1000000 h
Storage drive buffer size	512 MB
Features
Type	HDD
Component for	NAS
HDD size	3.5"
HDD capacity	22 TB
Workload rate limit	300 TB/year
HDD speed	7200 RPM
Interface	Serial ATA III
Start/stop cycles	600000
Native Command Queuing (NCQ)	Yes
Hot-swap	No
HDD interface transfer rate	6 Gbit/s
Mean time between failures (MTBF)	1000000 h
Storage drive buffer size	512 MB
Error Recovery Control (ERC)	Yes
Shock sensor	Yes
Advanced Format (AF)	Yes
24/7 operation	Yes
Noise level (idle)	20 dB
Power
Power consumption (standby)	1.2 W
Power consumption (idle)	3.4 W
Operational conditions
Operating temperature (T-T)	0 - 65 °C
Storage temperature (T-T)	-40 - 70 °C
Operating shock	40 G
Non-operating shock	200 G
Technical details
Quantity per pack	1 pc(s)
Harmonized System (HS) code	84717050
Compliance certificates	RoHS
Weight & dimensions
Width	101.6 mm
Height	26.1 mm
Depth	147 mm
Weight	670 g
Packaging data
Quantity per pack	1 pc(s)
Logistics data
Harmonized System (HS) code	84717050
Other features
Interface	Serial ATA III
Native Command Queuing (NCQ)	Yes
Compliance certificates	RoHS

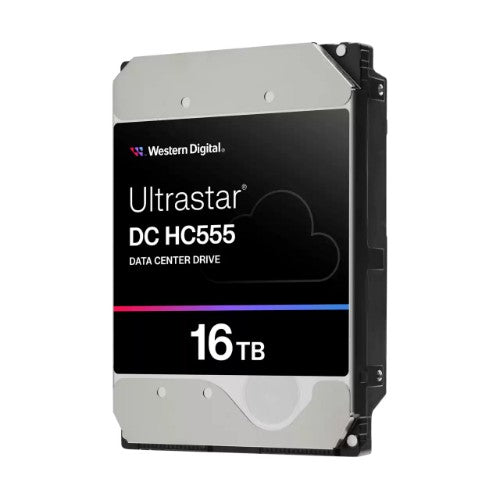

3.5" 16TB 512 7200RPM SATA 512E SE NP3 DC

Key Features

• Capacities up to 20TB in standard 3.5-inch form factor
• Conventional Magnetic Recording (CMR) technology
• Superior reliability of field-proven hardware and firmware designs
• Seamless integration with existing applications & environments

Description

Engineered to handle high-intensity workloads with proven technology

Ultrastar Data Center HC555 hard drives are engineered to deliver the large capacity, strong performance and proven reliability needed to handle high-intensity workloads in 24×7 multi-user data center environments.

Handle Data Center Workloads with Proven Technology
The combination of field-proven hardware with the latest innovative technologies delivers the performance, capacity and reliability needed to handle high-intensity workloads in 24×7 multi-user data center environments.

Grow Capacity while Lowering Costs
Western Digital’s energy-assisted perpendicular magnetic recording (ePMR) technology enables customers to grow capacities while lowering TCO (total cost of ownership) including both $/TB and OpEx.

Rapid qualification and integration
Leveraging hardware designs from generations of highly successful products ensures easy qualification, seamless integration and rapid adoption by existing customers.

Reliability You Can Trust
Built off the same platform that is deployed in thousands of data centers around the world, these drives deliver superior dependability and field-proven reliability for hassle free data storage.

Increase Density with Low Power
Western Digital’s Triple-Stage Actuator (TSA) increases tracks-per-inch (TPI) while providing greater control over the actuator arm, enabling the highest capacities with low power.

Meet Eco Goals with Helium
The stable internal environment created by our HelioSeal® technology enables this high-capacity helium drive to deliver one of the lowest power profiles in the industry.

Protected Against Vibration & Shock
Disturbances caused by increased vibration are anticipated and proactively counteracted by Rotation Vibration (RV) sensors and subtle shock events are automatically detected by multi-axis shock sensors and compensated for with dynamic fly height technology to maintain performance and protect data.

Trusted Reliability, Quality and World-Class Support
As an industry-leading hard drive manufacturer, Western Digital stands behind their Ultrastar hard drives with the assurance of a projected 2.5M-hour MTBF rating.

Specifications

Hard drive
Component for	Server/workstation
HDD size	3.5"
HDD capacity	16 TB
HDD average transfer rate	269 MB/s
HDD speed	7200 RPM
Interface	Serial ATA III
Average latency	4.16 ms
Start/stop cycles	600000
Hot-swap	No
HDD sustained transfer rate	257 MiB/s
HDD interface transfer rate	6 Gbit/s
Mean time between failures (MTBF)	2500000 h
Storage drive buffer size	512 MB
Features
Type	HDD
Component for	Server/workstation
HDD size	3.5"
HDD capacity	16 TB
HDD average transfer rate	269 MB/s
HDD speed	7200 RPM
Interface	Serial ATA III
Average latency	4.16 ms
Start/stop cycles	600000
Hot-swap	No
HDD sustained transfer rate	257 MiB/s
HDD interface transfer rate	6 Gbit/s
Mean time between failures (MTBF)	2500000 h
Storage drive buffer size	512 MB
24/7 operation	Yes
Power
Power consumption (typical)	6.4 W
Power consumption (idle)	5.3 W
Operating voltage	5 / 12 V
Operational conditions
Operating temperature (T-T)	5 - 60 °C
Storage temperature (T-T)	-40 - 70 °C
Operating vibration	0.67 G
Operating shock	50 G
Non-operating vibration	1.04 G
Non-operating shock	250 G
Technical details
Warranty period	5 year(s)
Weight & dimensions
Width	101.6 mm
Height	26.1 mm
Depth	147 mm
Weight	679 g
Other features
Interface	Serial ATA III
Warranty period	5 year(s)

3.5" 18TB 512 7200RPM SATA 512E SE NP3 DC

Key Features

• Capacities up to 20TB in standard 3.5-inch form factor
• Conventional Magnetic Recording (CMR) technology
• Superior reliability of field-proven hardware and firmware designs
• Seamless integration with existing applications & environments

Description

Engineered to handle high-intensity workloads with proven technology

Ultrastar Data Center HC555 hard drives are engineered to deliver the large capacity, strong performance and proven reliability needed to handle high-intensity workloads in 24×7 multi-user data center environments.

Handle Data Center Workloads with Proven Technology
The combination of field-proven hardware with the latest innovative technologies delivers the performance, capacity and reliability needed to handle high-intensity workloads in 24×7 multi-user data center environments.

Grow Capacity while Lowering Costs
Western Digital’s energy-assisted perpendicular magnetic recording (ePMR) technology enables customers to grow capacities while lowering TCO (total cost of ownership) including both $/TB and OpEx.

Rapid qualification and integration
Leveraging hardware designs from generations of highly successful products ensures easy qualification, seamless integration and rapid adoption by existing customers.

Reliability You Can Trust
Built off the same platform that is deployed in thousands of data centers around the world, these drives deliver superior dependability and field-proven reliability for hassle free data storage.

Increase Density with Low Power
Western Digital’s Triple-Stage Actuator (TSA) increases tracks-per-inch (TPI) while providing greater control over the actuator arm, enabling the highest capacities with low power.

Meet Eco Goals with Helium
The stable internal environment created by our HelioSeal® technology enables this high-capacity helium drive to deliver one of the lowest power profiles in the industry.

Protected Against Vibration & Shock
Disturbances caused by increased vibration are anticipated and proactively counteracted by Rotation Vibration (RV) sensors and subtle shock events are automatically detected by multi-axis shock sensors and compensated for with dynamic fly height technology to maintain performance and protect data.

Trusted Reliability, Quality and World-Class Support
As an industry-leading hard drive manufacturer, Western Digital stands behind their Ultrastar hard drives with the assurance of a projected 2.5M-hour MTBF rating.

Specifications

Hard drive
Component for	Server/workstation
HDD size	3.5"
HDD capacity	18 TB
HDD average transfer rate	269 MB/s
HDD speed	7200 RPM
Interface	Serial ATA III
Average latency	4.16 ms
Start/stop cycles	600000
Hot-swap	No
HDD sustained transfer rate	257 MiB/s
HDD interface transfer rate	6 Gbit/s
Mean time between failures (MTBF)	2500000 h
Storage drive buffer size	512 MB
Features
Type	HDD
Component for	Server/workstation
HDD size	3.5"
HDD capacity	18 TB
HDD average transfer rate	269 MB/s
HDD speed	7200 RPM
Interface	Serial ATA III
Average latency	4.16 ms
Start/stop cycles	600000
Hot-swap	No
HDD sustained transfer rate	257 MiB/s
HDD interface transfer rate	6 Gbit/s
Mean time between failures (MTBF)	2500000 h
Storage drive buffer size	512 MB
24/7 operation	Yes
Power
Power consumption (typical)	6.4 W
Power consumption (idle)	5.3 W
Operating voltage	5 / 12 V
Operational conditions
Operating temperature (T-T)	5 - 60 °C
Storage temperature (T-T)	-40 - 70 °C
Operating vibration	0.67 G
Operating shock	50 G
Non-operating vibration	1.04 G
Non-operating shock	250 G
Technical details
Warranty period	5 year(s)
Weight & dimensions
Width	101.6 mm
Height	26.1 mm
Depth	147 mm
Weight	679 g
Other features
Interface	Serial ATA III
Warranty period	5 year(s)

20 TB, SE, SATA, 3.5 Inch, 512MB, 6 GB/s, 101.6 x 26.162 x 147 mm, 690 g

Description

20TB capacity with a reimagined HDD
An innovative storage architecture to help our customers meet their need for exponential data growth.

Reimagining the HDD for Exponential Data Growth
Hyperscale cloud, CSPs, enterprises, smart video surveillance partners, NAS suppliers and more need storage solutions to meet the exponential growth in data creation. When it comes to cost-effective storage of data at scale, hard disk drives (HDDs) continue to play a central role. HDDs deliver the capacity, performance and reliability needed to store vast amounts of data today and well into the future. Investments in HDD technology remain critical to supporting worldwide data growth.

Western Digital has developed flash-enhanced drives with OptiNAND™ technology by vertically integrating our leading NAND flash with our world-class HDDs. Western Digital HDDs have been leaders in areal density with industry first technologies of energy-assisted magnetic recording technology (EAMR), triple-stage actuator (TSA), HelioSeal®, and now OptiNAND technology. Higher areal density means higher capacities to meet storage challenges.

20TB1 HDDs with OptiNAND Technology
OptiNAND integrates an iNAND® Universal Flash Storage (UFS) Embedded Flash Drive (EFD) with traditional spinning disk media, and incorporates innovative changes to the firmware algorithm and system-on-a-chip (SoC). OptiNAND is not a hybrid technology. The drive works smarter, with enhanced firmware algorithms taking advantage of expanded metadata that has been offloaded to the iNAND, enabling more tracks per inch (TPI) with resulting increased areal density.

The Ultrastar DC HC560, with the first implementation of OptiNAND technology’s capacity-enabling features, delivers an unbeaten 20TB capacity in a nine-disk platform (2.2TB/platter) with CMR recording format

Specifications

Hard drive
Component for	Server/workstation
HDD size	3.5"
HDD capacity	20 TB
Workload rate limit	550 TB/year
HDD speed	7200 RPM
Interface	Serial ATA
Average latency	4.16 ms
HDD sustained transfer rate	257 MiB/s
HDD interface transfer rate	6 Gbit/s
Mean time between failures (MTBF)	2.5 h
Storage drive buffer size	512 MB
Features
Type	HDD
Component for	Server/workstation
HDD size	3.5"
HDD capacity	20 TB
Workload rate limit	550 TB/year
HDD speed	7200 RPM
Interface	Serial ATA
Average latency	4.16 ms
Windows operating systems supported	Yes
Linux operating systems supported	Yes
HDD sustained transfer rate	257 MiB/s
HDD interface transfer rate	6 Gbit/s
Mean time between failures (MTBF)	2.5 h
Storage drive buffer size	512 MB
Uncorrectable Bit Error Rate (UBER)	< 1 per 10^15 bits read
24/7 operation	Yes
Power
Operating voltage	5 / 12 V
System requirements
Windows operating systems supported	Yes
Linux operating systems supported	Yes
Operational conditions
Operating temperature (T-T)	5 - 60 °C
Storage temperature (T-T)	-40 - 70 °C
Operating vibration	0.7 G
Operating shock	50 G
Non-operating vibration	1.04 G
Non-operating shock	250 G
Technical details
Harmonized System (HS) code	84717050
Weight & dimensions
Width	101.6 mm
Height	147 mm
Depth	26.2 mm
Weight	690 g
Logistics data
Harmonized System (HS) code	84717050
Other features
Interface	Serial ATA
Windows operating systems supported	Yes
Linux operating systems supported	Yes

Western Digital WDBEPK0010BBK-WESN, 1 TB, 3.2 Gen 1 (3.1 Gen 1), Black

Description

Western Digital WDBEPK0010BBK-WESN. HDD capacity: 1 TB. USB version: 3.2 Gen 1 (3.1 Gen 1). Product colour: Black

Specifications

Performance
USB version	3.2 Gen 1 (3.1 Gen 1)
Wi-Fi	No
Windows operating systems supported	Windows 10, Windows 7, Windows 8, Windows 8.1
Hard drive
HDD capacity	1 TB
Type	HDD
Ports & interfaces
USB connector	USB
Thunderbolt technology	No
USB version	3.2 Gen 1 (3.1 Gen 1)
Wi-Fi	No
Features
Product colour	Black
Windows operating systems supported	Windows 10, Windows 7, Windows 8, Windows 8.1
Design
Product colour	Black
Power
Bus powered	No
Weight & dimensions
Width	81.5 mm
Depth	110 mm
Height	21 mm
Packaging data
Cables included	USB
Packaging content
Cables included	USB
Technical details
Harmonized System (HS) code	84717050
Logistics data
Harmonized System (HS) code	84717050
