Collection: Products

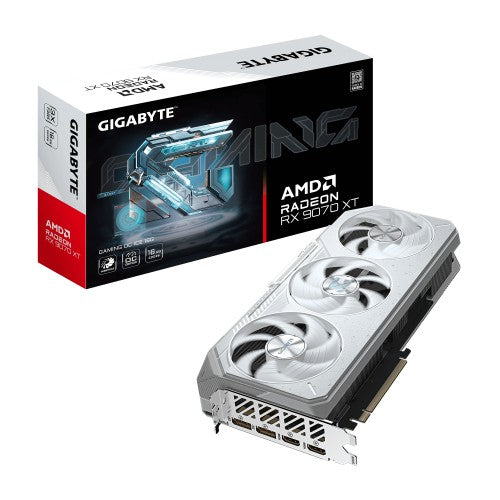

Radeon RX 9070 XT GAMING OC ICE 16G Graphics Card - 16GB GDDR6, 256bit, PCI-E 5.0, 3060 MHz Core Clock, 2 x DisplayPort, 2 x HDMI, GV-R907XGAMINGOCICE-16GD

Key Features

• Powered by Radeon RX 9070 XT
• Integrated with 16GB GDDR6 256bit memory interface
• WINDFORCE cooling system
• RGB Lighting
• Dual BIOS (Performance / Silent)
• Reinforced structure

Description

Experience the next level of gaming immersion with GIGABYTE's AMD graphics cards. Crafted to deliver uncompromising performance and stunning visuals, our GPUs redefine gaming excellence. Featuring advanced cooling solutions and innovative technologies, GIGABYTE AMD graphics cards empower gamers to push the boundaries of what's possible, delivering unmatched gaming experiences.

Specifications

Processor
Graphics processor	Radeon RX 9070 XT
Maximum resolution	7680 x 4320 pixels
Graphics processor family	AMD
CUDA	No
Processor boost clock speed	3060 MHz
Stream processors	4096
Parallel processing technology support	Not supported
Maximum displays per videocard	4
Memory
Discrete graphics card memory	16 GB
Graphics card memory type	GDDR6
Memory bus	256 bit
Memory clock speed	20000 MHz
Data transfer rate	20 Gbit/s
Ports & interfaces
Interface type	PCI Express 5.0
HDMI ports quantity	2
DVI-I ports quantity	0
DVI-D ports quantity	0
DisplayPorts quantity	2
Mini HDMI ports quantity	0
HDMI version	2.1b
Mini DisplayPorts quantity	0
DisplayPort version	2.1a
Thunderbolt 3 ports quantity	0
Performance
TV tuner integrated	No
DirectX version	12.0
OpenGL version	4.6
Dual Link DVI	No
Design
Number of fans	3 fan(s)
Cooling type	Active
Form factor	Full-Height/Full-Length (FH/FL)
Number of slots	2.75
Product colour	White
Cooling technology	GIGABYTE WINDFORCE 3X
Power
Minimum system power supply	850 W
Supplementary power connectors	3x 8-pin
Weight & dimensions
Weight	1.26 kg
Height	132 mm
Depth	56 mm
Length	288 mm
Packaging data
Package type	Box
Package width	230 mm
Package depth	398 mm
Package height	85 mm
Package weight	1.88 kg

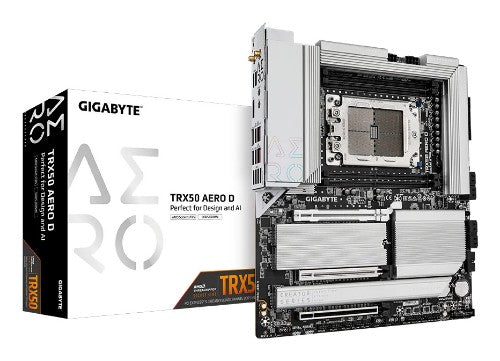

TRX50 AERO D Motherboard - Supports AMD Ryzen Threadripper 9000 Series CPUs, 16+8+4 Phases Digital VRM, up to 7800MHz DDR5 (OC), 3xPCIe 5.0 + 1xPCIe 4.0 M.2, Wi-Fi 7, 10GbE LAN, USB4

Key Features

• Supports AMD Ryzen Threadripper PRO 7000 series/ Ryzen Threadripper 7000 series Processors
• Breakthrough Performance：16+8+4 Phases Digital VRM Solution
• Quad Channel DDR5：4*SMD R-DIMMs with AMD EXPO & Intel XMP Memory Module Support
• Reinforced Overall Thermal：VRM Thermal Armor Advanced & M.2 Thermal Guard
• Ultimate Scalibility: 3*PCIe x16 slots for Multi-GPU and 4*PCIe x4 M.2 slots
• Next-gen Connectivity: Dual USB4 Type-C ports
• Blazing Fast Networks: 10GbE + 2.5 GbE Dual LAN and Wi-Fi 7
• PCIe UD Slot X：PCIe 5.0 x16 slot with 10X strength for graphics card
• EZ-Latch Click：M.2 heatsinks with screwless design
• EZ-Latch Plus：M.2 slots with quick release design
• Hi-Fi Audio with DTS:X Ultra：ALC4080+ALC897 CODEC
• UC BIOS：User-Centred intuitive UX with Quick Access function

Description

Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge

Specifications

Internal I/O
Number of M.2 (M) slots	4
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
Total number of SATA connectors	8
Audio connector	Yes
Supported storage drive interfaces	M.2, SATA
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
Number of SATA III connectors	8
Number of chassis fan connectors	10
EPS power connector (8-pin)	Yes
CPU fan connector	Yes
ATX Power connector (24-pin)	Yes
RGB LED pin header	Yes
USB 3.2 Gen 2x2 connectors	1
Performance
Number of HDDs supported	8
Supported storage drive types	SSD
Component for	PC
Motherboard chipset family	AMD
Motherboard chipset	AMD TRX50
Motherboard form factor	Extended ATX
Audio output channels	2.0 channels
RAID levels	0, 1, 10
PC health monitoring	Fan, Temperature, Voltage, Water cooling
Windows operating systems supported	Windows 11 x64
Processor
Processor manufacturer	AMD
Maximum internal memory supported by processor	1 TB
Compatible processor series	AMD Ryzen Threadripper 1000 Series
Processor socket	Socket sTR5
Maximum number of SMP processors	1
Memory
Number of memory slots	4
Supported memory types	DDR5-SDRAM
Memory slots type	DIMM
Memory channels	Quad-channel
Supported memory clock speeds	4400,4800,5200,5600,6000,6400,6800,7000,7200,7600,7800 MHz
Supported memory module capacities	1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB, 48GB, 64GB, 128GB, 128MB, 256MB
Maximum internal memory	1 TB
Supported memory clock speed (max)	7800 MHz
ECC сompatibility	ECC
Storage controllers
Number of HDDs supported	8
Supported storage drive types	SSD
Supported storage drive interfaces	M.2, SATA
RAID levels	0, 1, 10
Number of storage drives supported	12
RAID support	Yes
Graphics
DirectX version	12.0
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	2
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	2
VGA (D-Sub) ports quantity	0
Headphone outputs	2
HDMI ports quantity	0
DVI-D ports quantity	0
DisplayPorts quantity	1
Network
Ethernet LAN	Yes
Wi-Fi	Yes
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 7 (802.11be)
Ethernet interface type	10 Gigabit Ethernet
Bluetooth	Yes
Bluetooth version	5.3
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Features
Component for	PC
Motherboard chipset family	AMD
Motherboard chipset	AMD TRX50
Motherboard form factor	Extended ATX
Audio output channels	2.0 channels
PC health monitoring	Fan, Temperature, Voltage, Water cooling
Windows operating systems supported	Windows 11 x64
Audio chip	Realtek ALC4080
Product colour	Black
Expansion slots
Number of M.2 (M) slots	4
PCI Express x16 slots	3
PCI Express x16 (Gen 4.x) slots	1
PCI Express x16 (Gen 5.x) slots	2
BIOS
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
BIOS type	UEFI AMI
Clear CMOS jumper	Yes
BIOS memory size	256 Mbit
ACPI version	5.0
Clear CMOS button	Yes
System Management BIOS (SMBIOS) version	2.7
Desktop Management Interface (DMI) version	2.7
Packaging data
Package width	345 mm
Package depth	294 mm
Package height	80 mm
Package weight	3.04 kg
Battery
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
Battery weight	3 g
Number of battery cells	1
Lithium weight per battery	0.07 g
Battery type	CR2032
Logistics data
Products per shipping (inner) case	1 pc(s)
Country of origin	China
Weight & dimensions
Width	305 mm
Depth	264 mm
Height	35 mm
Package width	345 mm
Package depth	294 mm
Package height	80 mm
Package weight	3.04 kg
Packaging content
Bundled software	Norton Internet Security (OEM version), LAN bandwidth management software
Batteries included	Yes
Technical details
Total number of SATA connectors	8
Maximum internal memory supported by processor	1 TB
Warranty period	3 year(s)
Other features
Height	35 mm
Package width	345 mm
Package depth	294 mm
Package height	80 mm
Package weight	3.04 kg

X870 AORUS ELITE WIFI7 Motherboard - Supports AMD Ryzen 9000 CPUs, 16+2+2 phases VRM, up to 8000MHz DDR5 (OC), 3xPCIe 5.0 + 1xPCIe 4.0, Wi-Fi 7, 2.5GbE LAN, USB 4

Key Features

• AMD Socket AM5: Supports AMD Ryzen 9000 Series, 8000 Series, 7000 Series Processors
• Twin 16+2+2 Phases Digital VRM with DrMOS
• Dual Channel DDR5：4*DIMMs with AMD EXPO™ Memory Module Support
• PCIe Gen5 x16 with PCIe UD Slot X & EZ-Latch Plus
• Ultra-Fast Storage: 4*M.2 slots, including 3* PCIe 5.0 x4
• Efficient Overall Thermal: VRM Thermal Armor Advanced & M.2 Thermal Guard L
• Extended Connectivity: Dual USB4 Type-C with DP-Alt, HDMI
• Fast Networking: 2.5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna

Description

Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge

Specifications

Internal I/O
Number of M.2 (M) slots	4
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
Front panel connector	Yes
Supported storage drive interfaces	M.2, SATA III
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
mSATA ports quantity	0
TPM connector	Yes
Number of SATA III connectors	4
Number of chassis fan connectors	6
Front panel audio connector	Yes
EPS power connector (8-pin)	Yes
CPU fan connector	Yes
ATX Power connector (24-pin)	Yes
RGB LED pin header	Yes
USB 3.2 Gen 2x2 connectors	1
Number of CPU fan connectors	2
Number of EPS power connectors (8-pin)	2
Number of water pump connectors	3
Number of RGB LED pin headers	4
Performance
Number of HDDs supported	4
Supported storage drive types	HDD & SSD
Component for	PC
Motherboard chipset family	AMD
Motherboard chipset	AMD X870
Motherboard form factor	ATX
Audio output channels	7.1 channels
Supported processor sockets	Socket AM5
RAID levels	0, 1, 10
PC health monitoring	Fan, Temperature, Voltage
Windows operating systems supported	Windows 11 x64
Processor
Processor manufacturer	AMD
Maximum internal memory supported by processor	256 GB
Compatible processor series	AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Processor socket	Socket AM5
Supported processor sockets	Socket AM5
Memory
Number of memory slots	4
Supported memory types	DDR5-SDRAM
Memory slots type	DIMM
Memory channels	Dual-channel
Supported memory clock speeds	4400,4800,5200,5600,6000,6200,6400,6600,6666,6800,7000,7200,7600,7800,8000,8200 MHz
Supported memory module capacities	1GB, 2GB, 4GB, 8GB, 16GB, 24GB, 32GB
Maximum internal memory	256 GB
Supported memory clock speed (max)	8200 MHz
ECC сompatibility	Non-ECC
Maximum internal memory per slot	64 GB
Storage controllers
Number of HDDs supported	4
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, SATA III
RAID levels	0, 1, 10
Number of storage drives supported	8
RAID support	Yes
Graphics
Parallel processing technology support	Not supported
On-board graphics card	No
DirectX version	12.0
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
DisplayPort version	1.4
USB 2.0 ports quantity	2
Ethernet LAN (RJ-45) ports	1
WiFi-AP antenna jack	2
VGA (D-Sub) ports quantity	0
S/PDIF out port	Yes
PS/2 ports quantity	0
Microphone in	Yes
Headphone outputs	1
HDMI version	2.1
HDMI ports quantity	1
DVI-D ports quantity	0
DisplayPorts quantity	2
USB 3.2 Gen 2x2 Type-C ports quantity	0
USB4 Gen 3x2 ports quantity	0
USB4 Gen 2x2 ports quantity	2
Network
Ethernet LAN	Yes
Wi-Fi	Yes
Wi-Fi standards	Wi-Fi 7 (802.11be)
LAN controller	Realtek RTL8125
Ethernet interface type	2.5 Gigabit Ethernet
Bluetooth	Yes
Bluetooth version	5.4
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
WLAN controller model	MediaTek MT7925
Features
Component for	PC
Motherboard chipset family	AMD
Motherboard chipset	AMD X870
Motherboard form factor	ATX
Audio output channels	7.1 channels
Supported processor sockets	Socket AM5
PC health monitoring	Fan, Temperature, Voltage
Windows operating systems supported	Windows 11 x64
Audio chip	Realtek ALC1220
Product colour	Black
Expansion slots
Number of M.2 (M) slots	4
PCI Express x1 (Gen 3.x) slots	0
PCI Express x4 slots	2
PCI Express x4 (Gen 3.x) slots	0
PCI Express x8 (Gen 3.x) slots	0
PCI Express x16 (Gen 3.x) slots	1
PCI Express x1 (Gen 4.x) slots	0
PCI Express x16 (Gen 4.x) slots	1
PCI Express x16 (Gen 5.x) slots	1
PCI Express x4 (Gen 4.x) slots	0
PCI Express x8 (Gen 4.x) slots	0
PCI Express x8 (Gen 5.x) slots	0
1st M.2 largest key size	25110
1st M.2 highest PCI Express generation	5.0
2nd M.2 largest key size	22110
2nd M.2 highest PCI Express generation	5.0
3rd M.2 largest key size	22110
3rd M.2 highest PCI Express generation	5.0
4th M.2 largest key size	22110
4th M.2 highest PCI Express generation	4.0
BIOS
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
BIOS type	UEFI AMI
Clear CMOS jumper	Yes
BIOS memory size	256 Mbit
ACPI version	5.0
Clear CMOS button	Yes
System Management BIOS (SMBIOS) version	2.7
Desktop Management Interface (DMI) version	2.7
Packaging data
Package width	335 mm
Package depth	270 mm
Package height	80 mm
Package weight	2.74 kg
Battery
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
Battery weight	3 g
Number of battery cells	1
Lithium weight per battery	0.07 g
Battery type	CR2032
Logistics data
Products per shipping (inner) case	1 pc(s)
Country of origin	China
Weight & dimensions
Width	305 mm
Depth	244 mm
Height	35 mm
Weight	2.4 kg
Package width	335 mm
Package depth	270 mm
Package height	80 mm
Package weight	2.74 kg
Packaging content
Bundled software	Norton® Internet Security (OEM version) LAN bandwidth management software
Batteries included	Yes
Screws included	Yes
Antenna included	Yes
Technical details
Maximum internal memory supported by processor	256 GB
Warranty period	3 year(s)
Other features
PCI Express x4 (Gen 3.x) slots	0
PCI Express x8 (Gen 3.x) slots	0
Height	35 mm
mSATA ports quantity	0
Weight	2.4 kg
Package width	335 mm
Package depth	270 mm
Package height	80 mm
Package weight	2.74 kg
PCI Express x1 (Gen 4.x) slots	0

X870 EAGLE WIFI7 Motherboard - Supports AMD Ryzen 9000 CPUs, 14+2+2 phases VRM, up to 8000MHz DDR5 (OC), 1xPCIe 5.0 + 2xPCIe 4.0, Wi-Fi 7, 2.5GbE LAN, USB 4

Key Features

• AMD Socket AM5: Supports AMD Ryzen 9000 Series, 8000 Series, 7000 Series Processors
• Digital twin 14+2+2 phases VRM solution
• Dual Channel DDR5：4DIMMs with AMD EXPO Memory Module Support
• PCIe Gen5 x16 with PCIe UD Slot X & EZ-Latch Plus
• Ultra-Fast Storage: 3*M.2 slots, including 1* PCIe 5.0 x4
• Efficient Overall Thermal: VRM Thermal Armor Advanced & M.2 Thermal Guard
• Extended Connectivity: Dual USB4 Type-C with DP-Alt, HDMI
• Fast Networking: 2.5GbE LAN & Wi-Fi 7 with Ultra-high gain antenna

Description

Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge

Specifications

Internal I/O
Number of M.2 (M) slots	3
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
Front panel connector	Yes
12V power connector	Yes
Supported storage drive interfaces	M.2, SATA III
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
mSATA ports quantity	0
TPM connector	Yes
Peripheral (Molex) power connectors (4-pin)	1
Number of SATA III connectors	4
Number of chassis fan connectors	4
Front panel audio connector	Yes
EPS power connector (8-pin)	Yes
CPU fan connector	Yes
ATX Power connector (24-pin)	Yes
RGB LED pin header	Yes
USB 3.2 Gen 2x2 connectors	1
Number of CPU fan connectors	2
Number of EPS power connectors (8-pin)	1
Number of water pump connectors	1
Number of RGB LED pin headers	4
Performance
Number of HDDs supported	4
Supported storage drive types	HDD & SSD
Component for	PC
Motherboard chipset family	AMD
Motherboard chipset	AMD X870
Motherboard form factor	ATX
Audio output channels	7.1 channels
Supported processor sockets	Socket AM5
RAID levels	0, 1, 10
PC health monitoring	Fan, Temperature, Voltage
Windows operating systems supported	Windows 11 x64
Processor
Processor manufacturer	AMD
Maximum internal memory supported by processor	256 GB
Compatible processor series	AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Processor socket	Socket AM5
Supported processor sockets	Socket AM5
Memory
Number of memory slots	4
Supported memory types	DDR5-SDRAM
Memory slots type	DIMM
Memory channels	Dual-channel
Supported memory clock speeds	4400,4800,5200,5600,6000,6200,6400,6600,6666,6800,7000,7200,7600,7800,8000,8200 MHz
Supported memory module capacities	1GB, 2GB, 4GB, 8GB, 16GB, 24GB, 32GB, 40GB, 48GB, 64GB
Maximum internal memory	256 GB
Unbuffered memory	Yes
Supported memory clock speed (max)	8200 MHz
ECC сompatibility	Non-ECC
Maximum internal memory per slot	64 GB
Storage controllers
Number of HDDs supported	4
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, SATA III
RAID levels	0, 1, 10
Number of storage drives supported	7
RAID support	Yes
Graphics
Parallel processing technology support	Not supported
On-board graphics card	No
DirectX version	12.0
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
DisplayPort version	1.4
USB 2.0 ports quantity	4
Ethernet LAN (RJ-45) ports	1
WiFi-AP antenna jack	2
PS/2 ports quantity	0
Headphone outputs	1
HDMI version	2.1
HDMI ports quantity	1
DisplayPorts quantity	0
USB 3.2 Gen 2x2 Type-C ports quantity	0
USB4 Gen 3x2 ports quantity	0
USB4 Gen 2x2 ports quantity	2
Network
Ethernet LAN	Yes
Wi-Fi	Yes
Wi-Fi standards	Wi-Fi 7 (802.11be)
LAN controller	Realtek RTL8125
Ethernet interface type	2.5 Gigabit Ethernet
Bluetooth	Yes
Bluetooth version	5.4
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
WLAN controller model	MediaTek MT7925
Features
Component for	PC
Motherboard chipset family	AMD
Motherboard chipset	AMD X870
Motherboard form factor	ATX
Audio output channels	7.1 channels
Supported processor sockets	Socket AM5
PC health monitoring	Fan, Temperature, Voltage
Windows operating systems supported	Windows 11 x64
Audio chip	Realtek ALC897
Product colour	Black
Expansion slots
Number of M.2 (M) slots	3
PCI Express x4 (Gen 3.x) slots	0
PCI Express x8 (Gen 3.x) slots	0
PCI Express x16 (Gen 3.x) slots	2
PCI Express x1 (Gen 4.x) slots	0
PCI Express x16 (Gen 4.x) slots	0
PCI Express x16 (Gen 5.x) slots	1
PCI Express x4 (Gen 4.x) slots	0
PCI Express x8 (Gen 4.x) slots	0
PCI Express x8 (Gen 5.x) slots	0
1st M.2 largest key size	25110
1st M.2 highest PCI Express generation	5.0
2nd M.2 largest key size	25110
2nd M.2 highest PCI Express generation	4.0
3rd M.2 largest key size	25110
3rd M.2 highest PCI Express generation	4.0
BIOS
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
BIOS type	UEFI AMI
Clear CMOS jumper	Yes
BIOS memory size	256 Mbit
ACPI version	5.0
Clear CMOS button	Yes
System Management BIOS (SMBIOS) version	2.7
Desktop Management Interface (DMI) version	2.7
Packaging data
Package width	335 mm
Package depth	270 mm
Package height	80 mm
Package weight	1.94 kg
Battery
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
Battery weight	3 g
Number of battery cells	1
Lithium weight per battery	0.07 g
Battery type	CR2032
Logistics data
Products per shipping (inner) case	1 pc(s)
Country of origin	China
Weight & dimensions
Width	305 mm
Depth	244 mm
Height	35 mm
Weight	1.74 kg
Package width	335 mm
Package depth	270 mm
Package height	80 mm
Package weight	1.94 kg
Packaging content
Bundled software	Norton® Internet Security (OEM version) LAN bandwidth management software
Batteries included	Yes
Screws included	Yes
Antenna included	Yes
Technical details
Maximum internal memory supported by processor	256 GB
Warranty period	3 year(s)
Other features
PCI Express x4 (Gen 3.x) slots	0
PCI Express x8 (Gen 3.x) slots	0
Height	35 mm
mSATA ports quantity	0
Weight	1.74 kg
Package width	335 mm
Package depth	270 mm
Package height	80 mm
Package weight	1.94 kg
PCI Express x1 (Gen 4.x) slots	0

X870E AERO X3D WOOD Motherboard - Supports AMD Ryzen 9000 CPUs, 16+2+2 Phases Digital VRM, up to 9000Hz DDR5 (OC), 2xPCIe 5.0 + 2xPCIe 4.0, Wi-Fi 7, 5GbE LAN, USB 4

Key Features

• Raw textures reveal timeless elegance
• X3D Turbo Mode 2.0: Incredible X3D performance unleashed by AI
• Dual Channel DDR5: 4*DIMMs with AMD EXPO Memory Module Support. DDR5 OC up to 9000MT/s
• AMD Socket AM5: Supports AMD Ryzen 9000 / 8000 / 7000 Series Processors
• Digital twin 16+2+2 phases VRM solution
• M.2 EZ-Latch Click & Plus: Quick Release & Screwless Design on M.2 slots and heatsinks
• PCB Thermal Plate: 14% thermal improvement and reinforced motherboard stability
• Ultra-Fast Storage: 4*M.2 slots, including PCIe 5.0 x4
• Fast Networking: Dual 5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna
• Extended Connectivity: HDMI, Dual USB4 Type-C with DP-Alt

Description

Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology.

Specifications

Internal I/O
Number of M.2 (M) slots	4
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
Front panel connector	Yes
12V power connector	Yes
Supported storage drive interfaces	M.2, PCI Express 5.0, SATA III
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
TPM connector	Yes
Number of SATA III connectors	4
Number of chassis fan connectors	6
Front panel audio connector	Yes
EPS power connector (8-pin)	Yes
CPU fan connector	Yes
ATX Power connector (24-pin)	Yes
RGB LED pin header	Yes
USB 3.2 Gen 2x2 connectors	1
Number of CPU fan connectors	2
Number of EPS power connectors (8-pin)	2
Number of water pump connectors	2
Number of temperature sensor headers	2
Number of noise detection headers	1
Number of RGB LED pin headers	4
Performance
Number of HDDs supported	4
Supported storage drive types	HDD & SSD
Component for	PC
Motherboard chipset family	AMD
Motherboard chipset	AMD X870E
Motherboard form factor	ATX
Audio output channels	7.1 channels
Supported processor sockets	Socket AM5
RAID levels	0, 1, 5, 10
PC health monitoring	Fan, Temperature, Voltage, Water cooling
Cooling type	Passive
Windows operating systems supported	Windows 11 x64
Processor
Processor manufacturer	AMD
Compatible processor series	AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Processor socket	Socket AM5
Supported processor sockets	Socket AM5
Memory
Number of memory slots	4
Supported memory types	DDR5-SDRAM
Memory slots type	DIMM
Memory channels	Dual-channel
Supported memory clock speeds	9000,8800,8600,8400,8000,7800,7600,7200,7000,6800,6600,6400,6200,6000,5600,5200,4800,4400 MHz
Maximum internal memory	256 GB
Unbuffered memory	Yes
Supported memory clock speed (max)	9000 MHz
ECC сompatibility	Non-ECC
Maximum internal memory per slot	64 GB
Storage controllers
Number of HDDs supported	4
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, PCI Express 5.0, SATA III
RAID levels	0, 1, 5, 10
Number of storage drives supported	8
RAID support	Yes
Graphics
Parallel processing technology support	Not supported
On-board graphics card	No
Maximum resolution	4096 x 2160 pixels
HDCP	Yes
DirectX version	12.0
HDCP version	2.3
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	5
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
DisplayPort version	1.4
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	2
WiFi-AP antenna jack	2
VGA (D-Sub) ports quantity	0
S/PDIF out port	Yes
Microphone in	Yes
Headphone outputs	1
HDMI version	2.1
HDMI ports quantity	1
DVI-D ports quantity	0
Digital audio optical out	1
USB 3.2 Gen 2x2 Type-C ports quantity	1
USB4 Gen 2x2 ports quantity	2
Network
Ethernet LAN	Yes
Wi-Fi	Yes
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
LAN controller	Realtek RTL8126
Ethernet interface type	2.5 Gigabit Ethernet, 5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Bluetooth	Yes
Bluetooth version	5.4
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
WLAN controller model	MediaTek MT7927
Features
Power source type	ATX
Component for	PC
Motherboard chipset family	AMD
Motherboard chipset	AMD X870E
Motherboard form factor	ATX
Audio output channels	7.1 channels
Supported processor sockets	Socket AM5
PC health monitoring	Fan, Temperature, Voltage, Water cooling
Cooling type	Passive
Windows operating systems supported	Windows 11 x64
Audio chip	Realtek ALC1220-VB
Product colour	White
Expansion slots
Number of M.2 (M) slots	4
PCI Express x16 (Gen 4.x) slots	1
PCI Express x16 (Gen 5.x) slots	2
1st M.2 largest key size	2580
1st M.2 highest PCI Express generation	5.0
2nd M.2 largest key size	22110
2nd M.2 highest PCI Express generation	5.0
3rd M.2 largest key size	22110
3rd M.2 highest PCI Express generation	4.0
4th M.2 largest key size	22110
4th M.2 highest PCI Express generation	4.0
BIOS
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
Battery capacity	220 mAh
BIOS type	UEFI AMI
Clear CMOS jumper	Yes
BIOS memory size	256 Mbit
ACPI version	5.0
Clear CMOS button	Yes
System Management BIOS (SMBIOS) version	2.7
Desktop Management Interface (DMI) version	2.7
Power
Power source type	ATX
Packaging data
Package width	341 mm
Package depth	306 mm
Package height	89 mm
Package weight	3.67 kg
Battery
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
Battery capacity	220 mAh
Battery weight	3 g
Number of battery cells	1
Lithium weight per battery	0.07 g
Battery type	CR2032
Logistics data
Products per shipping (inner) case	1 pc(s)
Weight & dimensions
Width	305 mm
Depth	244 mm
Height	35 mm
Weight	3.17 kg
Package width	341 mm
Package depth	306 mm
Package height	89 mm
Package weight	3.67 kg
Packaging content
Bundled software	Norton® Internet Security (OEM version)
Batteries included	Yes
Screws included	Yes
Antenna included	Yes
Technical details
Warranty period	3 year(s)
Other features
Height	35 mm
Weight	3.17 kg
Package width	341 mm
Package depth	306 mm
Package height	89 mm
Package weight	3.67 kg

X870E AORUS MASTER X3D ICE Motherboard - Supports AMD Ryzen 9000 CPUs, 18+2+2 Phases Digital VRM, up to 9000Hz DDR5 (OC), 2xPCIe 5.0 + 3xPCIe 4.0, Wi-Fi 7, 10GbE LAN, USB 4

Key Features

• X3D Turbo Mode 2.0 : Incredible X3D performance unleashed by AI
• Dual Channel DDR5: 4*DIMMs with AMD EXPO Memory Module Support. DDR5 OC up to 9000MT/s
• AMD Socket AM5: Supports AMD Ryzen 9000 / 8000 / 7000 Series Processors
• Digital twin 18+2+2 phases VRM solution
• PCIe EZ-Latch Plus Duo: One click for screwless & quick release on dual PCIe slots
• WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation
• M.2 EZ-Latch Click & Plus: Quick Release & Screwless Design on M.2 slots and heatsinks
• Ultra-Fast Storage: 5*M.2 slots, including PCIe 5.0 x4
• Fast Networking: 10GbE LAN + 5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna
• Extended Connectivity: HDMI, Dual USB4 Type-C with DP-Alt, Front QC-USB 65W

Description

Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology.

Specifications

Internal I/O
Number of M.2 (M) slots	5
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
Front panel connector	Yes
Supported storage drive interfaces	M.2, PCI Express 4.0, PCI Express 5.0, SATA III
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
TPM connector	Yes
Number of SATA III connectors	2
Number of chassis fan connectors	6
Front panel audio connector	Yes
EPS power connector (8-pin)	Yes
CPU fan connector	Yes
Chassis intrusion connector	Yes
ATX Power connector (24-pin)	Yes
RGB LED pin header	Yes
USB 3.2 Gen 2x2 connectors	1
Number of CPU fan connectors	2
Number of EPS power connectors (8-pin)	3
Number of water pump connectors	2
Number of temperature sensor headers	2
Number of noise detection headers	1
Number of RGB LED pin headers	5
Performance
Number of HDDs supported	2
Supported storage drive types	HDD & SSD
Component for	PC
Motherboard chipset family	AMD
Motherboard chipset	AMD X870E
Motherboard form factor	ATX
Audio output channels	7.1 channels
Supported processor sockets	Socket AM5
RAID levels	0, 1, 5, 10
PC health monitoring	CPU, Fan, Temperature, Voltage, Water cooling
Cooling type	Passive
Windows operating systems supported	Windows 11 x64
Processor
Processor manufacturer	AMD
Compatible processor series	AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Processor socket	Socket AM5
Supported processor sockets	Socket AM5
Memory
Number of memory slots	4
Supported memory types	DDR5-SDRAM
Memory slots type	DIMM
Memory channels	Dual-channel
Supported memory clock speeds	9000,8800,8600,8400,8200,8000,7800,7600,7200,7000,6800,6600,6400,6200,6000,5600,5200,4800 MHz
Maximum internal memory	256 GB
Unbuffered memory	Yes
Supported memory clock speed (max)	9000 MHz
ECC сompatibility	ECC & Non-ECC
Maximum internal memory per slot	64 GB
Storage controllers
Number of HDDs supported	2
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, PCI Express 4.0, PCI Express 5.0, SATA III
RAID levels	0, 1, 5, 10
Number of storage drives supported	7
RAID support	Yes
Graphics
Parallel processing technology support	Not supported
Maximum resolution	4096 x 2304 pixels
HDCP	Yes
DirectX version	12.0
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	7
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
DisplayPort version	1.4
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	2
WiFi-AP antenna jack	2
VGA (D-Sub) ports quantity	0
S/PDIF out port	Yes
Headphone outputs	1
HDMI version	2.1
HDMI ports quantity	1
DVI-D ports quantity	0
Digital audio optical out	1
USB 3.2 Gen 2x2 Type-C ports quantity	1
USB4 Gen 2x2 ports quantity	2
Line-in	Yes
Network
Ethernet LAN	Yes
Wi-Fi	Yes
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
LAN controller	Realtek RTL8126, Realtek RTL8127
Ethernet interface type	2.5 Gigabit Ethernet, 5 Gigabit Ethernet, 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Bluetooth	Yes
Bluetooth version	5.4
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
WLAN controller model	MediaTek MT7927
Features
Power source type	ATX
Component for	PC
Motherboard chipset family	AMD
Motherboard chipset	AMD X870E
Motherboard form factor	ATX
Audio output channels	7.1 channels
Supported processor sockets	Socket AM5
PC health monitoring	CPU, Fan, Temperature, Voltage, Water cooling
Cooling type	Passive
Windows operating systems supported	Windows 11 x64
Audio chip	Realtek ALC1220-VB/ESS 9118
Product colour	White
Expansion slots
Number of M.2 (M) slots	5
PCI Express x16 (Gen 4.x) slots	1
PCI Express x16 (Gen 5.x) slots	2
1st M.2 largest key size	2580
1st M.2 highest PCI Express generation	5.0
2nd M.2 largest key size	2280
2nd M.2 highest PCI Express generation	5.0
3rd M.2 largest key size	2280
3rd M.2 highest PCI Express generation	4.0
4th M.2 largest key size	2280
4th M.2 highest PCI Express generation	4.0
5th M.2 largest key size	2280
5th M.2 highest PCI Express generation	4.0
BIOS
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
BIOS type	UEFI AMI
Clear CMOS jumper	Yes
BIOS memory size	512 Mbit
ACPI version	5.0
Clear CMOS button	Yes
System Management BIOS (SMBIOS) version	2.7
Desktop Management Interface (DMI) version	2.7
Power
Power source type	ATX
Packaging data
Package width	340 mm
Package depth	310 mm
Package height	92 mm
Package weight	4.38 kg
Battery
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
Battery weight	3 g
Number of battery cells	1
Lithium weight per battery	0.07 g
Battery type	CR2032
Logistics data
Products per shipping (inner) case	1 pc(s)
Country of origin	Taiwan
Weight & dimensions
Width	305 mm
Depth	244 mm
Height	35 mm
Weight	3.82 kg
Package width	340 mm
Package depth	310 mm
Package height	92 mm
Package weight	4.38 kg
Packaging content
Bundled software	Norton® Internet Security (OEM version)
Batteries included	Yes
Screws included	Yes
Antenna included	Yes
Technical details
Warranty period	3 year(s)
Other features
Height	35 mm
Weight	3.82 kg
Package width	340 mm
Package depth	310 mm
Package height	92 mm
Package weight	4.38 kg

X870M AORUS ELITE WIFI7 Motherboard - Supports AMD Ryzen 9000 CPUs, 14+2+2 Phases Digital VRM, up to 8200Hz DDR5 (OC), 1xPCIe 5.0 + 1xPCIe 4.0, Wi-Fi 7, 2.5 GbE LAN, USB 4

Key Features

• X3D Turbo Mode: Unleash new era gaming performance
• DDR5 OC up to 8200MT/s
• AMD Socket AM5: Supports AMD Ryzen 9000 / 8000 / 7000 Series Processors
• Digital twin 14+2+2 phases VRM solution
• Dual Channel DDR5: 4*DIMMs with AMD EXPO Memory Module Support
• WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation
• EZ-Latch: PCIe and M.2 slots with Quick Release & Screwless Design
• Ultra-Fast Storage: 2*M.2 slots, including PCIe 5.0 x4
• Fast Networking: 2.5GbE LAN & Wi-Fi 7
• Extended Connectivity: Dual USB4 Type-C with DP-Alt, HDMI

Description

Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology.

Specifications

Internal I/O
Number of M.2 (M) slots	2
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
Front panel connector	Yes
12V power connector	Yes
Supported storage drive interfaces	M.2, PCI Express 4.0, PCI Express 5.0, SATA III
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
TPM connector	Yes
Number of SATA III connectors	2
Number of chassis fan connectors	4
Front panel audio connector	Yes
EPS power connector (8-pin)	Yes
CPU fan connector	Yes
ATX Power connector (24-pin)	Yes
RGB LED pin header	Yes
USB 3.2 Gen 2x2 connectors	1
Number of CPU fan connectors	2
Number of EPS power connectors (8-pin)	1
Number of water pump connectors	2
Number of RGB LED pin headers	4
Performance
Number of HDDs supported	2
Supported storage drive types	HDD & SSD
Component for	PC
Motherboard chipset family	AMD
Motherboard chipset	AMD X870
Motherboard form factor	micro ATX
Audio output channels	7.1 channels
Supported processor sockets	Socket AM5
RAID levels	0, 1, 5, 10
PC health monitoring	Fan, Temperature, Voltage, Water cooling
Cooling type	Passive
Windows operating systems supported	Windows 11 x64
Processor
Processor manufacturer	AMD
Compatible processor series	AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Processor socket	Socket AM5
Supported processor sockets	Socket AM5
Memory
Number of memory slots	4
Supported memory types	DDR5-SDRAM
Memory slots type	DIMM
Memory channels	Dual-channel
Supported memory clock speeds	8200,8000,7950,7900,7800,7600,7400,7200,7000,6800,6600,6400,6200,6000,5800,5600,5200,4800,4400 MHz
Maximum internal memory	256 GB
Unbuffered memory	Yes
Supported memory clock speed (max)	8200 MHz
ECC сompatibility	Non-ECC
Maximum internal memory per slot	64 GB
Storage controllers
Number of HDDs supported	2
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, PCI Express 4.0, PCI Express 5.0, SATA III
RAID levels	0, 1, 5, 10
Number of storage drives supported	4
RAID support	Yes
Graphics
Parallel processing technology support	Not supported
Maximum resolution	4096 x 2160 pixels
HDCP	Yes
DirectX version	12.0
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
DisplayPort version	1.4
USB 2.0 ports quantity	4
Ethernet LAN (RJ-45) ports	1
WiFi-AP antenna jack	2
VGA (D-Sub) ports quantity	0
S/PDIF out port	Yes
Headphone outputs	1
HDMI version	2.1
HDMI ports quantity	1
DVI-D ports quantity	0
Digital audio optical out	1
USB4 Gen 3x2 ports quantity	2
Line-in	Yes
Network
Ethernet LAN	Yes
Wi-Fi	Yes
Wi-Fi standards	Wi-Fi 7 (802.11be)
LAN controller	Realtek RTL8125
Ethernet interface type	2.5 Gigabit Ethernet
Bluetooth	Yes
Bluetooth version	5.4
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
WLAN controller model	Realtek RTL8922AE
Features
Power source type	ATX
Component for	PC
Motherboard chipset family	AMD
Motherboard chipset	AMD X870
Motherboard form factor	micro ATX
Audio output channels	7.1 channels
Supported processor sockets	Socket AM5
PC health monitoring	Fan, Temperature, Voltage, Water cooling
Cooling type	Passive
Windows operating systems supported	Windows 11 x64
Audio chip	Realtek ALC1220-VB
Product colour	Black
Expansion slots
Number of M.2 (M) slots	2
PCI Express x16 (Gen 4.x) slots	1
PCI Express x16 (Gen 5.x) slots	1
1st M.2 largest key size	25110
1st M.2 highest PCI Express generation	5.0
2nd M.2 largest key size	22110
2nd M.2 highest PCI Express generation	4.0
BIOS
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
BIOS type	UEFI AMI
Clear CMOS jumper	Yes
BIOS memory size	256 Mbit
ACPI version	5.0
Clear CMOS button	Yes
System Management BIOS (SMBIOS) version	2.7
Desktop Management Interface (DMI) version	2.7
Power
Power source type	ATX
Packaging data
Package width	270 mm
Package depth	268 mm
Package height	68 mm
Package weight	2.06 kg
Battery
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
Battery weight	3 g
Number of battery cells	1
Lithium weight per battery	0.07 g
Battery type	CR2032
Logistics data
Products per shipping (inner) case	1 pc(s)
Country of origin	China
Weight & dimensions
Width	244 mm
Depth	244 mm
Height	35 mm
Package width	270 mm
Package depth	268 mm
Package height	68 mm
Package weight	2.06 kg
Packaging content
Bundled software	Norton® Internet Security (OEM version)
Batteries included	Yes
Screws included	Yes
Antenna included	Yes
Technical details
Warranty period	3 year(s)
Other features
Height	35 mm
Package width	270 mm
Package depth	268 mm
Package height	68 mm
Package weight	2.06 kg

Z790 D AX Motherboard - Supports Intel Core 14th Gen CPUs, 12+1+1 Phases Digital VRM, up to 7600MHz DDR5 (OC), 3xPCIe 4.0 M.2, Wi-Fi 6E, 2.5GbE LAN, USB 3.2 Gen 2

Key Features

• Supports Intel Core 14th/ 13th /12th processors
• Unparalleled Performance：Twin 12*+1+１ Phases Digital VRM Solution
• Dual Channel DDR5：4*DIMMs with XMP 3.0 Memory Module Support
• Next Generation Storage：3*PCIe 4.0 x4 M.2 Connectors
• Advanced Thermal Design & M.2 Thermal Guard: To Ensure VRM Power Stability & M.2 SSD Performance
• EZ-Latch：PCIe 4.0x16 Slot with Quick Release Design
• Fast Networks：2.5GbE LAN & Wi-Fi 6E 802.11ax
• Extended Connectivity：DP, HDMI, Rear USB-C 10Gb/s
• Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
• Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card

Description

Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge

Specifications

Internal I/O
Number of M.2 (M) slots	3
Thunderbolt headers	2
USB 3.2 Gen 2 (3.1 Gen 2) connectors	1
Total number of SATA connectors	4
Front panel connector	Yes
12V power connector	Yes
Supported storage drive interfaces	M.2, SATA III
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
TPM connector	Yes
Number of SATA III connectors	4
Number of EATX power connectors	2
Front panel audio connector	Yes
EPS power connector (8-pin)	Yes
CPU fan connector	Yes
ATX Power connector (24-pin)	Yes
RGB LED pin header	Yes
Performance
Number of HDDs supported	4
Supported storage drive types	HDD & SSD
Component for	PC
Motherboard chipset family	Intel
Motherboard chipset	Intel Z790 Express
Motherboard form factor	ATX
Audio output channels	7.1 channels
Supported processor sockets	LGA 1700
RAID levels	0, 1, 5, 10
PC health monitoring	Fan, Temperature, Voltage, Water cooling
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Processor
Processor manufacturer	Intel
Maximum internal memory supported by processor	192 GB
Compatible processor series	Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
Processor socket	LGA 1700
Supported processor sockets	LGA 1700
Maximum number of SMP processors	1
Memory
Number of memory slots	4
Supported memory types	DDR5-SDRAM
Memory slots type	DIMM
Memory channels	Dual-channel
Supported memory clock speeds	4400,4800,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200,7400,7600 MHz
Supported memory module capacities	1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB, 48GB
Maximum internal memory	192 GB
Unbuffered memory	Yes
Supported memory clock speed (max)	7600 MHz
ECC сompatibility	ECC & Non-ECC
Storage controllers
Number of HDDs supported	4
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, SATA III
RAID levels	0, 1, 5, 10
Number of storage drives supported	7
RAID support	Yes
Graphics
Parallel processing technology support	Not supported
Maximum resolution	4096 x 2304 pixels
HDCP	Yes
Discrete graphics support	Yes
DirectX version	12.0
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
DisplayPort version	1.2
USB connector type	USB Type-A, USB Type-C
USB 2.0 ports quantity	2
Ethernet LAN (RJ-45) ports	1
WiFi-AP antenna jack	2
VGA (D-Sub) ports quantity	0
S/PDIF out port	Yes
PS/2 ports quantity	1
Microphone in	Yes
Headphone outputs	1
HDMI version	2.1
HDMI ports quantity	1
DVI-D ports quantity	0
DisplayPorts quantity	1
USB 3.2 Gen 2x2 Type-C ports quantity	1
Network
Ethernet LAN	Yes
Wi-Fi	Yes
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
LAN controller	Realtek RTL8125
Ethernet interface type	2.5 Gigabit Ethernet
Bluetooth	Yes
Bluetooth version	5.3
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
WLAN controller model	Intel Wi-Fi 6E AX211
Features
Power source type	ATX
Component for	PC
Motherboard chipset family	Intel
Motherboard chipset	Intel Z790 Express
Motherboard form factor	ATX
Audio output channels	7.1 channels
Supported processor sockets	LGA 1700
PC health monitoring	Fan, Temperature, Voltage, Water cooling
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Audio chip	Realtek ALC897
Product colour	Brown
Expansion slots
Number of M.2 (M) slots	3
PCI Express x1 (Gen 3.x) slots	2
PCI Express x16 (Gen 3.x) slots	1
PCI Express x16 (Gen 4.x) slots	1
PCI Express x16 (Gen 5.x) slots	1
BIOS
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
BIOS type	UEFI AMI
Clear CMOS jumper	Yes
BIOS memory size	256 Mbit
ACPI version	5.0
Clear CMOS button	Yes
System Management BIOS (SMBIOS) version	2.7
Desktop Management Interface (DMI) version	2.7
Power
Power source type	ATX
Packaging data
Package width	335 mm
Package depth	270 mm
Package height	80 mm
Package weight	1.84 kg
Battery
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
Battery weight	3 g
Number of battery cells	1
Lithium weight per battery	0.07 g
Battery type	CR2032
Logistics data
Products per shipping (inner) case	1 pc(s)
Country of origin	China
Weight & dimensions
Width	305 mm
Depth	244 mm
Height	35 mm
Package width	335 mm
Package depth	270 mm
Package height	80 mm
Package weight	1.84 kg
Packaging content
Cables included	SATA
Bundled software	Norton® Internet Security (OEM version) LAN bandwidth management software
Batteries included	Yes
Antenna included	Yes
Technical details
Total number of SATA connectors	4
Maximum internal memory supported by processor	192 GB
Warranty period	3 year(s)
Other features
Height	35 mm
Package width	335 mm
Package depth	270 mm
Package height	80 mm
Package weight	1.84 kg
