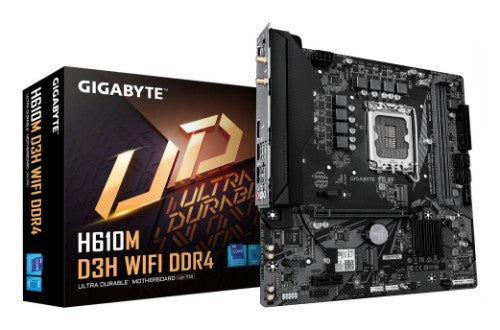

H610M D3H WIFI DDR4 Motherboard - Supports 14th Gen. Intel Core CPUs, 6+1+1 phases VRM, up to 3200MHz DDR4, 2xPCIe 3.0 M.2, WIFI 5, 1GbE LAN, USB 3.2 Gen 1

Key Features

• Supports Intel Core 14th/ 13th /12th processors
• Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
• 6+1+1 Hybrid Digital VRM Design
• Fast Networks: Wi-Fi 802.11ac & GbE LAN
• NVMe PCIe 3.0 x4 M.2
• High Quality Audio Capacitors and Audio Noise Guard
• Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
• GIGABYTE APP Center, Simple and Easy Use
• Anti-Sulfur Resistors Design

Description

Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology.

Specifications

Internal I/O
Number of M.2 (M) slots	2
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
Front panel connector	Yes
Supported storage drive interfaces	M.2, SATA III
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
TPM connector	Yes
Serial port headers	1
Number of SATA III connectors	4
Number of chassis fan connectors	2
Front panel audio connector	Yes
EPS power connector (8-pin)	Yes
CPU fan connector	Yes
ATX Power connector (24-pin)	Yes
RGB LED pin header	Yes
Number of CPU fan connectors	1
Number of EPS power connectors (8-pin)	1
Number of RGB LED pin headers	2
Performance
Number of HDDs supported	4
Supported storage drive types	HDD & SSD
Component for	PC
Motherboard chipset family	Intel
Motherboard chipset	Intel H610
Motherboard form factor	micro ATX
Audio output channels	7.1 channels
Supported processor sockets	LGA 1700
PC health monitoring	Fan, Temperature, Voltage, Water cooling
Cooling type	Passive
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Processor
Processor manufacturer	Intel
Compatible processor series	Intel® Celeron®, Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i3 14th Gen, Intel Core i5 12th Gen, Intel Core i5 13th Gen, Intel Core i5 14th Gen, Intel Core i7 12th Gen, Intel Core i7 13th Gen, Intel Core i7 14th Gen, Intel Core i9 12th Gen, Intel Core i9 13th Gen, Intel Core i9 14th Gen, Intel® Pentium®
Processor socket	LGA 1700
Supported processor sockets	LGA 1700
Memory
Number of memory slots	2
Supported memory types	DDR4-SDRAM
Memory slots type	DIMM
Memory channels	Dual-channel
Supported memory clock speeds	2133,2400,2666,2933,3000,3200 MHz
Maximum internal memory	64 GB
Unbuffered memory	Yes
Supported memory clock speed (max)	3200 MHz
ECC сompatibility	ECC & Non-ECC
Maximum internal memory per slot	32 GB
Storage controllers
Number of HDDs supported	4
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, SATA III
Number of storage drives supported	6
Graphics
Parallel processing technology support	Not supported
Maximum resolution	4096 x 2304 pixels
HDCP	Yes
DirectX version	12.0
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
USB 2.0 ports quantity	4
Ethernet LAN (RJ-45) ports	1
WiFi-AP antenna jack	2
VGA (D-Sub) ports quantity	0
PS/2 ports quantity	2
Microphone in	Yes
Headphone outputs	1
HDMI version	2.1
HDMI ports quantity	1
DVI-D ports quantity	0
Line-in	Yes
Network
Ethernet LAN	Yes
Wi-Fi	Yes
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
LAN controller	Realtek RTL8111H
Ethernet interface type	Gigabit Ethernet
Bluetooth	Yes
Bluetooth version	5.1
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN controller model	Intel Dual Band Wireless-AC 9560
Features
Power source type	ATX
Component for	PC
Motherboard chipset family	Intel
Motherboard chipset	Intel H610
Motherboard form factor	micro ATX
Audio output channels	7.1 channels
Supported processor sockets	LGA 1700
PC health monitoring	Fan, Temperature, Voltage, Water cooling
Cooling type	Passive
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Audio chip	Realtek ALC897
Product colour	Dark brown
Expansion slots
Number of M.2 (M) slots	2
PCI Express x1 (Gen 3.x) slots	1
PCI Express x16 (Gen 4.x) slots	1
1st M.2 largest key size	2280
1st M.2 highest PCI Express generation	3.0
2nd M.2 largest key size	2280
2nd M.2 highest PCI Express generation	3.0
BIOS
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
BIOS type	UEFI AMI
Clear CMOS jumper	Yes
BIOS memory size	128 Mbit
ACPI version	5.0
System Management BIOS (SMBIOS) version	2.7
Desktop Management Interface (DMI) version	2.7
Power
Power source type	ATX
Packaging data
Package width	270 mm
Package depth	268 mm
Package height	68 mm
Package weight	1.06 kg
Battery
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
Battery weight	3 g
Number of battery cells	1
Lithium weight per battery	0.07 g
Battery type	CR2032
Logistics data
Products per shipping (inner) case	1 pc(s)
Weight & dimensions
Width	244 mm
Depth	220 mm
Height	35 mm
Weight	930 g
Package width	270 mm
Package depth	268 mm
Package height	68 mm
Package weight	1.06 kg
Packaging content
Bundled software	Norton® Internet Security (OEM version) LAN bandwidth management software
Batteries included	Yes
Screws included	Yes
Antenna included	Yes
Technical details
Warranty period	3 year(s)
Other features
Height	35 mm
Weight	930 g
Package width	270 mm
Package depth	268 mm
Package height	68 mm
Package weight	1.06 kg

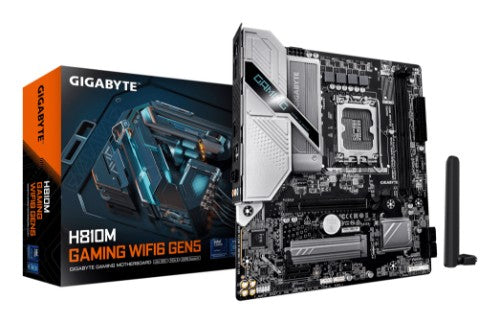

H810M GAMING WIFI6 GEN5 Motherboard - Intel Core Ultra (Series 2) CPUs, 4+1+2 Phases VRM, up to 6400MHz DDR5, 1xPCIe 4.0 M.2, WIFI 6, 2.5GbE LAN, USB 3.2 Gen 1

Key Features

• PCIe Gen5 Performance
• Supports Intel Core Ultra processors (Series 2)
• WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation
• EZ-Latch: PCIe 5.0x16 Slot with Quick Release Design
• M.2 EZ-Latch : Screwless installation for M.2 SSDs
• Friendly UI: Multi-Theme, and Q-Flash Auto Scan in BIOS and SW
• Ultra-Fast Storage: PCIe 4.0 x4 M.2 slots
• Efficient Thermal: VRM Thermal Armor Advanced & M.2 Thermal Guard
• Fast Networking: 2.5GbE LAN & Wi-Fi 6 802.11ax
• Extended Connectivity: HDMI, DisplayPort

Description

Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology.

Specifications

Internal I/O
Number of M.2 (M) slots	1
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
Front panel connector	Yes
Supported storage drive interfaces	M.2, PCI Express 4.0, SATA III
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
TPM connector	Yes
Serial port headers	1
S/PDIF out connector	Yes
Number of SATA III connectors	4
Number of chassis fan connectors	2
Front panel audio connector	Yes
EPS power connector (8-pin)	Yes
CPU fan connector	Yes
ATX Power connector (24-pin)	Yes
RGB LED pin header	Yes
Number of CPU fan connectors	1
Number of EPS power connectors (8-pin)	1
Number of RGB LED pin headers	2
Performance
Number of HDDs supported	4
Supported storage drive types	HDD & SSD
Component for	PC
Motherboard chipset family	Intel
Motherboard chipset	Intel H810
Motherboard form factor	micro ATX
Audio output channels	7.1 channels
Supported processor sockets	LGA 1851
PC health monitoring	Fan, Temperature, Voltage, Water cooling
Cooling type	Passive
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Processor
Processor manufacturer	Intel
Compatible processor series	Intel Core Ultra (Series 2)
Processor socket	LGA 1851 (Socket V1)
Supported processor sockets	LGA 1851
Memory
Number of memory slots	2
Supported memory types	DDR5-SDRAM
Memory slots type	DIMM
Memory channels	Dual-channel
Supported memory clock speeds	5600,6400 MHz
Maximum internal memory	128 GB
Unbuffered memory	Yes
Supported memory clock speed (max)	6400 MHz
ECC сompatibility	ECC & Non-ECC
Maximum internal memory per slot	64 GB
Storage controllers
Number of HDDs supported	4
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, PCI Express 4.0, SATA III
Number of storage drives supported	5
Graphics
Parallel processing technology support	Not supported
Maximum resolution	4096 x 2160 pixels
HDCP	Yes
DirectX version	12.0
HDCP version	2.3
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
DisplayPort version	2.1
USB 2.0 ports quantity	5
Ethernet LAN (RJ-45) ports	1
WiFi-AP antenna jack	2
VGA (D-Sub) ports quantity	0
PS/2 ports quantity	1
Microphone in	Yes
Headphone outputs	1
HDMI version	2.1
HDMI ports quantity	1
DVI-D ports quantity	0
DisplayPorts quantity	1
Line-in	Yes
Network
Ethernet LAN	Yes
Wi-Fi	Yes
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
LAN controller	Realtek RTL8125
Ethernet interface type	2.5 Gigabit Ethernet
Bluetooth	Yes
Bluetooth version	5.4
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
WLAN controller model	Realtek RTL8851BE
Features
Power source type	ATX
Component for	PC
Motherboard chipset family	Intel
Motherboard chipset	Intel H810
Motherboard form factor	micro ATX
Audio output channels	7.1 channels
Supported processor sockets	LGA 1851
PC health monitoring	Fan, Temperature, Voltage, Water cooling
Cooling type	Passive
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Audio chip	Realtek ALC897
Product colour	Dark brown
Expansion slots
Number of M.2 (M) slots	1
PCI Express x1 (Gen 3.x) slots	1
PCI Express x16 (Gen 5.x) slots	1
1st M.2 largest key size	2280
1st M.2 highest PCI Express generation	4.0
BIOS
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
Battery capacity	220 mAh
BIOS type	UEFI AMI
Clear CMOS jumper	Yes
BIOS memory size	256 Mbit
ACPI version	5.0
System Management BIOS (SMBIOS) version	2.7
Desktop Management Interface (DMI) version	2.7
Power
Power source type	ATX
Packaging data
Package width	270 mm
Package depth	268 mm
Package height	68 mm
Package weight	1.14 kg
Battery
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
Battery capacity	220 mAh
Battery weight	3 g
Number of battery cells	1
Lithium weight per battery	0.07 g
Battery type	CR2032
Logistics data
Products per shipping (inner) case	1 pc(s)
Country of origin	China
Weight & dimensions
Width	244 mm
Depth	215 mm
Height	35 mm
Weight	1.05 kg
Package width	270 mm
Package depth	268 mm
Package height	68 mm
Package weight	1.14 kg
Packaging content
Bundled software	Norton®Internet Security (OEM version)
Batteries included	Yes
Screws included	Yes
Antenna included	Yes
Technical details
Warranty period	3 year(s)
Other features
Height	35 mm
Weight	1.05 kg
Package width	270 mm
Package depth	268 mm
Package height	68 mm
Package weight	1.14 kg

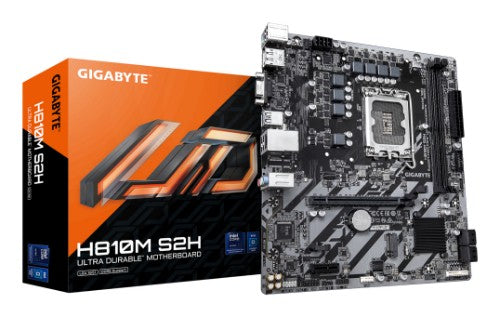

H810M S2H Motherboard - Intel Core Ultra (Series 2) CPUs, 4+1+2 Phases VRM, up to 6400MHz DDR5, 1xPCIe 4.0 M.2, 1GbE LAN, USB 3.2 Gen 1

Key Features

• Supports Intel Core Ultra processors (Series 2)
• Hybrid 4+1+2 phases VRM solution
• EZ-Latch: PCIe x16 Slot with Quick Release Design
• Friendly UI: Multi-Theme and Q-Flash Auto Scan in BIOS and SW
• Next Generation Storage: PCIe 4.0 x4 M.2 Connectors
• Fast Networking: GbE LAN
• Extended Connectivity: DisplayPort, HDMI

Description

Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge

Specifications

Internal I/O
Number of M.2 (M) slots	1
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
Front panel connector	Yes
Supported storage drive interfaces	M.2, PCI Express 4.0, SATA III
USB 2.0 connectors	1
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
TPM connector	Yes
Serial port headers	1
S/PDIF out connector	Yes
Number of SATA III connectors	4
Number of chassis fan connectors	2
Front panel audio connector	Yes
EPS power connector (8-pin)	Yes
CPU fan connector	Yes
ATX Power connector (24-pin)	Yes
RGB LED pin header	Yes
Number of CPU fan connectors	1
Number of EPS power connectors (8-pin)	1
Number of RGB LED pin headers	2
Performance
Number of HDDs supported	4
Supported storage drive types	HDD & SSD
Component for	PC
Motherboard chipset family	Intel
Motherboard chipset	Intel H810
Motherboard form factor	micro ATX
Audio output channels	7.1 channels
Supported processor sockets	LGA 1851
RAID levels	0, 1, 5, 10
PC health monitoring	Fan, Temperature, Voltage, Water cooling
Cooling type	Passive
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Processor
Processor manufacturer	Intel
Compatible processor series	Intel Core Ultra (Series 2)
Processor socket	LGA 1851 (Socket V1)
Supported processor sockets	LGA 1851
Memory
Number of memory slots	2
Supported memory types	DDR5-SDRAM
Memory slots type	DIMM
Memory channels	Dual-channel
Supported memory clock speeds	5600,6400 MHz
Maximum internal memory	128 GB
Unbuffered memory	Yes
Supported memory clock speed (max)	6400 MHz
ECC сompatibility	ECC & Non-ECC
Maximum internal memory per slot	64 GB
Storage controllers
Number of HDDs supported	4
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, PCI Express 4.0, SATA III
RAID levels	0, 1, 5, 10
Number of storage drives supported	5
RAID support	Yes
Graphics
Parallel processing technology support	Not supported
Maximum resolution	4096 x 2160 pixels
HDCP	Yes
DirectX version	12.0
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
DisplayPort version	2.1
USB 2.0 ports quantity	5
Ethernet LAN (RJ-45) ports	1
VGA (D-Sub) ports quantity	1
PS/2 ports quantity	1
Microphone in	Yes
Headphone outputs	1
HDMI version	2.1
HDMI ports quantity	1
DVI-D ports quantity	0
DisplayPorts quantity	1
Line-in	Yes
Network
Ethernet LAN	Yes
Wi-Fi	No
LAN controller	Realtek RTL8111H
Ethernet interface type	Gigabit Ethernet
Features
Power source type	ATX
Component for	PC
Motherboard chipset family	Intel
Motherboard chipset	Intel H810
Motherboard form factor	micro ATX
Audio output channels	7.1 channels
Supported processor sockets	LGA 1851
PC health monitoring	Fan, Temperature, Voltage, Water cooling
Cooling type	Passive
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Audio chip	Realtek ALC897
Product colour	Dark brown
Expansion slots
Number of M.2 (M) slots	1
PCI Express x1 (Gen 3.x) slots	1
PCI Express x16 (Gen 4.x) slots	1
1st M.2 largest key size	2280
1st M.2 highest PCI Express generation	4.0
BIOS
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
BIOS type	UEFI AMI
Clear CMOS jumper	Yes
BIOS memory size	256 Mbit
ACPI version	5.0
System Management BIOS (SMBIOS) version	2.7
Desktop Management Interface (DMI) version	2.7
Power
Power source type	ATX
Packaging data
Package width	265 mm
Package depth	265 mm
Package height	54 mm
Package weight	872 g
Battery
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
Battery weight	3 g
Number of battery cells	1
Lithium weight per battery	0.07 g
Battery type	CR2032
Logistics data
Products per shipping (inner) case	1 pc(s)
Weight & dimensions
Width	244 mm
Depth	215 mm
Height	35 mm
Weight	790 g
Package width	265 mm
Package depth	265 mm
Package height	54 mm
Package weight	872 g
Packaging content
Bundled software	Norton® Internet Security (OEM version) LAN bandwidth management software
Batteries included	Yes
Screws included	Yes
Technical details
Warranty period	3 year(s)
Other features
Height	35 mm
Weight	790 g
Package width	265 mm
Package depth	265 mm
Package height	54 mm
Package weight	872 g

Keyboard: 440(L)*153(W)*25(H)mm, Mouse: 105(L)*62(W)*41(H)mm, Keyboard: 488g±10g, Mouse: 83±5g, 1000dpi, 1.5 m cable

Key Features

• USB plug and play
• Stylish slim type keyboard
• 10 multimedia keys
• 1000dpi comfortable mouse

Description

USB plug and play
No need for any additional installation, just plug in the computer to use.

Built with 10 Additional Media Hotkeys
The convenient hotkeys offer you an instant media control and easy access to the most common tools.

1000 dpi Comfortable Mouse
The comfortable appearance allows consumers to use it for a long time. Precise 1000dpi optical sensor provides accurate and smooth tracking on the table.

Adjustable Feet Stands
Adjustable keyboard tilt by extending the feet stands allows you to find personal optimal wrist position.

Specifications

Keyboard
Keyboard key switch	Membrane
Number of hot keys	10
USB hub	No
Fingerprint reader	No
Device interface	USB
Keyboard style	Straight
Keyboard form factor	Full-size (100%)
Hot keys	Yes
Wrist rest	No
Windows keys	Yes
Pointing device	No
Numeric keypad	Yes
Full-size keyboard	Yes
Connectivity technology	Wired
Adjustable keyboard height	Yes
Certification	CE, FCC, BSMI
Multimedia keys	Yes
Keyboard keys operating life	10 million characters
Design
Product colour	Black
Keyboard style	Straight
Wrist rest	No
Full-size keyboard	Yes
Adjustable keyboard height	Yes
Certification	CE, FCC, BSMI
Ergonomics
Plug and Play	Yes
Cable length	1.5 m
Features
Plug and Play	Yes
Cable length	1.5 m
Mouse
Form factor	Ambidextrous
Mouse cable length	1.5 m
Mouse included	Yes
Movement resolution	1000 DPI
Movement detection technology	Optical
Scroll	Yes
Scroll type	Wheel
Mouse keys operating life	3 million characters
System requirements
Windows operating systems supported	Windows 10, Windows 7, Windows 8, Windows Vista, Windows XP
Technical details
Number of hot keys	10
Form factor	Ambidextrous
Multimedia keys	Yes
Weight & dimensions
Mouse weight	83 g
Mouse dimensions (WxDxH)	62 x 105 x 41 mm
Keyboard weight	488 g
Keyboard dimensions (WxDxH)	440 x 153 x 25 mm
Other features
Pointing device	No
Connectivity technology	Wired

MO27Q28G 27" OLED QHD Gaming Monitor - 2560 x 1440, 280Hz, 0.03ms, 335 cd/m², Display HDR True Black 500, HDMI 2.1, Displayport 1.4

Key Features

• 27-inch WOLED panel with 2560x1440 QHD resolution
• 280Hz refresh rate, 0.03ms response time
• 10-bit display with 99.5% DCI-P3 color and 84% BT 2020
• Four-sided borderless design
• KVM cross-platform control
• Supports VESA DisplayHDR True Black 500, AMD FreeSync Premium Pro, NVIDIA G-Sync Compatible, and Eyesafe 3.0
• Ergonomic design: Height, tilt, swivel, and pivot adjustments

Description

Experience the ultimate upgrade with the MO27Q28G. Powered by WOLED technology, a 280Hz refresh rate, a 4-sided borderless design, and tactical features, the MO27Q28G delivers stunning color accuracy and seamless immersion to boost your competitive edge in every gameplay.

Specifications

Display
Display brightness (typical)	335 cd/m²
Screen shape	Flat
Display number of colours	1.07 billion colours
Native aspect ratio	16:9
Maximum refresh rate	280 Hz
Display diagonal	68.6 cm (27")
Response time	0.03 ms
Display resolution	2560 x 1440 pixels
Display technology	OLED
Contrast ratio (typical)	1500:1
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Pixel pitch	0.2292 x 0.2292 mm
Viewable size, horizontal	58.7 cm
Viewable size, vertical	33 cm
HD type	Quad HD
Colour gamut	99.5%
Touchscreen	No
High Dynamic Range (HDR) supported	Yes
Panel type	WOLED
Colour depth	10 bit
High Dynamic Range (HDR) technology	DisplayHDR True Black 500
Hardware calibration	Yes
Colour gamut standard	DCI-P3
Response time measurement type	GTG (Gray to Gray)
Anti-glare screen	Yes
Performance
NVIDIA G-SYNC type	G-SYNC Compatible
AMD FreeSync type	FreeSync Premium Pro
AMD FreeSync	Yes
NVIDIA G-SYNC	Yes
VESA Adaptive Sync support	Yes
Low Blue Light technology	Yes
Flicker-free technology	Yes
Brand specific technologies	Black Equalizer, Crosshair
Multimedia
Number of speakers	2
Built-in speaker(s)	Yes
Built-in camera	No
RMS rated power	10 W
Design
Market positioning	Gaming
Product colour	Black
Front bezel colour	Black
Ports & interfaces
Built-in USB hub	Yes
USB hub version	3.2 Gen 2 (3.1 Gen 2)
USB upstream port type	USB Type-C
USB Type-A downstream ports quantity	2
VGA (D-Sub) ports quantity	0
DVI port	No
HDMI ports quantity	2
DisplayPorts quantity	1
Headphone out	Yes
HDMI	Yes
HDMI version	2.1
DisplayPort version	1.4
USB Power Delivery (USB PD)	Yes
USB Power Delivery up to	18 W
USB Type-C DisplayPort Alternate Mode	Yes
Number of USB Type-C upstream ports quantity	1
Ergonomics
VESA mounting	Yes
Cable lock slot	Yes
Panel mounting interface	100 x 100 mm
Swivelling	Yes
Swivel angle range	0 - 15°
Tilt angle range	-5 - 21°
Height adjustment	Yes
Pivot angle	0 - 90°
Pivot	Yes
Cable lock slot type	Kensington
Tilt adjustment	Yes
Adjustable height (max)	13 cm
Power
Power supply type	External
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (standby)	0.5 W
Power consumption (typical)	35 W
Power consumption (off)	0.3 W
Energy efficiency scale	A to G
Energy efficiency class (SDR)	F
Energy efficiency class (HDR)	G
Energy consumption (SDR) per 1000 hours	25 kWh
Energy consumption (HDR) per 1000 hours	33 kWh
Weight & dimensions
Width (with stand)	604.4 mm
Depth (with stand)	187.5 mm
Height (with stand)	526.5 mm
Width (without stand)	604.4 mm
Height (without stand)	350.2 mm
Depth (without stand)	54.4 mm
Weight (with stand)	6 kg
Weight (without stand)	4.05 kg
Package width	795 mm
Package depth	131 mm
Package height	475 mm
Package weight	8.75 kg
Packaging data
Package type	Box
Package width	795 mm
Package depth	131 mm
Package height	475 mm
Package weight	8.75 kg
Quick start guide	Yes
Cables included	DisplayPort, HDMI, USB
Packaging content
Quick start guide	Yes
Cables included	DisplayPort, HDMI, USB
Other features
Hardware calibration	Yes
Warranty period	3 year(s)
Brand specific technologies	Black Equalizer, Crosshair
Width (without stand)	604.4 mm
Quick start guide	Yes
Height (without stand)	350.2 mm
HDMI	Yes
Depth (without stand)	54.4 mm
USB Power Delivery up to	18 W
Energy efficiency scale	A to G
USB Type-C DisplayPort Alternate Mode	Yes
Power supply type	External
Touchscreen	No
USB Power Delivery (USB PD)	Yes
Package type	Box
Front bezel colour	Black
Technical details
Warranty period	3 year(s)
Power supply type	External
Weight (with stand)	6 kg
Touchscreen	No

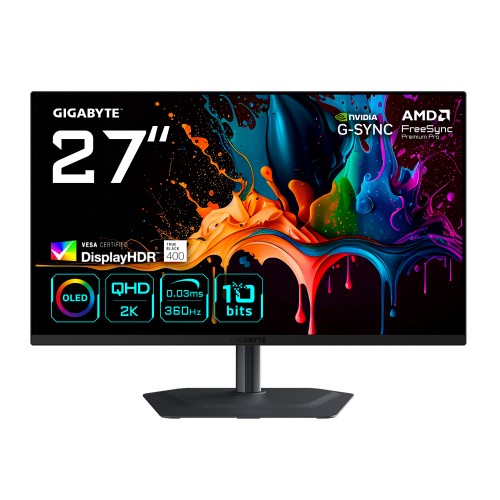

MO27Q3 27” OLED QHD Gaming Monitor - 2560 x 1440, 360Hz, 0.03ms, 250 cd/m², G-Sync Compatible, FreeSync Premium Pro, Display HDR True Black 400, HDMI 2.1, Displayport 1.4

Key Features

• 27-inch OLED panel with 2560 x 1440 QHD Resolution
• 360Hz refresh rate, 0.03ms response time
• 10-bit display with 99% DCI-P3 color gamut
• Supports VESA DisplayHDR True Black 400, ClearMR 18000, AMD FreeSync Premium Pro, and NVIDIA G-Sync Compatible
• Ergonomic design: Height, tilt, swivel, and pivot adjustments

Description

Witness every detail with stunning clarity on the MO27Q3. It boasts QD-OLED technology, a 360Hz refresh rate, 0.03ms response time, AMD FreeSync Premium Pro technology, G-SYNC compatibility, and tactical features. With exceptional color precision and performance-driven features, the MO27Q3 is engineered to help you dominate every competition.

Specifications

Display
Display brightness (typical)	250 cd/m²
Screen shape	Flat
Display number of colours	1.07 billion colours
Native aspect ratio	16:9
Maximum refresh rate	360 Hz
Display diagonal	68.6 cm (27")
Response time	0.03 ms
Display resolution	2560 x 1440 pixels
Display technology	QD-OLED
Contrast ratio (typical)	1500:1
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Pixel pitch	0.2292 x 0.2292 mm
Viewable size, horizontal	59 cm
Viewable size, vertical	33.4 cm
HD type	Quad HD
Colour gamut	99%
Touchscreen	No
High Dynamic Range (HDR) supported	Yes
Panel type	OLED
Colour depth	10 bit
High Dynamic Range (HDR) technology	DisplayHDR 400 True Black
Hardware calibration	Yes
Colour gamut standard	DCI-P3
Response time measurement type	GTG (Gray to Gray)
Anti-glare screen	Yes
Performance
NVIDIA G-SYNC type	G-SYNC Compatible
AMD FreeSync type	FreeSync Premium Pro
AMD FreeSync	Yes
NVIDIA G-SYNC	Yes
VESA Adaptive Sync support	Yes
Flicker-free technology	Yes
Brand specific technologies	Black Equalizer, Crosshair
Multimedia
Number of speakers	2
Built-in speaker(s)	Yes
Built-in camera	No
RMS rated power	10 W
Design
Market positioning	Gaming
Product colour	Black
Front bezel colour	Black
Ports & interfaces
Built-in USB hub	Yes
USB upstream port type	USB Type-C
Number of upstream ports	1
VGA (D-Sub) ports quantity	0
DVI port	No
HDMI ports quantity	2
DisplayPorts quantity	1
Headphone out	Yes
HDMI	Yes
HDMI version	2.1
DisplayPort version	1.4
USB Power Delivery (USB PD)	Yes
USB Power Delivery up to	18 W
USB Type-C DisplayPort Alternate Mode	Yes
Number of USB Type-C upstream ports quantity	1
Number of downstream ports	2
Ergonomics
VESA mounting	Yes
Cable lock slot	Yes
Panel mounting interface	100 x 100 mm
Swivelling	Yes
Swivel angle range	-15 - 15°
Tilt angle range	-5 - 21°
Height adjustment	Yes
Pivot angle	0 - 90°
Pivot	Yes
Cable lock slot type	Kensington
Tilt adjustment	Yes
Adjustable height (max)	13 cm
Power
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (standby)	0.5 W
Power consumption (off)	0.3 W
Energy efficiency scale	A to G
Energy efficiency class (SDR)	F
Energy efficiency class (HDR)	G
Energy consumption (SDR) per 1000 hours	25 kWh
Energy consumption (HDR) per 1000 hours	32 kWh
Weight & dimensions
Width (with stand)	610 mm
Depth (with stand)	190 mm
Height (with stand)	499 mm
Width (without stand)	610 mm
Height (without stand)	358 mm
Depth (without stand)	65 mm
Weight (with stand)	6.55 kg
Weight (without stand)	5.05 kg
Package width	860 mm
Package depth	160 mm
Package height	470 mm
Package weight	9.55 kg
Packaging data
Package type	Box
Package width	860 mm
Package depth	160 mm
Package height	470 mm
Package weight	9.55 kg
Quick start guide	Yes
Cables included	DisplayPort, HDMI, USB
Packaging content
Quick start guide	Yes
Cables included	DisplayPort, HDMI, USB
Other features
Hardware calibration	Yes
Warranty period	3 year(s)
Brand specific technologies	Black Equalizer, Crosshair
Width (without stand)	610 mm
Quick start guide	Yes
Height (without stand)	358 mm
HDMI	Yes
Depth (without stand)	65 mm
USB Power Delivery up to	18 W
Energy efficiency scale	A to G
USB Type-C DisplayPort Alternate Mode	Yes
Touchscreen	No
USB Power Delivery (USB PD)	Yes
Package type	Box
Front bezel colour	Black
Technical details
Warranty period	3 year(s)
Weight (with stand)	6.55 kg
Touchscreen	No

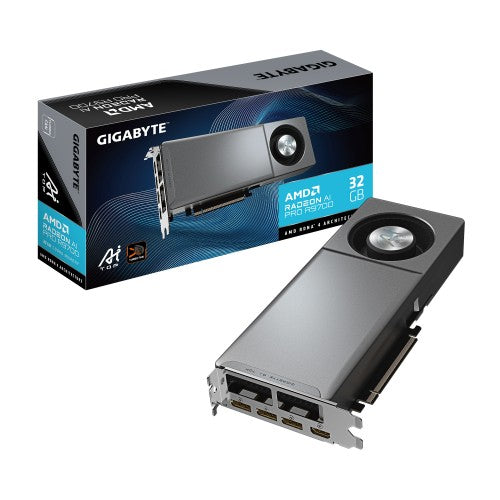

Radeon AI PRO R9700 AI TOP 32G Graphics Card- 32GB GDDR6, 256 bit, PCI-E 5.0, 2920MHz Core Clock, 3 x DP, 1 x HDMI, GV-R9700AI TOP-32GD

Key Features

• Powered by Radeon AI PRO R9700
• Integrated with 32GB GDDR6 (256bit) memory
• Composite metal grease for GPU
• Server-grade thermal conductive gel
• Turbo Fan cooling system, with Optimized airflow design for multi-card setups
• All copper cooling & metal frame
• Double ball bearing fan
• Thoroughly tested and verified with AI/ ML workloads

Description

Experience the next level of gaming immersion with GIGABYTE's AMD graphics cards. Crafted to deliver uncompromising performance and stunning visuals, our GPUs redefine gaming excellence. Featuring advanced cooling solutions and innovative technologies, GIGABYTE AMD graphics cards empower gamers to push the boundaries of what's possible, delivering unmatched gaming experiences.

Specifications

Processor
Graphics processor	Radeon AI PRO R9700
Maximum resolution	7680 x 4320 pixels
Graphics processor family	AMD
CUDA	No
Processor frequency	2350 MHz
Processor boost clock speed	2920 MHz
Stream processors	4096
Parallel processing technology support	Not supported
Maximum displays per videocard	4
Ray accelerators	64
AI accelerators	128
Memory
Discrete graphics card memory	32 GB
Graphics card memory type	GDDR6
Memory bus	256 bit
Memory clock speed	20000 MHz
Memory bandwidth (max)	640 GB/s
Ports & interfaces
Interface type	PCI Express x16 5.0
HDMI ports quantity	1
DVI-I ports quantity	0
DVI-D ports quantity	0
DisplayPorts quantity	3
HDMI version	2.1b
DisplayPort version	2.1a
Performance
TV tuner integrated	No
DirectX version	12.0
OpenGL version	4.6
Dual Link DVI	No
Warranty period	4 year(s)
Design
Number of fans	1 fan(s)
Cooling type	Active
Form factor	Full-Height/Half-Length (FH/HL)
Number of slots	2
Product colour	Grey
Cooling technology	Gigabyte Turbo Fan
Power
Minimum system power supply	750 W
Supplementary power connectors	1x 16-pin
Thermal Design Power (TDP)	238 W
Weight & dimensions
Weight	1.49 kg
Height	111 mm
Depth	40 mm
Length	267 mm
Packaging data
Package type	Box
Package width	182.5 mm
Package depth	354 mm
Package height	75 mm
Package weight	1.97 kg
Packaging content
Power cord included	Yes
Technical details
Warranty period	4 year(s)

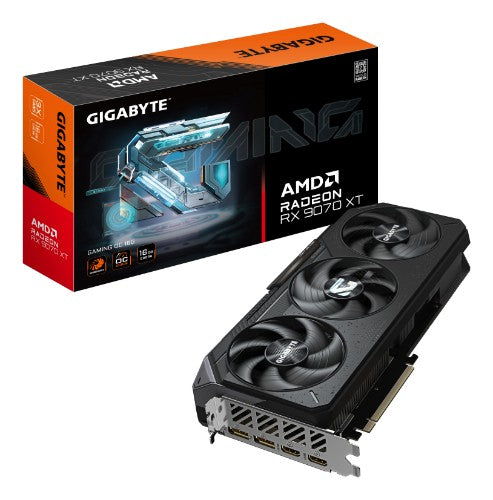

Radeon RX 9070 XT GAMING OC 16G Graphics Card - 16GB GDDR6, 256bit, PCI-E 5.0, 3060 MHz Core Clock, 2 x DisplayPort, 2 x HDMI, GV-R9070XTGAMING OC-16GD

Key Features

• Powered by Radeon RX 9070 XT
• WINDFORCE cooling system
• RGB Lighting
• Dual BIOS (Performance/ Silent)
• Reinforced structurement

Description

Experience the next level of gaming immersion with GIGABYTE's AMD graphics cards. Crafted to deliver uncompromising performance and stunning visuals, our GPUs redefine gaming excellence. Featuring advanced cooling solutions and innovative technologies, GIGABYTE AMD graphics cards empower gamers to push the boundaries of what's possible, delivering unmatched gaming experiences.

Specifications

Processor
Graphics processor	Radeon RX 9070 XT
Maximum resolution	7680 x 4320 pixels
Graphics processor family	AMD
CUDA	No
Processor boost clock speed	3060 MHz
Stream processors	4096
Parallel processing technology support	Not supported
Maximum displays per videocard	4
Memory
Discrete graphics card memory	16 GB
Graphics card memory type	GDDR6
Memory bus	256 bit
Memory clock speed	20000 MHz
Ports & interfaces
Interface type	PCI Express 5.0
HDMI ports quantity	2
DVI-I ports quantity	0
DVI-D ports quantity	0
DisplayPorts quantity	2
Mini HDMI ports quantity	0
HDMI version	2.1b
Mini DisplayPorts quantity	0
Thunderbolt 3 ports quantity	0
Performance
TV tuner integrated	No
DirectX version	12.0
OpenGL version	4.6
Dual Link DVI	No
Warranty period	3 year(s)
Design
Number of fans	3 fan(s)
Illumination colour	Multi
Illumination	Yes
Cooling type	Active
Form factor	Full-Height/Full-Length (FH/FL)
Number of slots	2.7
Product colour	Black
Cooling technology	GIGABYTE WINDFORCE 3X
Power
Minimum system power supply	850 W
Supplementary power connectors	3x 8-pin
Weight & dimensions
Weight	1.26 kg
Height	132 mm
Depth	56 mm
Length	288 mm
Packaging data
Package type	Box
Package width	470 mm
Package depth	488 mm
Package height	425 mm
Package weight	1.88 kg
Technical details
Warranty period	3 year(s)
Logistics data
Products per shipping (inner) case	1 pc(s)
