Collection: Power Supply Units

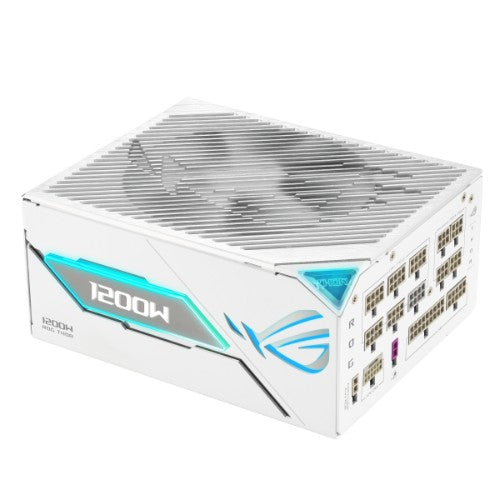

ROG Thor 1200W Platinum III White Edition, GaN MOSFET, “GPU-First” patented intelligent voltage stabilizer and a magnetic OLED display

Key Features

• GaN MOSFET delivers up to 30% more power efficiency than standard MOSFETs and a more organized internal layout for cooler operation.
• "GPU-First" voltage sensing with patented intelligent voltage stabilizer enhances voltage delivery to your graphics card by up to 45% for smoother gaming and unwavering performance.
• Magnetic OLED display shows a real-time power draw and can be swapped to either side of the unit to accommodate fan-up or fan-down PSU installation.
• Turbo Mode: Premium components and a fine-tuned fan curve unlock support for extended power excursions.
• ROG heatsinks and a fully aluminum enclosure synergize for superior cooling, keeping your system thermals under control.
• Dual-ball-fan bearings can last up to twice as long as sleeve bearing designs.
• ATX 3.1 compatible: ROG Thor Platinum III is compliant with the ATX 3.1 standard, ensuring enhanced voltage and current regulation for the latest hardware.
• Etched modular cables with a pliable premium material ensure effortless cable management and exceptional safety.
• Lambda A++ Certification: Certified low noise levels, below 15 dB.
• 80 PLUS Platinum certified: ROG Thor III utilizes low-ESR capacitors and premium components for industry-leading power efficiency.

Description

ROG THOR 1200W PLATINUM III WHITE EDITION
ULTIMATE POWER.
UNMATCHED STABILITY.

The ROG Thor 1200W Platinum III White Edition delivers the ultimate power and stability demanded by gamers. A next-gen GaN MOSFET delivers superior efficiency, and “GPU-First” voltage sensing features a patented-intelligent voltage stabilizer, ensuring top-tier performance and stability. Meanwhile, there is Turbo Mode for maximum cooling when overclocking or for other demanding workloads.

The ROG Thor 1200W Platinum III White Edition also features the signature Thor OLED display, now upgraded for easy magnetic attachment – it can be swapped to either side of the unit to accommodate fan-up or fan-down PSU installation.

Specifications

Cooling
Number of fans	1 fan(s)
Fan location	Top
Cooling type	Active
Performance
On/off switch	Yes
Power supply unit (PSU) form factor	ATX
80 PLUS certification	80 PLUS Platinum
Purpose	PC
ATX version	3.1
Mean time between failures (MTBF)	120000 h
Design
80 PLUS certification	80 PLUS Platinum
Product colour	White
Illumination	Yes
On/off switch	Yes
Number of fans	1 fan(s)
Fan location	Top
Cooling type	Active
Power
Total power	1200 W
AC input voltage	100 - 240 V
Power Factor Correction (PFC) type	Active
Combined power (+3.3V)	125 W
Combined power (+12V)	1200 W
Combined power (+5V)	125 W
Combined power (-12V)	3.6 W
Combined power (+5Vsb)	15 W
Max output current (+3.3V)	30 A
Max output current (+12V)	100 A
Max output current (+5V)	25 A
Max output current (-12V)	0.3 A
Max output current (+5Vsb)	3 A
Power protection features	Overheating, Over current, Over power, Over voltage, Short circuit, Under power
Ports & interfaces
Motherboard power cable length	61 cm
SATA power cable length	400,120 mm
Peripheral (Molex) power cable length	400,150 mm
PCI Express power cable length	75 cm
CPU power cable length	100 cm
Motherboard power connector	20+4 pin ATX
Number of SATA power connectors	7
Peripheral (Molex) power connectors (4-pin)	6
PCI Express power connectors (6+2 pin)	4
CPU power connector (4+4 pin)	Yes
PCI Express power connectors (16-pin)	1
Packaging content
Cables included	CPU, DC, PCIe, Peripheral (Molex), SATA
Weight & dimensions
Width	190 mm
Depth	150 mm
Height	86 mm
Weight	2.37 kg
Packaging data
Cables included	CPU, DC, PCIe, Peripheral (Molex), SATA
Package width	379 mm
Package depth	241 mm
Package height	127 mm
Package type	Box
Package weight	5.21 kg
Certificates
80 PLUS certification	80 PLUS Platinum

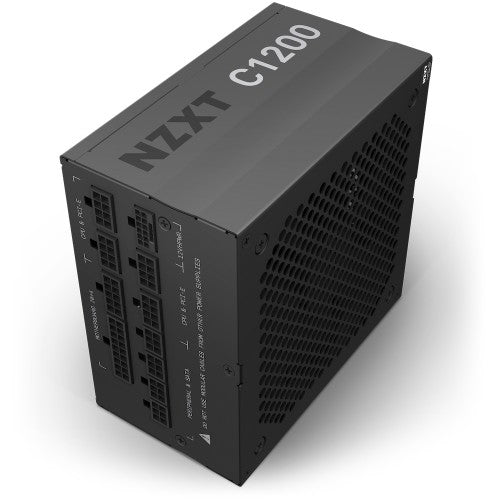

ATX v3.0, 1200 W, 100 - 240Vac:14A-7A 50Hz-60Hz, Black

Key Features

• 16-pin PCIe 12VHPWR connector can pump up to 600 watts of power to a graphics card over a single cable
• Built and tested with the strictest standards for trouble-free installation and operation
• 90.5% efficiency peak at 50% load lowers temperatures, energy consumption, and noise
• Zero Fan Mode stops the fan when under light loads to reduce system noise
• 135mm PWM fan with fluid dynamic bearing operates quietly with a long lifespan
• Constructed with high-quality Japanese 105°C capacitors

Description

Utilizing the ATX v3.0 power standard, the NZXT C1200 Gold pumps up to 600 watts of power to NVIDIA 40-series graphics cards over a single cable while maintaining highly efficient, low-noise performance.

Specifications

Cooling
Fan diameter	13.5 cm
Fan speed	0 - 2300 RPM
Design
80 PLUS certification	80 PLUS Gold
Product colour	Black
Fan diameter	13.5 cm
Fan speed	0 - 2300 RPM
Power
Total power	1200 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Input current	7 - 14 A
Power Factor Correction (PFC) type	Active
Combined power (+3.3V)	120 W
Combined power (+12V)	1200 W
Combined power (+5V)	15 W
Combined power (-12V)	3.6 W
Combined power (+5Vsb)	15 W
Max output current (+3.3V)	22 A
Max output current (+12V)	100 A
Max output current (-12V)	0.3 A
Ports & interfaces
SATA power cable length	150,500 mm
Peripheral (Molex) power cable length	150,500 mm
Motherboard power connector	24-pin ATX
Number of SATA power connectors	8
Peripheral (Molex) power connectors (4-pin)	4
PCI Express power connectors (6+2 pin)	2
CPU power connector (4+4 pin)	Yes
ATX Power connector (24-pin)	Yes
Cabling type	Fully-Modular
Performance
Power supply unit (PSU) form factor	ATX
80 PLUS certification	80 PLUS Gold
Purpose	PC
ATX version	3.0
Bearing technology	FDB
Mean time between failures (MTBF)	100000 h
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Weight & dimensions
Width	150 mm
Depth	150 mm
Height	86 mm
Certificates
80 PLUS certification	80 PLUS Gold

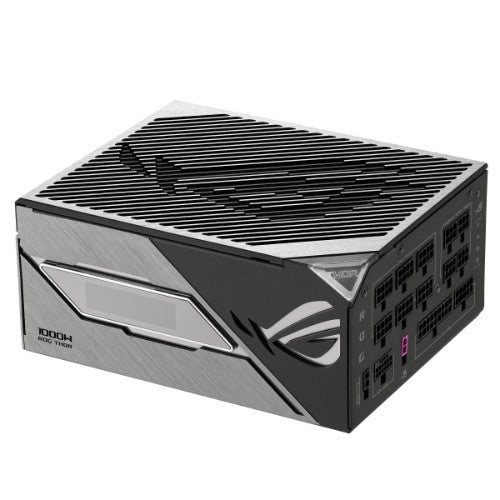

ROG Thor 1000W Platinum III

Key Features

• GaN MOSFET delivers up to 30% more power efficiency than standard MOSFETs and a more organized internal layout for cooler operation
• "GPU-First" voltage sensing with patented intelligent voltage stabilizer enhances voltage delivery to your graphics card by up to 45% for smoother gaming and unwavering performance
• Magnetic OLED display shows a real-time power draw and can be swapped to either side of the unit to accommodate fan-up or fan-down PSU installation
• Turbo Mode: Premium components and a fine-tuned fan curve unlock support for extended power excursions
• ROG heatsinks and a fully aluminum enclosure synergize for superior cooling, keeping your system thermals under control
• Dual-ball-fan bearings can last up to twice as long as sleeve bearing designs
• ATX 3.1 compatible: ROG Thor Platinum III is compliant with the ATX 3.1 standard, ensuring enhanced voltage and current regulation for the latest hardware
• Etched modular cables with a pliable premium material ensure effortless cable management and exceptional safety
• 80 PLUS Platinum certified: ROG Thor III utilizes low-ESR capacitors and premium components for industry-leading power efficiency

Description

Featuring a GaN MOSFET, “GPU-First” patented intelligent voltage stabilizer and a magnetic OLED display, ROG Thor 1000W Platinum III delivers unmatched performance and rock-solid stability for your ultimate PC build

ROG THOR 1000W PLATINUM III
ULTIMATE POWER. UNMATCHED STABILITY.
The ROG Thor 1000W Platinum III delivers the ultimate power and stability demanded by gamers. A next-gen GaN MOSFET delivers superior efficiency, and "GPU-First" voltage sensing features a patented-intelligent voltage stabilizer, ensuring top-tier performance and stability. Meanwhile, there is Turbo Mode for maximum cooling when overclocking or for other demanding workloads.

The ROG Thor 1000W Platinum III also features the signature Thor OLED display, now upgraded for easy magnetic attachment – it can be swapped to either side of the unit to accommodate fan-up or fan-down PSU installation.

Specifications

Cooling
Number of fans	1 fan(s)
Fan location	Top
Cooling type	Active
Design
80 PLUS certification	80 PLUS Platinum
Product colour	Black
Illumination	Yes
Number of fans	1 fan(s)
Fan location	Top
Cooling type	Active
Power
Total power	1000 W
AC input voltage	100 - 240 V
Power Factor Correction (PFC) type	Active
Combined power (+3.3V)	125 W
Combined power (+12V)	1000 W
Combined power (+5V)	125 W
Combined power (-12V)	3.6 W
Combined power (+5Vsb)	15 W
Max output current (+3.3V)	30 A
Max output current (+12V)	83.33 A
Max output current (+5V)	25 A
Max output current (-12V)	0.3 A
Max output current (+5Vsb)	3 A
Power protection features	Over current, Over power, Over voltage, Overheating, Short circuit, Under power
Ports & interfaces
Motherboard power cable length	61 cm
SATA power cable length	400,120 mm
Peripheral (Molex) power cable length	400,150 mm
PCI Express power cable length	75 cm
CPU power cable length	100 cm
Motherboard power connector	20+4 pin ATX
Number of SATA power connectors	7
Peripheral (Molex) power connectors (4-pin)	6
PCI Express power connectors (6+2 pin)	4
CPU power connector (4+4 pin)	Yes
Cabling type	Fully-Modular
PCI Express power connectors (16-pin)	1
Performance
Power supply unit (PSU) form factor	ATX
80 PLUS certification	80 PLUS Platinum
Purpose	PC
ATX version	3.1
Bearing technology	DBB
Mean time between failures (MTBF)	120000 h
Packaging content
Cables included	CPU, PCIe, SATA, Peripheral (Molex)
Weight & dimensions
Width	190 mm
Depth	150 mm
Height	86 mm
Weight	2.37 kg
Packaging data
Cables included	CPU, PCIe, SATA, Peripheral (Molex)
Package width	379 mm
Package depth	241 mm
Package height	127 mm
Package type	Box
Package weight	5.08 kg
Certificates
80 PLUS certification	80 PLUS Platinum

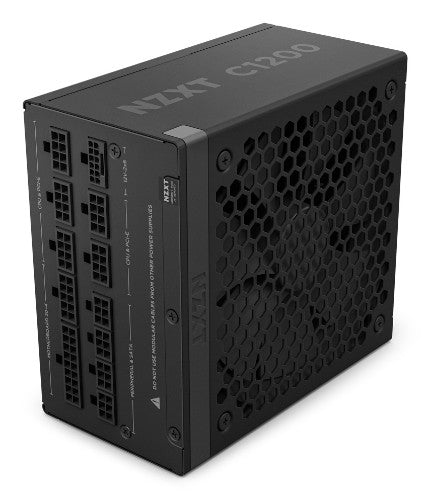

1200 W, 80 PLUS Gold, Fully Modular, ATX v3.1, Black

Key Features

• Compliant with the ATX 3.1 standard to fuel high-performance PC components with stability, efficiency, and power spike resistance
• Durable, heat-resistant 12V-2x6 connector pumps up to 600 watts to NVIDIA® GeForce RTX™ 40 Series graphics cards
• 135mm fluid dynamic bearing fan with Zero Fan Mode is completely silent when under 50% load
• 100% premium Japanese capacitors improve hold-up time and minimal ripple noise, ensuring reliable and stable power delivery
• Fully modular design allows for only connecting essential cables, reducing clutter for better airflow and a neater build
• Compact form factor frees up valuable room for cable management and more case airflow
• Thanks to high-quality construction and rigorous product testing, NZXT PSUs are backed by a 10-year warranty

Description

1200 Watt 80 PLUS Gold Fully Modular ATX 3.1 PSU

Designed for maximum performance with minimal noise, NZXT C Series Gold ATX 3.1 PSUs are ready to fuel the demands of top-tier GPUs and CPUs.

NZXT Gold ATX 3.1 PSU
ATX 3.1 compliant PSUs featuring high efficiency, low noise, and premium construction.

ATX 3.1 Compliant
ATX 3.1 powers high-performance components with stable delivery and improved efficiency.

40 Series Ready
12V-2x6 cable delivers up to 600 watts of power to NVIDIA® GeForce RTX™ 40 Series GPUs.

Certified for High Efficiency & Low Noise
80 PLUS Gold Efficiency, Cybenetics Gold Efficiency, and Cybenetics A- Noise Level Ratings.

Silence is Golden
135mm FDB fan with Zero Fan Mode stops spinning under 50% load for total silence.

100% Japanese Capacitors
Improved hold-up time and reduced ripple noise for stable, reliable power delivery.

Fully Modular
Only connect the cables needed to keep a tidy build. Full cable set included.

Space-Saving Size
Compact form factor frees up room for cable management and improved airflow.

Peace of Mind
Backed by a 10-year warranty and reliable customer support.

Specifications

Cooling
Fan diameter	13.5 cm
Number of fans	1 fan(s)
Fan speed	0 - 2300 RPM
Fan location	Top
Cooling type	Active
Performance
On/off switch	Yes
Power supply unit (PSU) form factor	ATX
80 PLUS certification	80 PLUS Gold
Purpose	PC
ATX version	3.1
EPS version	2.92
Noise level	44.5 dB
Bearing technology	FDB
Mean time between failures (MTBF)	100000 h
Design
80 PLUS certification	80 PLUS Gold
Product colour	Black
Fan diameter	13.5 cm
On/off switch	Yes
Number of fans	1 fan(s)
Fan speed	0 - 2300 RPM
Fan location	Top
Cooling type	Active
Power
Total power	1200 W
AC input voltage	100 - 240 V
Input current	7 - 14 A
Power Factor Correction (PFC) type	Active
Combined power (+3.3V)	120 W
Combined power (+12V)	1200 W
Combined power (+5V)	15 W
Combined power (-12V)	3.6 W
Combined power (+5Vsb)	15 W
Max output current (+3.3V)	22 A
Max output current (+12V)	100 A
Max output current (-12V)	0.3 A
Power protection features	Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Efficiency	91.6%
Ports & interfaces
Motherboard power cable length	60 cm
SATA power cable length	150,500 mm
Peripheral (Molex) power cable length	150,500 mm
Motherboard power connector	24-pin ATX
Number of SATA power connectors	12
Peripheral (Molex) power connectors (4-pin)	4
PCI Express power connectors (6+2 pin)	2
CPU power connector (4+4 pin)	Yes
ATX Power connector (24-pin)	Yes
Cabling type	Fully-Modular
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Certificates
Compliance certificates	BIS, BSMI, CCC, Federal Communications Commission (FCC), RCM, UKCA
80 PLUS certification	80 PLUS Gold
Weight & dimensions
Width	150 mm
Depth	160 mm
Height	86 mm
Technical details
Warranty period	10 year(s)
Compliance certificates	BIS, BSMI, CCC, Federal Communications Commission (FCC), RCM, UKCA
Logistics data
Warranty period	10 year(s)

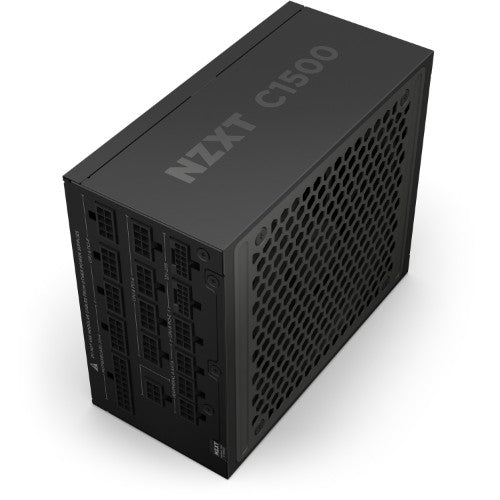

1500 Watt 80 PLUS Platinum Fully Modular ATX 3.1 PSU

Key Features

• Designed with ATX 3.1 and PCIe 5.1 compliance to power current and future generations of high-performance GPUs and CPUs
• Includes two 16-pin 12V-2x6 PCIe 5.1 cables, each capable of delivering over 600 watts to power-hungry GPUs
• Digital power enables precise voltage regulation, resulting in higher efficiency and lower ripple noise
• Exceeding 80 Plus Platinum standards, the 94% efficiency reduces power consumption for lower monthly bills and cooler, quieter operation
• Certified for ultra-high efficiency and ultra-low noise with Cybenetics Titanium efficiency and Cybenetics A- noise level ratings
• 140mm magnetic levitation fan uses air-suspended blades for low noise, high airflow, and a long lifespan
• Constructed using high-quality 105°C Japanese capacitors for excellent reliability and long-lasting performance
• Fully modular design simplifies cable management, allowing for the connection of only necessary cables
• Compact 180mm form factor optimizes valuable case space while promoting improved airflow

Description

The NZXT C1500 Platinum PSU offers highly efficient, digitally-controlled power, ATX 3.1 compliance, and PCIe 5.1 connectivity with a high-performance magnetic levitation fan.

Future-Proof Power
ATX 3.1 and PCIe 5.1 compliance supports current and future high-performance GPUs and CPUs.

Dual PCIe 5.1 Connectors
Equipped with two 16-pin 12V-2x6 cables to power GPUs drawing more than 600 watts.

Specifications

Cooling
Fan diameter	14 cm
Number of fans	1 fan(s)
Fan speed	2250 - 2750 RPM
Cooling type	Active
Design
80 PLUS certification	80 PLUS Platinum
Product colour	Black
Fan diameter	14 cm
Number of fans	1 fan(s)
Fan speed	2250 - 2750 RPM
Cooling type	Active
Power
Total power	1500 W
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power Factor Correction (PFC) type	Active
Combined power (+3.3V)	120 W
Combined power (+12V)	1500 W
Combined power (+5V)	120 W
Combined power (+5Vsb)	15 W
Max output current (+3.3V)	22 A
Max output current (+12V)	125 A
Max output current (+5V)	22 A
Max output current (+5Vsb)	3 A
Power protection features	Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Efficiency	94%
Ports & interfaces
Motherboard power cable length	60 cm
SATA power cable length	150,500 mm
Peripheral (Molex) power cable length	150,500 mm
CPU power cable length	70 cm
Motherboard power connector	24-pin ATX
Number of SATA power connectors	12
Peripheral (Molex) power connectors (4-pin)	4
PCI Express power connectors (6+2 pin)	6
CPU power connector (4+4 pin)	Yes
Cabling type	Fully-Modular
PCI Express power connectors (12+4 pin)	2
PCI Express power connectors (12+4 pin) cable length	650 mm
Performance
Power supply unit (PSU) form factor	ATX
80 PLUS certification	80 PLUS Platinum
Purpose	PC
ATX version	3.1
Noise level	41 dB
Bearing technology	MLB
Mean time between failures (MTBF)	100000 h
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Packaging content
Cables included	AC, CPU, PCIe, Peripheral (Molex), SATA
Weight & dimensions
Width	150 mm
Depth	180 mm
Height	86 mm
Packaging data
Cables included	AC, CPU, PCIe, Peripheral (Molex), SATA
Technical details
Compliance certificates	BIS, BSMI, CB, CCC, CE, Federal Communications Commission (FCC), KC, RCM, TÜV mark, UKCA, cTUVus
Certificates
80 PLUS certification	80 PLUS Platinum

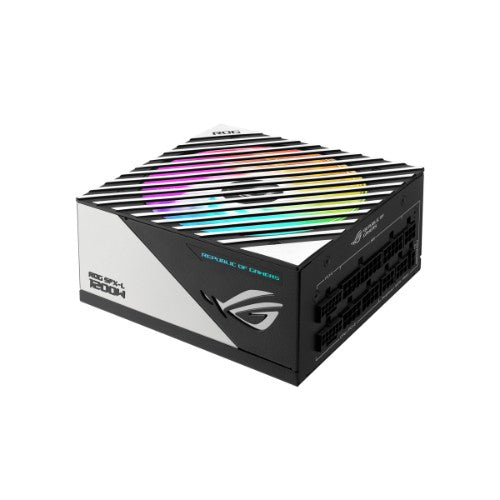

ROG Loki SFX-L 1200W Titanium fully modular gaming power supply (120mm PWM ARGB fan, Aura Sync ARGB lighting, ATX 3.1 compatible, PCIe 5.0 Ready, incl. 16-pin cable, 80+ Titanium certification, Lambda Standard ++ certification)

Description

The World's Quietest and Most Powerful SFX-L PSU
Taking after the ROG Thor, the ROG Loki 1200W Titanium brandishes the same enthusiast-grade components and features, all packed into an SFX-L form factor. Boasting quiet operation and high performance, the Loki is primed to power your next SFF build.

COOLING

ROG Heatsinks
Cool under pressure
ROG heatsinks facilitate lower temperatures, longer component lifespan, and extended 0dB operation.

Dual Ball Fan Bearings
2x longer lifespan
The fan impeller spins on a dual ball bearing setup that will last up to twice as long as a sleeve bearing design.

0dB Technology
Quiet intelligence
To reduce noise output, the PWM-controlled fan shuts off entirely when the PSU load is 40% or below.

Lambda Standard ++ Certification
Quietly deviant
On average, ROG Loki 1200W Titanium emits less than 35 dB of noise – earning a coveted Cybenetics Lambda standard ++ certification.

ENGINEERING

80 PLUS Titanium Certified
Effortless output
Low-ESR Japanese capacitors further improve efficiency and reduce heat, readying ROG Loki to reliably fuel your build for years to come.

ATX 3.1 Compatible
Step into the future
The latest power specification updates have landed. ATX 3.1 ushers in tighter voltage and current regulation guidelines for next-gen hardware - and ROG Loki steps ahead of the curve by being fully compliant. A 16-pin PCIe cable ripe for piping up to 600W of power to PCIe Gen 5.0 graphics cards is bundled with the PSU, bringing large-scale capabilities to SFF rigs.

EXPERIENCE

ARGB-illuminated Fan & Aura Sync
Magical glow
The Loki's 120 mm fan features eight addressable LEDs ready to be customized with Aura Sync to create coordinated lighting patterns across your build.

* If the connector cable is not used, the default color effect is rainbow.
* To enjoy Aura Sync, you’ll need an Aura Sync-compatible ASUS or ROG motherboard. Similarly, the Smart Mode lighting effect, which reflects GPU temperature, requires use of a compatible ASUS or ROG graphics card.

10-Year Warranty
A decade of power
We're so confident about the reliability of the ROG Loki SFX-L 1200W Titanium that we back it with a 10-year warranty.

*Core product operation is guaranteed for 10 years. The RGB LEDs are subject to a 3-year warranty.

Specifications

Cooling
Fan diameter	12 cm
Number of fans	1 fan(s)
Cooling type	Active
Performance
On/off switch	Yes
Power supply unit (PSU) form factor	SFX-L
80 PLUS certification	80 PLUS Platinum
Purpose	PC
ATX version	3.1
Bearing technology	Ball bearing
Design
80 PLUS certification	80 PLUS Platinum
Product colour	Black, Silver
Fan diameter	12 cm
Illumination	Yes
On/off switch	Yes
Number of fans	1 fan(s)
Cooling type	Active
Power
Total power	1200 W
Peak power	1200 W
AC input voltage	100 - 240 V
Power Factor Correction (PFC) type	Active
Combined power (+3.3V)	110 W
Combined power (+12V)	1200 W
Combined power (+5V)	110 W
Combined power (-12V)	9.6 W
Combined power (+5Vsb)	15 W
Max output current (+3.3V)	20 A
Max output current (+12V)	100 A
Max output current (+5V)	20 A
Max output current (-12V)	0.8 A
Max output current (+5Vsb)	3 A
Power protection features	Over power, Over voltage, Overcharge, Overheating, Short circuit, Under voltage
Ports & interfaces
Motherboard power cable length	45 cm
SATA power cable length	100,200,300 mm
Peripheral (Molex) power cable length	100,300 mm
CPU power cable length	55 cm
Motherboard power connector	20+4 pin ATX
Number of SATA power connectors	6
Peripheral (Molex) power connectors (4-pin)	4
PCI Express power connectors (8-pin)	4
CPU power connector (4+4 pin)	Yes
ATX power connector (20+4 pin)	Yes
Cabling type	Fully-Modular
PCI Express power connectors (16-pin)	2
Certificates
Compliance certificates	RoHS
80 PLUS certification	80 PLUS Platinum
Packaging content
Cables included	AC, CPU, PCIe, Peripheral (Molex), SATA
Manual	Yes
Weight & dimensions
Width	125 mm
Depth	125 mm
Height	63.5 mm
Weight	2.15 kg
Packaging data
Cables included	AC, CPU, PCIe, Peripheral (Molex), SATA
Package width	285 mm
Package depth	190 mm
Package height	100 mm
Package type	Box
Package weight	2.84 kg
Manual	Yes
Technical details
Sustainability compliance	Yes
Warranty period	10 year(s)
Compliance certificates	RoHS
Logistics data
Warranty period	10 year(s)
Other features
Manual	Yes

800W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit

Reasons To Buy

Improve Data Center Efficiency Without Impacting IT Performance

HPE Flexible Slot Power Supplies provide up to 96% power efficiency with 80 Plus Titanium-certified options that lower server power requirements and reduce power waste in your data center.
96% efficient power supplies comply with the European Union (EU) Commission regulation 2019/424 (EU Lot 9) efficiency requirements.
The power supply form factor is 25% smaller than previous generation HPE Common Slot Power Supplies, leaving more space to add server options improving the performance of your servers.
Fast, tool-less hot-plug access simplifies and enhances serviceability.
Support HPE ProLiant Gen10, Gen10 Plus and Gen11 servers, select HPE Apollo Gen10 & Gen10 Plus systems, and HPE Alletra 4100 data storage servers, simplifying your spares strategy and further reducing data center costs.

Description

How do you improve data center power efficiency without impacting IT performance? HPE Flexible Slot Power Supplies deliver up to 96% power efficiency with 80 Plus Titanium-certified options that lower server power requirements, reduce power waste and costs in your data center, and simplify your spares strategy ^[1]. Its form factor is 25% smaller than previous generations leaving more space to add server options improving the performance of your servers. Fast, tool-less hot-plug access simplifies and enhances serviceability. Support HPE ProLiant Gen10, Gen10 Plus, and Gen11 servers, select HPE Apollo Gen10 & Gen10 Plus systems, and HPE Alletra 4100 data storage servers, simplifying your spares strategy and further reducing data center costs.

What is new supporting point:
HPE 800W Flex Slot Universal Power Supply providing choice of 277V AC or 380V DC input options.
HPE 1600W Flex Slot Power Supply with 94% efficiency, 200-240V AC input.
New HPE 1800W-2200W Flex Slot Power Supply with 96% efficiency, 200-240 VAC input, 80 Plus Titanium certified.^[2]
HPE 1000W Flex Slot Power Supply with 96% efficiency, 100-240 VAC input, 80 Plus Titanium certified.
HPE 800W Flex Slot Power Supply with 96% efficiency, 200-240V AC input, 80 Plus Titanium certified.
Choice of -48 VDC HPE Flex Slot Power Supplies, delivering 800W or 1600W output.

Specifications

Design
80 PLUS certification	80 PLUS Platinum
Product colour	Grey
Power
Total power	800 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Efficiency	94%
Performance
80 PLUS certification	80 PLUS Platinum
Purpose	Server
Harmonized System (HS) code	84733020
Technical details
Harmonized System (HS) code	84733020
Weight & dimensions
Width	68 mm
Depth	40.4 mm
Height	225.3 mm
Weight	1.81 kg
Certificates
80 PLUS certification	80 PLUS Platinum
Logistics data
Harmonized System (HS) code	84733020
Other features
Harmonized System (HS) code	84733020

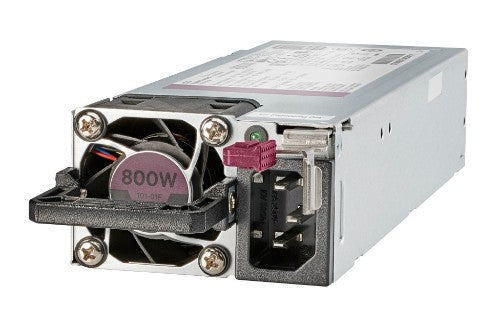

800W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit

Reasons To Buy

Improve Data Center Efficiency Without Impacting IT Performance

HPE Flexible Slot Power Supplies provide up to 96% power efficiency with 80 Plus Titanium-certified options that lower server power requirements and reduce power waste in your data center.
96% efficient power supplies comply with the European Union (EU) Commission regulation 2019/424 (EU Lot 9) efficiency requirements.
The power supply form factor is 25% smaller than previous generation HPE Common Slot Power Supplies, leaving more space to add server options improving the performance of your servers.
Fast, tool-less hot-plug access simplifies and enhances serviceability.
Support HPE ProLiant Gen10, Gen10 Plus and Gen11 servers, select HPE Apollo Gen10 & Gen10 Plus systems, and HPE Alletra 4100 data storage servers, simplifying your spares strategy and further reducing data center costs.

Description

How do you improve data center power efficiency without impacting IT performance? HPE Flexible Slot Power Supplies deliver up to 96% power efficiency with 80 Plus Titanium-certified options that lower server power requirements, reduce power waste and costs in your data center, and simplify your spares strategy ^[1]. Its form factor is 25% smaller than previous generations leaving more space to add server options improving the performance of your servers. Fast, tool-less hot-plug access simplifies and enhances serviceability. Support HPE ProLiant Gen10, Gen10 Plus, and Gen11 servers, select HPE Apollo Gen10 & Gen10 Plus systems, and HPE Alletra 4100 data storage servers, simplifying your spares strategy and further reducing data center costs.

What is new supporting point:
New HPE 1800W-2200W Flex Slot Power Supply with 96% efficiency, 200-240 VAC input, 80 Plus Titanium certified.^[2]
HPE 1000W Flex Slot Power Supply with 96% efficiency, 100-240 VAC input, 80 Plus Titanium certified.
HPE 800W Flex Slot Power Supply with 96% efficiency, 200-240V AC input, 80 Plus Titanium certified.
Choice of -48 VDC HPE Flex Slot Power Supplies, delivering 800W or 1600W output.
HPE 1600W Flex Slot Power Supply with 94% efficiency, 200-240V AC input.
HPE 800W Flex Slot Universal Power Supply providing choice of 277V AC or 380V DC input options.

Specifications

Power
Total power	800 W
AC input voltage	100 - 240 V
Efficiency	94%
Performance
Harmonized System (HS) code	84733020
Design
Product colour	Grey
Technical details
Harmonized System (HS) code	84733020
Weight & dimensions
Width	68 mm
Depth	40.4 mm
Height	225.3 mm
Weight	1.43 kg
Logistics data
Harmonized System (HS) code	84733020
Other features
Harmonized System (HS) code	84733020
