1500 Watt 80 PLUS Platinum Fully Modular ATX 3.1 PSU
Key Features
Designed with ATX 3.1 and PCIe 5.1 compliance to power current and future generations of high-performance GPUs and CPUs
Includes two 16-pin 12V-2x6 PCIe 5.1 cables, each capable of delivering over 600 watts to power-hungry GPUs
Digital power enables precise voltage regulation, resulting in higher efficiency and lower ripple noise
Exceeding 80 Plus Platinum standards, the 94% efficiency reduces power consumption for lower monthly bills and cooler, quieter operation
Certified for ultra-high efficiency and ultra-low noise with Cybenetics Titanium efficiency and Cybenetics A- noise level ratings
140mm magnetic levitation fan uses air-suspended blades for low noise, high airflow, and a long lifespan
Constructed using high-quality 105°C Japanese capacitors for excellent reliability and long-lasting performance

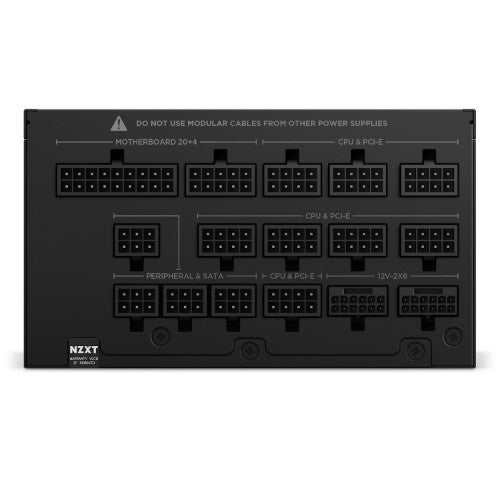

Fully modular design simplifies cable management, allowing for the connection of only necessary cables
Compact 180mm form factor optimizes valuable case space while promoting improved airflow
Description

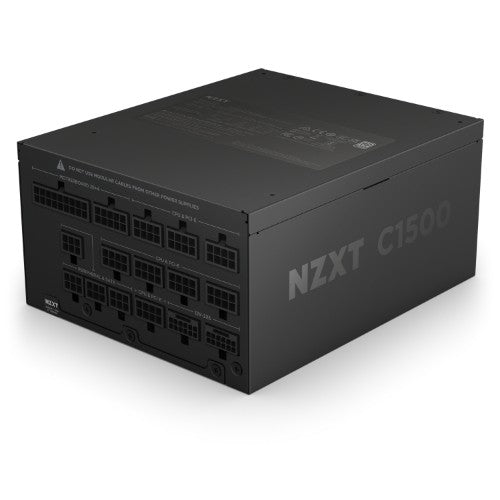

The NZXT C1500 Platinum PSU offers highly efficient, digitally-controlled power, ATX 3.1 compliance, and PCIe 5.1 connectivity with a high-performance magnetic levitation fan.
Future-Proof Power ATX 3.1 and PCIe 5.1 compliance supports current and future high-performance GPUs and CPUs.
Dual PCIe 5.1 Connectors Equipped with two 16-pin 12V-2x6 cables to power GPUs drawing more than 600 watts.
Specifications
Cooling
Fan diameter
14 cm
Number of fans
1 fan(s)
Fan speed
2250 - 2750 RPM
Cooling type
Active
Design
80 PLUS certification
80 PLUS Platinum
Product colour
Black
Fan diameter
14 cm
Number of fans
1 fan(s)
Fan speed
2250 - 2750 RPM
Cooling type
Active
Power
Total power
1500 W
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Power Factor Correction (PFC) type
Active
Combined power (+3.3V)
120 W
Combined power (+12V)
1500 W
Combined power (+5V)
120 W
Combined power (+5Vsb)
15 W
Max output current (+3.3V)
22 A
Max output current (+12V)
125 A
Max output current (+5V)
22 A
Max output current (+5Vsb)
3 A
Power protection features
Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Efficiency
94%
Ports & interfaces
Motherboard power cable length
60 cm
SATA power cable length
150,500 mm
Peripheral (Molex) power cable length
150,500 mm
CPU power cable length
70 cm
Motherboard power connector
24-pin ATX
Number of SATA power connectors
12
Peripheral (Molex) power connectors (4-pin)
4
PCI Express power connectors (6+2 pin)
6
CPU power connector (4+4 pin)
Yes
Cabling type
Fully-Modular
PCI Express power connectors (12+4 pin)
2
PCI Express power connectors (12+4 pin) cable length
