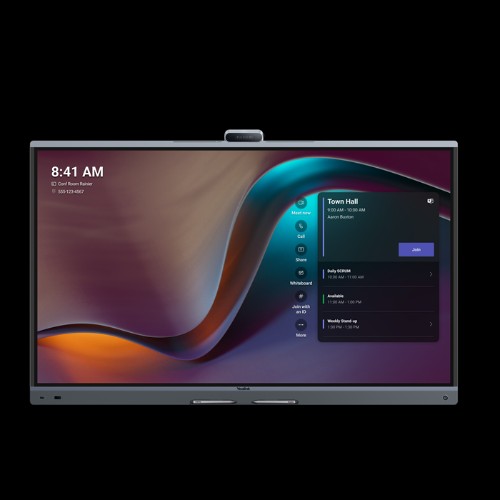

Yealink MeetingBoard 86 Pro/MB86Pro-A02

86", 3840 x 2160, 400 cd/m2, 4C 2.2Ghz + 4C 2Ghz, 8GB RAM, 3x 50MP Sony Sensor X3, 16 MEMS, Wi-Fi 6, Bluetooth 5.1, Android 13.0

Key Features

• Pro A/V experience
• Perfect for large meeting rooms
• Powerful AI features

Description

The MeetingBoard Pro combines video conferencing, display, and smart whiteboarding into a sleek, all-in-one solution with plug-and-play convenience and a clutter-free design. Delivering Pro View, Pro Sound, and powered by Pro Core, it features a triple 50MP camera system with advanced AI for precise tracking and a 16 MEMS mic array with AI-enhanced audio for crystal-clear conversations up to 12m. MeetingBoard Pro supports Android solution or Windows solution. Built on Android 13 with MDEP security and compatible with Teams, Zoom, and BYOD, it’s the ultimate meeting solution, expandable with plug-and-play add-ons like 12x Pro PTZ cameras and extension mics.

Specifications

Display
Display diagonal	2.18 m (86")
Contrast ratio (typical)	1200:1
Touchscreen	Yes
Number of simultaneous touchpoints	20
Display brightness	400 cd/m²
Display resolution	3840 x 2160 pixels
Maximum refresh rate	60 Hz
Features
Display diagonal	2.18 m (86")
Contrast ratio (typical)	1200:1
Touchscreen	Yes
Number of simultaneous touchpoints	20
Display brightness	400 cd/m²
Display resolution	3840 x 2160 pixels
Maximum refresh rate	60 Hz
Operating system installed	Android
Country of origin	China
Computer system
Operating system installed	Android
Built-in processor	Yes
Processor cores	8
RAM capacity	8 GB
Audio
Built-in speaker(s)	Yes
Built-in microphone	Yes
Camera
Built-in camera	Yes
Network
Bluetooth	Yes
Bluetooth version	5.1
Wi-Fi	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Ethernet LAN	Yes
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Ports & interfaces
HDMI ports quantity	2
HDMI output ports quantity	1
Bluetooth	Yes
Bluetooth version	5.1
Wi-Fi	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Ethernet LAN	Yes
Ergonomics
Panel mounting interface	800 x 600 mm
VESA mounting	Yes
Power
Power consumption (max)	357 W
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95%
Storage temperature (T-T)	-20 - 60 °C
Technical details
Touchscreen	Yes
Country of origin	China
Weight & dimensions
Width	1951 mm
Depth	105 mm
Height	1218 mm
Weight	65.6 kg
Packaging data
Package width	2095 mm
Package depth	225 mm
Package height	1310 mm
Package weight	83.2 kg
Projector
Contrast ratio (typical)	1200:1
Packaging content
Cables included	AC, LAN (RJ-45)
Processor
Built-in processor	Yes
Processor cores	8
Memory
RAM capacity	8 GB
Other features
Country of origin	China
Logistics data
Country of origin	China
