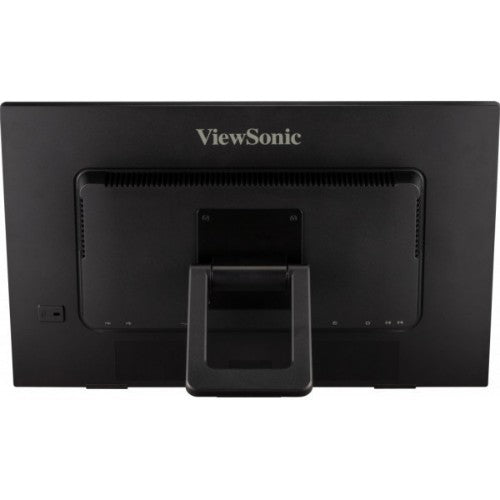

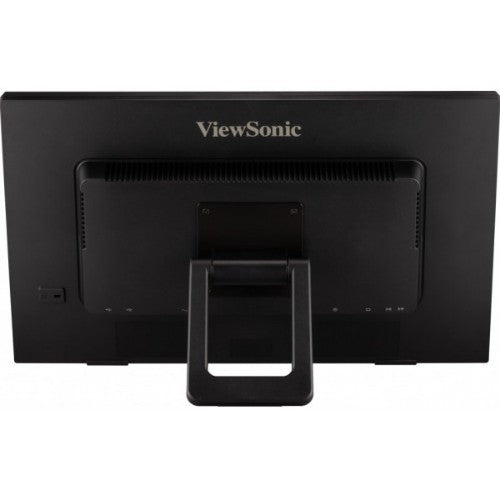

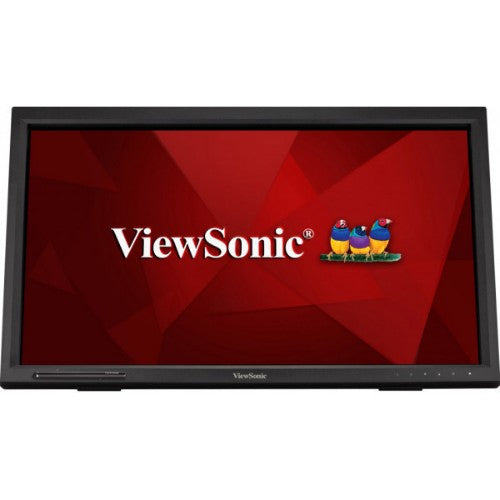

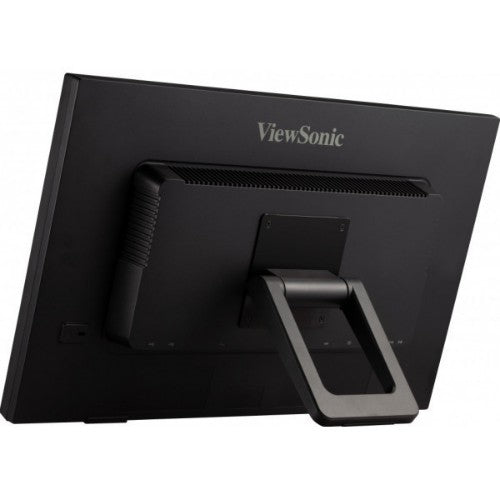

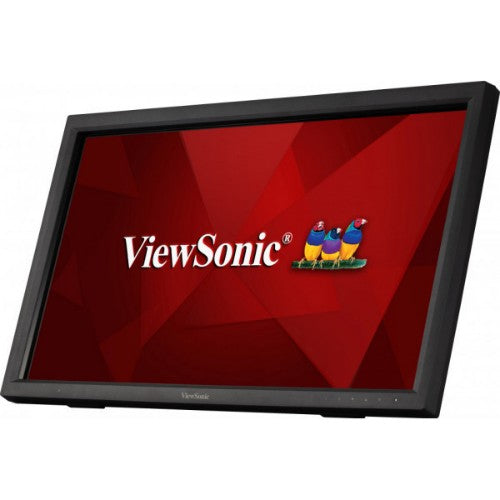

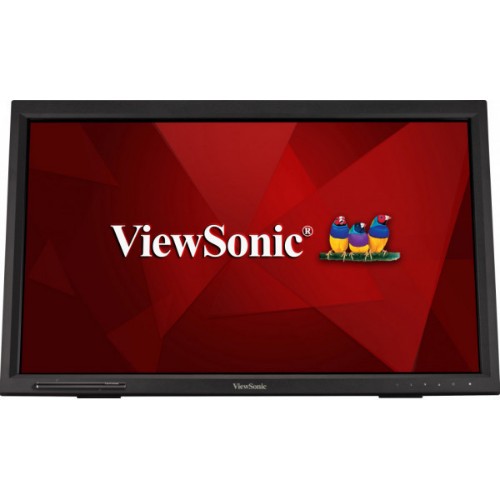

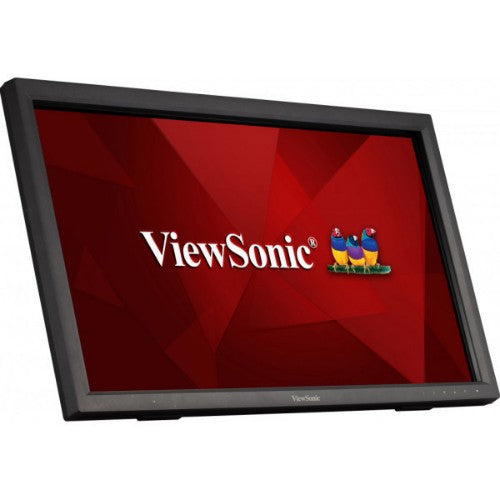

Viewsonic TD2423 computer monitor 59.9 cm (23.6") 1920 x 1080 pixels Full HD LED Touchscreen Multi-user Black

23.6", VA, FHD, 16:9, 16.7M, 250 nits, 1000:1, 7ms, 178/178, 2W x2, VESA, 100-240VAC, 6 kg

Key Features

• Intuitive 10-point touchscreen
• Finger, stylus, and glove touch compatible
• Magnetic pen placeholder
• Adjustable back tilt up to 40-degrees
• Scratch-resistant 7H hardness screen

Description

The ViewSonic® TD2423 is a 24” IR touch display designed for intuitive multi-touch use. Infrared (IR) touchscreen can detect up to 10 points of contact compared to optical touchscreens and can be operated by a stylus, fingers and gloved hands. The multi-touch input is more accurate, and the display is faster. Coupled with an adjustable tilt, you can easily interact with the TD2423 at an ideal position. This monitor features Full HD resolution to give you clear images and is built with scratch-resistant 7H hardness screen to surface damage. To support your work, the TD2423 is equipped with VGA, HDMI, DVI and USB connectivity.

Intuitive Multi-touch Experience
An infrared touchscreen that can detect up to 10 points of contact under Windows compared to optical touchscreens. The TD2423 delivers an intuitive multi-touch experience with every tap, pinch, and swipe with the finger touch, gloved touch, and stylus inputs.


Operating System Support
This monitor supports the main operating systems being Windows, macOS, Android, Chrome OS, Linux and Raspberry Pi.

Simple and Safer Way to Interact
This monitor can be operated by stylus* and gloved hands, which improves hygiene and is effective for selection, dragging and drawing. What’s more, there is a magnetic pen placeholder on the base.

Anti-scratch Touchscreen
With a built-in 7H hardness screen, it’s resistant to surface damage caused by sharp objects.
7H Hardness Screen

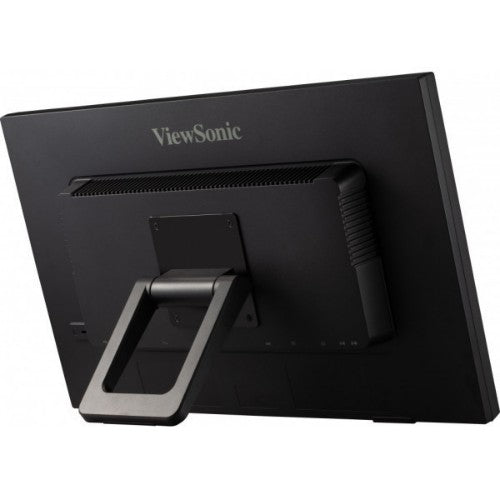

Adjustable Tilt
This monitor includes an adjustable tilt, which allows you to easily tilt back up to 40-degrees, making it a good fit for anyone.

Clear Images
This monitor features Full HD 1920x1080 resolution to benefit you with greater image details and more displayable on-screen contents.
Full HD 1080p Resolution

Dual Integrated Speakers
With built-in 2-watt speakers, this monitor provides you a better audiovisual experience.

Enhanced Viewing Comfort
This monitor is built with Flicker-Free technology and a Blue Light Filter to reduce eye fatigue after a long day of use.

Specifications

Display
HDCP	Yes
Screen shape	Flat
Display number of colours	16.78 million colours
Native aspect ratio	16:9
Maximum refresh rate	60 Hz
Display diagonal	59.9 cm (23.6")
Response time	7 ms
Display resolution	1920 x 1080 pixels
Display technology	LED
Contrast ratio (typical)	1000:1
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Pixel pitch	0.271 x 0.271 mm
Digital horizontal frequency	24 - 82 kHz
Digital vertical frequency	50 - 75 Hz
HD type	Full HD
Touchscreen type	Multi-user
Touchscreen	Yes
Number of simultaneous touchpoints	10
Panel type	VA
Display diagonal (metric)	59.94 cm
Touch technology	Multi-touch
Touchscreen technology	Infrared
Display brightness	250 cd/m²
Performance
AMD FreeSync	No
NVIDIA G-SYNC	No
Multimedia
Number of speakers	2
Built-in speaker(s)	Yes
Built-in camera	No
RMS rated power	4 W
Built-in microphone	No
Design
Product colour	Black
Certification	cTUVus, FCC-B, ICES003, Energy Star 8.0, EPEAT Silver, CEC, MX-CoC, Mexico Energy, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, BSMI, RCM, GEMS, PSE, CCC, China RoHS, China Energy Label, CECP
Glass thickness	1.85 mm
Ports & interfaces
Built-in USB hub	Yes
USB upstream port type	USB Type-B
Number of upstream ports	1
USB Type-A downstream ports quantity	2
VGA (D-Sub) ports quantity	1
DVI port	Yes
DVI-D ports quantity	1
HDMI ports quantity	1
HDCP	Yes
Audio input	1
Audio output	1
HDMI	Yes
HDMI version	1.4
Ergonomics
Wall mountable	Yes
VESA mounting	Yes
Cable lock slot	Yes
Panel mounting interface	100 x 100 mm
Tilt angle range	22 - 38°
Cable lock slot type	Kensington
Tilt adjustment	Yes
Power
Power supply type	AC
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	16.5 W
Power consumption (standby)	0.5 W
Power consumption (typical)	15.5 W
Energy efficiency class (SDR)	D
Energy consumption (SDR) per 1000 hours	14 kWh
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	20 - 90%
Weight & dimensions
Width (with stand)	571 mm
Depth (with stand)	101 mm
Height (with stand)	348 mm
Width (without stand)	571 mm
Height (without stand)	348 mm
Depth (without stand)	61 mm
Weight (with stand)	5.2 kg
Weight (without stand)	4.7 kg
Package width	645 mm
Package depth	166 mm
Package height	422 mm
Package weight	7 kg
Weight	5.2 kg
Packaging data
Package width	645 mm
Package depth	166 mm
Package height	422 mm
Package weight	7 kg
Cables included	AC, Audio (3.5mm), HDMI, USB Type-A to USB Type-B
Packaging content
Cables included	AC, Audio (3.5mm), HDMI, USB Type-A to USB Type-B
Sustainability
Sustainability certificates	EPEAT Silver
Technical details
Sustainability certificates	EPEAT Silver
Compliance certificates	CE, REACH, RoHS
Power supply type	AC
Weight (with stand)	5.2 kg
Touchscreen type	Multi-user
Touchscreen	Yes
Number of simultaneous touchpoints	10
Other features
Display viewable area (HxV)	521 x 293 mm
Certification	cTUVus, FCC-B, ICES003, Energy Star 8.0, EPEAT Silver, CEC, MX-CoC, Mexico Energy, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, BSMI, RCM, GEMS, PSE, CCC, China RoHS, China Energy Label, CECP
Weight	5.2 kg
Compliance certificates	CE, REACH, RoHS
Power consumption (max)	16.5 W
Width (without stand)	571 mm
Height (without stand)	348 mm
HDMI	Yes
Depth (without stand)	61 mm
Power supply type	AC
Touchscreen type	Multi-user
Touchscreen	Yes
Number of simultaneous touchpoints	10
Certificates
Certification	cTUVus, FCC-B, ICES003, Energy Star 8.0, EPEAT Silver, CEC, MX-CoC, Mexico Energy, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, BSMI, RCM, GEMS, PSE, CCC, China RoHS, China Energy Label, CECP
Logistics data
Pallet gross width	120 cm
Pallet gross length	100 cm
Pallet gross height	2.24 m
Products per master (outer) case	1 pc(s)
Harmonized System (HS) code	8528521000
