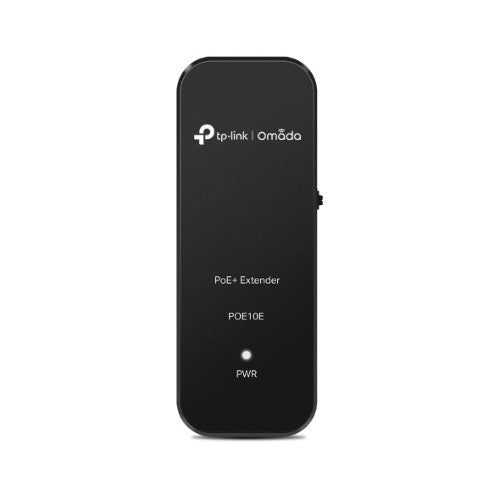

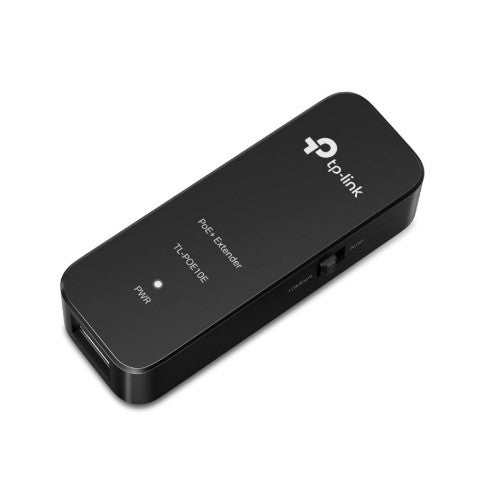

TP-Link Omada Fast Ethernet PoE+ Extender

2× 10 Mbps /100 Mbps RJ45 PoE, 802.3i/802.3u, 71x26x16 mm

Key Features

• 2×10/100 Mbps ports
• Compliance with 802.3af/at devices
• Supplies up to 20 W, which meets the power consumption requirements of most IP cameras
• Extends a PoE/PoE+ network connection an additional 100 m/250 m (10 Mbps mode) from the PoE power sourcing equipment
• Plug and Play, no configuration required

Description

The Fast Ethernet PoE+ Extender TL-POE10E extends a PoE/PoE+ network connection an additional 100m – 250m (10 Mbps Mode) from the PoE power source equipment. TL-POE10E expands network deployment with 802.3af/at PoE compliant devices, making it ideal for remote cabling requirements in surveillance scenarios. Distance will no longer be a barrier to network deployment.

Specifications

Performance
Plug and Play	Yes
Ethernet LAN data rates	10,100 Mbit/s
Type	Network repeater
Maximum transfer distance	250 m
Data transfer rate	100 Mbit/s
Cable types supported	Cat5e
Auto-negotiation	Yes
Network
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.3i, IEEE 802.3u
Ports & interfaces
Power over Ethernet (PoE) ports quantity	2
Ethernet LAN (RJ-45) ports	2
Host interface	RJ-45
RJ-45 output ports	1
RJ-45 input ports	1
Design
Housing material	Plastic
Certification	FCC, CE, RoHS
LED indicators	Power
Product colour	Black
Quantity per pack	1 pc(s)
Operational conditions
Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Weight & dimensions
Width	71 mm
Depth	26 mm
Height	16 mm
Packaging content
Quick start guide	Yes
Sustainability
Sustainability compliance	Yes
Technical details
Plug and Play	Yes
Ethernet LAN data rates	10,100 Mbit/s
Type	Network repeater
Maximum transfer distance	250 m
Data transfer rate	100 Mbit/s
Cable types supported	Cat5e
LED indicators	Power
Auto-negotiation	Yes
Sustainability compliance	Yes
Compliance certificates	Federal Communications Commission (FCC), RoHS
Colour
Product colour	Black
Certificates
Certification	FCC, CE, RoHS
Compliance certificates	Federal Communications Commission (FCC), RoHS
