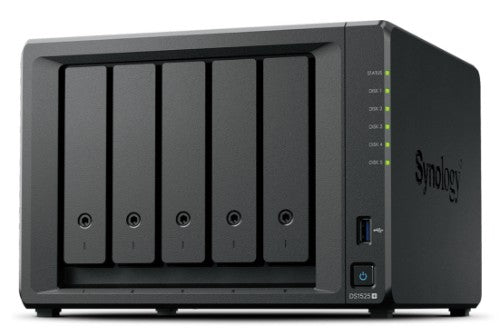

Synology DiskStation DS1525+ NAS/storage server Ryzen Embedded V1500B 8 GB DDR4 0 TB Black

DiskStation DS1525+ Versatile all-purpose data hub

Key Features

• Up to 1,181 MB/s sequential read and 1,180 MB/s sequential write performance enables fast file sharing, syncing, streaming, and backup for multiple users
• Two 2.5GbE ports offer fast networking, with Link Aggregation supporting failover and load balancing capabilities
• Support for 10GbE networking via 10GbE RJ-45 Network Upgrade Module provides versatility and futureproofing
• Supports 5 2.5" SATA SSD and 3.5" SATA HDD.8 Synology hard drives and SSDs are designed to integrate seamlessly with Synology systems, delivering exceptional reliability
• Expandable to 15 drives for up to 300 TB of raw storage with two
• Synology DX525 expansion units
• Two built-in M.2 slots provide SSD caching capability without occupying drive bays

Description

A storage solution that can adapt with your evolving needs

5-bay with expansion
Up to 300 TB of raw storage with expansion unit1,2

High-speed storage
Two built-in 2.5GbE ports, over 1,181/1,180 MB/s sequential read/write3, and 10GbE option4

Versatile applications
Back up multiple endpoints, manage 40 IP cameras5, or safely sync and share files across sites

Specifications

Storage
Total installed storage capacity	0 TB
Storage drives installed	No
Installed storage drive type	No
Number of storage drives installed	0
Supported storage drive types	HDD & SSD
Number of storage drives supported	15
Maximum supported storage capacity	300 TB
Storage drive capacity	0 GB
RAID support	Yes
RAID levels	0, 1, 5, 6, 10, JBOD
Hot-swap drive bays	Yes
Supported file systems	BTRFS, FAT32, HFS+, NTFS, exFAT, ext3, ext4
Supported storage drive interfaces	M.2, Serial ATA
Storage drive sizes supported	3.5,M.2,2.5
Number of M.2 (M & B) slots	2
Processor
Processor generation	AMD Ryzen Embedded V1000 Series
Processor manufacturer	AMD
Processor family	Ryzen Embedded
Processor threads	8
Processor model	V1500B
Processor frequency	2.2 GHz
Processor cores	4
Memory
Internal memory type	DDR4
Internal memory	8 GB
Maximum RAM supported	32 GB
Memory slots	2
Memory form factor	SO-DIMM
ECC	Yes
Network
Ethernet LAN	Yes
Ethernet LAN data rates	2500 Mbit/s
Wake-on-LAN ready	Yes
Ports & interfaces
USB port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Ethernet LAN (RJ-45) ports	2
Design
Fan diameter 2	9.2 cm
Product colour	Black
Cooling type	Active
Number of fans	2 fan(s)
Fan diameter	9.2 cm
Drive bay locking	Yes
LED indicators	Yes
Performance
System log	Yes
Browser supported	Chrome,Firefox,Edge,Safari
Type	NAS
Device class	Home & Home Office
Backup function	Yes
Backup features	Cloud, iSCSI LUN
Multilingual support	Yes
Number of users	1024 user(s)
Noise level	22.6 dB
Web-based management	Yes
On/off switch	Yes
Access Control List (ACL)	Yes
Snapshot	Yes
Power
Power consumption (HDD standby)	13.63 W
Power supply location	External
Power supply unit (PSU) capacity	120 W
Power consumption (typical)	44.56 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Weight & dimensions
Width	230 mm
Depth	223 mm
Height	166 mm
Weight	2.67 kg
Technical details
Warranty period	3 year(s)
Compliance certificates	RoHS
Packaging content
External power adapter	Yes
Cables included	AC, LAN (RJ-45)
Power cables quantity	1
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95%
Storage temperature (T-T)	-20 - 60 °C
Storage relative humidity (H-H)	5 - 95%
Operating altitude	0 - 5000 m
Other features
Warranty period	3 year(s)
Compliance certificates	RoHS
