StarTech.com Dual-Bay USB 3.0 to SATA and IDE Hard Drive Docking Station, USB Hard Drive Dock, External 2.5/3.5" SATA I/II/III and IDE (40 pin) SSD/HDD Docking Station, Hot-Swap Hard Drive Bays, Top-Loading

StarTech.com Dual-Bay USB 3.0 to SATA and IDE Hard Drive Docking Station, USB Hard Drive Dock, External 2.5/3.5" SATA III / IDE, SSD/HDD Docking Station, Hot-Swap Drive Bays, Top-Loading (UNIDOCKU33)

Key Features

• HARD DRIVE DOCKING STATION: This 2-bay hard drive dock enables access to 2.5/3.5" SATA and IDE hard drives for file backup, disk imaging, or data transfer over USB 3.2 Gen 1 (5 Gbps) - Toolless design facilitates quick drive hot-swapping
• DRIVE COMPATIBILITY: Supports 2.5/3.5" SATA I/II/III SSDs/HDDs and IDE HDDs (40 pin, EIDE/PATA) - OS independent - Includes 4.7" (12cm) IDE, LP4, and 3ft (1m) USB-A cables and universal power adapter
• PERFORMANCE: Power and eject buttons for each bay enables hot-swapping of an idle drive while the other bay is in use - Dedicated slots for SATA (slot 1), and IDE (slot 2) - Drive bays with 15,000 insertion/removal cycle rating for maximum durability
• SPECS: 2-Bay Hard Drive Dock - SATA I/II/III and IDE (40 pin, EIDE/PATA 66/100/133 MBps) -USB 3.2 Gen 1 (5 Gbps) Host Connection - Toolless Design - Hot-Swappable Drive Bays - Top-Loading with Eject Button - LED Activity Lights
• THE IT PRO’S CHOICE: Designed and built for IT Professionals, this Dual-Bay Hard Drive Dock is backed for 2 years, including free lifetime 24/5 multilingual technical assistance

Description

External SSD/HDD Docking Station | USB 3.2 Gen 1 (5 Gbps) to SATA III and IDE

The UNIDOCKU33 USB 3.0 Universal HDD / SSD Dock enables you to instantly access your 2.5 or 3.5in IDE and SATA hard drives through two top loading drive slots, saving you the hassle of mounting the drives into a computer or external enclosure or tray.

Enhanced with UASP (USB Attached SCSI Protocol), this hard drive docking station lets you get the most out of the fastest drive technologies such as SATA III (6 Gbps), solid state drives (SSD) and hybrid, drives with performance up to 70% faster than conventional USB 3.0 when paired with a UASP-enabled host controller. See our UASP testing results below for further details.

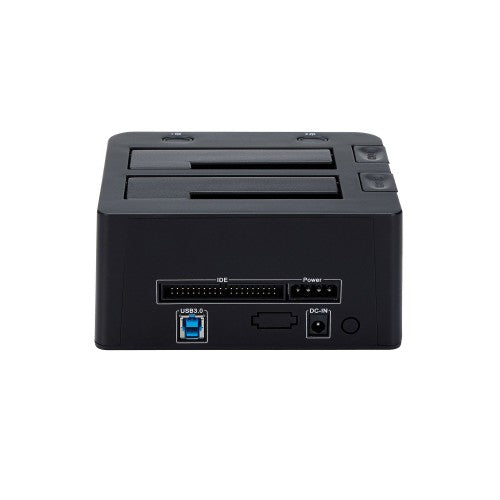

The slot-loading design holds the SATA and IDE drives upright inside the docks, neatly keeping them off the desk, for convenience and a clutter-free setup. For SATA drives, the HDD can be inserted and connected directly through the designated dock slot, while the IDE drive slot is conveniently positioned near the rear panel 40-pin data and LP4 power connections, making it easy to connect to the dock using the included IDE data and power cables.

A single USB 3.0 connection to your host computer, enables access to both the IDE & SATA hard drives simultaneously - a convenient solution for migrating data from an IDE drive to a SATA drive or vice versa. The dock can also be used to greatly increase the storage and backup capabilities of your computer system with support for high capacity drives (tested with up to 6TB 3.5" and 2TB 2.5" drives).

The UNIDOCKU33 is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Improved Performance with UASP

UASP is supported in Windows 8, Mac OSX (10.8 or above), and Linux. In testing, UASP performs with a 70% faster read speed and 40% faster write speed over traditional USB 3.0 at peak performance.

At the same peak in testing UASP also shows an 80% reduction in required processor resources.

Testing results were obtained using an Intel® Ivy Bridge system, a UASP-enabled StarTech.com Enclosure, and a SATA III solid state drive.

The StarTech.com Advantage

Specifications

Hard drive
Storage media type	HDD, SSD
Storage drive interface	Parallel ATA (IDE), Serial ATA, Serial ATA II, Serial ATA III
Storage drive sizes supported	2.5,3.5"
Number of storage drives supported	2
Maximum storage capacity	6 TB
Ports & interfaces
Host interface	USB 3.2 Gen 1 (3.1 Gen 1) Type-B
USB 3.2 Gen 1 (3.1 Gen 1) ports quantity	1
DC-in jack	Yes
Technical details
UASP support	Yes
Mean time between failures (MTBF)	30000 h
Maximum data transfer rate	5 Gbit/s
Product colour	Black
Material	Plastic
Plug and Play	Yes
Hot-swap	Yes
RAID support	No
Package width	123 mm
Package height	214 mm
Chipset	JMicron - JMS561U, JMD330
Harmonized System (HS) code	84733080
Compliance certificates	RoHS
Features
UASP support	Yes
Mean time between failures (MTBF)	30000 h
Maximum data transfer rate	5 Gbit/s
LED indicators	Activity, Power
Product colour	Black
Material	Plastic
Plug and Play	Yes
Hot-swap	Yes
RAID support	No
Certification	CE, FCC
Chipset	JMicron - JMS561U, JMD330
Cooling
Built-in fan	No
Power
Power plug type	Type M
AC input voltage	110-240 V
Input current	1.3 A
Output voltage	12 V
Output current	3 A
Weight & dimensions
Width	130 mm
Depth	147 mm
Height	70 mm
Weight	500 g
Packaging data
Package depth	187 mm
Package weight	1 kg
Package width	123 mm
Package height	214 mm
Packaging content
AC adapter included	Yes
Cables included	USB
Manual	Yes
Operational conditions
Operating temperature (T-T)	5 - 80 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	8 - 90%
Certificates
Certification	CE, FCC
Indication
LED indicators	Activity, Power
Ethernet LAN features
LED indicators	Activity, Power
Other features
Mean time between failures (MTBF)	30000 h
Chipset	JMicron - JMS561U, JMD330
Compliance certificates	RoHS
Logistics data
Master (outer) case width	210 mm
Master (outer) case length	625 mm
Master (outer) case height	450 mm
Products per master (outer) case	10 pc(s)
Harmonized System (HS) code	84733080
