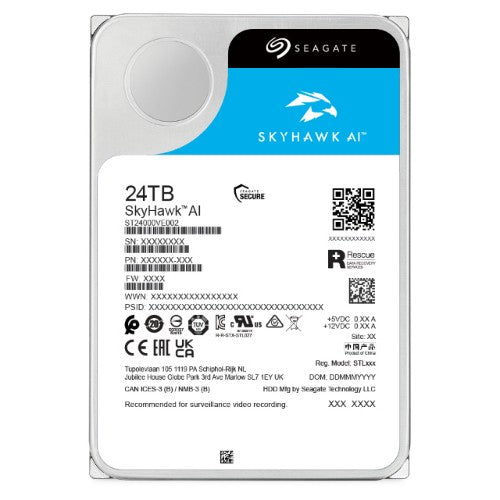

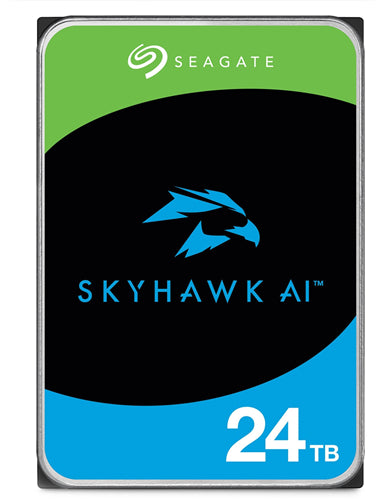

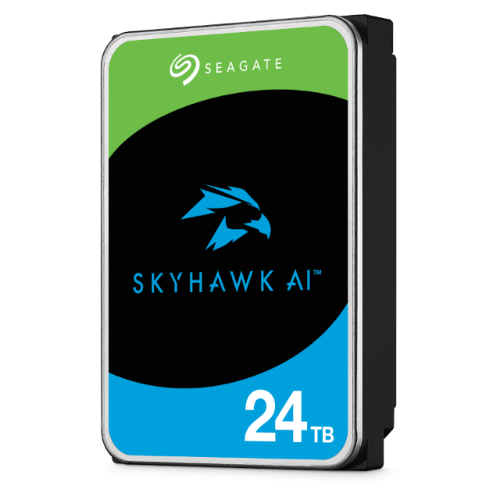

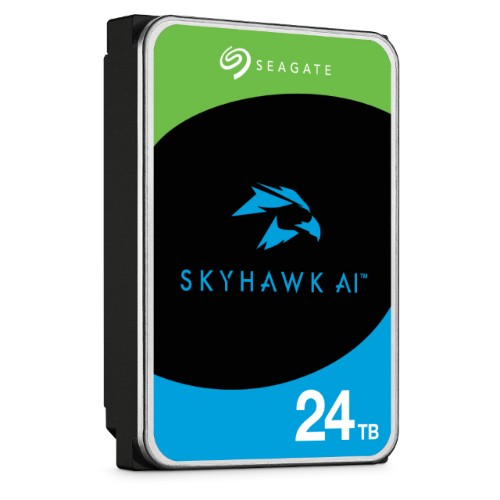

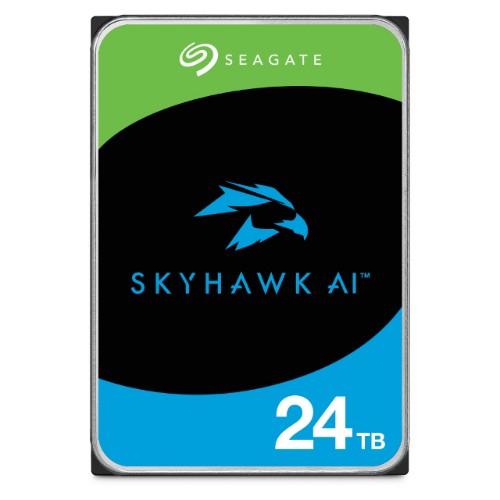

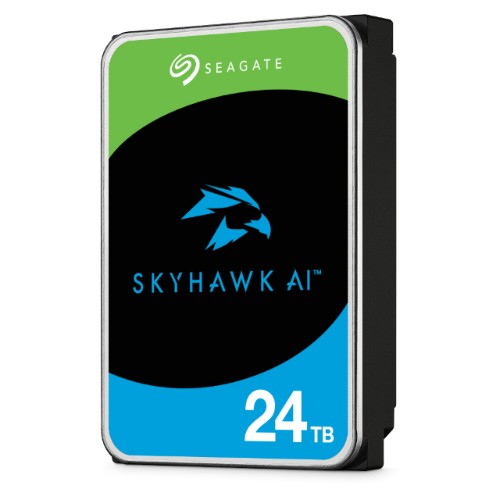

Seagate SkyHawk AI internal hard drive 24 TB 7200 RPM 512 MB 3.5" Serial ATA III

24 TB, 3.5", SATA III, 32 AI Channels

Description

A video-optimised drive, SkyHawk AI is designed for NVRs with artificial intelligence for edge applications.

SkyHawk AI
Designed for AI video analytics, SkyHawk AI supports up to 64 HD cameras and 32 additional AI streams while offering capacities up to 20 TB. It delivers zero dropped frames with ImagePerfect AI and has enterprise-class workload rates at 550 TB/yr for high reliability.

SkyHawk
24×7 workloads can leverage up to 8 TB with drives designed for DVR and NVR systems. SkyHawk video drives are equipped with enhanced ImagePerfect™ and SkyHawk Health Management to help you sail through your toughest challenges.

Drive Health and Data Recovery
When integrated into compatible NVR systems, these drives provide overall system reliability increases due to SkyHawk Health Management (SHM).1

In addition, the SkyHawk drives include a robust three-year Rescue Data Recovery Services plan.

Specifications

Hard drive
Component for	Surveillance system
HDD size	3.5"
HDD capacity	24 TB
HDD speed	7200 RPM
Interface	Serial ATA III
Start/stop cycles	600000
HDD sustained transfer rate	260 MiB/s
HDD interface transfer rate	6 Gbit/s
Mean time between failures (MTBF)	2000000 h
Storage drive buffer size	512 MB
Features
Type	HDD
Component for	Surveillance system
HDD size	3.5"
HDD capacity	24 TB
HDD speed	7200 RPM
Interface	Serial ATA III
Start/stop cycles	600000
HDD sustained transfer rate	260 MiB/s
HDD interface transfer rate	6 Gbit/s
Mean time between failures (MTBF)	2000000 h
Storage drive buffer size	512 MB
Uncorrectable Bit Error Rate (UBER)	< 1 per 10^15 bits read
Rotational Vibration (RV) sensors	Yes
Number of AI channels	32
Maximum number of cameras supported	64
Power
Power consumption (typical)	7.72 W
Power consumption (standby)	1 W
Power consumption (idle)	3.5 W
Start-up current	2 A
Operating voltage	5 / 12 V
Operational conditions
Operating temperature (T-T)	0 - 65 °C
Technical details
Products per pallet layer	8 pc(s)
Harmonized System (HS) code	84717050
Weight & dimensions
Width	101.8 mm
Height	26.1 mm
Depth	147 mm
Weight	680 g
Logistics data
Master (outer) cases per pallet	40 pc(s)
Products per master (outer) case	20 pc(s)
Products per pallet layer	8 pc(s)
Harmonized System (HS) code	84717050
Other features
Interface	Serial ATA III
Master (outer) cases per pallet	40 pc(s)
Maximum number of cameras supported	64
