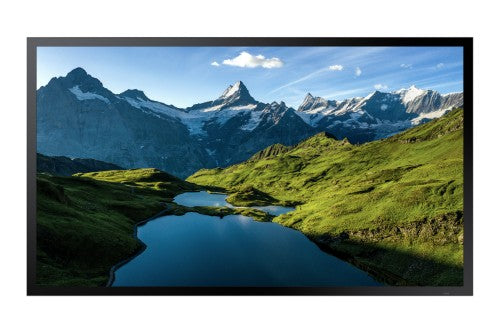

Samsung OH55A-S Digital signage flat panel 139.7 cm (55") 3500 cd/m² Full HD Black Tizen 5.0 24/7

55" FHD (1920 x 1080), VA, 6,000:1, 6 ms, 3500 cd/m², HDMI, USB, LAN, Tizen 5.0, 1260.6 x 731.4 x 85 mm

Description

SAMSUNG (OHA) OUTDOOR IP56 DISPLAY, 55" FHD, 3500NITS, HDMI(2), LAN, 24H/7D, 3YR

Specifications

Display
Dynamic contrast ratio marketing name	Mega Contrast
Display diagonal	139.7 cm (55")
Display resolution	1920 x 1080 pixels
Display brightness	3500 cd/m²
HD type	Full HD
Response time	6 ms
Contrast ratio (typical)	6000:1
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Pixel pitch	0.63 x 0.63 mm
Vertical scan range	24 - 75 Hz
Touchscreen	No
Horizontal scan range	30 - 136 kHz
Colour gamut	72%

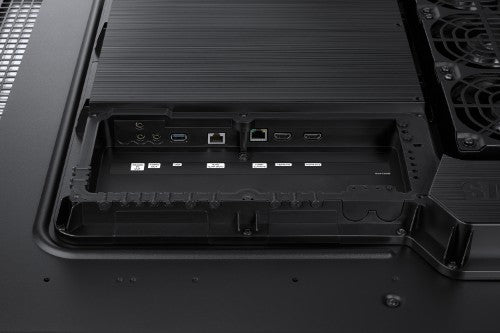

Ports & interfaces
Ethernet LAN	Yes
HDMI ports quantity	2
USB port	Yes
HDMI version	2.0
DVI port	No
Audio (L/R) out	1
Ethernet LAN (RJ-45) ports	2
RS-232 interface	Yes
Wi-Fi	No
USB ports quantity	1
DisplayPorts quantity	0
HDBaseT input ports	1
Audio
Built-in speaker(s)	No
Design
Product design	Digital signage flat panel
Product colour	Black
Placement supported	Outdoor
Orientation	Horizontal/Vertical
Panel mounting interface	1186 x 560 mm
Bezel width (top)	2.49 cm
Bezel width (side)	2.49 cm
Bezel width (bottom)	2.49 cm
VESA mounting	Yes
Performance
Purpose	Universal
Operating hours (hours/days)	24/7
International Protection (IP) code	IP56
HDCP	Yes
HDCP version	2.2
Wi-Fi	No
Power
Power consumption (typical)	530 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (sleep)	0.5 W
Computer system
Computer system	Yes
Computer system type	System on Chip (SoC)
Operating system installed	Tizen 5.0
Internal memory	8 GB
Weight & dimensions
Display width	1260.6 mm
Display depth	85 mm
Display height	731.4 mm
Display weight	46.1 kg
Packaging data
Package width	1358 mm
Package depth	230 mm
Package height	845 mm
Package weight	52.6 kg
Operational conditions
Operating temperature (T-T)	-30 - 50 °C
Operating relative humidity (H-H)	10 - 80%
Technical details
VESA mounting	Yes
RS-232 output ports	1
RS-232 input ports	1
Glass protection	Yes
Network
Ethernet LAN	Yes
Wi-Fi	No
Thin Client
Operating system installed	Tizen 5.0
Internal memory	8 GB
Other features
Wi-Fi	No
RS-232 output ports	1
RS-232 input ports	1
Glass protection	Yes
Flash memory	8000 MB
Bezel width (top)	2.49 cm
Bezel width (side)	2.49 cm
Bezel width (bottom)	2.49 cm
Audio output	1
