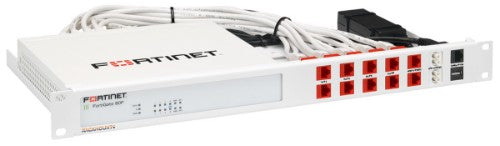

Rackmount.IT RM-FR-T15 rack accessory Mounting bracket

1U, 44 x 482 x 217mm, 10 x RJ-45, f/ FortiGate 80F, 81F, 80F-POE, 81F-POE

Description

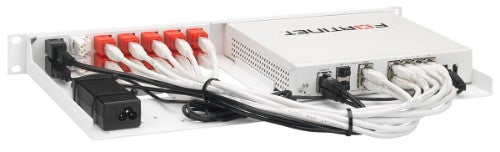

The RM-FR-T15 gives you the ability to mount your Fortinet desktop appliances in a 19" rack. The rack is tailored specifically for the listed models to guarantee a perfect fit. In addition, the connections are brought to the front for easy access, as well as the console port. The power supply is fixed to prevent an accidental loss of power.

Assembly will take about 5 minutes. Simply slide your Fortinet device in the kit, place the retainers, connect the supplied cables and keystones, and fix the power supply to the rack.

Specifications

Features
Type	Mounting bracket
Rack capacity	1U
Product colour	White
Cables included	LAN (RJ-45), USB
Compatibility	Fortinet FortiGate 80F, FortiGate 81F
Harmonized System (HS) code	85389099
Weight & dimensions
Package width	520 mm
Package depth	270 mm
Package height	80 mm
Width	482 mm
Height	44 mm
Depth	217 mm
Packaging data
Package width	520 mm
Package depth	270 mm
Package height	80 mm
Quantity per pack	1 pc(s)
Packaging content
Mounting kit	Yes
Cables included	LAN (RJ-45), USB
Quick installation guide	Yes
Number of cables	14
Couplers included	Yes
Coupler type	RJ-45
Number of couplers	10
Technical details
Harmonized System (HS) code	85389099
Logistics data
Harmonized System (HS) code	85389099
