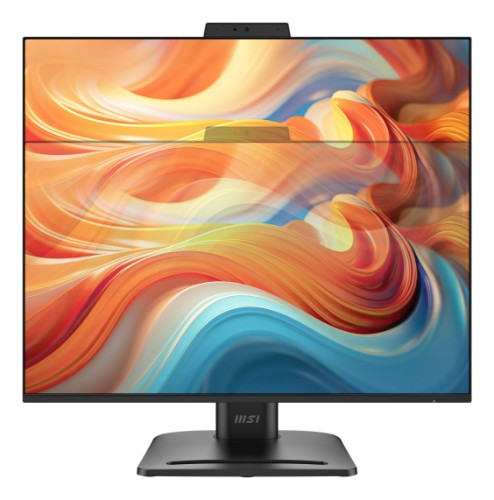

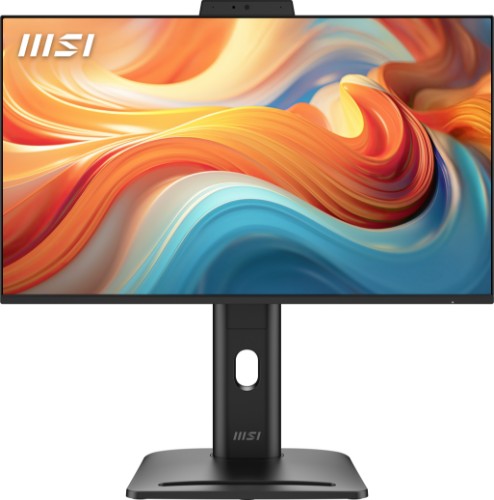

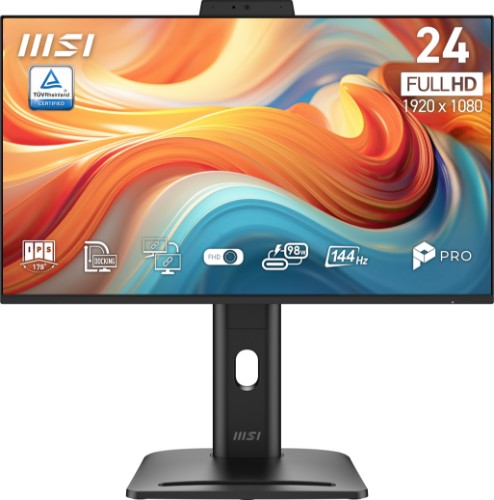

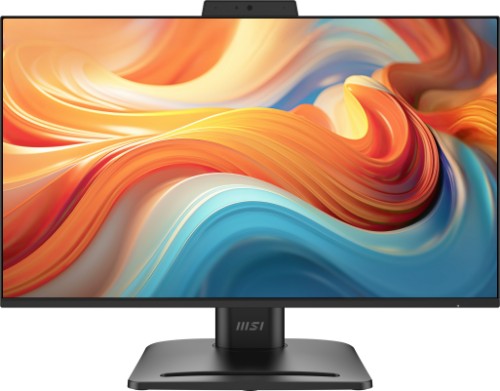

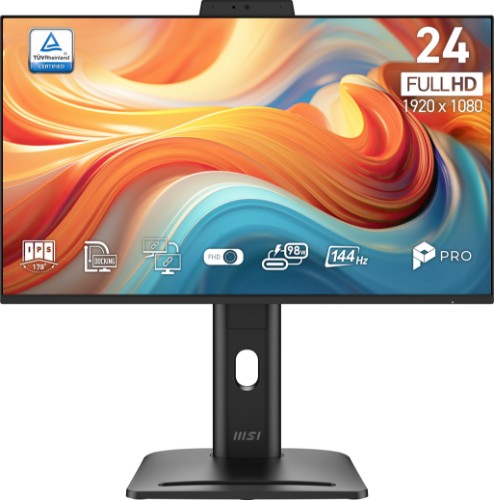

MSI Pro MP245PDG E14 computer monitor 60.5 cm (23.8") 1920 x 1080 pixels Full HD LCD Black

23.8", 1920 x 1080 IPS, 144Hz, 16:9, 250cd/m², 4ms, 178°/178°, USB PD (98W)

Key Features

• 23.8-inch FHD IPS Panel with 1000:1 Contrast Ratio
• Daisy Chain Support
• One-Cable Display & 98W Power Delivery
• Built-in Ethernet port
• Eye-Q Check Productivity Support
• 4-Way Adjustable & VESA-Mountable Design
• Built-in speakers (2W) & Webcam
• HDMI 2.0b (HDMI-CEC), DisplayPort 1.2a & Type-C Connectivity

Description

Embrace Sustainability with PRO MP245PDG E14
The PRO MP245PDG E14 docking monitor features a sharp 23.8" FHD (1920 x 1080) IPS panel with daisy chain support. It includes a USB Type-C dock with 98W power delivery, RJ45 Ethernet and display signal through a single cable.

The Eco-friendly monitor is meticulously designed to meet stringent environmental standards, ensuring a cleaner and greener world.

The daisy chain support enables dual monitors to connect in series with a single cable, minimizing the number of ports needed.

Daisy Chain
Simplify your setup with daisy chain support, enabling dual monitors to connect in series with a single cable, minimizing the number of ports needed. Reduce clutter and enhance your workspace for a smooth, multi-monitor experience.

*NOTE:The Daisy Chain function requires a USB Type-C cable as the video output source. A Display Port cable will be needed to connect the monitors completing the daisy chain.

Docking Monitor
One USB Type-C cable delivers 98W charging, display, data transfer, and Ethernet, simplifying your cables and saving space.

LAN Port
Provides a stable wired internet connection for laptops without a LAN port via the monitor’s built-in LAN port using USB-C.

KVM
The KVM function allows seamless device switching, offering an efficient solution for managing multiple devices from one monitor.

G Sensor

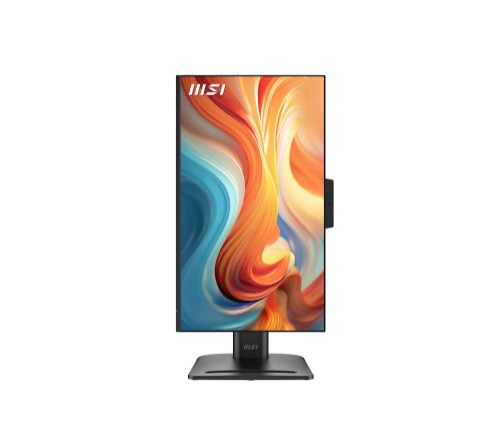

G-sensor technology automatically adjusts screen orientation with movement, enabling seamless switching between landscape and portrait modes for an intuitive, comfortable experience.

Built-in speakers & Webcam
Two built-in speakers (2W), built-in webcam and digital microphone enables a high-quality online conferences, or video editing without requiring external devices.

PIP/PBP Function (PI Software)
Elevate your multitasking capabilities with PRO MP245PDG E14 monitor, featuring advanced Picture-in-Picture (PIP) and Picture-by-Picture (PBP) functionalities. Designed to enhance your workflow and boost productivity, these features allow you to manage multiple tasks seamlessly.

144Hz Game Ready
Experience the full capabilities of a high refresh rate 144 Hz monitor. Enjoy seamless multitasking, ultra-smooth gameplay, and fluid AI-generated visuals. Ideal for creators, gamers, and innovators alike, this level of performance delivers a visual experience that’s both vivid and precise.

HDR Ready can be enabled to provide enhanced contrast.

Specifications

Display
HDCP	Yes
Display brightness (typical)	250 cd/m²
Screen shape	Flat
Display number of colours	16.7 million colours
Native aspect ratio	16:9
Maximum refresh rate	144 Hz
sRGB coverage (typical)	111%
Adobe RGB coverage	86%
Display diagonal	60.5 cm (23.8")
Response time	4 ms
Display resolution	1920 x 1080 pixels
Display technology	LCD
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Pixel pitch	0.2745 x 0.2745 mm
Horizontal scan range	52.85 - 158.54 kHz
Vertical scan range	48 - 144 Hz
Viewable size, horizontal	52.7 cm
Viewable size, vertical	29.6 cm
HD type	Full HD
Supported graphics resolutions	1920 x 1080 (HD 1080)
Supported video modes	1080p
Colour gamut	86%
Touchscreen	No
High Dynamic Range (HDR) supported	Yes
Panel type	IPS
Colour depth	8 bit
DCI-P3 coverage	86%
Display diagonal (metric)	60 cm
Colour gamut standard	DCI-P3
Refresh rate optimizor	Yes
Response time measurement type	GTG (Gray to Gray)
Response time (MPRT)	1 ms
Anti-glare screen	Yes
Performance
AMD FreeSync	No
NVIDIA G-SYNC	No
VESA Adaptive Sync support	Yes
Low Blue Light technology	Yes
Flicker-free technology	Yes
Multimedia
Number of speakers	2
Built-in speaker(s)	Yes
Built-in camera	No
RMS rated power	4 W
Design
Market positioning	Business
Product colour	Black
Certification	CB/CE
Housing material	Plastic
Ports & interfaces
Built-in USB hub	Yes
USB Type-A downstream ports quantity	4
VGA (D-Sub) ports quantity	0
HDMI ports quantity	1
DisplayPorts quantity	2
HDCP	Yes
Headphone outputs	1
Headphone out	Yes
HDMI	Yes
HDMI version	2.0b
DisplayPort version	1.2a
USB Power Delivery (USB PD)	Yes
USB Power Delivery up to	98 W
USB Type-C DisplayPort Alternate Mode	Yes
Number of USB Type-B upstream ports quantity	1
HDCP version	1.4
DisplayPort out quantity	1
Bluetooth	No
Wi-Fi	No
Network
Bluetooth	No
Wi-Fi	No
Wi-Fi Direct	No
Ergonomics
Wall mountable	Yes
VESA mounting	Yes
Cable lock slot	Yes
Panel mounting interface	100 x 100 mm
Swivelling	Yes
Swivel angle range	-45 - 45°
Tilt angle range	-5 - 20°
Height adjustment	Yes
Pivot angle	-90 - 90°
Pivot	Yes
Cable lock slot type	Kensington
Tilt adjustment	Yes
Adjustable height (max)	13 cm
Power
Power supply type	Internal
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (standby)	0.5 W
Power consumption (off)	0.3 W
Energy efficiency scale	A to G
Energy efficiency class (SDR)	E
Energy efficiency class (HDR)	G
Energy consumption (SDR) per 1000 hours	18 kWh
Energy consumption (HDR) per 1000 hours	28 kWh
Weight & dimensions
Width (with stand)	539 mm
Depth (with stand)	49 mm
Height (with stand)	314 mm
Width (without stand)	539 mm
Height (without stand)	314 mm
Depth (without stand)	49 mm
Weight (with stand)	5.83 kg
Package width	600 mm
Package depth	125 mm
Package height	508 mm
Package weight	6.36 kg
Packaging data
Package type	Box
Package width	600 mm
Package depth	125 mm
Package height	508 mm
Package weight	6.36 kg
Stand included	Yes
Quick start guide	Yes
Cables included	HDMI, Power
Packaging content
Stand included	Yes
Quick start guide	Yes
Cables included	HDMI, Power
Sustainability
Sustainability certificates	ENERGY STAR, EPEAT Silver, Forest Stewardship Council (FSC)
Technical details
Sustainability certificates	ENERGY STAR, EPEAT Silver, Forest Stewardship Council (FSC)
Compliance certificates	CB, CE, UKCA
Power supply type	Internal
Weight (with stand)	5.83 kg
Touchscreen	No
Other features
Certification	CB/CE
DCI-P3 coverage	86%
Compliance certificates	CB, CE, UKCA
Bluetooth	No
Width (without stand)	539 mm
Quick start guide	Yes
Height (without stand)	314 mm
HDMI	Yes
Depth (without stand)	49 mm
USB Power Delivery up to	98 W
Energy efficiency scale	A to G
USB Type-C DisplayPort Alternate Mode	Yes
Power supply type	Internal
Touchscreen	No
USB Power Delivery (USB PD)	Yes
Package type	Box
Certificates
Certification	CB/CE
