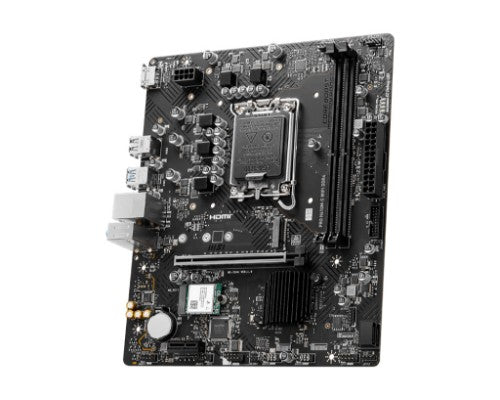

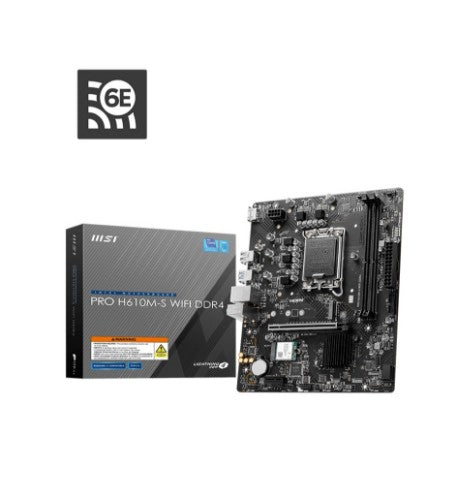

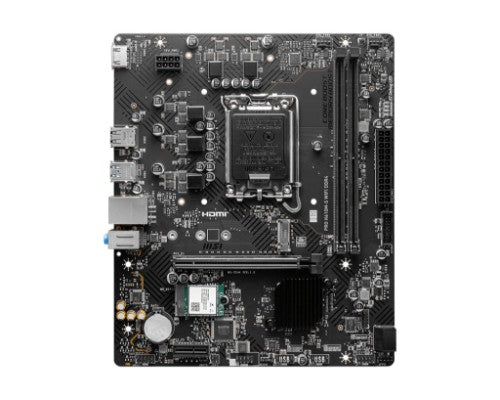

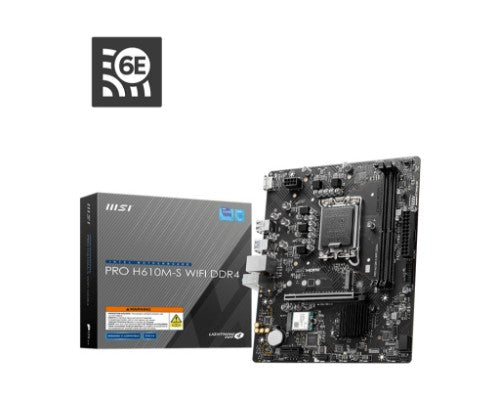

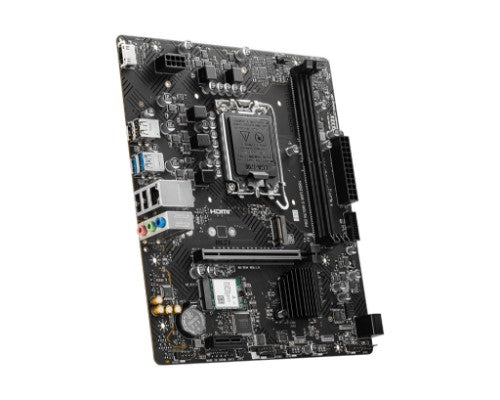

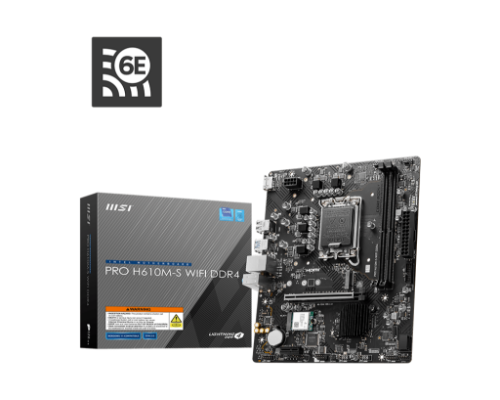

MSI PRO H610M-S WIFI DDR4 motherboard Intel H610 LGA 1700 micro ATX

LGA 1700, H610, 2 DIMMs, Dual Channel DDR4-3200 MHz, Wi-Fi 6E

Key Features

• Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket
• Supports DDR4 Memory, up to 3200(MAX) MHz
• Core Boost : With premium layout and digital power design to support more cores and provide better performance
• Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
• Lightning Fast Experience: PCIe 4.0
• Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
• Audio Boost: Reward your ears with studio grade sound quality
• Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength

Description

PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.

FULLY CONTROLLABLE IN BIOS AND SOFTWARE
MSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically.

SURFACING WITH THE REAL MU-MIMO TECHNOLOGY
The latest Wi-Fi 6E solution supports 6GHz spectrum, Bluetooth 5.2, two-way MU-MIMO and BSS color technology, provide up to 4X network capacity and efficiency in the high signal density environment, delivering speeds up to 2400Mbps.

LIGHTNING GEN 4 PCI-E
MSI lightning Gen 4 PCI-E is the latest and the fastest PCI-E data transfer solution with 64GB/s of transfer bandwidth that has doubled compared to its previous generation. PCIe 4.0 maintains both backward and forward compatibility with older and newer specifications. Optimized by steel armor design, your motherboards can support the weight of heavy graphics cards.

Specifications

Internal I/O
Number of M.2 (M) slots	1
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
Total number of SATA connectors	2
12V power connector	Yes
Supported storage drive interfaces	M.2, SATA III
USB 2.0 connectors	4
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
TPM connector	Yes
Number of SATA III connectors	2
Front panel audio connector	Yes
CPU fan connector	Yes
ATX Power connector (24-pin)	Yes
Performance
Number of HDDs supported	2
Supported storage drive types	SSD
Component for	PC
Motherboard chipset family	Intel
Motherboard chipset	Intel H610
Motherboard form factor	micro ATX
Audio output channels	7.1 channels
Supported processor sockets	LGA 1700
RAID levels	0, 1, 5, 10
Windows operating systems supported	Windows 10, Windows 11
Processor
Processor manufacturer	Intel
Maximum internal memory supported by processor	64 GB
Compatible processor series	Intel® Celeron®, Intel® Pentium®, Intel® Pentium® Gold
Processor socket	LGA 1700
Supported processor sockets	LGA 1700
Memory
Number of memory slots	2
Supported memory types	DDR4-SDRAM
Memory slots type	DIMM
Memory channels	Dual-channel
Supported memory clock speeds	1866,2133,2400,2667,2800,2933,3000,3066,3200 MHz
Maximum internal memory	64 GB
Supported memory clock speed (max)	3200 MHz
ECC сompatibility	Non-ECC
Storage controllers
Number of HDDs supported	2
Supported storage drive types	SSD
Supported storage drive interfaces	M.2, SATA III
RAID levels	0, 1, 5, 10
Number of storage drives supported	3
RAID support	Yes
Graphics
Parallel processing technology support	Not supported
DirectX version	12.0
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
USB 2.0 ports quantity	4
Ethernet LAN (RJ-45) ports	1
VGA (D-Sub) ports quantity	1
HDMI version	1.4
HDMI ports quantity	1
DVI-D ports quantity	0
Network
Ethernet LAN	Yes
Wi-Fi	Yes
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Ethernet interface type	Gigabit Ethernet
Bluetooth	Yes
Bluetooth version	5.3
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Features
Component for	PC
Motherboard chipset family	Intel
Motherboard chipset	Intel H610
Motherboard form factor	micro ATX
Audio output channels	7.1 channels
Supported processor sockets	LGA 1700
Windows operating systems supported	Windows 10, Windows 11
Audio chip	Realtek ALC897
Expansion slots
Number of M.2 (M) slots	1
PCI Express x1 (Gen 3.x) slots	1
PCI Express x16 (Gen 4.x) slots	1
1st M.2 largest key size	2280
1st M.2 highest PCI Express generation	3.0
BIOS
BIOS type	UEFI AMI
BIOS memory size	256 Mbit
ACPI version	6.4
System Management BIOS (SMBIOS) version	3.5
Weight & dimensions
Width	200 mm
Depth	236.2 mm
Height	65 mm
Weight	764 g
Packaging content
Drivers included	Yes
Cables included	SATA
Technical details
Total number of SATA connectors	2
Maximum internal memory supported by processor	64 GB
Other features
Height	65 mm
Weight	764 g
