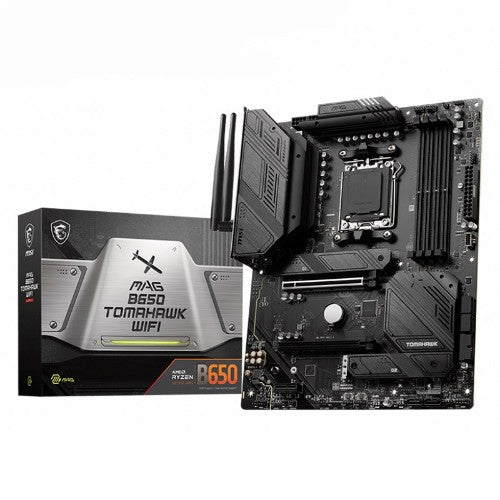

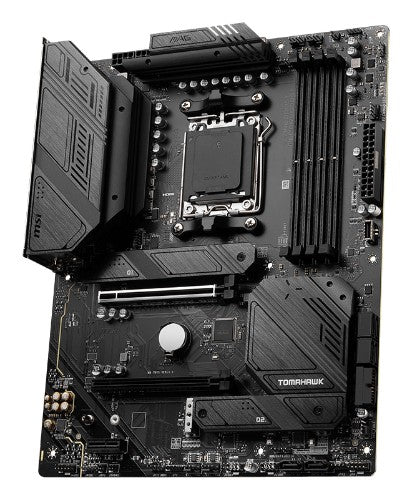

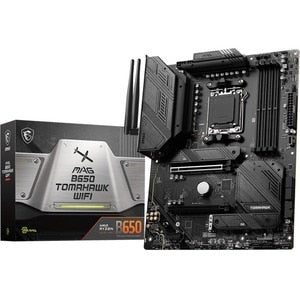

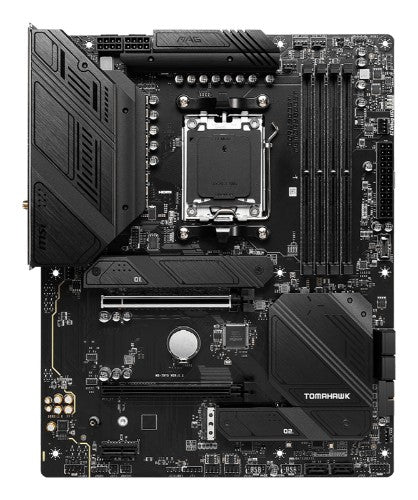

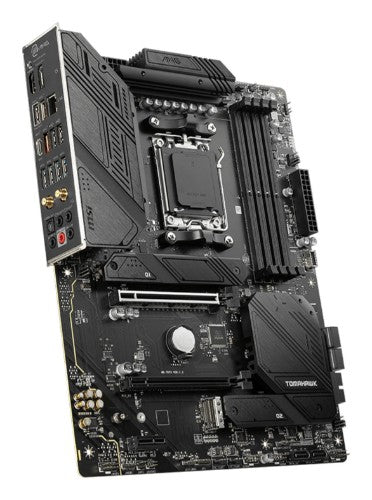

MSI MAG B650 Tomahawk WIFI AMD B650 Socket AM5 ATX

ATX, AMD B650 chipset, Socket AM5, 4xDDR5, 7.1ch audio, 2.5-Gigabit LAN, Wi-Fi, Bluetooth 5.2

Description

unite as one
The MAG series fights alongside gamers in pursuit of honor.
With added military-inspired elements in these gaming products, they were reborn as the symbol of sturdiness and durability.

LIGHTNING GEN 4 PCI-E
MSI lightning Gen 4 PCI-E represents the bandwidth of a x16 interface to 64GB/s that has doubled compared to its previous generation.

REINFORCED, HEAVY SOLDERED CONNECTIONS
MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points and support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor shields the point of contact from electromagnetic interference.

Specifications

Internal I/O
Number of M.2 (M) slots	3
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
Front panel connector	Yes
Supported storage drive interfaces	M.2, SATA
USB 2.0 connectors	4
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
Number of SATA III connectors	6
Number of SATA II connectors	0
Number of SATA connectors	0
Front panel audio connector	Yes
CPU fan connector	Yes
Chassis intrusion connector	Yes
ATX Power connector (24-pin)	Yes
Performance
Component for	PC
Motherboard chipset family	AMD
Motherboard chipset	AMD B650
Motherboard form factor	ATX
Audio output channels	7.1 channels
Supported processor sockets	Socket AM5
RAID levels	0, 1, 10
PC health monitoring	Fan
Windows operating systems supported	Windows 11 x64
Processor
Processor manufacturer	AMD
Compatible processor series	AMD Ryzen 7000 Series
Processor socket	Socket AM5
Supported processor sockets	Socket AM5
Memory
Number of memory slots	4
Supported memory types	DDR5-SDRAM
Supported memory clock speeds	4800,5000,5200,5400,5600,5800,6000,6200,6400,6600 MHz
Maximum internal memory	128 GB
ECC сompatibility	Non-ECC
Storage controllers
Supported storage drive interfaces	M.2, SATA
RAID levels	0, 1, 10
RAID support	Yes

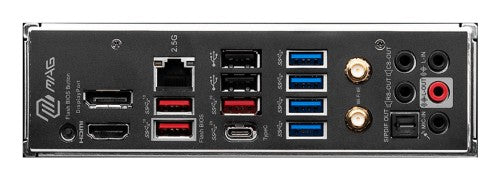

Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
USB 2.0 ports quantity	2
Ethernet LAN (RJ-45) ports	1
VGA (D-Sub) ports quantity	0
S/PDIF out port	Yes
Microphone in	Yes
Headphone outputs	1
HDMI version	2.1
HDMI ports quantity	1
DVI-D ports quantity	0
USB 3.2 Gen 2x2 Type-C ports quantity	1
Network
Ethernet LAN	Yes
Wi-Fi	Yes
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax)
LAN controller	Realtek RTL8125B
Ethernet interface type	2.5 Gigabit Ethernet
Bluetooth	Yes
Bluetooth version	5.2
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Features
Component for	PC
Motherboard chipset family	AMD
Motherboard chipset	AMD B650
Motherboard form factor	ATX
Audio output channels	7.1 channels
Supported processor sockets	Socket AM5
PC health monitoring	Fan
Windows operating systems supported	Windows 11 x64
Audio chip	Realtek ALC4080
Product colour	Black
Expansion slots
Number of M.2 (M) slots	3
PCI Express x16 (Gen 3.x) slots	1
Weight & dimensions
Width	304.8 mm
Depth	243.8 mm
