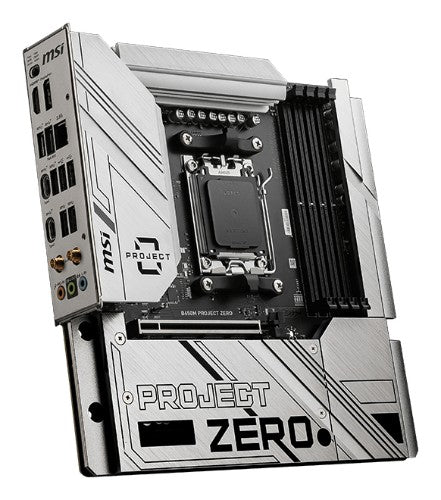

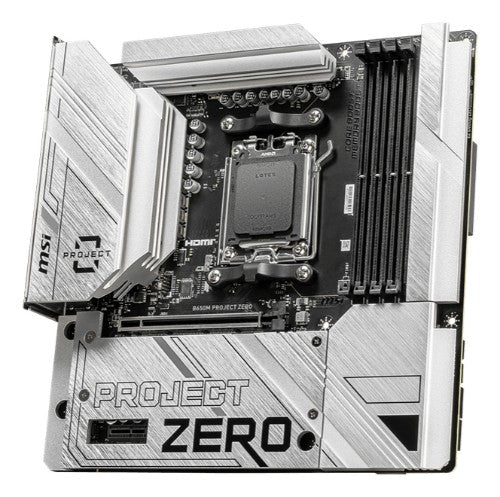

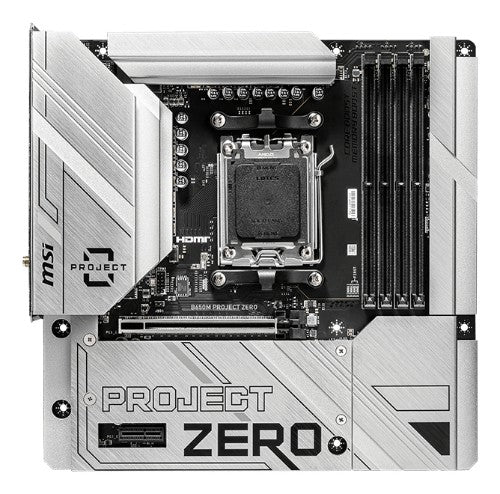

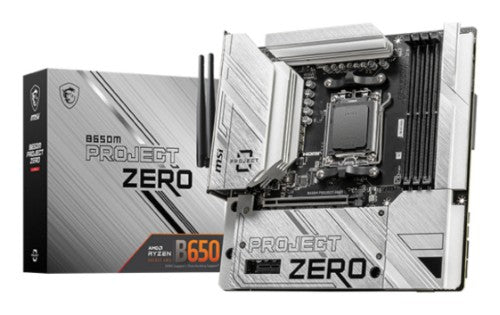

MSI B650M PROJECT ZERO motherboard AMD B650 Socket AM5 micro ATX

Intel B650M, 4x DDR5 7600Hz (OC), 1x HDMI, 1x DisplayPort, 2x M.2, 2.5Gbps LAN, AMD Wi-Fi 6E

Key Features

• Supports AMD Ryzen™ 8000 / 7000 Series Desktop Processors
• Supports DDR5 Memory, up to 7600+(OC) MHz
• Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
• 2.5G LAN and AMD Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
• Lightning M.2: Running at PCIe Gen 4 maximizes performance for NVMe based SSDs
• Lightning USB 20G: Built-in USB 3.2 Gen 2x2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1
• Audio Boost: Reward your ears with studio grade soun

Description

ABSOLUTE SIMPLICITY

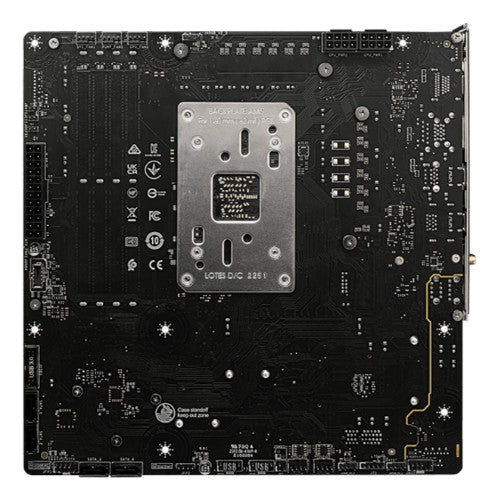

B650M PROJECT ZERO moves the power connectors, fan connectors, and other pin headers to the back of the motherboard. This provides a cleaner and neater front view, allowing the motherboard, liquid cooler, and graphics card's aesthetic design to be fully displayed.

LIGHTNING GEN 4 PCI-E
MSI lightning Gen 4 PCI-E represents the bandwidth of a x16 interface to 64GB/s that has doubled compared to its previous generation.

REINFORCED,
HEAVY SOLDERED CONNECTIONS
MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points and support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor shields the point of contact from electromagnetic interference.

Specifications

Internal I/O
Number of M.2 (M) slots	2
USB 3.2 Gen 2 (3.1 Gen 2) connectors	1
Front panel connector	Yes
Supported storage drive interfaces	M.2, PCI Express
USB 2.0 connectors	4
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
mSATA ports quantity	0
TPM connector	Yes
Number of SATA III connectors	4
Number of SATA II connectors	0
Number of SATA connectors	0
Front panel audio connector	Yes
CPU fan connector	Yes
Chassis intrusion connector	Yes
RGB LED pin header	Yes
Performance
Supported storage drive types	HDD & SSD
Component for	PC
Motherboard chipset family	AMD
Motherboard chipset	AMD B650
Motherboard form factor	micro ATX
Audio output channels	7.1 channels
Supported processor sockets	Socket AM5
RAID levels	0, 5, 10
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Processor
Processor manufacturer	AMD
Maximum internal memory supported by processor	128 GB
Processor socket	Socket AM5
Supported processor sockets	Socket AM5
Memory
Number of memory slots	4
Supported memory types	DDR5-SDRAM
Memory channels	Dual-channel
Supported memory clock speeds	4800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7400,7600 MHz
Maximum internal memory	128 GB
Unbuffered memory	Yes
Supported memory clock speed (max)	7600 MHz
ECC сompatibility	Non-ECC
Storage controllers
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, PCI Express
RAID levels	0, 5, 10
RAID support	Yes
Graphics
Parallel processing technology support	Not supported
On-board graphics card	No
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
DisplayPort version	1.4
USB 2.0 ports quantity	2
Ethernet LAN (RJ-45) ports	1
VGA (D-Sub) ports quantity	0
S/PDIF out port	Yes
HDMI version	2.1
HDMI ports quantity	1
DVI-D ports quantity	0
DisplayPorts quantity	1
USB 3.2 Gen 2x2 Type-C ports quantity	1
Network
Ethernet LAN	Yes
Wi-Fi	Yes
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
Ethernet interface type	2.5 Gigabit Ethernet
Bluetooth	Yes
Bluetooth version	5.3
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Features
Component for	PC
Motherboard chipset family	AMD
Motherboard chipset	AMD B650
Motherboard form factor	micro ATX
Audio output channels	7.1 channels
Supported processor sockets	Socket AM5
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Audio chip	Realtek ALC897
Product colour	White
Expansion slots
Number of M.2 (M) slots	2
PCI Express x1 slots	1
PCI Express x16 slots	1
BIOS
BIOS type	UEFI AMI
BIOS memory size	256 Mbit
ACPI version	6.4
System Management BIOS (SMBIOS) version	3.5
Weight & dimensions
Width	243.8 mm
Depth	243.8 mm
Packaging content
Cables included	SATA
Technical details
Maximum internal memory supported by processor	128 GB
Other features
mSATA ports quantity	0
