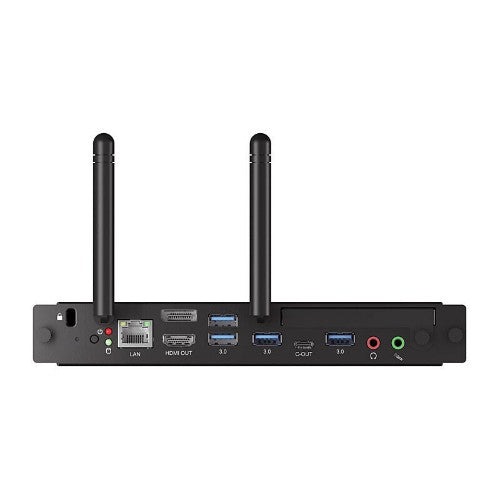

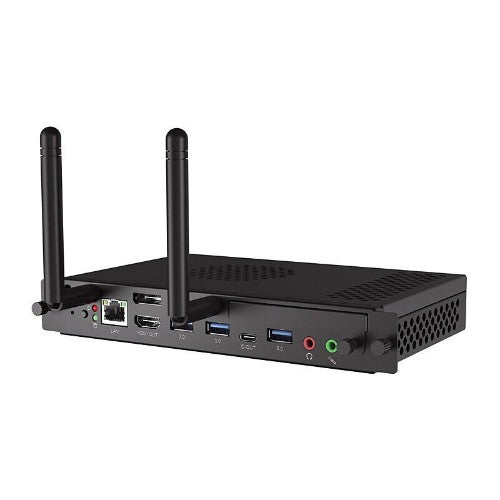

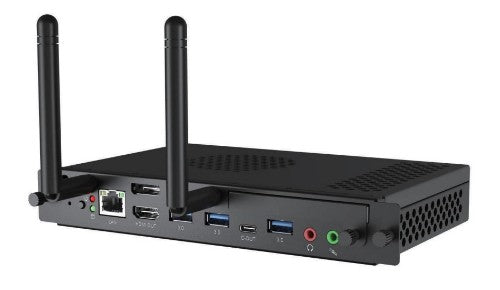

MAXHUB OPS72A-I5 PC/workstation Intel® Core™ i5 16 GB DDR4-SDRAM 256 GB SSD Mini PC Black

16GB DDR4-SDRAM, 12th Gen Intel Core i5, Intel Iris Xe Graphics, Wi-Fi 6, Bluetooth 5.2, 4x USB 3.0, 1x USB-C, 1x HDMI, 1x DisplayPort, LAN, Windows 10/11 64-bit

Key Features

• Windows 10
• 11th Gen Intel Core i5
• 8GB DDR4-SDRAM

Description

MAXHUB OPS72A 12th Gen Intel-i5 Windows OPS Module - Education

Specifications

Processor
Processor generation	12th gen Intel® Core™ i5
Processor frequency	1.7 GHz
Processor family	Intel® Core™ i5
Processor manufacturer	Intel
Processor cores	12
Processor boost frequency	4.4 GHz
Processor cache	12 MB
Processor threads	16
Processor base power	28 W
Memory
Internal memory	16 GB
Internal memory type	DDR4-SDRAM
Memory clock speed	3200 MHz
Memory channels	Dual-channel
Storage
Total storage capacity	256 GB
Optical drive type	No
Storage media	SSD
Number of storage drives supported	1
Number of SSDs installed	1
SSD capacity	256 GB
Total SSDs capacity	256 GB
Graphics
Discrete graphics card	No
On-board graphics card family	Intel Iris Xe Graphics
Discrete graphics card model	Not available
On-board graphics card model	Intel Iris Xe Graphics
On-board graphics card	Yes
On-board GPU manufacturer	Intel
Optical drive
Optical drive type	No
Network
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Wi-Fi	Yes
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Bluetooth	Yes
Bluetooth version	5.2
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Antenna type	2x2
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	5
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Thunderbolt 3 ports quantity	0
USB 2.0 ports quantity	1
HDMI ports quantity	1
HDMI version	2.0
DisplayPorts quantity	1
Ethernet LAN (RJ-45) ports	1
Line-out	Yes
Microphone in	Yes
Design
Product colour	Black
Performance
Product type	Mini PC
Software
Operating system architecture	64-bit
Compatible operating systems	Windows 10/11
Power
Power consumption (typical)	80.7 W
Power consumption (standby)	2.9 W
Operational conditions
Operating temperature (T-T)	-10 - 45 °C
Operating relative humidity (H-H)	10 - 90%
Storage temperature (T-T)	-20 - 60 °C
Storage relative humidity (H-H)	10 - 90%
Weight & dimensions
Width	119 mm
Depth	180 mm
Height	30 mm
Weight	600 g
Package width	192 mm
Package depth	267 mm
Package height	72 mm
Package weight	970 g
Packaging data
Package width	192 mm
Package depth	267 mm
Package height	72 mm
Package weight	970 g
Packaging content
Display included	No
Display
Display included	No
Other features
Processor manufacturer	Intel
On-board graphics card	Yes
Compatible operating systems	Windows 10/11
