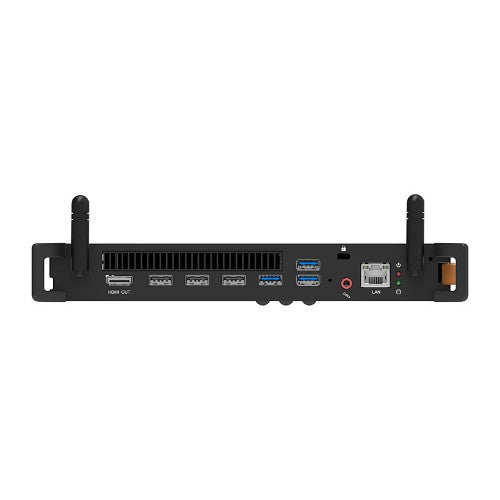

MAXHUB MT71E PC/workstation Intel® Core™ i5 i5-12450H 12 GB DDR4-SDRAM 256 GB Windows 11 Pro Rack-mounted chassis Mini PC Black

Intel® Core™ i5 12450H, 16G DDR4, 256G, Intel UHD Graphics, HDMI, USB 3.0 x 3, USB 2.0 x 3, Mic In, RJ x 45, Windows 11 Pro, 244.5 × 207.2 × 32 mm, 1.2 kg

Description

MT71E is modular PC which could be easily inserted into MAXHUB Interactive Flat panel , with 12th Generation Intel® Core™ i5 Processor and pre-installed the MAXHUB OS based on windows system.

Specifications

Processor
Processor cache type	Smart Cache
Processor family	Intel® Core™ i5
Processor manufacturer	Intel
Processor model	i5-12450H
Processor cores	8
Processor boost frequency	4.4 GHz
Processor cache	12 MB
Processor threads	12
Performance cores	4
Efficient cores	4
Processor base power	45 W
Maximum turbo power	95 W
Efficient-core Max Turbo Frequency	3.3 GHz
Performance-core Max Turbo Frequency	4.4 GHz
Memory
Internal memory	12 GB
Internal memory type	DDR4-SDRAM
Maximum internal memory	64 GB
Storage
Total storage capacity	256 GB
Optical drive type	No
Graphics
On-board graphics card model	Intel® UHD Graphics
On-board graphics card	Yes
Optical drive
Optical drive type	No
Network
Ethernet LAN	Yes
Ethernet LAN data rates	1000 Mbit/s
Wi-Fi	Yes
Antenna type	1x1
Antenna design	External
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 2.0 ports quantity	3
HDMI ports quantity	1
HDMI version	2.0
Ethernet LAN (RJ-45) ports	1
Microphone in	Yes
Design
Product colour	Black
Chassis type	Rack-mounted chassis
Cable lock slot	Yes
Cable lock slot type	Kensington
Performance
Product type	Mini PC
Trusted Platform Module (TPM)	Yes
Trusted Platform Module (TPM) version	2.0
Software
Operating system installed	Windows 11 Pro
Power
Power supply input voltage	18 V
Power consumption (standby)	2.3 W
Power consumption (max)	110 W
Operational conditions
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90%
Storage temperature (T-T)	-20 - 60 °C
Storage relative humidity (H-H)	10 - 90%
Weight & dimensions
Width	244.5 mm
Depth	32 mm
Height	207.2 mm
Weight	1.2 kg
Package width	314 mm
Package depth	70 mm
Package height	256 mm
Package weight	1.79 kg
Packaging data
Package width	314 mm
Package depth	70 mm
Package height	256 mm
Package weight	1.79 kg
Packaging content
Display included	No
Display
Display included	No
Other features
Processor manufacturer	Intel
Trusted Platform Module (TPM)	Yes
On-board graphics card	Yes
