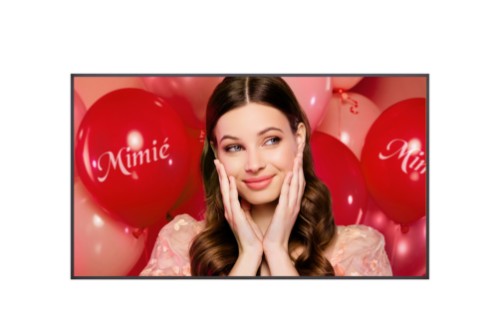

LG UH7Q-E Digital signage flat panel 139.7 cm (55") LED 700 cd/m² 4K Ultra HD Black WebOS 24/7

UHD Signage UH7Q-E Series, 3840 x 2160 (UHD), 700 nits (Typ.), 60 Hz, 1200 : 1(TBD)

Key Features

• HDR Support
• webOS Smart Platform
• Slim&Even Bezel

Description

Superb Picture Quality with Ultra HD Resolution
With the resolution of UHD, it makes the colors and details of the content vivid and realistic.

Even & Slim Bezel Design
The UH7Q-E series features perfectly balanced horizontal and vertical slim bezels, creating a visually harmonious display solution. Its specialized design simplifies installation in retail environments while delivering a truly immersive viewing experience..

Convenient webOS Platform
The UH7Q-E is equipped with a high-performance SoC that allows for multiple tasks to be performed without a separate media player. The webOS platform provides app development tools with an intuitive UI that enhances user convenience, and includes webOS partner apps to create an SI-friendly environment.

Comprehensive Security
webOS Signage goes beyond security measures at the operating system (OS) level. LG Shield employs a five-tiered defense system, encompassing server, application, operating system, system, and hardware. Each layer operates independently, providing comprehensive protection against various threats. Also webOS platform support ETSI EN 303 645.

SuperSign Solutions
SuperSign is an integrated and intuitive content management solution for creative and organized digital signage content in your space, connecting customers to a range of services with convenient user experiences. There are a variety of versions such as SuperSign Cloud, so discover and enjoy the version that best fitsyou.

Specifications

Display
LED backlight	Yes
Display number of colours	1.07 billion colours
Display diagonal	139.7 cm (55")
Display resolution	3840 x 2160 pixels
Display brightness	700 cd/m²
HD type	4K Ultra HD
Response time	8 ms
Contrast ratio (typical)	1200:1
Contrast ratio (dynamic)	1000000:1
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Touchscreen	No
Panel type	ADS
Native aspect ratio	16:9
LED backlighting type	Edge-LED
Display technology	LED
Colour gamut	95%
Colour depth	10 bit
High Dynamic Range (HDR) supported	Yes
Rated lifetime	50000 h
Native refresh rate	60 Hz
Haze rate	25%
Ports & interfaces
USB connector type	USB Type-A, USB Type-C
Ethernet LAN	Yes
HDMI ports quantity	2
USB port	Yes
DVI port	No
Audio (L/R) out	1
Ethernet LAN (RJ-45) ports	1
Wi-Fi	No
USB version	2.0
USB ports quantity	2
RS-232C	Yes
DisplayPorts quantity	1
USB Power Delivery (USB PD)	Yes
Audio
Number of built-in speakers	2
RMS rated power	20 W
Built-in speaker(s)	Yes
Design
Product design	Digital signage flat panel
Product colour	Black
Placement supported	Indoor
Panel mounting interface	300 x 300 mm
VESA mounting	Yes
Bezel colour	Black
Wall mountable	Yes
Performance
Purpose	Universal
Operating hours (hours/days)	24/7
International Protection (IP) code	IP5X
On Screen Display (OSD) languages	Multi
Wi-Fi	No
Power
Power consumption (typical)	160 W
Power consumption (standby)	0.5 W
AC input voltage	100-240 V
AC input frequency	50/60 Hz
Power consumption (off)	0.5 W
Power consumption (max)	103 W
Energy efficiency class (SDR)	G
Energy efficiency class (HDR)	Not available
Energy consumption (SDR) per 1000 hours	101 kWh
Computer system
Computer system	Yes
Computer system type	System on Chip (SoC)
Operating system installed	WebOS
Built-in processor	No
Weight & dimensions
Display width	1239 mm
Display depth	29.7 mm
Display height	710.8 mm
Packaging data
Package width	1360 mm
Package depth	152 mm
Package height	810 mm
Package weight	20.5 kg
Remote control included	Yes
Cables included	AC, USB Type-C
Packaging content
Remote control included	Yes
Cables included	AC, USB Type-C
Tilt angle	15°
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 80%
Technical details
VESA mounting	Yes
USB connector type	USB Type-A, USB Type-C
Power supply type	Internal
Bezel width	1.14 cm
Panel type	ADS
LED backlighting type	Edge-LED
Sustainability certificates	ErP, ENERGY STAR
Compliance certificates	Federal Communications Commission (FCC), KC, CE
Network
Ethernet LAN	Yes
Wi-Fi	No
Thin Client
Operating system installed	WebOS
Brand-specific features
LG technologies (AV/TV)	Smart Energy Saving
Features
Wall mountable	Yes
Other features
USB connector type	USB Type-A, USB Type-C
Power supply type	Internal
Bezel width	1.14 cm
Wi-Fi	No
Safety	CB / NRTL
Power consumption (max)	103 W
Panel type	ADS
Display technology	LED
