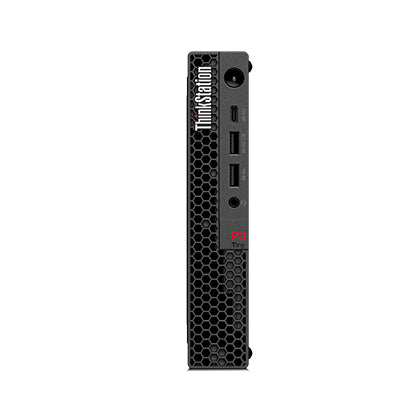

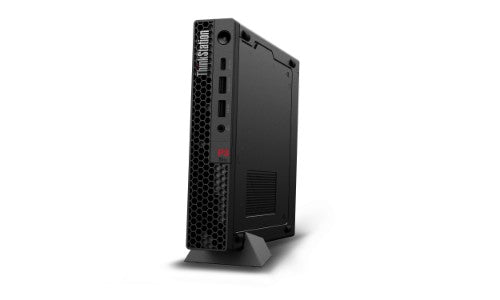

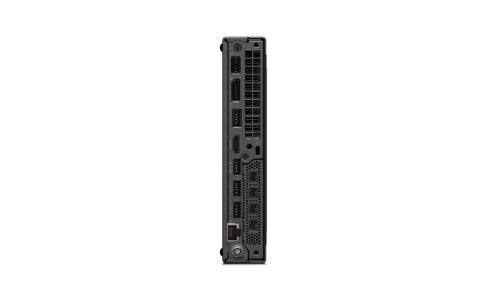

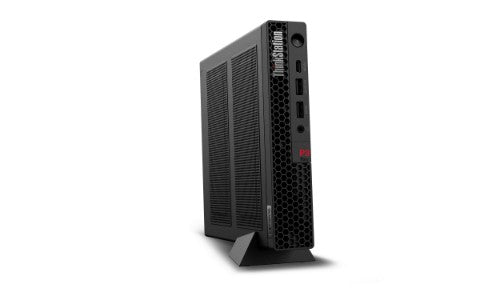

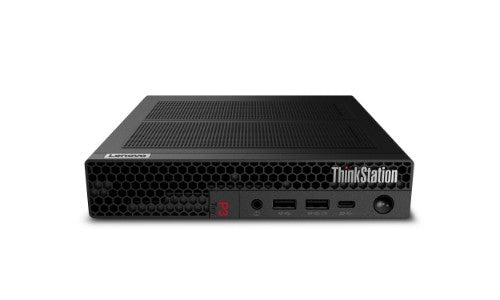

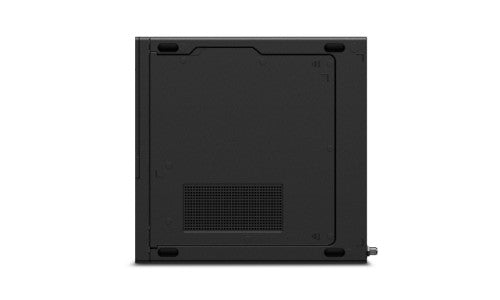

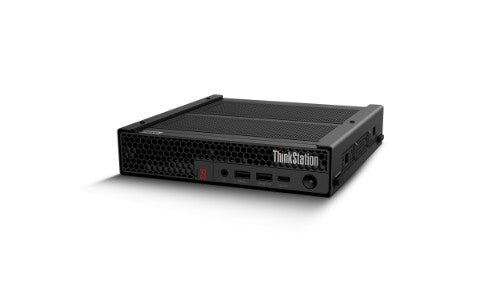

Lenovo ThinkStation P3 Tiny Gen 2 Intel Core Ultra 7 265 32 GB DDR5-SDRAM 1 TB SSD NVIDIA RTX A1000 Windows 11 Pro Mini PC Workstation Black

Intel Core Ultra 7 265 (30MB Cache), 32GB DDR5-SDRAM, 1000GB SSD, Intel Graphics, NVIDIA RTX A1000 (8GB GDDR6), LAN, WLAN, Bluetooth, Windows 11 Pro 64-bit

Key Features

• Windows 11 Pro 64-bit
• Intel Core Ultra 7 265 (30MB Cache)
• NVIDIA RTX A1000 (8GB GDDR6)
• 32GB (5600MHz) DDR5-SDRAM (1 x 32) & 1000GB SSD

Description

The World’s Smallest Workstation
- Compact 1L design with flexible mounting options
- AI-optimized performance for demanding workflows
- Secure, durable & sustainable

Specifications

Processor
Processor generation	Intel Core Ultra (Series 2)
Processor cache type	Smart Cache
Processor family	Intel Core Ultra 7
Processor manufacturer	Intel
Processor model	265
Processor cores	20
Processor boost frequency	5.3 GHz
Processor cache	30 MB
Processor threads	20
Performance cores	8
Efficient cores	12
Performance-core base frequency	2.4 GHz
Efficient-core base frequency	1.8 GHz
Processor base power	65 W
Maximum turbo power	182 W
Efficient-core Max Turbo Frequency	4.6 GHz
Performance-core Max Turbo Frequency	5.2 GHz
Neural processor unit (NPU)
Neural processor unit (NPU)	Intel AI Boost
Sparsity support	Yes
Windows Studio effects support	Yes
AI software frameworks supported by NPU	DirectML, OpenVINO, Windows ML, ONNX RT, WebNN
Total processor performance up to	33 TOPs
NPU performance up to	13 TOPs
GPU performance up to	8 TOPs
Memory
Internal memory	32 GB
Internal memory type	DDR5-SDRAM
Maximum internal memory	128 GB
Memory layout (slots x size)	1 x 32 GB
Memory slots	2x SO-DIMM
Memory clock speed	5600 MHz
Non-ECC	Yes
Memory channels	Dual-channel
Storage
Total storage capacity	1 TB
Optical drive type	No
Storage media	SSD
Number of storage drives installed	1
Number of SSDs installed	1
SSD capacity	1 TB
SSD interface	PCI Express 5.0
SSD form factor	M.2
Total SSDs capacity	1 TB
NVMe	Yes
M.2 SSD size	2280 (22 x 80 mm)
Graphics
Discrete graphics card	Yes
Discrete graphics card memory	8 GB
Graphics card Mini DisplayPort ports quantity	4
On-board graphics card family	Intel Graphics
Discrete graphics card model	NVIDIA RTX A1000
Discrete graphics memory type	GDDR6
Number of discrete graphics cards	1
On-board graphics card model	Intel Graphics
On-board graphics card	Yes
Discrete GPU manufacturer	NVIDIA
On-board GPU manufacturer	Intel
Optical drive
Optical drive type	No
Network
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Wi-Fi	Yes
Wi-Fi standards	Wi-Fi 7 (802.11be)
Bluetooth	Yes
Bluetooth version	5.4
WLAN controller model	Intel Wi-Fi 7 BE200
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Antenna type	2x2
WLAN controller manufacturer	Intel
LAN controller	Intel® I219-LM
Ports & interfaces
Combo headphone/mic port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	5
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Thunderbolt 3 ports quantity	0
USB 2.0 ports quantity	0
HDMI ports quantity	1
HDMI version	2.1
DisplayPorts quantity	1
Ethernet LAN (RJ-45) ports	1
USB 3.2 Gen 2x2 Type-C ports quantity	1
Design
Product colour	Black
Volume	1 L
Chassis type	Mini PC
Placement supported	Horizontal/Vertical
Cable lock slot	Yes
Cable lock slot type	Kensington
Colour name	Black
Performance
Audio chip	Realtek ALC233VB
Product type	Workstation
Motherboard chipset	Intel Q870
Audio system	High Definition Audio
Trusted Platform Module (TPM)	Yes
Software
Operating system installed	Windows 11 Pro
Operating system architecture	64-bit
Operating system language	English
Power
Power supply	330 W
Power supply input frequency	50/60 Hz
Power supply input voltage	100 - 240 V
Operational conditions
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	20 - 80%
Operating altitude	0 - 3048 m
Non-operating altitude	0 - 12192 m
Storage temperature (T-T)	-40 - 60 °C
Storage relative humidity (H-H)	10 - 90%
Certificates
Certification	MIL-STD-810H
Weight & dimensions
Volume	1 L
Width	179 mm
Depth	182.9 mm
Height	37 mm
Weight	1.4 kg
Packaging content
Display included	No
Mouse included	Yes
Keyboard included	Yes
Mouse connectivity	Wired
Keyboard connectivity	Wired
Display
Display included	No
Other features
Processor manufacturer	Intel
Trusted Platform Module (TPM)	Yes
On-board graphics card	Yes
