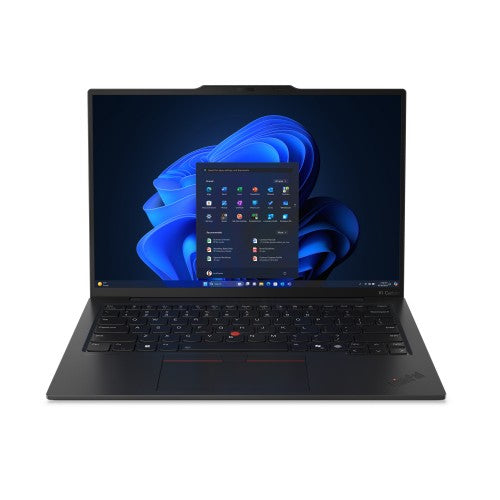

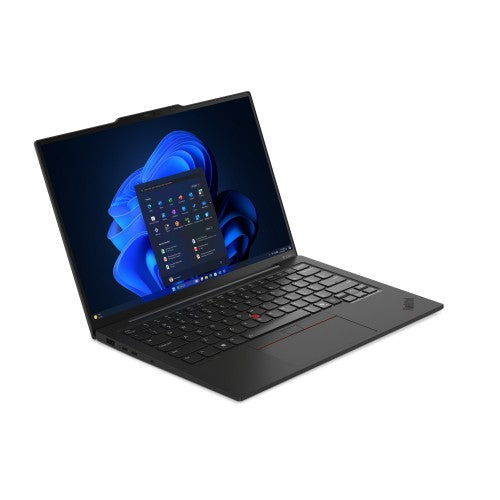

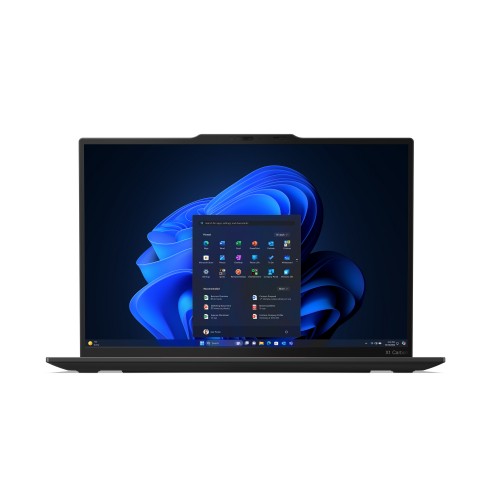

Lenovo ThinkPad X1 Carbon Gen 13 Aura Edition Intel Core Ultra 7 255H Laptop 35.6 cm (14") WUXGA 32 GB LPDDR5x-SDRAM 512 GB SSD Wi-Fi 7 (802.11be) Windows 11 Pro Black

Intel Core Ultra 7 255H, 16C (6P + 8E + 2LPE)/16T, Max Turbo up to 5.1GHz, 24MB Intel Smart Cache, 32GB LPDDR5X-8400, 512GB SSD M.2 2280 PCIe 4.0x4 NVMe Opal 2.0, 14" WUXGA (1920x1200) IPS 500nits 100% sRGB 60Hz Low Power, Intel Arc 140T GPU, Intel Wi-Fi 7 BE201 802.11be 2x2 + BT5.4, Windows 11 Pro

Key Features

• Intel Core Ultra 7 255H, 16C (6P + 8E + 2LPE)/16T, Max Turbo up to 5.1GHz, 24MB Intel Smart Cache
• 14" WUXGA (1920x1200) IPS 500nits 100% sRGB 60Hz Low Power
• 32GB LPDDR5X-8400
• 512GB SSD M.2 2280 PCIe 4.0x4 NVMe Opal 2.0
• Intel Arc 140T GPU
• Windows 11 Pro

Description

LENOVO ThinkPad X1 Carbon G13 Aura Edition 14' WUXGA Intel U7-255H 32GB DDR5 512GB SSD WIN 11 PRO Intel Arc 140T GPU AI PC NPU 13 TOPS 3yr PREM 1kg

PERFORMANCE
Processor Intel® Core™ Ultra 7 255H, 16C (6P + 8E + 2LPE) / 16T, Max Turbo up to 5.1GHz, 24MB
AI PC Category AI PC
NPU Integrated Intel® AI Boost, up to 13 TOPS
Graphics Integrated Intel® Arc™ 140T GPU
Chipset Intel® SoC Platform
Memory 32GB Soldered LPDDR5x-8400
Memory Slots Memory soldered to systemboard, no slots, dual-channel
Max Memory 32GB soldered memory, not upgradable
Storage 512GB SSD M.2 2280 PCIe® 4.0x4 NVMe® Opal 2.0
Max Storage Support One drive, up to 2TB M.2 2280 SSD
Storage Slot Models with V or H series processor: one M.2 2280 PCIe® 5.0 x4 slot
Card Reader None
Audio Chip Models with U or H series processor: High Definition (HD) Audio, Realtek® ALC3306 codec
Speakers Stereo speakers, 2W x2, Dolby Atmos®
Camera FHD 1080p + IR Discrete with Privacy Shutter
Microphone 2x, 360°
Battery 57Wh
Power Adapter 65W USB-C® (3-pin)
DESIGN
Display 14' WUXGA (1920x1200) IPS 500nits Anti-glare, 100% sRGB, 60Hz, Low Power
Touchscreen None
Keyboard Backlit, English
Touchpad Trackpad
Case Color Black, Paint
Case Material Carbon Fiber (Top), Aluminium (Bottom)
Pen Pen Not Supported
Dimensions (WxDxH) 312.80 x 214.75 x 8.38/14.77 (front/rear), 17.95 (maximum) mm; 12.31 x 8.45 x 0.33/0.58 (front/rear), 0.71 (maximum)inches
Weight Starting at 1006 g (2.22 lbs)
SOFTWARE
Operating System Windows® 11 Pro, English (US) / English (UK)
Bundled Software Intel® Connectivity Performance Suite + Lenovo® AI Now
CONNECTIVITY
WLAN + Bluetooth Intel® Wi-Fi® 7 BE201, 802.11be 2x2 + BT5.4
WWAN Non-WWAN
SIM Card None
Ethernet No Onboard Ethernet
NFC None
Standard Ports 1x USB-A (USB 5Gbps / USB 3.2 Gen 1)
1x USB-A (USB 5Gbps / USB 3.2 Gen 1), Always On
2x USB-C® (Thunderbolt™ 4 / USB4® 40Gbps), with USB PD 3.0 and DisplayPort™ 2.1
1x HDMI® 2.1, up to 4K/60Hz
1x Headphone / microphone combo jack (3.5mm)
Optional Ports (configured) None
Docking Various docking solutions supported via Thunderbolt™ / USB-C®. For more compatible docking solutions, please visit Docking for ThinkPad X1 Carbon Gen 13 Aura Edition
SECURITY & PRIVACY
Smart Card Reader None
Security Chip Discrete TPM 2.0 Enabled
Fingerprint Reader Touch Style, Match-on-Chip, in Keyboard Key
Physical Locks Kensington® Nano Security Slot™, 2.5 x 6 mm
Other Security Camera privacy shutter
Ultrasonic Human Presence Detection
IR camera for Windows® Hello (facial recognition)
MANAGEABILITY
System Management Non-vPro®
SERVICE
Base Warranty 1-year, Courier or Carry-in
Included Upgrade 3Y Premier Support Upgrade from 1Y Courier/Carry-in, CO2 Offset 0.5 ton (2nd Generation Carbon Offset Projects)
ACCESSORIES
Bundled Accessories None
CERTIFICATIONS
Green Certifications ENERGY STAR® 9.0
EPEAT™ Gold Registered
ErP Lot 6/26
RoHS compliant
TCO Certified 10.0
Other Certifications Eyesafe® Certified 2.0
Intel® Evo™ Platform
SGS High Performance Al PC Certification
Mil-Spec Test MIL-STD-810H military test passed

Specifications

Design
Colour name	Black, Paint
Product type	Laptop
Product colour	Black
Form factor	Clamshell
Housing material	Aluminium
Display
HD type	WUXGA
Display diagonal	35.6 cm (14")
Display resolution	1920 x 1200 pixels
Touchscreen	No
LED backlight	Yes
Display brightness	500 cd/m²
Panel type	IPS
Anti-glare screen	Yes
Maximum refresh rate	60 Hz
RGB colour space	sRGB
Colour gamut	100%
Native aspect ratio	16:10
Processor
Processor family	Intel Core Ultra 7
Processor model	255H
Processor cores	16
Processor threads	16
Motherboard chipset	Intel SoC
Processor manufacturer	Intel
Memory
Internal memory	32 GB
Internal memory type	LPDDR5x-SDRAM
Memory clock speed	8400 MHz
Maximum internal memory	32 GB
Memory form factor	On-board
Storage
SSD form factor	M.2
Optical drive type	No
Total storage capacity	512 GB
Storage media	SSD
Number of SSDs installed	1
SSD capacity	512 GB
SSD interface	PCI Express 4.0
Total SSDs capacity	512 GB
NVMe	Yes
Graphics
Discrete graphics card	No
On-board graphics card model	Intel Arc 140T
Discrete graphics card model	Not available
On-board graphics card	Yes
On-board GPU manufacturer	Intel
Audio
Audio chip	Realtek ALC3306
Number of microphones	2
Number of built-in speakers	2
Speaker power	2 W
Built-in microphone	Yes
Camera
Front camera	Yes
Front camera resolution	1920 x 1080 pixels
Privacy camera	Yes
Privacy type	Privacy shutter
Front camera HD type	Full HD
Infrared (IR) camera	Yes
Windows Hello	Yes
Optical drive
Optical drive type	No
Network
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Bluetooth	Yes
Wi-Fi standards	Wi-Fi 7 (802.11be)
Ethernet LAN	No
Bluetooth version	5.4
WWAN	Not installed
Near Field Communication (NFC)	No
Antenna type	2x2
WLAN controller manufacturer	Intel
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 2.0 ports quantity	0
HDMI ports quantity	1
HDMI version	2.1
Combo headphone/mic port	Yes
USB Sleep-and-Charge	Yes
USB Power Delivery (USB PD)	Yes
Thunderbolt 4 ports quantity	2
Intel® Thunderbolt 4	Yes
Performance
Motherboard chipset	Intel SoC
Keyboard
Pointing device	ThinkPad UltraNav
Numeric keypad	No
Keyboard backlit	Yes
Software
Operating system installed	Windows 11 Pro
Bundled software	Intel Connectivity Performance Suite + Lenovo AI Now
Battery
Battery capacity	57 Wh
Power
AC adapter power	65 W
USB Power Delivery (USB PD)	Yes
USB Type-C charging port	Yes
Security
Cable lock slot	Yes
Cable lock slot type	Kensington
Fingerprint reader	Yes
Trusted Platform Module (TPM)	Yes
Windows Hello	Yes
Smart card reader	No
Trusted Platform Module (TPM) version	2.0
Certificates
Certification	ENERGY STAR,TCO,EPEAT Gold,RoHS
Weight & dimensions
Weight	1.01 kg
Width	312.8 mm
Depth	214.8 mm
Height (front)	8.38 mm
Height (rear)	1.48 cm
Packaging data
AC adapter included	Yes
Packaging content
AC adapter included	Yes
Other features
On-board graphics card	Yes
AC adapter included	Yes
Anti-glare screen	Yes
