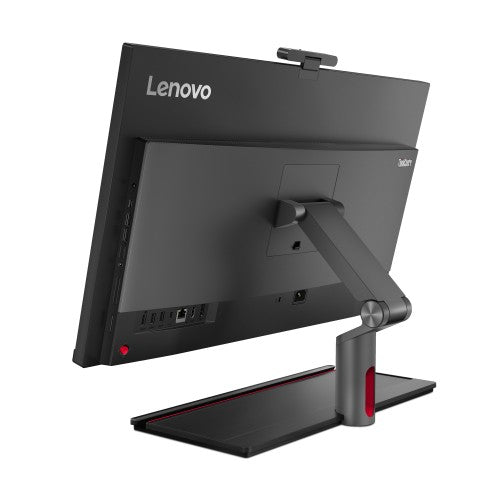

Lenovo ThinkCentre M90a Pro Intel® Core™ i5 i5-13500 68.6 cm (27") 2560 x 1440 pixels All-in-One PC 16 GB DDR5-SDRAM 512 GB SSD Windows 11 Pro Wi-Fi 6E (802.11ax) Black

Intel Core i5-13500 (24MB Cache), 16GB DDR5-SDRAM, 512GB SSD, 68.6 cm (27") Quad HD 2560 x 1440 IPS, DVD±RW, Intel UHD Graphics 770, LAN, WLAN, Bluetooth, Webcam, Windows 11 Pro 64-bit

Key Features

• Windows 11 Pro 64-bit
• Intel Core i5-13500 (24MB Cache)
• 68.6 cm (27") Quad HD 2560 x 1440 IPS
• 16GB (4800MHz) DDR5-SDRAM & 512GB SSD

Description

The power to succeed

The Lenovo ThinkCentre M90a Pro Gen 4 delivers exceptional performance. It's equipped with 13th Gen Intel® Core™ processors, as well as the enhanced intelligence, manageability, and security that the Intel vPro® Enterprise platform brings. Together with the option of NVIDIA® GeForce RTX® graphics, plus blazing-fast memory and HDD or SDD storage, you’ll never press pause on productivity with this ultra premium 27″ all-in-one PC.

Bigger, better, brighter

The ThinkCentre M90a Pro Gen 4 all-in-one PC boasts a 27″ QHD display with industry-leading colour calibration for precise colour representation and images that come to life on screen. It’s also designed with your health in mind and is certified to deliver a low blue-light and flicker-free experience. Plus, with a convenient phone-docking bar and built-in clutter-free cable management, this device is everything an AIO should be.

Collaborating couldn’t be easier

Thanks to its high-speed Thunderbolt™ ports, one of which is optional, the ThinkCentre M90a Pro Gen 4 all-in-one stands out from the crowd. It lets you connect seamlessly to other devices. It can also sync perfectly with a Motorola ThinkPhone (sold separately), enabling you to drag-and-drop files between your phone and desktop. You can even stream your favorite apps, send texts, and see key messages — instantly and securely.

Putting the AI into AIO

When it comes to privacy and performance, the ThinkCentre M90a Pro Gen 4 all-in-one PC has got your back. Thanks to the optional RGB + infrared (IR) camera with radar sensor and next-gen human presence protection, you get all the benefits of AI-powered security, plus zero-touch login and logout. And with Intel® Dynamic Tuning, the Energy Performance Optimizer feature uses machine learning to classify workload characteristics, conserve energy, and improve performance.

Makes meeting more memorable

To save time and effort with your videoconference calls, there's the option of the Lenovo Conference Call Base*. Exclusive to the ThinkCentre M90a Pro Gen 4 and approved for Microsoft Teams, this speakerphone features quad-array mics with AI-drive noise suppression and 360-degree far-field pickup, as well as four Harman Kardon® speakers. The result? Industry-leading group conferencing at the flick of a switch, bringing attendees far and wide right into the same room as you. A must-have accessory for every conference call.

*Lenovo Conference Call Base is optional and sold exclusively with the ThinkCentre M90a Pro Gen 4. It is only available when ordering the M90a Pro Gen 4 and cannot be purchased separately.

Cool, calm, & protected

The ThinkCentre M90a Pro Gen 4 boasts the Intelligent Cooling Engine (ICE) 6.0 to maintain optimal temperatures for high-performance computing, while controlling power consumption. It also comes with ThinkShield, our comprehensive suite of end-to-end security solutions. This includes the discrete Trusted Platform Module (dTPM) and BIOS-based Smart USB Protection to encrypt your data, a webcam privacy shutter, and extra layers of protection offered by the Intel vPro® platform.

Durably & sustainably designed

As well as rigorous in-house tests, the ThinkCentre M90a Pro Gen 4 meets 12 US military-grade requirements, including more than 200 quality checks to ensure it can run in extreme conditions. They cover harsh variables like Arctic wilderness and desert dust storms, plus tests for temperature, pressure, humidity, vibration, and more. This all-in-one PC, which comes with 90% sustainable packaging and comprises recycled materials, also meets global standards for energy-efficiency and health and safety.

Specifications may vary depending upon region / model.

Specifications

Display
HD type	Quad HD
Display diagonal	68.6 cm (27")
Display resolution	2560 x 1440 pixels
Touchscreen	No
Display brightness	350 cd/m²
Tilt angle range	-5 - 70°
Panel type	IPS
Colour gamut	99%
RGB colour space	sRGB
Native aspect ratio	16:9
Tilt adjustment	Yes
Low Blue Light technology	Yes
Anti-glare screen	Yes
Processor
Processor generation	13th gen Intel® Core™ i5
Processor cache type	Smart Cache
Processor family	Intel® Core™ i5
Processor model	i5-13500
Processor boost frequency	4.8 GHz
Processor cores	14
Processor cache	24 MB
Motherboard chipset	Intel Q670
Processor manufacturer	Intel
Processor base power	65 W
Maximum turbo power	154 W
Efficient-core base frequency	1.8 GHz
Performance-core base frequency	2.5 GHz
Efficient-core Max Turbo Frequency	3.5 GHz
Performance-core Max Turbo Frequency	4.8 GHz
Performance cores	6
Efficient cores	8
Memory
Internal memory	16 GB
Maximum internal memory	64 GB
Internal memory type	DDR5-SDRAM
Memory slots	2
Memory slots type	SO-DIMM
Memory clock speed	4800 MHz
Memory form factor	DIMM/SO-DIMM
Non-ECC	Yes
Storage
Optical drive type	DVD±RW
Total storage capacity	512 GB
Card reader integrated	Yes
Storage media	SSD
SSD interface	PCI Express 4.0
SSD capacity	512 GB
Number of storage drives installed	1
Number of SSDs installed	1
Compatible memory cards	SD, SDHC, SDXC
SSD form factor	M.2
SSD memory type	TLC
Total SSDs capacity	512 GB
NVMe	Yes
M.2 SSD size	2280 (22 x 80 mm)
Graphics
Discrete graphics card	No
On-board graphics card family	Intel® UHD Graphics
Discrete graphics card model	Not available
On-board graphics card model	Intel UHD Graphics 770
On-board graphics card	Yes
On-board GPU manufacturer	Intel
Audio
Number of speakers	2
Audio system	Dolby Atmos
Built-in speaker(s)	Yes
RMS rated power	10 W
Built-in microphone	Yes
Camera
Built-in camera	Yes
Total megapixels	5 MP
Privacy camera	Yes
Privacy type	Privacy shutter
Optical drive
Optical drive type	DVD±RW
Network
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Wi-Fi	Yes
Wi-Fi standards	Wi-Fi 6E (802.11ax)
Ethernet LAN	Yes
Ethernet LAN data rates	1000,100 Mbit/s
Bluetooth	Yes
Bluetooth version	5.3
WLAN controller model	Intel Wi-Fi 6E AX211
Antenna type	2x2
WLAN controller manufacturer	Intel
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
USB 2.0 ports quantity	0
HDMI ports quantity	1
DisplayPorts quantity	1
Ethernet LAN (RJ-45) ports	1
Combo headphone/mic port	Yes
HDMI version	1.4/2.1
USB4 Gen 3x2 ports quantity	0
Intel® Thunderbolt 4	Yes
Thunderbolt 4 ports quantity	1
Design
Product colour	Black
Cable lock slot type	Kensington
Cable lock slot	Yes
Panel mounting interface	100 x 100 mm
VESA mounting	Yes
Certified refurbished	No
Performance
Product type	All-in-One PC
Motherboard chipset	Intel Q670
Trusted Platform Module (TPM)	Yes
HDD user password	Yes
BIOS password	Yes
Trusted Platform Module (TPM) version	2.0
Software
Operating system installed	Windows 11 Pro
Operating system architecture	64-bit
Operating system language	English
Power
AC adapter power	230 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
Multimedia
Built-in camera	Yes
Total megapixels	5 MP
Privacy camera	Yes
Privacy type	Privacy shutter
Ergonomics
Tilt adjustment	Yes
Weight & dimensions
Package width	764 mm
Package depth	235 mm
Package height	545 mm
Width (with stand)	613.6 mm
Depth (with stand)	252.6 mm
Height (with stand)	461.4 mm
Weight	11.2 kg
Packaging data
Package width	764 mm
Package depth	235 mm
Package height	545 mm
Operational conditions
Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	20 - 80%
Operating altitude	0 - 3048 m
Non-operating altitude	0 - 12192 m
Certificates
Certification	MIL-STD-810H Eyesafe® Certified 2.0 TÜV Rheinland® Flicker Free TÜV Rheinland® Low Blue Light (Hardware Solution) UL Anti-dust VOC Report
Sustainability
Sustainability certificates	ErP, TCO
Packaging content
Mouse included	Yes
Keyboard included	Yes
Technical details
Sustainability certificates	ErP, TCO
Weight	11.2 kg
Other features
SSD interface	PCI Express 4.0
SSD capacity	512 GB
Processor manufacturer	Intel
On-board graphics card	Yes
Number of SSDs installed	1
