60W, 100~240V & 1.6A, 90% PCC, 1 x HDMI 2.1, 1 x USB-A 10 Gbps 1 x USB-C 10 Gbps 1 x USB-C PD 3.0 Upstream to NB(Max.60W)
Key Features
90% PCC material
1 * HDMI 2.1 (4K @ 60hz)
1 * TF card reader
65W GaN module integrated
1 * USB-A (4.5W, 10gbs)
1 * USB-C (7.5W, 10gbs)
1 * USB-C upstream charging to NB
Description

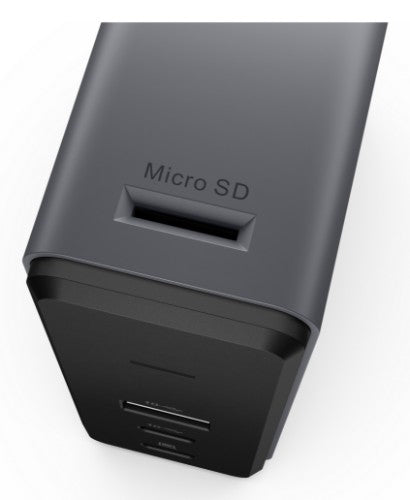

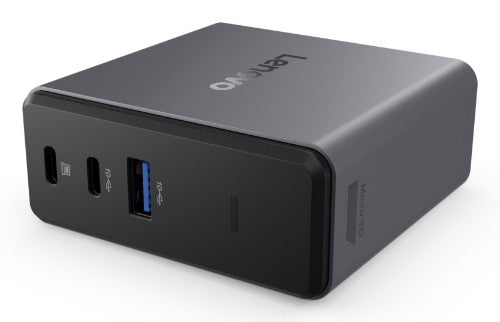

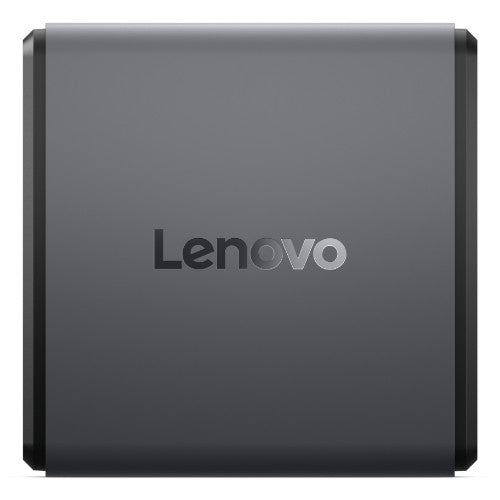

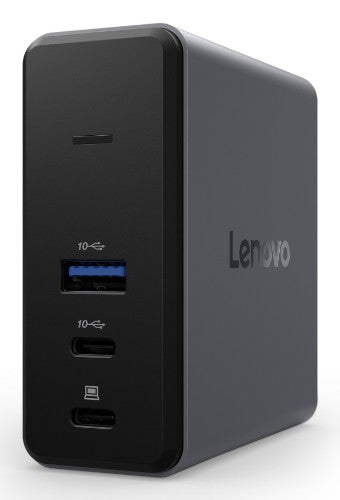

The Lenovo X9 Charging GaN Dock combines the best of both worlds—power and connectivity—all in a single, elegant device. Designed for Lenovo PC users who need seamless performance on the go or at the desk, this dock integrates flawlessly with ThinkPad X9 series, boasting perfect compatibility and a sleek, iconic look.
Specifications
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
2
Connectivity technology
Wired
USB 2.0 ports quantity
0
Host interface
USB 3.2 Gen 2 (3.1 Gen 2) Type-C
HDMI ports quantity
1
HDMI version
2.1
Microphone in
No
Headphone outputs
0
USB Power Delivery (USB PD)
Yes
USB Power Delivery revision
3.0
USB Power Delivery up to
60 W
Network
Ethernet LAN
No
Performance
Maximum digital resolution
3840 x 2160 pixels
Number of displays supported
1
Product colour
Grey
Card reader integrated
Yes
Brand compatibility
Lenovo
Compatible memory cards
MicroSD (TransFlash)
Reset button
No
Charging function
Yes
Certification
FCC/ICES
CE
CB
RCM
BSMI
VCCI/PSE
UKCA
TISI
TUV Mark
PSB
NOM
Maximum refresh rate
60 Hz
Storage
Card reader integrated
Yes
Compatible memory cards
MicroSD (TransFlash)
Power
Power source type
AC
Input current
1.6 A
Power consumption (max)
60 W
AC input voltage
100 - 240 V
Power cable length
1.5 m
USB cable length
0.5 m
Software
Windows operating systems supported
Windows 10, Windows 11
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
8 - 90%
Weight & dimensions
Width
80 mm
Depth
80 mm
Height
33.5 mm
Weight
281 g
Package width
190 mm
Package depth
183 mm
Package height
55 mm
Package weight
574 g
Design
Windows operating systems supported
Windows 10, Windows 11
Product colour
Grey
Certification
FCC/ICES
CE
CB
RCM
BSMI
VCCI/PSE
UKCA
TISI
TUV Mark
PSB
NOM
