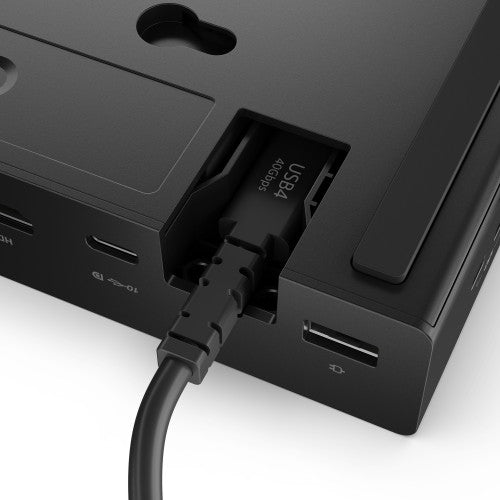

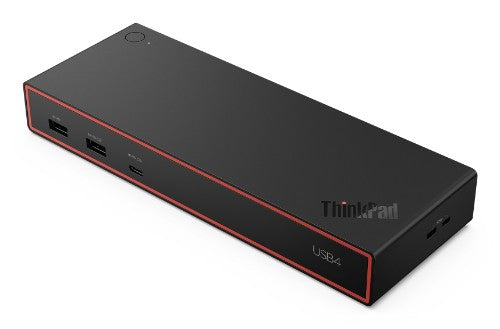

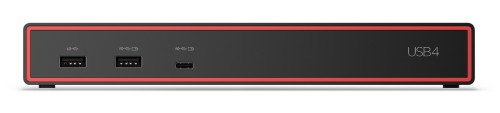

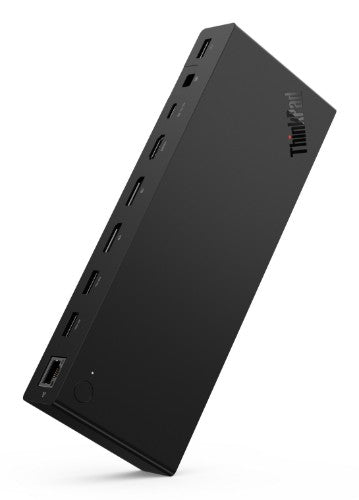

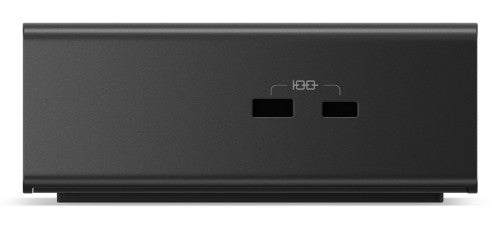

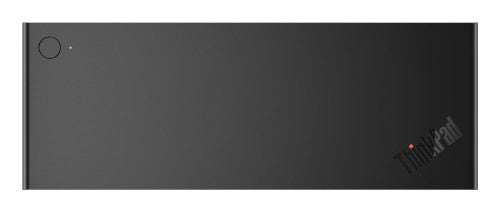

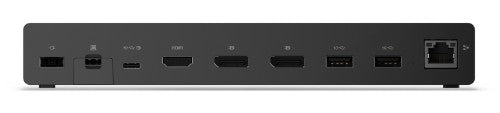

Designed to enhance everyday productivity, the Lenovo™ ThinkPad® USB4 Dock 5000 is the Successor of our famous Universal USB-C Dock equipped with cutting edge USB4 Technology, The dock can connect to your laptop with 40Gbps bandwidth USB4 upstream connectivity, that allows you to extend your monitor setup with more pixels and higher refresh rates. It can output 65W charge power to your laptop with 100W power adapter, or you can choose a 135W power adapter to boost the charge power up to 100W to you laptop.
Specifications
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
2
Connectivity technology
Wired
USB 2.0 ports quantity
0
Host interface
Thunderbolt 4

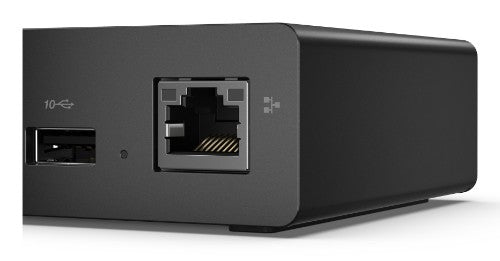

Ethernet LAN (RJ-45) ports
1
HDMI ports quantity
1
HDMI version
2.1
DisplayPorts quantity
2
Microphone in
No
Headphone outputs
0
USB Power Delivery (USB PD)
Yes
USB Power Delivery revision
3.1
USB Power Delivery up to
100 W
DisplayPort version
1.4
USB Type-C DisplayPort Alternate Mode
Yes
Network
Ethernet LAN
Yes
Ethernet LAN data rates
1000 Mbit/s
Ethernet LAN (RJ-45) ports
1
Performance
Maximum digital resolution
3840 x 2160 pixels
Number of displays supported
4
Product colour
Black
Card reader integrated
No
Cable lock slot
Yes
Certification
FCC/ICES
CE
KCC
RCM
BSMI
VCCI
CB
cULus
EAC
TUV- Mark
LoA
Ukraine DoC
NOM
Cable lock slot type
Kensington
Colour name
Eclipse Black
Storage
Card reader integrated
No
Power
Power source type
DC
Software
Windows operating systems supported
Windows 11
Mac operating systems supported
Mac OS X 14.0 Sonoma, Mac OS X 15.0 Sequoia
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
20 - 95%
Weight & dimensions
Width
218 mm
Depth
80 mm
Height
31.5 mm
Weight
470 g
Package width
240 mm
Package depth
145 mm
Package height
77 mm
Package weight
1.03 kg
Design
Windows operating systems supported
Windows 11
Mac operating systems supported
Mac OS X 14.0 Sonoma, Mac OS X 15.0 Sequoia
Product colour
Black
Cable lock slot
Yes
Certification
FCC/ICES
CE
KCC
RCM
BSMI
VCCI
CB
cULus
EAC
TUV- Mark
LoA
Ukraine DoC
NOM
