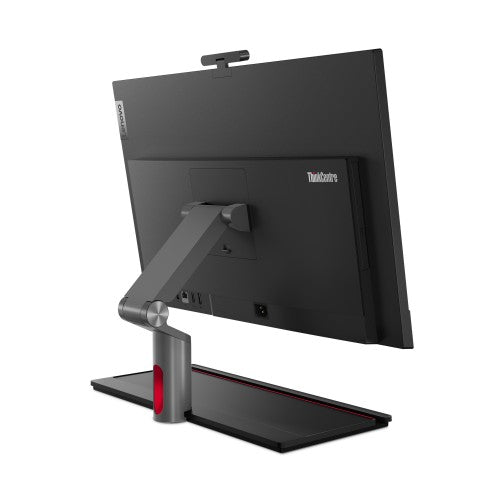

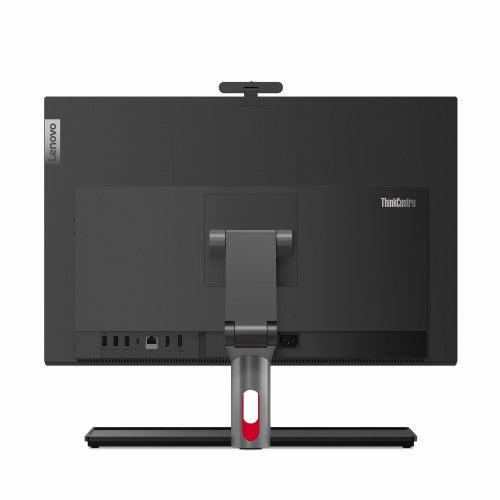

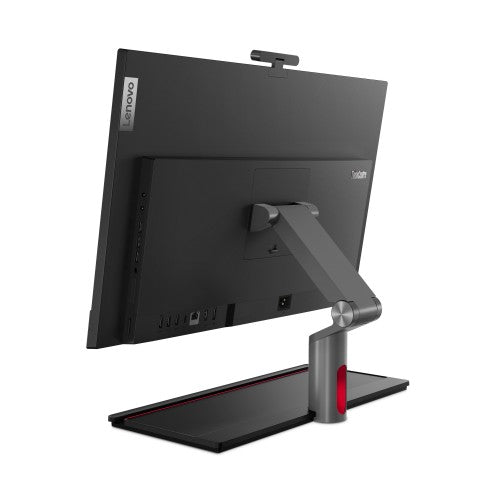

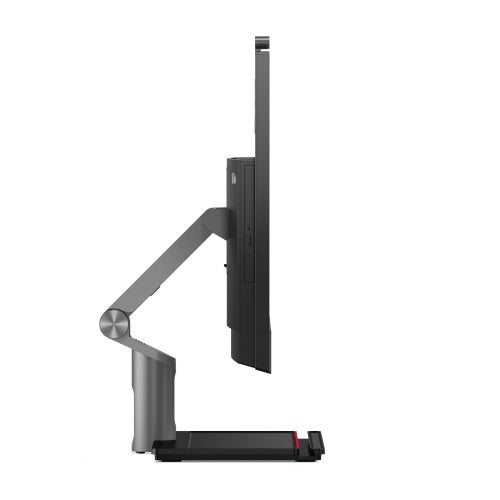

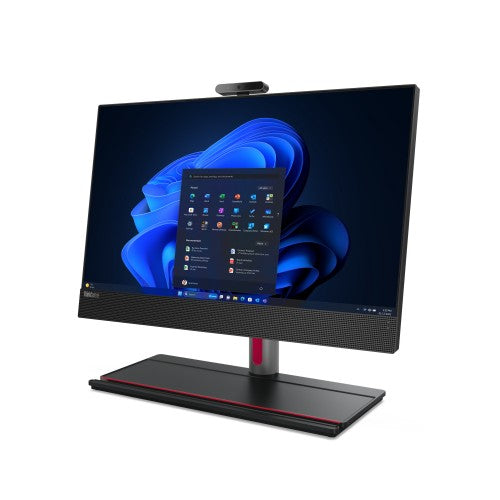

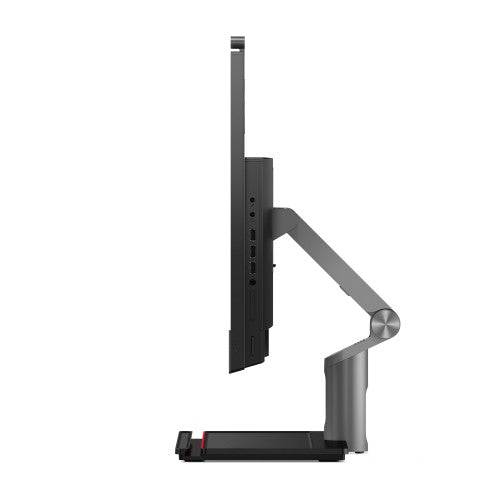

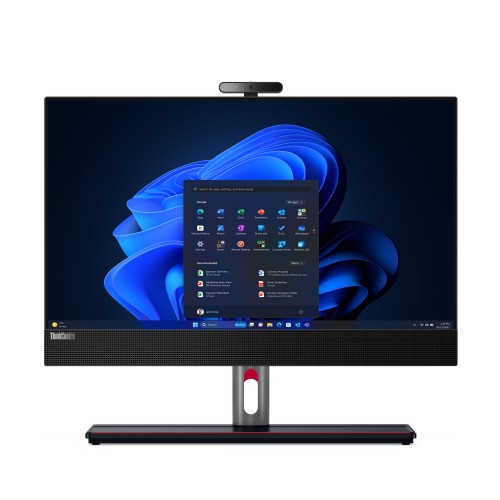

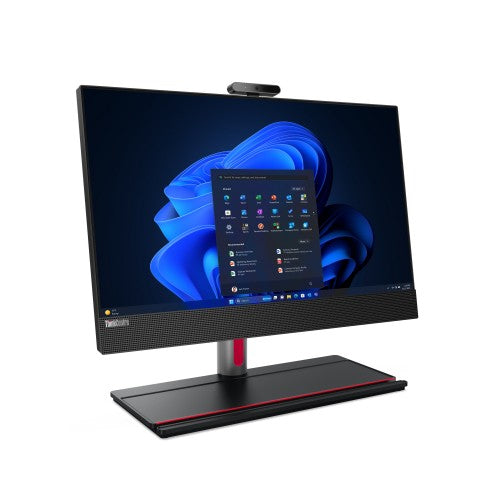

Lenovo ThinkCentre M90a Gen 5 Intel® Core™ i5 i5-14500 60.5 cm (23.8") 1920 x 1080 pixels All-in-One PC 16 GB DDR5-SDRAM 512 GB SSD Windows 11 Pro Wi-Fi 6 (802.11ax) Black

Intel Core i5-14500, 14C (6P + 8E)/20T, P-core 2.6/5.0GHz, E-core 1.9/3.7GHz, 24MB, 2x 8GB SO-DIMM DDR5-4800, 512GB SSD M.2 2280 PCIe 4.0x4 NVMe Opal 2.0, 23.8" FHD (1920x1080) IPS 250nits 60Hz 99% sRGB hardware low blue light flicker free eyesafe non-touch, Intel UHD Graphics 770, Intel Wi-Fi 6 AX201 802.11ax 2x2 + BT5.2, 5.0MP + IR Hybrid, Windows 11 Pro

Key Features

• Intel Core i5-14500, 14C (6P + 8E)/20T, P-core 2.6/5.0GHz, E-core 1.9/3.7GHz, 24MB
• 23.8" FHD (1920x1080) IPS 250nits 60Hz 99% sRGB hardware low blue light flicker free eyesafe non-touch
• 2x 8GB SO-DIMM DDR5-4800
• 512GB SSD M.2 2280 PCIe 4.0x4 NVMe Opal 2.0
• Intel UHD Graphics 770
• Windows 11 Pro

Description

Lenovo 12SH001BAU, ThinkCentre M90A G5 AIO, 23.8" FHD Screen (IR-Webcam), Intel i5-14500, 16GB DDR5 RAM, 512GB NVMe SSD, Keyboard+Mouse, Wireless AX+Bluetooth, Windows 11 Pro, 3 Year Onsite Warranty

Specifications

Display
HD type	Full HD
Display diagonal	60.5 cm (23.8")
Display resolution	1920 x 1080 pixels
Touchscreen	No
Display brightness	250 cd/m²
Panel type	IPS
Colour gamut	99%
RGB colour space	sRGB
Native aspect ratio	16:9
Anti-glare screen	Yes
Processor
Processor generation	Intel® Core™ i5 (14th gen)
Processor frequency	2.6 GHz
Processor family	Intel® Core™ i5
Processor model	i5-14500
Processor boost frequency	5 GHz
Processor cores	14
Motherboard chipset	Intel Q670
Processor manufacturer	Intel
Memory
Internal memory	16 GB
Maximum internal memory	64 GB
Internal memory type	DDR5-SDRAM
Memory slots	2
Memory slots type	SO-DIMM
Memory clock speed	4800 MHz
Memory layout (slots x size)	2 x 8 GB
Memory form factor	DIMM/SO-DIMM
Storage
Optical drive type	No
Total storage capacity	512 GB
Card reader integrated	Yes
Storage media	SSD
SSD interface	PCI Express 4.0
SSD capacity	512 GB
Number of SSDs installed	1
SSD form factor	M.2
Total SSDs capacity	512 GB
NVMe	Yes
Graphics
Discrete graphics card	No
On-board graphics card family	Intel® UHD Graphics
Discrete graphics card model	Not available
On-board graphics card model	Intel UHD Graphics 770
On-board graphics card	Yes
On-board GPU manufacturer	Intel
Audio
Number of speakers	2
Built-in speaker(s)	Yes
RMS rated power	6 W
Built-in microphone	Yes
Camera
Built-in camera	Yes
Total megapixels	5 MP
Privacy camera	Yes
Privacy type	Privacy shutter
Optical drive
Optical drive type	No
Network
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Wi-Fi	Yes
Wi-Fi standards	Wi-Fi 6 (802.11ax)
Ethernet LAN	Yes
Ethernet LAN data rates	100,1000 Mbit/s
Bluetooth	Yes
Bluetooth version	5.2
WLAN controller model	Intel Wi-Fi 6 AX201
Antenna type	2x2
WLAN controller manufacturer	Intel
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
USB 2.0 ports quantity	0
HDMI ports quantity	1
DisplayPorts quantity	1
Ethernet LAN (RJ-45) ports	1
Combo headphone/mic port	Yes
Design
Product colour	Black
Cable lock slot type	Kensington
Cable lock slot	Yes
Performance
Product type	All-in-One PC
Motherboard chipset	Intel Q670
Trusted Platform Module (TPM)	Yes
Trusted Platform Module (TPM) version	2.0
Software
Operating system installed	Windows 11 Pro
Operating system language	English
Power
AC adapter power	180 W
Multimedia
Built-in camera	Yes
Total megapixels	5 MP
Privacy camera	Yes
Privacy type	Privacy shutter
Weight & dimensions
Width (with stand)	539.6 mm
Depth (with stand)	344.2 mm
Height (with stand)	227.5 mm
Weight (with stand)	7.83 kg
Packaging content
Mouse included	Yes
Keyboard included	Yes
Mouse connectivity	Wired
Keyboard connectivity	Wired
Other features
SSD interface	PCI Express 4.0
SSD capacity	512 GB
Processor manufacturer	Intel
On-board graphics card	Yes
Number of SSDs installed	1
