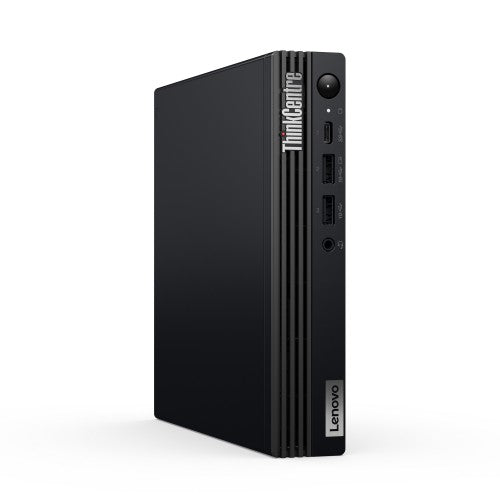

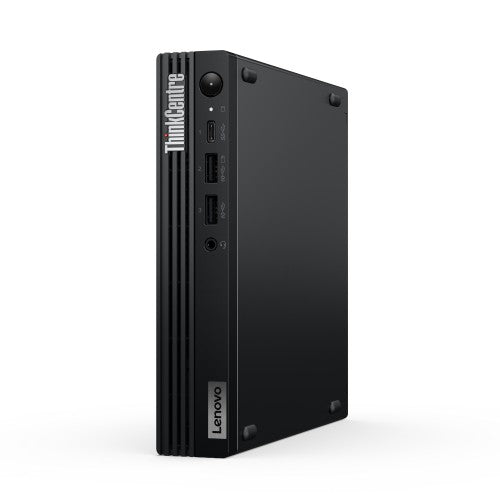

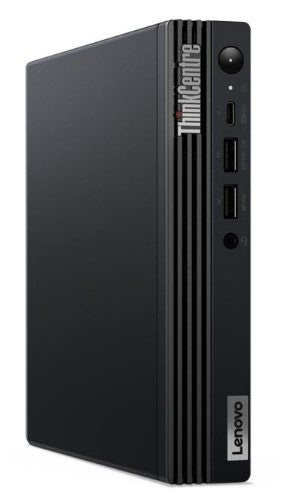

Lenovo ThinkCentre M70q Gen 5 Intel® Core™ i5 i5-14400T 16 GB DDR5-SDRAM 256 GB SSD Windows 11 Pro Mini PC Black

Intel Core i5-14400T, 10C (6P + 4E)/16T, P-core 1.5/4.5GHz, E-core 1.1/3.2GHz, 20MB, 2x 8GB SO-DIMM DDR5-4800, 256GB SSD M.2 2280 PCIe 4.0x4 NVMe Opal, Intel UHD Graphics 730, Intel Wi-Fi 6 AX201 802.11ax 2x2 + BT5.2, Windows 11 Pro

Key Features

• Intel Core i5-14400T, 10C (6P + 4E)/16T, P-core 1.5/4.5GHz, E-core 1.1/3.2GHz, 20MB
• 2x 8GB SO-DIMM DDR5-4800
• 256GB SSD M.2 2280 PCIe 4.0x4 NVMe Opal
• Intel UHD Graphics 730
• Windows 11 Pro

Description

Though tiny in form, the ThinkCentre M70q Gen 5 PC boasts powerful performance with up to Intel vPro® Enterprise technology. Intel® Core™ processors, combined with dual-channel memory deliver speedy responsiveness — so you can handle demanding workloads. Plus with flexible expansion slots, this compact device easily accommodates your growing business.

ThinkShield, our suite of security solutions safeguards your critical data and device. A self-healing BIOS restores your system to an earlier state should it ever be corrupted, while discrete Trusted Platform Module encrypts data. Optional Intel vPro® Enterprise boasts multilayered protection against cyber threats, data theft, and more.

The ThinkCentre M70q Gen 5 tiny PC boasts hassle-free deployment, upgrades, and management thanks to built-in driver support for older operating system (OS) versions. Tool-less access makes maintenance and expansion to memory modules and storage fast and efficient. Plus, Modern Standby wakes your system instantly, while ensuring power efficiency.

Looking for a sleek desktop that fits anywhere? The ThinkCentre M70q Gen 5 tiny can be easily mounted to the back of a monitor, beneath a desk, or even tucked away on a bookshelf. Plus you can position it horizontally or vertically — whatever suits your needs. What’s more, it supports up to three displays for when you really need to see what’s going on.

We use the US Department of Defense's MIL-STD 810H to create a balance of reliability and durability for our devices. Meeting 12 standards and 17 procedures, ThinkCentre PCs are engineered to run in harsh conditions like the Arctic wilderness, desert dust storms, extreme temps, pressure, humidity, vibration, and more.

The ThinkCentre M70q Gen 5 tiny PC uses 85% post-consumer content (PCC) recycled acrylonitrile butadiene styrene (ABS) in the chassis. The packaging has 30% ocean-bound plastic in the thermal shell and bag, with a Forest Stewardship Council® (FSC) certified carton. Plus it’s certified ENERGY STAR® 8.0 for energy efficiency and reduced costs.

Specifications may vary depending upon region / model.

Specifications

Processor
Processor generation	Intel® Core™ i5 (14th gen)
Processor cache type	Smart Cache
Processor family	Intel® Core™ i5
Processor manufacturer	Intel
Processor model	i5-14400T
Processor cores	10
Processor boost frequency	4.5 GHz
Processor cache	20 MB
Processor threads	16
Performance cores	6
Efficient cores	4
Performance-core base frequency	1.5 GHz
Efficient-core base frequency	1.1 GHz
Processor base power	35 W
Maximum turbo power	82 W
Efficient-core Max Turbo Frequency	3.2 GHz
Performance-core Max Turbo Frequency	4.5 GHz
Memory
Internal memory	16 GB
Internal memory type	DDR5-SDRAM
Maximum internal memory	64 GB
Memory layout (slots x size)	2 x 8 GB
Memory slots	2x SO-DIMM
Memory clock speed	4800 MHz
Memory channels	Dual-channel
Storage
Total storage capacity	256 GB
Optical drive type	No
Card reader integrated	No
Storage media	SSD
Number of storage drives installed	1
Number of SSDs installed	1
SSD capacity	256 GB
SSD interface	PCI Express 4.0
SSD memory type	TLC
SSD form factor	M.2
Total SSDs capacity	256 GB
NVMe	Yes
Graphics
Discrete graphics card	No
On-board graphics card family	Intel® UHD Graphics
Discrete graphics card model	Not available
On-board graphics card model	Intel UHD Graphics 730
On-board graphics card	Yes
On-board GPU manufacturer	Intel
Optical drive
Optical drive type	No
Network
Ethernet LAN	Yes
Ethernet LAN data rates	100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Wi-Fi	Yes
Wi-Fi standards	Wi-Fi 6 (802.11ax)
Bluetooth	Yes
Bluetooth version	5.2
WLAN controller model	Intel Wi-Fi 6 AX201
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Antenna type	2x2
WLAN controller manufacturer	Intel
Ports & interfaces
Combo headphone/mic port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Thunderbolt 3 ports quantity	0
USB 2.0 ports quantity	1
HDMI ports quantity	1
HDMI version	2.1
DisplayPorts quantity	1
Ethernet LAN (RJ-45) ports	1
DisplayPort version	1.4a
Design
Product colour	Black
Volume	1 L
Chassis type	Mini PC
Cable lock slot	Yes
Cable lock slot type	Kensington
Colour name	Raven black
Performance
Audio chip	Realtek ALC233VB
Number of speakers	1
Product type	Mini PC
Motherboard chipset	Intel Q670
Audio system	High Definition Audio
Password protection	Yes
Password protection type	BIOS, HDD, Power on, Supervisor
Trusted Platform Module (TPM)	Yes
Built-in speaker(s)	Yes
Trusted Platform Module (TPM) version	2.0
Software
Operating system installed	Windows 11 Pro
Operating system architecture	64-bit
Operating system language	English
Power
Power supply	90 W
Operational conditions
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	20 - 80%
Operating altitude	0 - 3048 m
Non-operating altitude	0 - 12192 m
Storage temperature (T-T)	-40 - 60 °C
Storage relative humidity (H-H)	10 - 90%
Certificates
Certification	ENERGY STAR® 8.0 ErP Lot 3 and Lot 7 RoHS compliant TCO Certified MIL-STD-810H
Weight & dimensions
Volume	1 L
Width	179 mm
Depth	182.9 mm
Height	36.5 mm
Weight	1.25 kg
Package width	490 mm
Package depth	141 mm
Package height	268 mm
Package weight	2.85 kg
Packaging data
Package width	490 mm
Package depth	141 mm
Package height	268 mm
Package weight	2.85 kg
Packaging content
Display included	No
Mouse included	Yes
Keyboard included	Yes
Mouse connectivity	Wired
Keyboard connectivity	Wired
Display
Display included	No
Other features
Number of speakers	1
Processor manufacturer	Intel
Trusted Platform Module (TPM)	Yes
On-board graphics card	Yes
Built-in speaker(s)	Yes
