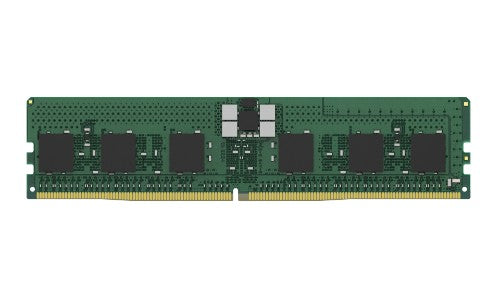

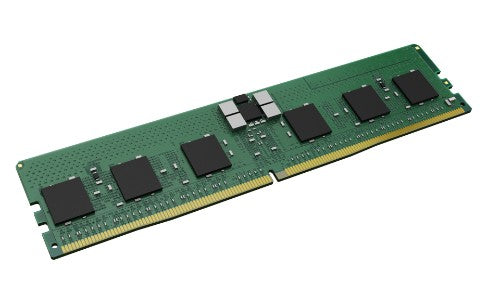

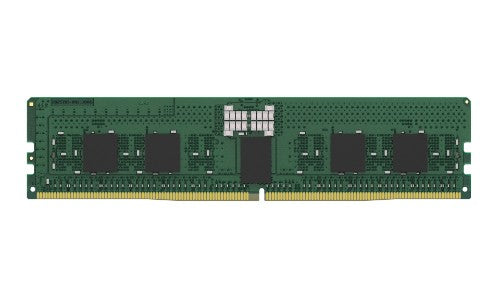

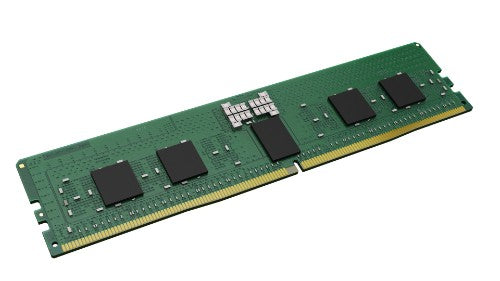

Kingston Technology KSM56R46BS8-16HA memory module 16 GB 1 x 16 GB DDR5 5600 MT/s

16GB, DDR5, 5600MT/s, ECC, Registered, DIMM, CL46, 1RX8, 1.1V, 288-pin, 16Gbit Hynix A

Description

Kingston makes it quick and easy to select compatible RAM memory for your Desktop PC, Laptop, or Server. Search by OEM brand system, OEM memory part number, or memory specifications.

Specifications

Design
JEDEC standard	Yes
Memory
Buffered memory type	Registered (buffered)
Internal memory	16 GB
Internal memory type	DDR5
Component for	PC/Server
ECC	No
Row Precharge Time (TRP)	16
Memory layout (modules x size)	1 x 16 GB
Memory form factor	288-pin DIMM
CAS latency	46
Memory voltage	1.1 V
Lead plating	Gold
Module configuration	2048M x 80
Row cycle time	48 ns
Refresh row cycle time	295 ns
Row active time	32 ns
SPD profile	Yes
Memory ranking	1
Programming power voltage (VPP)	1.8 V
Features
On-Die ECC	Yes
Buffered memory type	Registered (buffered)
Internal memory	16 GB
Internal memory type	DDR5
Component for	PC/Server
ECC	No
Row Precharge Time (TRP)	16
Memory layout (modules x size)	1 x 16 GB
Memory form factor	288-pin DIMM
CAS latency	46
Memory voltage	1.1 V
Lead plating	Gold
Module configuration	2048M x 80
Row cycle time	48 ns
Refresh row cycle time	295 ns
Row active time	32 ns
SPD profile	Yes
Memory ranking	1
Programming power voltage (VPP)	1.8 V
JEDEC standard	Yes
Memory data transfer rate	5600 MT/s
Operational conditions
Operating temperature (T-T)	0 - 95 °C
Storage temperature (T-T)	-55 - 100 °C
Technical details
Doesn't contain	Halogen
Compliance certificates	RoHS
Sustainability
Doesn't contain	Halogen
Weight & dimensions
Width	133.3 mm
Height	31.2 mm
