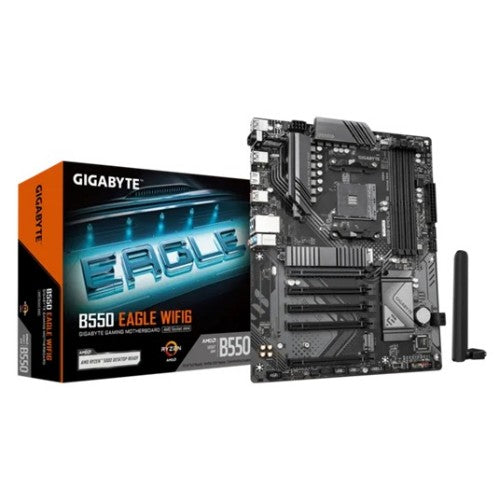

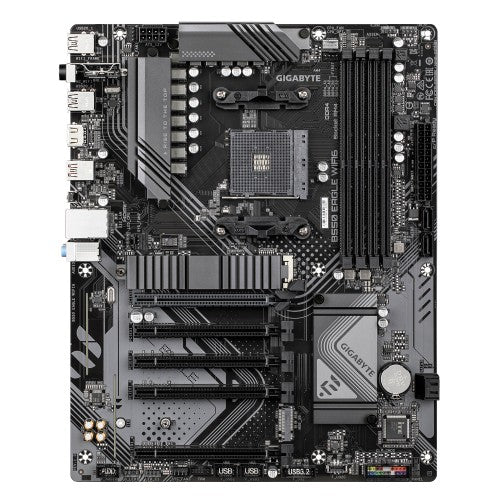

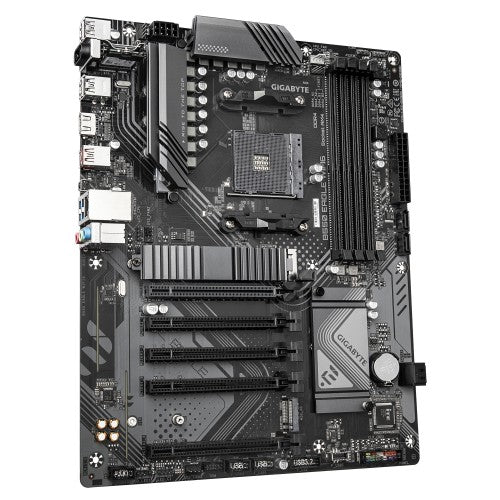

GIGABYTE B550 EAGLE WIFI6 Motherboard - AMD Ryzen 5000 G-Series CPUs, 10+3+1 Phases VRM, up to 3200MHz DDR4, 1xPCIe 4.0 + 1xPCIe 3.0 M.2, 1GbE LAN, WIFI 6, USB 3.2 Gen 2

B550 EAGLE WIFI6 Motherboard - AMD Ryzen 5000 G-Series CPUs, 10+3+1 Phases VRM, up to 3200MHz DDR4, 1xPCIe 4.0 + 1xPCIe 3.0 M.2, 1GbE LAN, WIFI 6, USB 3.2 Gen 2

Key Features

• AMD Socket AM4: Supports AMD Ryzen 5000 / 4000 / 3000 Series Processors
• Digital twin 10+3+1 phases VRM solution
• Dual Channel DDR4: 4*DIMMs with AMD EXPO Memory Module Support
• EZ-Latch: PCIe slots with Quick Release Design
• Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.
• Ultra-Fast Storage: 2*M.2 slots, including PCIe 4.0 x1
• Efficient Thermal: VRM Thermal Armor Advanced
• Fast Networking: GbE LAN & Wi-Fi 6
• Extended Connectivity: HDMI, Displayport
• PCIe UD Slot: PCIe 4.0 x16 slots with 10X strength for graphics card & Better Heat dissipation effect

Description

Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge

Specifications

Internal I/O
Number of M.2 (M) slots	2
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
Front panel connector	Yes
Supported storage drive interfaces	M.2, PCI Express 4.0, SATA III
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
TPM connector	Yes
Number of SATA III connectors	4
Number of chassis fan connectors	3
Front panel audio connector	Yes
EPS power connector (8-pin)	Yes
CPU fan connector	Yes
ATX Power connector (24-pin)	Yes
RGB LED pin header	Yes
Number of CPU fan connectors	2
Number of EPS power connectors (8-pin)	1
Number of water pump connectors	1
Number of RGB LED pin headers	5
Performance
Number of HDDs supported	4
Supported storage drive types	HDD & SSD
Component for	PC
Motherboard chipset family	AMD
Motherboard chipset	AMD B550
Motherboard form factor	ATX
Audio output channels	7.1 channels
Supported processor sockets	Socket AM4
RAID levels	0, 1, 10
PC health monitoring	Fan, Temperature, Voltage, Water cooling
Cooling type	Passive
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Processor
Processor manufacturer	AMD
Compatible processor series	AMD Ryzen 3000 Series, AMD Ryzen 4000 Series, AMD Ryzen 5000 Series
Processor socket	Socket AM4
Supported processor sockets	Socket AM4
Memory
Number of memory slots	4
Supported memory types	DDR4-SDRAM
Memory slots type	DIMM
Memory channels	Dual-channel
Supported memory clock speeds	3200,2933,2667,2400,2133 MHz
Maximum internal memory	128 GB
Unbuffered memory	Yes
Supported memory clock speed (max)	3200 MHz
ECC сompatibility	ECC & Non-ECC
Maximum internal memory per slot	32 GB
Storage controllers
Number of HDDs supported	4
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, PCI Express 4.0, SATA III
RAID levels	0, 1, 10
Number of storage drives supported	6
RAID support	Yes
Graphics
Parallel processing technology support	Not supported
Maximum resolution	4096 x 2160 pixels
HDCP	Yes
DirectX version	12.0

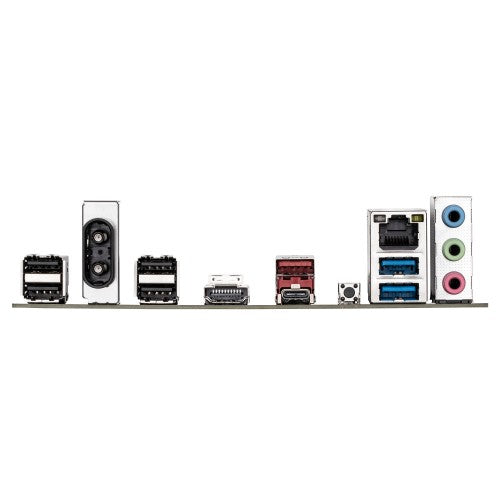

Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
USB 2.0 ports quantity	4
Ethernet LAN (RJ-45) ports	1
WiFi-AP antenna jack	2
VGA (D-Sub) ports quantity	0
Microphone in	Yes
Headphone outputs	1
HDMI version	2.1
HDMI ports quantity	1
DVI-D ports quantity	0
Line-in	Yes
Network
Ethernet LAN	Yes
Wi-Fi	Yes
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
LAN controller	Realtek RTL8111H
Ethernet interface type	Gigabit Ethernet
Bluetooth	Yes
Bluetooth version	5.3
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
WLAN controller model	Realtek RTL8851BE
Features
Power source type	ATX
Component for	PC
Motherboard chipset family	AMD
Motherboard chipset	AMD B550
Motherboard form factor	ATX
Audio output channels	7.1 channels
Supported processor sockets	Socket AM4
PC health monitoring	Fan, Temperature, Voltage, Water cooling
Cooling type	Passive
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Audio chip	Realtek ALC897
Product colour	Dark brown
Expansion slots
Number of M.2 (M) slots	2
PCI Express x1 (Gen 3.x) slots	4
PCI Express x16 (Gen 4.x) slots	1
1st M.2 largest key size	22110
1st M.2 highest PCI Express generation	4.0
2nd M.2 largest key size	22110
2nd M.2 highest PCI Express generation	3.0
BIOS
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
BIOS type	UEFI AMI
Clear CMOS jumper	Yes
BIOS memory size	128 Mbit
ACPI version	5.0
System Management BIOS (SMBIOS) version	2.7
Desktop Management Interface (DMI) version	2.7
Power
Power source type	ATX
Packaging data
Package width	335 mm
Package depth	270 mm
Package height	80 mm
Package weight	1.48 kg
Battery
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
Battery weight	3 g
Number of battery cells	1
Lithium weight per battery	0.07 g
Battery type	CR2032
Logistics data
Products per shipping (inner) case	1 pc(s)
Weight & dimensions
Width	305 mm
Depth	244 mm
Height	35 mm
Weight	1.25 kg
Package width	335 mm
Package depth	270 mm
Package height	80 mm
Package weight	1.48 kg
Packaging content
Bundled software	Norton® Internet Security (OEM version) LAN bandwidth management software
Batteries included	Yes
Screws included	Yes
Antenna included	Yes
Technical details
Warranty period	3 year(s)
Other features
Height	35 mm
Weight	1.25 kg
Package width	335 mm
Package depth	270 mm
Package height	80 mm
Package weight	1.48 kg
